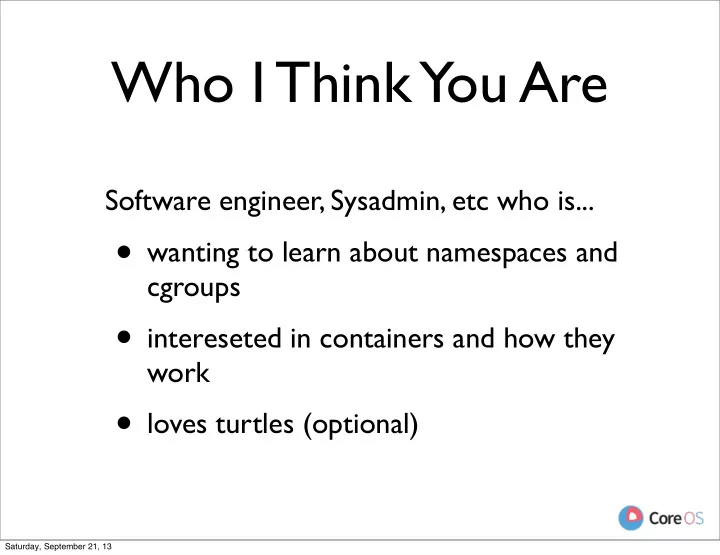

Who I Think You Are

Software engineer, Sysadmin, etc who is...

  • wanting to learn about namespaces and

cgroups

  • intereseted in containers and how they

work

  • loves turtles (optional)

Saturday, September 21, 13

slide-2
SLIDE 2

Modern Linux Server with Containers

brandon.philips@coreos.com

Saturday, September 21, 13

slide-3
SLIDE 3

Overview

Saturday, September 21, 13

slide-4
SLIDE 4

Overview

  • System Designs

Saturday, September 21, 13

slide-5
SLIDE 5

Overview

  • System Designs
  • Namespaces

Saturday, September 21, 13

slide-6
SLIDE 6

Overview

  • System Designs
  • Namespaces
  • Cgroups

Saturday, September 21, 13

slide-7
SLIDE 7

Overview

  • System Designs
  • Namespaces
  • Cgroups
  • Tooling

Saturday, September 21, 13

slide-8
SLIDE 8

The Spectrum

Saturday, September 21, 13

slide-9
SLIDE 9

Saturday, September 21, 13

slide-10
SLIDE 10

Hypervisor

Saturday, September 21, 13

slide-11
SLIDE 11

Container Hypervisor

Saturday, September 21, 13

slide-12
SLIDE 12

Container Application Container Hypervisor

Saturday, September 21, 13

slide-13
SLIDE 13

WARNING

Saturday, September 21, 13

slide-14
SLIDE 14

Saturday, September 21, 13

slide-15
SLIDE 15

Saturday, September 21, 13

slide-16
SLIDE 16

Saturday, September 21, 13

slide-17
SLIDE 17

Saturday, September 21, 13

slide-18
SLIDE 18

Saturday, September 21, 13

slide-19
SLIDE 19

Saturday, September 21, 13

slide-20
SLIDE 20

System Designs

Saturday, September 21, 13

slide-21
SLIDE 21

Saturday, September 21, 13

slide-22
SLIDE 22

Hypervisor

Saturday, September 21, 13

slide-23
SLIDE 23

Hypervisor

  • Host provides full hardware environment

Saturday, September 21, 13

slide-24
SLIDE 24

Hypervisor

  • Host provides full hardware environment
  • Block device, ethernet device, etc

Saturday, September 21, 13

slide-25
SLIDE 25

Hypervisor

  • Host provides full hardware environment
  • Block device, ethernet device, etc
  • Guests run a full kernel

Saturday, September 21, 13

slide-26
SLIDE 26

Saturday, September 21, 13

slide-27
SLIDE 27

Container

Saturday, September 21, 13

slide-28
SLIDE 28

Container

  • Host provides Kernel

Saturday, September 21, 13

slide-29
SLIDE 29

Container

  • Host provides Kernel
  • Filesystem, network interface, etc are

already there

Saturday, September 21, 13

slide-30
SLIDE 30

Container

  • Host provides Kernel
  • Filesystem, network interface, etc are

already there

  • Guest starts from /sbin/init

Saturday, September 21, 13

slide-31
SLIDE 31

Saturday, September 21, 13

slide-32
SLIDE 32

Application Container

Saturday, September 21, 13

slide-33
SLIDE 33

Application Container

  • Host provides Kernel

Saturday, September 21, 13

slide-34
SLIDE 34

Application Container

  • Host provides Kernel
  • User data, socket fd, etc are already there

Saturday, September 21, 13

slide-35
SLIDE 35

Application Container

  • Host provides Kernel
  • User data, socket fd, etc are already there
  • Starts from application not init

Saturday, September 21, 13

slide-36
SLIDE 36

Namespaces

Saturday, September 21, 13

slide-37
SLIDE 37

Imagine: cool medieval castle photo *perhaps fog rolling in*

Saturday, September 21, 13

slide-38
SLIDE 38

Filesystem

Saturday, September 21, 13

slide-39
SLIDE 39

Filesystem

  • Read-only

Saturday, September 21, 13

slide-40
SLIDE 40

Filesystem

  • Read-only
  • Shared

Saturday, September 21, 13

slide-41
SLIDE 41

Filesystem

  • Read-only
  • Shared
  • Slave

Saturday, September 21, 13

slide-42
SLIDE 42

Filesystem

  • Read-only
  • Shared
  • Slave
  • Private

Saturday, September 21, 13

slide-43
SLIDE 43

Read-only

Saturday, September 21, 13

slide-44
SLIDE 44

Private bind mount before: after: source/a-file bind/a-file mount -t tmpfs -o size=1M tmpfs source/mnt before: after: source/mnt/tmpfs-file mount -t tmpfs -o size=1M tmpfs bind/mnt2 before: after: bind/mnt2/mnt2-file

Saturday, September 21, 13

slide-45
SLIDE 45

Shared bind mount before: after: source/a-file bind/a-file mount -t tmpfs -o size=1M tmpfs source/mnt before: after: source/mnt/tmpfs-file bind/mnt/tmpfs-file mount -t tmpfs -o size=1M tmpfs bind/mnt2 before: after: source/mnt2/mnt2-file bind/mnt2/mnt2-file

Saturday, September 21, 13

slide-46
SLIDE 46

Slave bind mount before: after: source/a-file bind/a-file mount -t tmpfs -o size=1M tmpfs source/mnt before: after: source/mnt/tmpfs-file bind/mnt/tmpfs-file mount -t tmpfs -o size=1M tmpfs bind/mnt2 before: after: bind/mnt2/mnt2-file

Saturday, September 21, 13

slide-47
SLIDE 47

Patterns

  • Mounting RO /usr inside a container
  • Private /tmp per service
  • Sharing data across containers via binds

Saturday, September 21, 13

slide-48
SLIDE 48

Networking

Saturday, September 21, 13

slide-49
SLIDE 49

Networking

  • Root namespace

Saturday, September 21, 13

slide-50
SLIDE 50

Networking

  • Root namespace
  • Bridging

Saturday, September 21, 13

slide-51
SLIDE 51

Networking

  • Root namespace
  • Bridging
  • Private namespace with socket activation

Saturday, September 21, 13

slide-52
SLIDE 52

Root Namespace

  • Full access to the machine interfaces

Saturday, September 21, 13

slide-53
SLIDE 53

Root Namespace

Saturday, September 21, 13

slide-54
SLIDE 54

Root Namespace

  • Advantages

Saturday, September 21, 13

slide-55
SLIDE 55

Root Namespace

  • Advantages
  • Fast

Saturday, September 21, 13

slide-56
SLIDE 56

Root Namespace

  • Advantages
  • Fast
  • Easy to get setup

Saturday, September 21, 13

slide-57
SLIDE 57

Root Namespace

  • Advantages
  • Fast
  • Easy to get setup
  • Network looks normal

to the container

Saturday, September 21, 13

slide-58
SLIDE 58

Root Namespace

  • Advantages
  • Fast
  • Easy to get setup
  • Network looks normal

to the container

Saturday, September 21, 13

slide-59
SLIDE 59

Root Namespace

  • Advantages
  • Fast
  • Easy to get setup
  • Network looks normal

to the container

  • Disadvatages

Saturday, September 21, 13

slide-60
SLIDE 60

Root Namespace

  • Advantages
  • Fast
  • Easy to get setup
  • Network looks normal

to the container

  • Disadvatages
  • No separation of

concerns

Saturday, September 21, 13

slide-61
SLIDE 61

Root Namespace

  • Advantages
  • Fast
  • Easy to get setup
  • Network looks normal

to the container

  • Disadvatages
  • No separation of

concerns

  • Container has full

control

Saturday, September 21, 13

slide-62
SLIDE 62

Network Bridges

Saturday, September 21, 13

slide-63
SLIDE 63

Network Bridges

  • Create a bridge, like a virtual switch

Saturday, September 21, 13

slide-64
SLIDE 64

Network Bridges

  • Create a bridge, like a virtual switch
  • Create container namespace and add

interface

Saturday, September 21, 13

slide-65
SLIDE 65

Network Bridges

  • Create a bridge, like a virtual switch
  • Create container namespace and add

interface

  • Attach container interface to bridge

Saturday, September 21, 13

slide-66
SLIDE 66

Network Bridges

Saturday, September 21, 13

slide-67
SLIDE 67

Network Bridges

  • Advantages

Saturday, September 21, 13

slide-68
SLIDE 68

Network Bridges

  • Advantages
  • More complex to get

setup

Saturday, September 21, 13

slide-69
SLIDE 69

Network Bridges

  • Advantages
  • More complex to get

setup

  • Network looks normal

to the container

Saturday, September 21, 13

slide-70
SLIDE 70

Network Bridges

  • Advantages
  • More complex to get

setup

  • Network looks normal

to the container

Saturday, September 21, 13

slide-71
SLIDE 71

Network Bridges

  • Advantages
  • More complex to get

setup

  • Network looks normal

to the container

Saturday, September 21, 13

slide-72
SLIDE 72

Network Bridges

  • Advantages
  • More complex to get

setup

  • Network looks normal

to the container

  • Disadvantages

Saturday, September 21, 13

slide-73
SLIDE 73

Network Bridges

  • Advantages
  • More complex to get

setup

  • Network looks normal

to the container

  • Disadvantages
  • Less speed

Saturday, September 21, 13

slide-74
SLIDE 74

Network Bridges

  • Advantages
  • More complex to get

setup

  • Network looks normal

to the container

  • Disadvantages
  • Less speed
  • NAT to the internet

Saturday, September 21, 13

slide-75
SLIDE 75

Network Bridges

  • Advantages
  • More complex to get

setup

  • Network looks normal

to the container

  • Disadvantages
  • Less speed
  • NAT to the internet
  • iptables to expose public

socket

Saturday, September 21, 13

slide-76
SLIDE 76

Socket Activation

Saturday, September 21, 13

slide-77
SLIDE 77

Socket Activation

  • No interface

Saturday, September 21, 13

slide-78
SLIDE 78

Socket Activation

  • No interface
  • Sockets are passed via stdin (inetd)

Saturday, September 21, 13

slide-79
SLIDE 79

Socket Activation

  • No interface
  • Sockets are passed via stdin (inetd)
  • systemd style listen fd API

Saturday, September 21, 13

slide-80
SLIDE 80

inetd style

Saturday, September 21, 13

slide-81
SLIDE 81

inetd style

  • Advantages

Saturday, September 21, 13

slide-82
SLIDE 82

inetd style

  • Advantages
  • Fast and isolated

Saturday, September 21, 13

slide-83
SLIDE 83

inetd style

  • Advantages
  • Fast and isolated
  • Simple and well

understood

Saturday, September 21, 13

slide-84
SLIDE 84

inetd style

  • Advantages
  • Fast and isolated
  • Simple and well

understood

  • Support from existing

daemons like ssh

Saturday, September 21, 13

slide-85
SLIDE 85

inetd style

  • Advantages
  • Fast and isolated
  • Simple and well

understood

  • Support from existing

daemons like ssh

  • No process running until

needed

Saturday, September 21, 13

slide-86
SLIDE 86

inetd style

  • Advantages
  • Fast and isolated
  • Simple and well

understood

  • Support from existing

daemons like ssh

  • No process running until

needed

  • Disadvantages

Saturday, September 21, 13

slide-87
SLIDE 87

inetd style

  • Advantages
  • Fast and isolated
  • Simple and well

understood

  • Support from existing

daemons like ssh

  • No process running until

needed

  • Disadvantages
  • One process per client

(scaling problems!)

Saturday, September 21, 13

slide-88
SLIDE 88

listen fd style

Saturday, September 21, 13

slide-89
SLIDE 89

listen fd style

  • Advantages

Saturday, September 21, 13

slide-90
SLIDE 90

listen fd style

  • Advantages
  • Fast and isolated

Saturday, September 21, 13

slide-91
SLIDE 91

listen fd style

  • Advantages
  • Fast and isolated
  • Only one process

needed per service

Saturday, September 21, 13

slide-92
SLIDE 92

listen fd style

  • Advantages
  • Fast and isolated
  • Only one process

needed per service

  • No process running until

needed

Saturday, September 21, 13

slide-93
SLIDE 93

listen fd style

  • Advantages
  • Fast and isolated
  • Only one process

needed per service

  • No process running until

needed

Saturday, September 21, 13

slide-94
SLIDE 94

listen fd style

  • Advantages
  • Fast and isolated
  • Only one process

needed per service

  • No process running until

needed

  • Disadvantages

Saturday, September 21, 13

slide-95
SLIDE 95

listen fd style

  • Advantages
  • Fast and isolated
  • Only one process

needed per service

  • No process running until

needed

  • Disadvantages
  • Patches required to

daemons

Saturday, September 21, 13

slide-96
SLIDE 96

Process Namespace

  • PID 1 is something else outside the

namespace

Saturday, September 21, 13

slide-97
SLIDE 97

All the Rest

Saturday, September 21, 13

slide-98
SLIDE 98

Cgroups

Saturday, September 21, 13

slide-99
SLIDE 99

Imagine: an accountant’s overflowing desk perhaps hands on head in dispair

Saturday, September 21, 13

slide-100
SLIDE 100

Block I/O

  • Limit: Weight from 10 to1000
  • Limit: Bandwidth limits R/W
  • Metrics: iops serviced, waiting and

queued

Saturday, September 21, 13

slide-101
SLIDE 101

CPU

  • Limit: Shares system 1024 is half of 2048
  • Metrics: cpuacct.stats user and system

Saturday, September 21, 13

slide-102
SLIDE 102
  • Limit: Total RSS memory limit
  • Metrics: swap, total rss, # page ins/outs

Memory

Saturday, September 21, 13

slide-103
SLIDE 103

Tooling

Saturday, September 21, 13

slide-104
SLIDE 104

docker

Saturday, September 21, 13

slide-105
SLIDE 105

nspawn

Saturday, September 21, 13

slide-106
SLIDE 106

nsenter

Saturday, September 21, 13

slide-107
SLIDE 107

/sys/fs/cgroup

Saturday, September 21, 13

slide-108
SLIDE 108

systemd units

Saturday, September 21, 13

slide-109
SLIDE 109

systemd-cgtop

Saturday, September 21, 13

slide-110
SLIDE 110

Recap

Saturday, September 21, 13

slide-111
SLIDE 111

Recap

  • Containers are built on namespaces and

cgroups

Saturday, September 21, 13

slide-112
SLIDE 112

Recap

  • Containers are built on namespaces and

cgroups

  • Namespaces provide isolation similar to

hypervisors

Saturday, September 21, 13

slide-113
SLIDE 113

Recap

  • Containers are built on namespaces and

cgroups

  • Namespaces provide isolation similar to

hypervisors

  • Cgroups provide resource limiting and

accounting

Saturday, September 21, 13

slide-114
SLIDE 114

Recap

  • Containers are built on namespaces and

cgroups

  • Namespaces provide isolation similar to

hypervisors

  • Cgroups provide resource limiting and

accounting

  • These tools can be mixed to create hybrids

Saturday, September 21, 13

slide-115
SLIDE 115

Future

Saturday, September 21, 13

slide-116
SLIDE 116

Thanks!

@BrandonPhilips @CoreOSLinux

Saturday, September 21, 13
