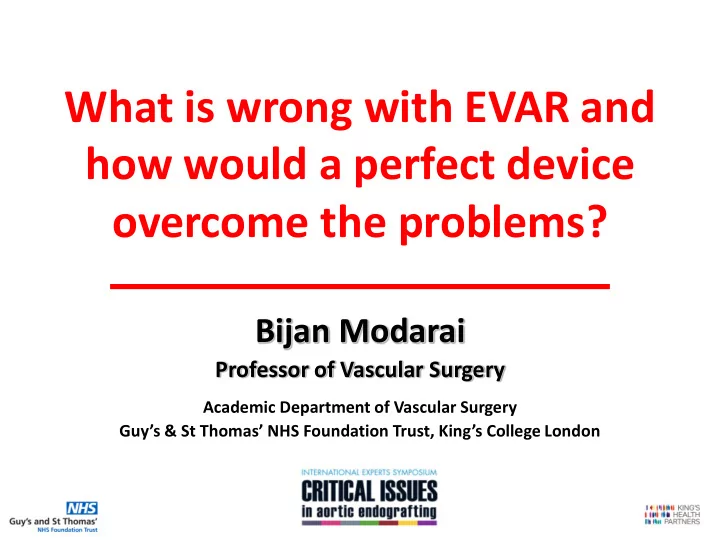

What is wrong with EVAR and how would a perfect device overcome the problems? Bijan Modarai Professor of Vascular Surgery Academic Department of Vascular Surgery Guys & St Thomas NHS Foundation Trust, Kings College London

SLIDE 1

Bijan Modarai

Professor of Vascular Surgery

Academic Department of Vascular Surgery Guy’s & St Thomas’ NHS Foundation Trust, King’s College London

What is wrong with EVAR and how would a perfect device

vercome the problems?

SLIDE 2

Disclosures

Cook:

Proctoring, Speaker’s fees, Grant support, Consulting

Cydar Medical:

Scientific advisory board

SLIDE 3

DREAM Medicare Data EVAR 1

Schermerhorn et al. N Eng J Med 2015 Van Schaik et al. J Vasc Surg 2017 Patel et al. Lancet 2016

SLIDE 4

~50% survival at 10 years

SLIDE 5

Van Schaik et al. J Vasc Surg 2017 Patel et al. Lancet 2016

SLIDE 6

Reintervention

SLIDE 7

SLIDE 8

Malignancy Risk?

SLIDE 9

Stent graft evolution

SLIDE 10

Stent graft evolution

SLIDE 11

Materials Fixation Profile Deployment

SLIDE 12

Disease progression Case selection Radiation exposure Device integrity Device fixation Endoleak Limb occlusion Surveillance EVAR Challenges

SLIDE 13

Force to dislodge stent graft 6X less than sutured anastomosis.

Resch et al. EJVES 2000

Active fixation reduces migration

➢ Cadaveric model ➢ Fixation hooks/barbs: Higher DF ➢ Less migration

Melas et al. EJVES 2010

SLIDE 14

SLIDE 15

Talent, Excluder, Aneurx, Zenith Factors associated with migration: Aneurysm diameter Neck length

SLIDE 16

Neck length

SLIDE 17

Current endograft technology relies almost exclusively on mechanical interaction between device and native vessels to afford stability

SLIDE 18

SLIDE 19

J Thorac Cardiovasc Surg 2014;148:2325-34

➢Canine model ➢Enhanced neointimal formation and fibrous tissue ➢Strengthening the mechanical force of attachment graft/aorta.

SLIDE 20

➢ Maintenance of aortic integrity at seal zones…… ➢ Risk factors: thrombus, ectasia, synchronous aneurysms ➢ Occult underlying genetic factors? ➢ Oversizing promotes degeneration

SLIDE 21

Stent grafts that “fail well”

SLIDE 22

Joviliano B J Cardiovasc Surg 2017

Aneurysmal disease

SLIDE 23

➢Leucocyte produces elastase ➢Elastase murine model ➢AZD9668 (AtraZeneca elastase inhibitor) ➢Inhibits aneurysm progression

Delbose et al. JVS 2016

SLIDE 24

Prior to relining After relining

SLIDE 25

Courtesy of Nabil Chafke/Geprovas

➢Fabric/metal wire interaction ➢Abrasion: Calcified plaques ➢Increase with time? ➢New generation materials

Aging implants

SLIDE 26

Aneurysm sac management

➢ Endoleak at 30 days: Heralds re-intervention ➢ Malignant type 2 endoleaks ➢ Endoleaks masquerading as type 2 ➢ Relevance of sac content? ➢ Advanced imaging of sac/aortic wall ➢ Devices that obliterate sac

Sterbergh et al. J Vasc Surg 2008

Inferior mesenteric artery Lumbar artery

SLIDE 27

➢ Ideal system: Low profile Well supported limbs Flexible/compliant Vessel stenosis: Radial force Flexible/hydrophilic delivery system Percutaneous ➢ Low profile: Compromise on materials?

Device profile and hostile iliac anatomy

SLIDE 28

How hard should we strive to increase applicability of devices? Adverse anatomy → Complications Carefully executed EVAR with conservative IFU performs well

SLIDE 29

➢ Objective case selection

Accounting for multiple nuances Deformation Available neck length Stent graft conformation Precise deployment

➢ Stent graft longevity ➢ Patient longevity ➢ Tailored surveillance

The future: Imaging, AI and machine learning

SLIDE 30

SLIDE 31

Light pulse reflection

Courtesy of Dr. Joost van Herwaarden, UMC-U, NL and Philips

➢ Real time 3D device visualisation using light ➢ Multiple unrestricted viewing angles ➢ Corresponding alignment markers on stent graft?

Fiber Optic RealShape (FORS) technology

SLIDE 32

Oliveira et al. IEEE 2012

ALERT

SLIDE 33

➢ Iterative improvements from lessons of past ➢ Paradigm shifts still possible? - Yes ➢ Novel technology: Increasing regulatory scrutiny

SLIDE 34

Towards Perfection

SLIDE 35

SLIDE 36

Incorporates into seals zones

Perfection

Actively prevents disease progression Flexibility, strength, support, durable, low profile, precise delivery Facilitates proximal/distal extension Obliterates aneurysm sac Radiation free implantation/surveillance Actively warns of malfunction

SLIDE 37

Radiation MRI compatible graft materials - no artefact FORS and markers on graft that allow you to see exactly where You are – wire in renal and markers on graft – then you deploy

SLIDE 38

Images Courtesy of Athanasios Saratzis
