Read the problem Formul Cut down independent variables Domain Calculus (interior) Calculus (boundary) Extrema What is the largest topless trapezoid that can be made by folding up the ends of a 30 in length of wire? Read the problem

slide-1
SLIDE 1

Read the problem Formulæ Cut down independent variables Domain Calculus (interior) Calculus (boundary) Extrema

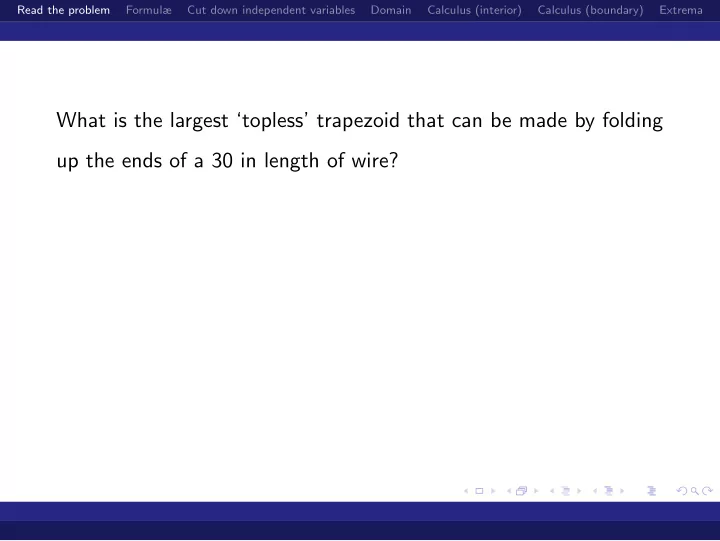

What is the largest ‘topless’ trapezoid that can be made by folding up the ends of a 30 in length of wire?

slide-2
SLIDE 2

Read the problem Formulæ Cut down independent variables Domain Calculus (interior) Calculus (boundary) Extrema

What is the largest ‘topless’ trapezoid that can be made by folding up the ends of a 30 in length of wire? Trying to maximise area

slide-3
SLIDE 3

Read the problem Formulæ Cut down independent variables Domain Calculus (interior) Calculus (boundary) Extrema

What is the largest ‘topless’ trapezoid that can be made by folding up the ends of a 30 in length of wire? Trying to maximise area Why not like this?

slide-4
SLIDE 4

Read the problem Formulæ Cut down independent variables Domain Calculus (interior) Calculus (boundary) Extrema

Area of a trapezoid: A = 1 2(t + b)h t and b are length of top and bottom, and h is the height (in inches)

slide-5
SLIDE 5

Read the problem Formulæ Cut down independent variables Domain Calculus (interior) Calculus (boundary) Extrema

Three input variables, t, b, h

slide-6
SLIDE 6

Read the problem Formulæ Cut down independent variables Domain Calculus (interior) Calculus (boundary) Extrema

Three input variables, t, b, h, plus two more, s and e: b + 2s = 30 ⇒ b = 30 − 2s By Pythagorean theorem, s2 = h2 + e2 ⇒ e =

  • s2 − h2
slide-7
SLIDE 7

Read the problem Formulæ Cut down independent variables Domain Calculus (interior) Calculus (boundary) Extrema

Three input variables, t, b, h, plus two more, s and e: b + 2s = 30 ⇒ b = 30 − 2s By Pythagorean theorem, s2 = h2 + e2 ⇒ e =

  • s2 − h2

and t = b + 2e = 30 − 2s + 2

  • s2 − h2.
slide-8
SLIDE 8

Read the problem Formulæ Cut down independent variables Domain Calculus (interior) Calculus (boundary) Extrema

Three input variables, t, b, h, plus two more, s and e: b = 30 − 2s and t = 30 − 2s + 2

  • s2 − h2
slide-9
SLIDE 9

Read the problem Formulæ Cut down independent variables Domain Calculus (interior) Calculus (boundary) Extrema

Three input variables, t, b, h, plus two more, s and e: b = 30 − 2s and t = 30 − 2s + 2

  • s2 − h2

New formula: A = 1 2(t + b)h

slide-10
SLIDE 10

Read the problem Formulæ Cut down independent variables Domain Calculus (interior) Calculus (boundary) Extrema

Three input variables, t, b, h, plus two more, s and e: b = 30 − 2s and t = 30 − 2s + 2

  • s2 − h2

New formula: A = 1 2

  • (30 − 2s + 2
  • s2 − h2) + (30 − 2s)
  • h
slide-11
SLIDE 11

Read the problem Formulæ Cut down independent variables Domain Calculus (interior) Calculus (boundary) Extrema

Three input variables, t, b, h, plus two more, s and e: b = 30 − 2s and t = 30 − 2s + 2

  • s2 − h2

New formula: A = 1 2

  • (30 − 2s + 2
  • s2 − h2) + (30 − 2s)
  • h

= (30 − 2s +

  • s2 − h2)h
slide-12
SLIDE 12

Read the problem Formulæ Cut down independent variables Domain Calculus (interior) Calculus (boundary) Extrema

t, b, h, s, and e are lengths, so all are ≥ 0

slide-13
SLIDE 13

Read the problem Formulæ Cut down independent variables Domain Calculus (interior) Calculus (boundary) Extrema

t, b, h, s, and e are lengths, so all are ≥ 0 b = 30 − 2s ≥ 0 ⇒ s ≤ 15

slide-14
SLIDE 14

Read the problem Formulæ Cut down independent variables Domain Calculus (interior) Calculus (boundary) Extrema

t, b, h, s, and e are lengths, so all are ≥ 0 b = 30 − 2s ≥ 0 ⇒ s ≤ 15 s2 = h2 + e2 ⇒ s ≥ h

slide-15
SLIDE 15

Read the problem Formulæ Cut down independent variables Domain Calculus (interior) Calculus (boundary) Extrema

t, b, h, s, and e are lengths, so all are ≥ 0 b = 30 − 2s ≥ 0 ⇒ s ≤ 15 s2 = h2 + e2 ⇒ s ≥ h Domain is (s, h) with 0 ≤ s ≤ 15 and 0 ≤ h ≤ s

slide-16
SLIDE 16

Read the problem Formulæ Cut down independent variables Domain Calculus (interior) Calculus (boundary) Extrema

t, b, h, s, and e are lengths, so all are ≥ 0 b = 30 − 2s ≥ 0 ⇒ s ≤ 15 s2 = h2 + e2 ⇒ s ≥ h Domain is (s, h) with 0 ≤ s ≤ 15 and 0 ≤ h ≤ s

slide-17
SLIDE 17

Read the problem Formulæ Cut down independent variables Domain Calculus (interior) Calculus (boundary) Extrema

Interior of the domain is where all inequalities are strict: 0 < s < 15 and 0 < h < s.

slide-18
SLIDE 18

Read the problem Formulæ Cut down independent variables Domain Calculus (interior) Calculus (boundary) Extrema

Interior of the domain is where all inequalities are strict: 0 < s < 15 and 0 < h < s. Find where ∇A = ∂A ∂s , ∂A ∂h

  • =

(or ∇A is undefined)

slide-19
SLIDE 19

Read the problem Formulæ Cut down independent variables Domain Calculus (interior) Calculus (boundary) Extrema

Interior of the domain is where all inequalities are strict: 0 < s < 15 and 0 < h < s. Find where ∇A = ∂A ∂s , ∂A ∂h

  • =

(or ∇A is undefined) Be careful! There are solutions not in the interior of the domain

slide-20
SLIDE 20

Read the problem Formulæ Cut down independent variables Domain Calculus (interior) Calculus (boundary) Extrema

Boundary is where we have equality: s = 0 and 0 ≤ h ≤ s

slide-21
SLIDE 21

Read the problem Formulæ Cut down independent variables Domain Calculus (interior) Calculus (boundary) Extrema

Boundary is where we have equality: s = 0 and 0 ≤ h ≤ 0

slide-22
SLIDE 22

Read the problem Formulæ Cut down independent variables Domain Calculus (interior) Calculus (boundary) Extrema

Boundary is where we have equality: s = 0 and h = 0

slide-23
SLIDE 23

Read the problem Formulæ Cut down independent variables Domain Calculus (interior) Calculus (boundary) Extrema

Boundary is where we have equality: s = 0 and h = 0 s = 15 and 0 ≤ h ≤ s

slide-24
SLIDE 24

Read the problem Formulæ Cut down independent variables Domain Calculus (interior) Calculus (boundary) Extrema

Boundary is where we have equality: s = 0 and h = 0 s = 15 and 0 ≤ h ≤ 15

slide-25
SLIDE 25

Read the problem Formulæ Cut down independent variables Domain Calculus (interior) Calculus (boundary) Extrema

Boundary is where we have equality: s = 0 and h = 0 s = 15 and 0 ≤ h ≤ 15 0 ≤ s ≤ 15 and h = 0

slide-26
SLIDE 26

Read the problem Formulæ Cut down independent variables Domain Calculus (interior) Calculus (boundary) Extrema

Boundary is where we have equality: s = 0 and h = 0 s = 15 and 0 ≤ h ≤ 15 0 ≤ s ≤ 15 and h = 0 0 ≤ s ≤ 15 and h = s

slide-27
SLIDE 27

Read the problem Formulæ Cut down independent variables Domain Calculus (interior) Calculus (boundary) Extrema

Treat each case separately When s = 0, the only possibility is h = 0, so add (0, 0) to the list

slide-28
SLIDE 28

Read the problem Formulæ Cut down independent variables Domain Calculus (interior) Calculus (boundary) Extrema

Treat each case separately When s = 15:

slide-29
SLIDE 29

Read the problem Formulæ Cut down independent variables Domain Calculus (interior) Calculus (boundary) Extrema

Treat each case separately When s = 15: A = (30 − 2s +

  • s2 − h2)h
slide-30
SLIDE 30

Read the problem Formulæ Cut down independent variables Domain Calculus (interior) Calculus (boundary) Extrema

Treat each case separately When s = 15: A = (30 − 2(15) +

  • (15)2 − h2)h
slide-31
SLIDE 31

Read the problem Formulæ Cut down independent variables Domain Calculus (interior) Calculus (boundary) Extrema

Treat each case separately When s = 15: A = (30 − 2(15) +

  • (15)2 − h2)h

=

  • 225 − h2 · h.
slide-32
SLIDE 32

Read the problem Formulæ Cut down independent variables Domain Calculus (interior) Calculus (boundary) Extrema

Treat each case separately When s = 15: A = (30 − 2(15) +

  • (15)2 − h2)h

=

  • 225 − h2 · h.

Domain is 0 ≤ h ≤ s.

slide-33
SLIDE 33

Read the problem Formulæ Cut down independent variables Domain Calculus (interior) Calculus (boundary) Extrema

Treat each case separately When s = 15: A = (30 − 2(15) +

  • (15)2 − h2)h

=

  • 225 − h2 · h.

Domain is 0 ≤ h ≤ 15. One critical point (s, h) = (15, h) with 0 < h < 15 (where?)

slide-34
SLIDE 34

Read the problem Formulæ Cut down independent variables Domain Calculus (interior) Calculus (boundary) Extrema

Treat each case separately When s = 15: A = (30 − 2(15) +

  • (15)2 − h2)h

=

  • 225 − h2 · h.

Domain is 0 ≤ h ≤ 15. One critical point (s, h) = (15, h) with 0 < h < 15 (where?) Endpoints (s, h) = (15, 0) and (s, h) = (15, 15)

slide-35
SLIDE 35

Read the problem Formulæ Cut down independent variables Domain Calculus (interior) Calculus (boundary) Extrema

List so far: Interior critical point

slide-36
SLIDE 36

Read the problem Formulæ Cut down independent variables Domain Calculus (interior) Calculus (boundary) Extrema

List so far: Interior critical point (0, 0)

slide-37
SLIDE 37

Read the problem Formulæ Cut down independent variables Domain Calculus (interior) Calculus (boundary) Extrema

List so far: Interior critical point (0, 0) (15, 0) and (15, 15), and another critical point where s = 15

slide-38
SLIDE 38

Read the problem Formulæ Cut down independent variables Domain Calculus (interior) Calculus (boundary) Extrema

List so far: Interior critical point (0, 0) (15, 0) and (15, 15), and another critical point where s = 15 . . .

slide-39
SLIDE 39

Read the problem Formulæ Cut down independent variables Domain Calculus (interior) Calculus (boundary) Extrema

Plug all points (s, h) into A: s h A 15 15 15 . . . . . . . . .

slide-40
SLIDE 40

Read the problem Formulæ Cut down independent variables Domain Calculus (interior) Calculus (boundary) Extrema

Plug all points (s, h) into A: s h A 15 15 15 . . . . . . . . . The biggest are the absolute maxima

slide-41
SLIDE 41

Read the problem Formulæ Cut down independent variables Domain Calculus (interior) Calculus (boundary) Extrema

Plug all points (s, h) into A: s h A 15 15 15 . . . . . . . . . The biggest are the absolute maxima; no need for derivative tests
