What is is Health Care Waste? All waste generated by health care - - PowerPoint PPT Presentation

▶

Feb 25, 2023 314 likes •573 views

What is is Health Care Waste? All waste generated by health care activities & providers/facilities Insufficient management poses a huge risk to health care workers , patients, communities and the environment . Source: World Health Organization.

SLIDE 1

SLIDE 2

What is is Health Care Waste?

All waste generated by health care activities & providers/facilities Insufficient management poses a huge risk to health care workers, patients, communities and the environment.

Source: World Health Organization. (2018, February)

SLIDE 3

Medical Waste Treatment - The Need

Lack of resources & improper management
Ineffective waste treatments
Environment pollution
Increased CO2 emissions
21 Millions HEPA B virus infection
2 Million HEPA C virus infection
260,000 HIV virus infection

Developing countries Developed countries

Increase in population
Higher need for medial treatment = greater levels of me

waste

Expensive & polluting treatment solutions
Increased CO2 emissions and treatment cost

Source: Healthcare without harm, World Health Organization, United States Environmental Protection Agency

SLIDE 4

Challenges in in Waste Management

Source: Healthcare without harm (2018)

SLIDE 5

Health Care Waste Generation Worldwide

Hazardous Health Care Waste Generation Worldwide (kg) (per bed / per day) 0.4 – 0.5 High-income countries 0.3 – 0.4 Mid-income countries 0.2 – 0.4 Low-income countries Waste Generation Worldwide (kg) (per capita) 1.1 – 1.2 High-income countries 0.8 – 6.0 Mid-income countries 0.5 – 3.0 Low-income countries

Source: Healthcare Waste Generation Worldwide and Its Dependence on Socio- Economic and Environmental Factors (2017), World Health Organization (2019)

SLIDE 6

Approx. 80%

General waste

Approx. 20%

Hazardous, infectious & toxic Radioactive

Pb As

Pathological Pharmaceutical & Chemical

Source: Healthcare without harm, World Health Organization, United States Environmental Protection Agency

Infectious Sharps Envomed

SLIDE 7

Autoclaves Incineration Microwaves Irradiation Chemical Ozone

Methods of f Dis isposal & Treatment of f Medical Waste

Source: Healthcare without harm (2018)

SLIDE 8

A cost effective and a Healthier Solution

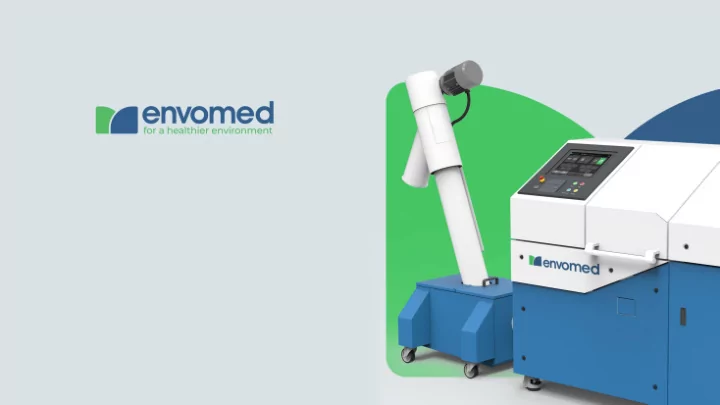

Envomed Model 80

 Shreds  Sterilizes  Environmentally Friendly  On-Site

SLIDE 9

Functional data per cycle ≤ 15 min Duration of cycle STATT level IV Effectiveness 1.35kW Power consumption per cycle 80 Ltrs per cycle | 320 Ltrs per hour Volume of waste treated per cycle Certification Technology approved by the Israeli MOH, CE, TUV pending

The Technology

SLIDE 10

Ultimate Productivity

SLIDE 11

A Powerful Four r Shaft Erosion Free Shredder

 Efficiency  Durability  Low wear & tear

SLIDE 12

Safety locks Waste chamber lid Conveyer motor Conveyer Municipality Waste Biocetic container Waste processor Graphical user interface

Envomed 80

Test Port

SLIDE 13

Lid Waste chamber Graphical user interface Waste outlet pipe Mixer Dosing pump Electrics chamber Biocide container Powerful four shaft erosion free shredder Valve motor

Envomed 80 80 – The Mechanics

SLIDE 14

Shredder load cell Test port (monitoring) Mixer Shredder motor Safety lock Lid Four shaft configuration

SLIDE 15

Reduced Pri rice wit ith a Manual Soli lid/Liquid Separator

Manual liquid/solid separator

SLIDE 16

Outlet pipe Entrance pipe Waste tray

SLIDE 17

UN 3149 Class 5.1

SLIDE 18

Validation & Verifications Tools

Biological indicators (Geobacillus stearothermophyllus)

SLIDE 19

Chemical Indicators

Peracetic Acid Concentration (ppm)

SLIDE 20

End User Validation Process

Test activation running Process bar

SLIDE 21

Innovative Graphical User Interface

SLIDE 22

GLP Monitoring standards

Monitoring of all process parameters

 Weight  Temperature  Time  Dosing  Pass/Fail

SLIDE 23

Log information Log records

1 15/06/2019 8:00 ERROR #5 2 15/06/2019 8:20 CYCLE OK 3 15/06/2019 8:40 CYCLE OK 4 15/06/2019 12:50 CYCLE OK 5 16/06/2019 9:50 CYCLE OK 6 16/06/2019 10:30 ERROR #2 7 16/06/2019 11:10 CYCLE OK 8 16/06/2019 11:40 CYCLE OK ENVOMED

Machine #: 123 Facility: SOROKA Cycle #: 4 Biocetic LOT #: 123456 Cycle date: 15/06/2019 Cycle time: 8:40---8:55 Cycle successful: YES Water volume: 25L Biocetic volume: 600 ml Average water temperature: 30 °C Weight: 12.800kg Operator: _____________________________ Remarks: ______________________________ ______________________________________ ______________________________________ Signature: _____________________________

User Fri riendly Audit Trail

SLIDE 24

Cost Effectiveness

The Envomed model 80 list price $130,000 $115,000

(End user price) (End user price)

Optional, Waste Weight Mechanism $10,000
Prices are ExWorks Chennai and excluding crating
