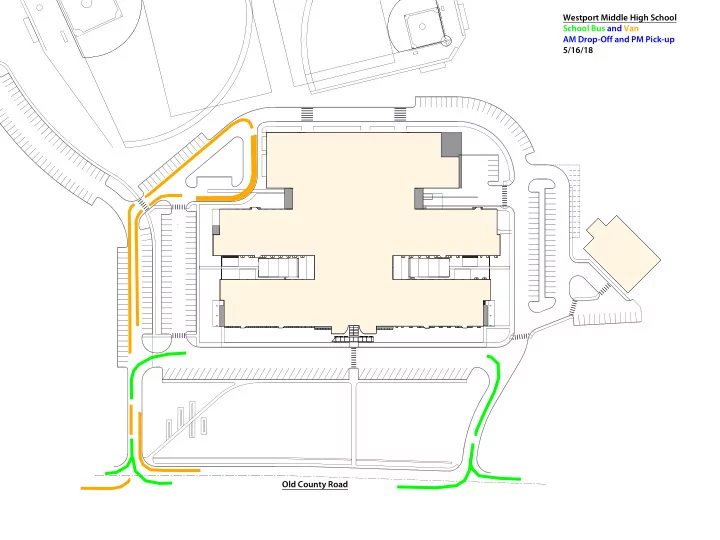

Westport Middle High School School Bus and Van AM Drop-Off and PM Pick-up 5/16/18 Old County Road

2 rows Bus drop-off and pick-up (allows up to 20 buses) School Van drop-off and pick-up (7 vans, allows escorted entry)

Westport Middle High School Parent AM Drop-Off and PM Pick-up 5/16/18 OldCounty Road

Parent Drop-Off/ Pick- up (Middle School and High School Students)

Westport Middle High School Potential parking distribution 6/6/18 OldCounty Road

Visitor - 20 spaces Staff - 140 spaces Student - 100 spaces Kitchen / Custodial - 14 spaces Library - 47 spaces

SNOW STORAGE STRIPING STRIPING INDICATES CONCRETE WALK ISLAND & WALKWAY INDICATES ASPHALT WALK INDICATES VERTICAL GRANITE CURB

JUNE 6, 2018 WESTPORT MIDDLE/HIGH SCHOOL

J o n a t h a n L e v i A r c h i t e c t s

• Separation of New Tennis Courts from Westport Camping Grounds

5/30/18

Approximately 350 ft of Separation New Tennis Court Location

8 16 16 32 32 64 64

J o n a t h a n L e v i A r c h i t e c t s

FLOOR PLAN FLOOR PLAN CE CEILIN ILING PLA G PLAN

• ELEV. AUDITORIUM -
• ELEV. AUDITORIUM - E

P.E. STO. P.E. ALTERNATIVES

• CUST. OFF.

LAUN./ TRAIN.

• ATH. DIR.

OFF. GYM / P.E. STO. MACH. ELEV. STO. CORRIDOR UNISEX TOILET P.E. ALTERNATIVES

• CUST. OFF.

LAUN./ TRAIN.

• ATH. DIR.

OFF. P.E. STO. MACH. ELEV. STO. GYM / P.E. STO. UNISEX TOILET MACH. ELEV. STO.

• CUST. OFF.

LAUN./ TRAIN.

• ATH. DIR.

OFF. P.E. ALTERNATIVES GYM / P.E. STO.

4 8 4 8 16 16 32 32

J o n a t h a n L e v i A r c h i t e c t s

PE ALTS

FLOOR PLAN FLOOR PLAN CEILING PLAN ILING PLAN

• ELEV. P.E. A
• ELEV. P.E. ALTERNATIVES - E

TERNATIVES - E

• ELEV. P.E. A
• ELEV. P.E. ALTERN

TERNATIVES - IVES - N N

• ELEV. P.E. A
• ELEV. P.E. ALTERNATIVES - S

TERNATIVES - S

• ELEV. P.E. A
• ELEV. P.E. ALTERNATIVES - W

TERNATIVES - W ALT ALTERNATIVE FLOOR PLAN RNATIVE FLOOR PLAN

PREP SHARED TEACHER PREP SHARED TEACHER

4 8 4 8 16 16 32 32

J o n a t h a n L e v i A r c h i t e c t s Co-Located Middle / High School Town of Westport - DD Workshop 8 June 6, 2018

DD WORKSHOPS FOLLOW-UP

PA PATTERN TTERN C C PATTERN PATTERN B B PA PATTERN TTERN A A

LOCKER COLOR PATTERNS

FLOOR PLAN - SPED C FLOOR PLAN - SPED CLASSROOM ASSROOM HS SCIENCE FLOOR PLAN - ALTERNA HS SCIENCE FLOOR PLAN - ALTERNATE HS SCIENCE FLOOR PLAN HS SCIENCE FLOOR PLAN

Item Date Comment Response Respondent Status 1 4‐Apr‐2018 JLA to provide linear footage of designed storage for typical spaces JLA has provided linear footage JLA Closed 2 4‐Apr‐2018 Sped suite ceiling height is to be raise similar to typical classroom Ceiling has been raised JLA Closed 3 4‐Apr‐2018 Provide fixed millwork with lockable doors on HS science classroom Doors have been added JLA Closed 4 4‐Apr‐2018 Is gas required in HS science classrooms? Yes gas is required JLA Closed 5 4‐Apr‐2018 Door between HS science prep room and shared teacher room to be reviewed by owner. Owner does not want door between prep & teacher rooms / door removed JLA Closed 6 4‐Apr‐2018 Technology classroom requirements are to be provided by owner. Owner Open 7 4‐Apr‐2018 Owner to review if wall outlets vs floor outlets for technology classroom. Owner confirmed tech classroom to have wall outlets, not floor outlets Owner Closed 8 4‐Apr‐2018 JLA to provide more storage in Fab Lab for student work. Wall‐to‐wall base cabinets were added on east wall JLA Closed 9 4‐Apr‐2018 JLA to provide glazed wall at music office wall at corridor Glass has been added JLA Closed 10 11‐Apr‐2018 JLA to provide 6 full size Linoleum tiles to owner for review Tiles have been provided JLA Closed 11 11‐Apr‐2018 JLA to provide lockable full height storage in principal's office Full height storage at principal's office has been provided JLA Closed 12 11‐Apr‐2018 JLA to provide lockable security curtain with Dutch door to secure admin suites Security curtain has been provided in order to lock admin suite JLA Closed 13 11‐Apr‐2018 Storage room at end of admin hallway to become kitchenette Kitchenette has been provided w/2 undercounter refrigerators & 1 microwave JLA Closed 14 11‐Apr‐2018 LED lights in corridor are to have sloped diffuser lens to prevent items from getting stuck Sloped diffuser lens has been provided JLA Closed 15 11‐Apr‐2018 Owner to provide number of art room drying trays needed 3 cabinets with open flat files 30"x42" requested and provided Owner Closed 16 11‐Apr‐2018 Owner to provide number of mail slots needed Owner Open 17 11‐Apr‐2018 Admin counter adjacent to Principals wall to be 30" tall with sitting space underneath Counter has been lowered and base cabinets have been removed JLA Closed 18 27‐Apr‐2018 Kiln to be in separate room Separate room for kiln has been provided JLA Closed 19 27‐Apr‐2018 Pottery Area with counter and wall outlets to be added for HS Art Room Counter for pottery area has been provided JLA Closed 20 27‐Apr‐2018 Only 3 sinks in Art Rooms needed One sink has been deleted JLA Closed 21 27‐Apr‐2018 Provide location for 2 dumpsters ‐ 16' wide Dumpster location has been provided JLA Closed 22 27‐Apr‐2018 Request to move parking from swouthwest drive entry area to west side of building Parking has been moved JLA Closed 23 27‐Apr‐2018 CGA to provide spec info on prefab dugouts from Somerset for JLA review Dugouts have been received from CGA CGA Closed 24 27‐Apr‐2018 Add scoreboards & flag at fields Scoreboards & flag at fields has been added JLA Closed 25 27‐Apr‐2018 Provide space for 4 desktop computer stations in Art rooms Space & provisions have been added JLA Closed 26 27‐Apr‐2018 Provide 6 lockable cabinets in Art rooms 6 lockable cabinets have been provided JLA Closed 27 27‐Apr‐2018 Typical classroom undercounter storage, MS 1/2 open 1/2 lockable, HS 1/4 open 3/4 lockable Open cabinets have been provided in these percentages JLA Closed 28 27‐Apr‐2018 Provide writable/magnetic surface at gym locker room coaching area Writable/magnetic surface has been added at locker room coaching area JLA Closed 29 27‐Apr‐2018 Locker count to be MS 450 sm 76 lg, HS 300 sm 100 lg (sm = 12x12x12 lg=36Hx12Wx18D stacked) Confirmed JLA Closed 30 27‐Apr‐2018 Move gym doors away from HS hoop Door has been moved JLA Closed 31 27‐Apr‐2018 Move custodian office to the HS side so MS can have dedicated gym storage Custodian office has been moved and dedicated MS storage added JLA Closed 32 27‐Apr‐2018 Provide indoor batting cage at gym, fabric can be lowered from ceiling JLA will provide pricing JLA Open 33 27‐Apr‐2018 Move scoreboards above track at gym Scoreboards have been moved JLA Closed 34 27‐Apr‐2018 Media center main desk to be movable Media center desk has been made movable JLA Closed 35 27‐Apr‐2018 Add display cases in media center Display Cases will be provided JLA Closed 36 27‐Apr‐2018 Media Center closet storage to be 30" deep Closet storage has been made 30" deep JLA Closed 37 27‐Apr‐2018 SPED bathroom to have hoyer lift This will be added to FF&E JLA Closed 38 27‐Apr‐2018 Confirm SPED Classrooms have A/C Sped classrooms will be provided with A/C JLA Closed 39 27‐Apr‐2018 SPED Classroom Apartment to have movable room dividers This will be added to FF&E JLA Closed 40 27‐Apr‐2018 SPED Classroom Apartment to have provisions for kitchen, laundry, bedroom, and dining Provisions have been added JLA Closed 41 27‐Apr‐2018 Space to hang and store 30" teaching boards is desired in typ classroom‐need info from Owner Is this for every classroom or specific depts? How many? Owner Open Town of Westport ‐ Co‐Located Middle / High School DD Workshop Review Comments Log 6/6/2018 Jonathan Levi Architects

Item Date Comment Response Respondent Status Town of Westport ‐ Co‐Located Middle / High School DD Workshop Review Comments Log 6/6/2018 Jonathan Levi Architects 42 2‐May‐2018 Concern about whether or not some teachers will want desks in their classrooms Per meetings with MS & HS staff (math, history, ELA, art, SPED, science) teacher planning spaces are approved for the project. All desk & furniture decisions will be reviewed during the FF&E process. Owner / JLA Closed 43 2‐May‐2018 Provide writable surface on breakout storage doors Writable surface has been provided JLA Closed 44 2‐May‐2018 Need decision on Classroom / Breakout door options from owner. A) Both leaves are glass B) Both leaves are writable surface C) One leaf is writable and one leaf is glass. Option A has been decided and incorporated into the drawings. Owner Closed 45 2‐May‐2018 Question was asked on whether or not all student lockers are needed All lockers are needed, a total of 900 DPI Closed 46 2‐May‐2018 Is admin a/c ok with admin being open to the corridor? GGD will provide localized A/C which is ok with admin being open to corridor JLA Closed 47 2‐May‐2018 Child Care outdoor space to have fence around it for protection Fence has been provided JLA Closed 48 2‐May‐2018 How often do duct socks need to be cleaned? Cleaning is every 5 years or so. It is easier to clean than hard duct as fabric JLA Closed 49 2‐May‐2018 1st floor admin is to have mail slots in addition to the mail slots on the 2nd floor Owner Open 50 2‐May‐2018 Provide electrical and data in teacher work / mail room for computer stations JLA Closed 51 4‐May‐2018 Request for closer access from gym to public bathrooms Closer access and dedicated corridor has been provided with the selection of Toilet Suite Option A. With signage, these public toilet suites will be visible. JLA Closed 52 4‐May‐2018 Change MS side BB court to 42' wide (now 50') this makes room for scorer's tables MS court has been reduced JLA Closed 53 4‐May‐2018 2 practice volleyball courts at HS, use MS volleyball court for competition Volleyball courts have been added JLA Closed 54 4‐May‐2018 Bleachers over 5 rows high to be elec ‐ DPI is confirming All bleachers will be motorized. DPI Closed 55 4‐May‐2018 Provide wireless connections to scoreboard Confirmed JLA Closed 56 4‐May‐2018 Move PE Sto door to hall Door has been moved JLA Closed 57 4‐May‐2018 Request double ext door at PE alt Double door has been provided JLA Closed 58 4‐May‐2018 Add windows at athletic offices to hallway Windows have been added JLA Closed 59 4‐May‐2018 Fields ‐ target 50' between soccer and Field hockey Fields will be 50' apart JLA Closed 60 4‐May‐2018 Remove bathroom in TV Studio, add counters for desktop computer editing Bathroom has been removed and counter with desktop provisions added JLA Closed 61 4‐May‐2018 Fixed counters with gas at Chem room, others can be movable Fixed counters have been added JLA Closed 62 4‐May‐2018 Gas at Chem and Bio only. The other 2 don't need gas Gas has been deleted from two HS Science rooms JLA Closed 63 4‐May‐2018 Bigger sink at Chem Prep Room Sink has been enlarged JLA Closed 64 4‐May‐2018 MS Science Prep ‐ provide add'l door to hallway Door has been added JLA Closed 65 4‐May‐2018 HS Science tables are in front of bookshelves, making them difficult to access. Alternate Options will be provided JLA Open 66 4‐May‐2018 Add a sink to 2 typical MS classrooms (Any 2) for flexibility Sinks have been added JLA Closed 67 4‐May‐2018 MS science rooms ‐ all base cabinets lockable, all open bookshelves above counter Confirmed JLA Closed 68 4‐May‐2018 Request light lock vestibule at auditorium Vestibule has been added JLA Closed 69 4‐May‐2018 Provide USB outlets for charging, typical for student & staff spaces USB outlets have been added JLA Closed 70 4‐May‐2018 Provide outdoor speakers as appropriate Outdoor speakers are provided JLA Closed 71 4‐May‐2018 Switch IT office and IT repair. Rooms have been switched JLA Closed 72 4‐May‐2018 Add 2' shelving along full wall at IT repair Shelving has been added JLA Closed 73 4‐May‐2018 Dutch door at duplicating room Dutch door has been added JLA Closed 74 9‐May‐2018 Add additional seat at sides of auditorium so that two people can sit together here Seats have been added JLA Closed 75 9‐May‐2018 Gym is to act as overflow to auditorium, provide projection screen and a/v hookups Projection screen and a/v provisions have been provided JLA Closed 76 9‐May‐2018 Delete divider curtain in cafeteria and add mobile planters Planters will be added to FF&E JLA Closed 77 9‐May‐2018 Community toilet room Option A was chosen Option A has been incorporated into the drawings JLA Closed 78 9‐May‐2018 Provide similar access to north/east toilet suite for a second community toilet suite Similar access has been provided JLA Closed 79 9‐May‐2018 Add door between toilet suite and classroom corridor at community toilet suites Door has been added JLA Closed

Item Date Comment Response Respondent Status Town of Westport ‐ Co‐Located Middle / High School DD Workshop Review Comments Log 6/6/2018 Jonathan Levi Architects 80 9‐May‐2018 Owner to decide if staff toilet room doors are to open directly off of the main corridor JLA suggests doors remain for privacy. Doors to remain as shown, opening into secondary corridor. Owner Closed 81 9‐May‐2018 Add coiling drapery to typical toilet room suites so they can be locked down JLA has added coiling drapery JLA Closed 82 9‐May‐2018 Add tv monitors for informational displays in cafeteria & entry area TV monitors have been added JLA Closed 83 16‐May‐2018 Remove central path at south practice fields Central path removed JLA Closed 84 16‐May‐2018 Provide sidewalk to east toward Head of Westport JLA Open 85 16‐May‐2018 Provide curbs to keep cars on pavement Precast concrete curbs provided in lieu of asphalt cape cod berms JLA Closed 86 16‐May‐2018 Provide drawing indicating where snow plows can pile snow JLA Open 87 16‐May‐2018 Provide protection of fields from unauthorized vehicles JLA Open 88 16‐May‐2018 Provide stone dust along perimeter of walls so weed whackers not required for mowing Provided as standard detail JLA Closed 89 16‐May‐2018 Relocate steps from lawn area of courtyards for ease of mowing Steps relocated JLA Closed 90 16‐May‐2018 Provide thyme planting bed as south façade Provided JLA Closed 91 16‐May‐2018 Provide layout for future field lighting JLA Open 92 16‐May‐2018 Estimate cost increase for artificial turf It was decided that this item be closed due to high cost of artificial turf. JLA Closed 93 16‐May‐2018 Provide alternative grading for athletic fields Alternative grading options have been provided JLA Closed 94 16‐May‐2018 Provide mowed lawn at all planted areas of the plan except a strip across the front of the building which will be Thyme ground cover. Plantings have been revised JLA Closed 95 16‐May‐2018 Provide means to minimize insect habitats adjacent to all stone walls Stone dust borders will be used adjacent to all stone walls JLA Closed 96 16‐May‐2018 Revise the drop off lane previously agreed and approved to prevent congestion along Old County Rd. Drop off lane will be removed and the path connecting it to the front door
