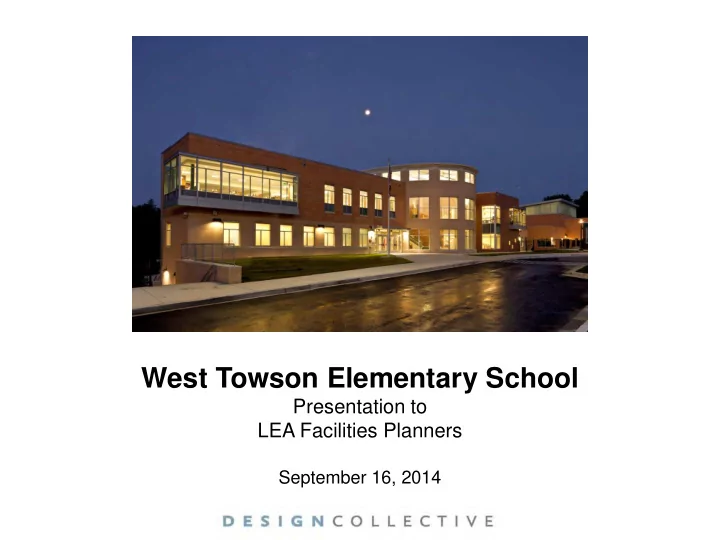

West Towson Elementary School Presentation to LEA Facilities Planners September 16, 2014 FACILITY SUMMARY Feasibility Study April 2008 Schematic Design May 2008 CDs Completed March 2009 Construction Started May 2009 Occupied August
SLIDE 2
SLIDE 3
west towson elementary school
LEED SCORECARD
SLIDE 4
west towson elementary school
PREVIOUS VICINITY MAP
SLIDE 5
west towson elementary school
CURRENT VICINITY MAP
SLIDE 6
west towson elementary school
SITE PLAN
SLIDE 7
west towson elementary school
EXISTING TOPOGRAPHY
SLIDE 8
west towson elementary school
EARLY STUDIES
SLIDE 9
west towson elementary school
MASSING and CONTEXT
SLIDE 10
west towson elementary school
SWM CHALLENGES & TECHNIQUES
- MD Stormwater Management Regulations required run-off
from all new impervious areas to be treated.
- The building footprint was minimized, by stacking three-
stories, which minimized roof area.
- The existing parking areas were expanded and shared
between the schools, to minimize paved areas.
- BCPS requested visible bioswales and an exposed pond, ILO
underground SWM, as an educational element.
- The bio-swales are relatively small and scattered around the
site, to maximize flexible placement.
- The adjacent stream served as a natural destination for the
treated run-off.
SLIDE 11
west towson elementary school
SWM DETAILS
SLIDE 12
west towson elementary school
GROUND FLOOR PLAN
SLIDE 13
west towson elementary school
ENTRY FLOOR PLAN
SLIDE 14
west towson elementary school
UPPER FLOOR PLAN
SLIDE 15
west towson elementary school
THE TWIN BLIZZARDS OF ‘09/’10
SLIDE 16
west towson elementary school
THE GREEN ROOF
Approximately 10% of the total roof area is Green Roof.
SLIDE 17
west towson elementary school
THE GREEN ROOF
SLIDE 18
west towson elementary school
ENTRY ROTUNDA
SLIDE 19
west towson elementary school
MEDIA CENTER
