Wellbarrier Presentation Who/what is Wellbarrier Wellbarrier users around the world Wellbarrier mission Reduce risk prepare high quality well barrier illustrations to give stakeholders a clear and common understanding of how the wells

SLIDE 1

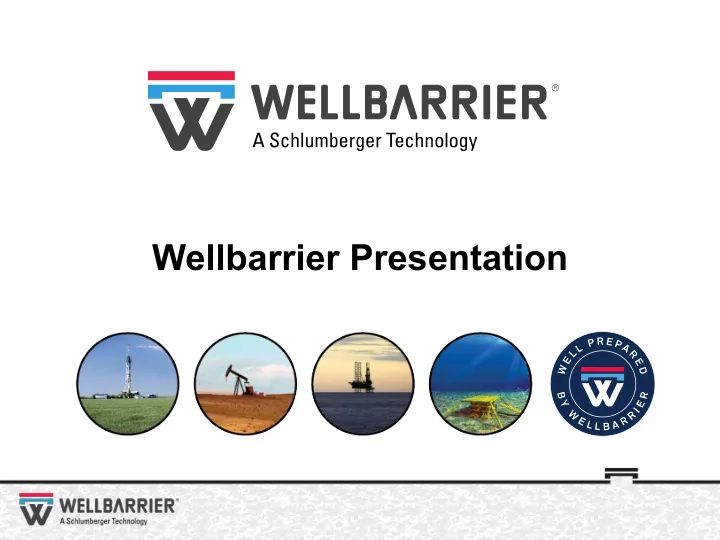

Wellbarrier Presentation

SLIDE 2

Who/what is Wellbarrier

SLIDE 3

Wellbarrier users around the world

SLIDE 4

Wellbarrier mission

Reduce risk – prepare high quality well barrier

illustrations to give stakeholders a clear and common understanding of how the wells are safeguarded.

Provide an intuitive tool for visualization,

communication and documentation of risk for all stakeholders throughout the wells life cycle

SLIDE 5

Two barrier principle

Hat-over-hat arrangement

1 2 1 2 1 2 1 2 1 2

A two barrier philosophy will allow incidents to happen without escalating into accidents If two independent barriers are not in place it is equally important to define available barriers

SLIDE 6

Well Integrity and well barriers

90%

… of well integrity is about technical well barriers

Figuratively: 90% Technical, specific – Strong … this is what will contain pressure and hydrocarbons 10% Organizational, Operational, functional – Weak … yet the «lubricant» that helps it run smooth

SLIDE 7

What is the Wellbarrier product

SLIDE 8

Well barrier diagrams as core for multiple products

SLIDE 9 RISK ASSESSMENT ASSEMBLY DRAWING CEMENT QUALIFICATION STACK-UP DIAGRAM DATA IMPORT BARRIER VERIFICATION BARRIER MONITORING MAASP A = ______ B = ______ COMPLETION DIAGRAM PRESSURE PLOT WELL CONTROL ACTION WELL SCHEMATIC SEQUENCE DIAGRAM

MANAGING WELLS CONSISTS OF SEVERAL ELEMENTS

The well barrier illustration is used as a core for several outputs in different contexts

WELL BARRIER DIAGRAM

Currently available In progress

DASHBOARD

SLIDE 10

Well barrier schematics

WELL BARRIER DIAGRAM A1

SLIDE 11

SLIDE 12

Well Schematic

WELL SCHEMATIC A2

SLIDE 13

Well Control Action diagram

WELL CONTROL ACTION A3

SLIDE 14

Well barrier pressure plot

PRESSURE PLOT A4

SLIDE 15

Sequence diagrams

SEQUENCE DIAGRAM A5

SLIDE 16

Risk assessment

RISK ASSESSMENT B2

SLIDE 17

Well lifecycle usage

Visualization, communication and documentation support

Planning Execution Operation Intervention Plug & abandonment The well barrier definitions change through the life cycle of the well but are always part of the ongoing work Collaboration Handover Handover Handover

SLIDE 18

Manage your wells

Well integrity value chain

Collect data Data is available from a lot of different

sources. Consolidate

this and make them available in once accessible repository Make illustration A picture says more than 1000 words Define barriers Try to establish 2 barrier envelopes to allow incidents to happen without escalating into accidents Verify elements Ensure you know the capacity of your critical components Work out your MAASP Risk assess Run a FMECA risk assessment

n your elements

to identify vulnerabilities Monitor elements Monitor and respond to anomalies Dashboard Consolidate Information on a dashboard available to all stakeholders Reporting Make monthly and yearly reports to supervisors, management as applicable Make plans Use the risk assessment to make plans for monitoring and periodic inspections Well Downhole safety valve X-mas tree - Lower master X-mas tree - Upper master X-mas tree - Swab valve X-mas tree - Production wing X-mas tree - kill wing Wellhead - A-annulus Wellhead - B-annulus Wellhead - C-annulus Tubing caliper Noise log Temperature log 6 12 12 12 12 12 12 12 12 Need Need Need Period (mth) A-01 10-Jan-17 10-Feb-17 10-Feb-17 10-Feb-17 10-Feb-17 10-Feb-17 10-Feb-17 10-Feb-17 10-Feb-17 A-02 10-Jan-17 10-Feb-17 10-Feb-17 10-Feb-17 10-Feb-17 10-Feb-17 10-Feb-17 10-Feb-17 10-Feb-17 A-03 10-Jan-17 10-Feb-17 10-Feb-17 10-Feb-17 10-Feb-17 10-Feb-17 10-Feb-17 10-Feb-17 10-Feb-17 25-May-17 10-Feb-17 A-04 10-Jan-17 10-Feb-17 10-Feb-17 10-Feb-17 10-Feb-17 10-Feb-17 10-Feb-17 10-Feb-17 10-Feb-17 A-05 10-Jan-17 10-Feb-17 10-Feb-17 10-Feb-17 10-Feb-17 10-Feb-17 10-Feb-17 10-Feb-17 10-Feb-17 20-Apr-17 A-06 15-Jan-17 10-Mar-17 10-Mar-17 10-Mar-17 10-Mar-17 10-Mar-17 10-Mar-17 10-Mar-17 10-Mar-17 20-Apr-17 A-07 15-Jan-17 10-Mar-17 10-Mar-17 10-Mar-17 10-Mar-17 10-Mar-17 10-Mar-17 10-Mar-17 10-Mar-17 20-Apr-17 A-08 15-Jan-17 10-Mar-17 10-Mar-17 10-Mar-17 10-Mar-17 10-Mar-17 10-Mar-17 10-Mar-17 10-Mar-17 20-Apr-17 11-Feb-17 A-09 15-Jan-17 10-Mar-17 10-Mar-17 10-Mar-17 10-Mar-17 10-Mar-17 10-Mar-17 10-Mar-17 10-Mar-17 A-10 15-Jan-17 10-Mar-17 10-Mar-17 10-Mar-17 10-Mar-17 10-Mar-17 10-Mar-17 10-Mar-17 10-Mar-17 A-11 20-Jan-17 10-Apr-17 10-Apr-17 10-Apr-17 10-Apr-17 10-Apr-17 10-Apr-17 10-Apr-17 10-Apr-17 26-May-17 A-12 20-Jan-17 10-Apr-17 10-Apr-17 10-Apr-17 10-Apr-17 10-Apr-17 10-Apr-17 10-Apr-17 10-Apr-17 12-Feb-17 A-13 20-Jan-17 10-Apr-17 10-Apr-17 10-Apr-17 10-Apr-17 10-Apr-17 10-Apr-17 10-Apr-17 10-Apr-17 A-14 20-Jan-17 10-Apr-17 10-Apr-17 10-Apr-17 10-Apr-17 10-Apr-17 10-Apr-17 10-Apr-17 10-Apr-17 A-15 20-Jan-17 10-Apr-17 10-Apr-17 10-Apr-17 10-Apr-17 10-Apr-17 10-Apr-17 10-Apr-17 10-Apr-17 A-16 20-Jan-17 10-Apr-17 10-Apr-17 10-Apr-17 10-Apr-17 10-Apr-17 10-Apr-17 10-Apr-17 10-Apr-17 You cannot start with monitoring alone You need to know what is in the ground Use the well barrier elements as a firm reference/yardstick

SLIDE 19

More information: https://www.wellbarrier.com/
