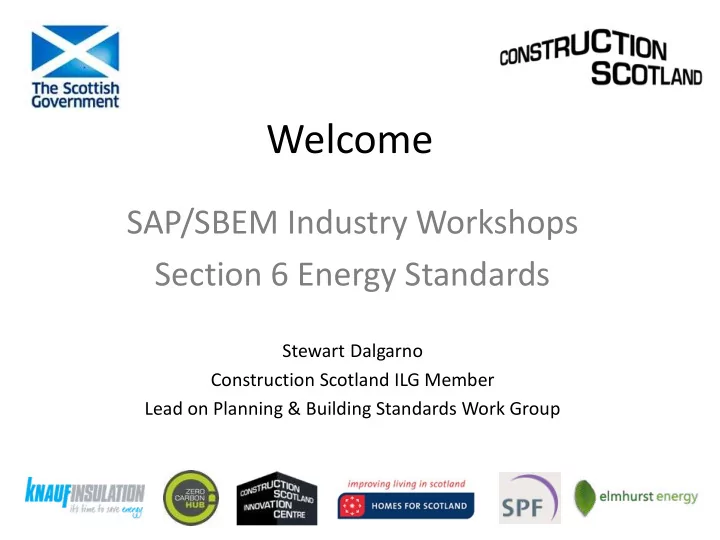

SAP/SBEM Industry Workshops Section 6 Energy Standards

Stewart Dalgarno Construction Scotland ILG Member Lead on Planning & Building Standards Work Group

Construction Scotland

• The leadership organisation for the sector.
• Unique partnership of businesses, trade bodies ,

universities & government

• Scottish Construction Industry Strategy (Oct 12)
• Safer, successful & forward looking industry
• Driving innovation & productivity
• Working in partnership to deliver low carbon

environment

• Building a dynamic, united industry with a

cohesive voice

WWW.CS-IC.org

Purpose of Today

• Raise awareness of the changes (Oct 15)
• Discuss & gather feedback on the

implications

• Document issues, for future discussion with

SBS & Industry

Agenda – Half Day

• Part 1 – Presentations (60 mins)
• Comfort break (15 mins)
• Part 2 – Workshop: Break Out Groups (90 mins)
• Part 3 – Summary & Close (30 mins)

Rob Pannell, Managing Director ZCH, Event Facilitator

0%

Orchard Neuk A449 ltd Architects

Section 6 – Energy Domestic 2015 changes

Fraser Walsh Building Standards Division

• 21% reduction in CO2 emissions for new dwellings (6.1)
• No change to methodology - SAP 2012 used
• Improved fabric backstop U-Values (6.2)
• Domestic Building Services Compliance Guide (6.3 -6.6)
• Introduction of ‘Quick Start Guide’ for new dwellings (6.8)
• Updated Accredited Construction Details

Domestic 2015

Key changes

45% 21%

Domestic 2015

CO2 reductions

CO2 emissions reduction over 2007 CO2 emissions reduction

• ver 2010

Section 7 - new domestic now meet silver aspect for CO2 emissions.

Main space heating system fuel [1] [2] [3] Element or System Gas (Package 1) LPG (Package 2) Oil (Package 3) Electricity (Package 4) Biomass [4] (Package 5) Walls U = 0.17 U = 0.17 U = 0.17 U = 0.17 U = 0.17 Floors U = 0.15 U = 0.15 U = 0.15 U = 0.15 U = 0.15 Roofs U = 0.11 U = 0.11 U = 0.11 U = 0.11 U = 0.11 Openings [5] U = 1.4 U = 1.4 U = 1.4 U = 1.4 U = 1.4 Allowance for thermal bridging [6] 0.08 x total exposed surface area 0.08 x total exposed surface area 0.08 x total exposed surface area 0.08 x total exposed surface area 0.08 x total exposed surface area Open flues None One One None One Heating system, pump in heated space [7] Gas boiler room-sealed fan flued 89% efficiency LPG boiler room-sealed fan flued 89% efficiency Oil boiler room-sealed fan flued 90% efficiency Air to water heat pump 175.1% efficiency [8] Wood pellet boiler 86% efficiency, HETAS approved Heating system controls Time and temperature zone control + Boiler interlock + weather compensation + delayed start Time and temperature zone control + Boiler interlock + weather compensation + delayed start Time and temperature zone control + Boiler interlock + weather compensation + delayed start Time and temperature zone control Time and temperature zone control + + delayed start Hot water (HW) system Stored HW (from boiler) separate time control for space and water heating Stored HW (from boiler) separate time control for space and water heating Stored HW (from boiler) separate time control for space and water heating Stored HW (electric immersion) separate time control for space and water heating Stored HW (from boiler) separate time control for space and water heating Secondary space heating none 10 % closed wood log- burning room heater [9] 10 % closed wood log- burning room heater [9] 10% electric none Heat recovery systems Instantaneous waste water heat recovery system, 45% efficiency Instantaneous waste water heat recovery system, 45 % efficiency Instantaneous waste water heat recovery system, 45% efficiency Instantaneous waste water heat recovery system, 45% efficiency Instantaneous waste water heat recovery system, 45% efficiency Photovoltaics Yes [10] Yes [10] Yes [10] No No

2015 Notional building specification (TER)

0.17 W/m2K 1.4 W/m2K 0.15 W/m2K 0.11 W/m2K Photovoltaic

• Air tightness 7m3/h.m2 @50 Pa
• Y-value of 0.08

Domestic 2015 6.1 -Carbon Dioxide Emissions (TER)

• 100% low energy lighting
• Waste Water Heat Recovery

Support fabric first approach;

• Improved backstop U-values

for new dwellings, ‘extensions’ + conservatories

• Revisions to calculating heat

loss from linear thermal bridging

• Additional compensatory

heat loss calculation.

Domestic 2015 6.2 - Building Insulation Envelope

Type of Element Max U-value (W/m2K) Wall 0.22 Floor 0.18 Roof 0.15 Openings 1.6 Separating wall 0.2

Backstop U-Values

0.17 W/m2K 1.4 W/m2K 0.15 W/m2K 0.13 W/m2K

Flat roof insulation between roof ties;

0.11 W/m2K

Domestic 2015 6.2 - Building Insulation Envelope

Extension – Column (a) U- Values

Extension - Column (b) U- Values

0.22 W/m2K 1.6 W/m2K 0.18 W/m2K 0.18 W/m2K

roof insulation between ceiling ties;

0.15 W/m2K 1.6 W/m2K 0.18 W/m2K 0.22 W/m2K

Domestic 2015 6.2 - Building Insulation Envelope

6.3 – 6.7 Building Services

6.3 – Heating systems 6.4 - Insulation of pipes ducts and vessels 6.5 – Artificial lighting 6.6 –Mechanical vent & air conditioning 6.7 Commissioning of building services

Domestic 2015 6.8 – Written Information

Domestic 2015 Additional supporting information

Domestic 2015 Additional supporting information

The total area of exposed elements will not be the same for notional and proposed extensions where there is any area of built-over openings, which are added only to the notional extension.

Domestic 2015 Annex 6.B. –compensatory heat loss.

• 21% reduction in CO2 emissions for new dwellings (6.1)
• No change to methodology - SAP 2012 used
• Improved fabric backstop U-Values (6.2)
• Domestic Building Services Compliance Guide (6.3 -6.6)
• Introduction of ‘Quick Start Guide’ for new dwellings (6.8)
• Updated Accredited Construction Details

Domestic 2015

Summary changes

Thank you for listening...

See www.gov.scot/s6-2015 Contacts at BSD: fraser.walsh@gov.scot - 01506 600415 steven.scott@gov.scot - 01506 600414

An introduction to Elmhurst Energy

Arthur Watt Business Development Manager

OCDEA Support Team

• A dedicated support team

with over 15 years experience.

• Comprehensive support on

technical and software.

• Available by phone or

email, 9-5, Monday to Friday.

• 98% of calls answered

within 90 seconds.

• Response to email enquiries

within 24 hours.

OCDEA Accreditation

Some key benefits of accreditation with Elmhurst include;

• Free P.I and P.L insurance.
• A sliding scale of lodgement fees.
• Added to the ‘Search for an Assessor’ facility on the Elmhurst

website.

• Automatic renewal of accreditation every year – no paperwork.
• Entry to ‘Access Elmhurst’ our members only portal containing key

documents and information.

• Regular updates regarding industry issues affecting OCDEAs.
• Access to the industry renowned assessor support facilities.
• Discounts on CPD courses.

Training and Continuing Professional Development (CPD)

OCDEA Courses

• Elmhurst are running the following courses in

Scotland until the end of this year;

– Section 6 Update – Thermal Bridging – OCDEA ABBE route – OCDEA APEL route

• We have also ran Webinars on Design SAP

changes, Section 6 Updates etc.

• Courses are run nationwide.

OCDEA CPD Courses

• Members get discounted rates on CPD

courses.

• Courses can be viewed, booked and paid for
• n our online training calendar;

You can view our training calendar here

How can Elmhurst help you?

• Getting a head start on changes to regulations is very

important from a technical and financial view.

• The changes could affect dwelling types differently.

This could result in different specifications for flats, houses etc.

• Elmhurst recognised this so in the new year started

work on development of software to enable house builders to assess the changes to Section 6.

How can Elmhurst help you?

• Elmhurst has listened to user feedback from

previous versions of software when developing Design SAP 2012.

• Elmhurst aim to make Design SAP 2012 the

most comprehensive but user friendly SAP software package.

• User feedback collected and has resulted in

improvements to reports, interface, manuals, data entry etc.

How can Elmhurst help you?

• Design SAP 2012 software was approved for Section 6 2015
• n 2nd April 2015.
• Design SAP 2012 allows modelling of dwelling types in

anticipation of Section 6 2015 introduction.

• Results displayed in real time and allow users to start to

develop strategies to enable compliance;

How can Elmhurst help you?

• House types modelled against Section 6 2010 can

be automatically updated to Section 6 2015.

• For a free, 30 day demo of Design SAP 2012

please call 01455 883 236 or email softwaresales@elmhurstenergy.co.uk

• Read more about our Design SAP software here

Thank your for listening Any Questions?

You can also follow Elmhurst Energy on:

Part 2 SAP Workshop

Facilitated by Jack Brayshaw Elmhurst Energy

Part 2 SAP Workshop

Objective:

• Gather feedback on the critical areas where industry

considers there to be risks and opportunities

• Provide the Building Standards Division concise

feedback indicating where government and industry can collaborate to deliver more robust solutions for the 2015 standards and beyond

House Scenarios

House Type

2010 Compliant 2015 Notional - Gas Fabric first - Gas Heat pump PV/Solar - Gas

2 Bed Semi

U-Value Bridging Air Permeability Ventilation LELs Heating system Water Storage Renewables U-Value Bridging Air Permeability Ventilation LELs Heating system Water Storage Renewables U-Value Bridging Air Permeability Ventilation LELs Heating system Water Storage Renewables U-Value Bridging Air Permeability Ventilation LELs Heating system Water Storage Renewables U-Value Bridging Air Permeability Ventilation LELs Heating system Water Storage Renewables

3 Bed Semi 4 Bed Detached 5 Bed Detached

Handouts

By working in conjunction with CSILG and HFS, a range of pre-calculated solutions will be presented to provide the attendees with an appreciation of the new performance requirements. In addition the following wall chart will be pre- printed in large format and co-branded with supporting partner logos etc.

Part 2 SAP Workshop

Step 1: Opportunities and Risks

• 5 top risks and / or opportunities

industry faces to delivering the new 2015 building standards.

• Think across the entire new build

process / supply chain.

• Populate the top half of the chart

with post –its in appropriate column

• Once all post its up step back and

discuss

• Are there any themes

appearing?

• Can we group issues?
• Are there any logical links

between risk and

• pportunities?

NOTE _ Please use the marker pens as we need to photograph the wall charts for the final report

Step 2: How could industry & government make this change a success?

• 5 top ideas for Industry and /
• r Government initiatives.
• Think across the entire new

build process / supply chain.

• Stick post it notes up on the

wall chart at the point most appropriate

• Discuss
• Are there any themes

appearing / can we group some?

• Ideas can be for

promotional activity / best practice case studies / shared R&D activities / planning incentives? etc. NOTE _ These ideas do not have to specifically relate to any of the earlier post its or groups. All good if they do but not essential.

Part 3 Facilitator Summary

5 minutes for the Facilitator from each table to summarise findings

Thank You
