Week 3: Light HW2 due on Thursday Read Ch. 5 (can skip 5.5) Galillama Galilei ASTR/PHYS 2500: Foundations Astronomy Fall 2020: Week 03 1 Let there be LIGHT! Review of atomic structure, energy exchange processes, and spectroscopy

slide-1
SLIDE 1

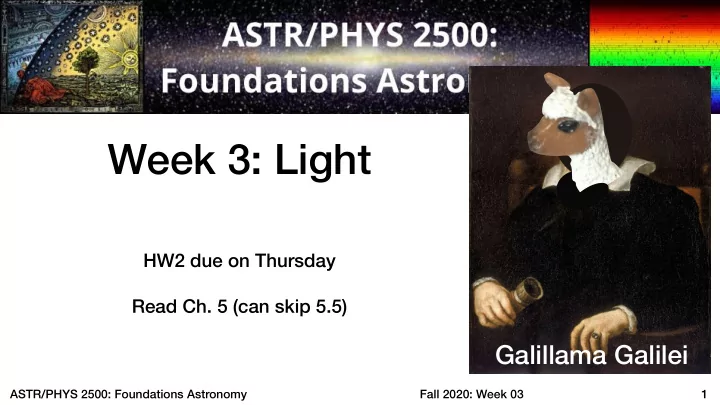

ASTR/PHYS 2500: Foundations Astronomy Fall 2020: Week 03

Week 3: Light

1

HW2 due on Thursday Read Ch. 5 (can skip 5.5)

Galillama Galilei

slide-2
SLIDE 2

ASTR/PHYS 2500: Foundations Astronomy Fall 2020: Week 03

Let there be LIGHT!

2

  • Review of atomic structure, energy

exchange processes, and spectroscopy

  • Radiative transfer
  • Thermodynamic equilibrium
  • Blackbody radiation
  • Wien’s Law
slide-3
SLIDE 3

ASTR/PHYS 2500: Foundations Astronomy Fall 2020: Week 03

“Light” is electromagnetic radiation of any wavelength/frequency, not just what eyes see

3

Classically, can be thought of a wave traveling down an electric field line like an induced transverse wave down a rope. In QM, quanta of the wave are called photons, which have energy and momenta determined by wavelength/frequency.

E = hν = hc λ h = 6.626 × 10−34 J s = 4.135 × 10−15 eV s c = 2.998 × 108 m s−1 ~ = h 2π

<latexit sha1_base64="9IZFE3rhkrO3cmwkp71S1czp4Nw=">AClnicbZFLbxMxEMe9y6uERwM9AOJiUSFxYbW7bUNyAFWtKhCnIJG0Uhwir+PtWrW9K9uLFnb8R3QdzgwpWPwWwSiT4YyfJfM78Zj2eySgr4vhnEN64ev2nY27nXv3Hzc7D56PLZlbRgfsVKW5iSjlkuh+cgJ/lJZThVmeTH2dlhGz/+yo0Vpf7sFhWfKnqRS4YdeCadb8d4be4wETXcJPcUOYLzBpPJNSY0wYT0ikg1It6aQ8TJxS3OIm/+Nc7u825J0bhj+e2AWI3Snb2LhHJ3prg4xaBSgy4NBoM+he5/pSALVZS5IUGTX/Wmp8SirRzLrbcRQvDV8XyVps7/d/f3/y68+z4az7g8xLViuHZPU2kSV27qXGCSd50SG15RdkZPeUTkJpCU1O/HGuDX4JnjvPSwNEOL70XMzxV1i5UBqSirBXY63zf7FJ7fL+1Atd1Y5rtnoryV2JW53hOfCcObkAgRlRkCvmBUBuFgkx0YQnL1y9fFOIV9ROknmMYBWtkGeo5eoFcoQW/QPvqAhmiEWLAVDIKD4DB8Gr4Lj8L3KzQM1jlb6JKFw78jGsZr</latexit>

1 eV = 1.602 × 10−19 J

<latexit sha1_base64="G3XS+610iSabTSlMwBZ+vdiA+v4=">ACFHicbVDLSgMxFM3UV1tfoy7dBIsgiGVSwcdCKLoRVxXsA9taMmnahmYeJBmxDOM/uBH8CpduXCji1oU7v0YznS609UDgcM653Nxj+5xJZVlfRmpqemZ2Lp3Jzi8sLi2bK6sV6QWC0DLxuCdqNpaUM5eWFVOc1nxBsWNzWrX7J7FfvaZCMs+9UAOfNh3cdVmHEay01DK30W3YEA6klQgeQZTfswqwoZhDJUTWVbiDqMkcBZlW2bOyltDwEmCRiRXzPgPl4836W+dloeyRwqKsIx1LWkeWrZoiFYoTKNsIJPUx6eMurWvqYr2GQ6PiuCmVtqw4wn9XAWH6u+JEDtSDhxbJx2senLci8X/vHqgOgfNkLl+oKhLkWdgEPlwbgh2GaCEsUHmAimP4rJD0sMFG6x7gENH7yJKkU8mg3XzjXbRyDBGmwDjbAFkBgHxTBKSiBMiDgDjyBF/Bq3BvPxpvxnkRTxmhmDfyB8fEDQmWfjQ=</latexit>
slide-4
SLIDE 4

ASTR/PHYS 2500: Foundations Astronomy Fall 2020: Week 03 4

slide-5
SLIDE 5

ASTR/PHYS 2500: Foundations Astronomy Fall 2020: Week 03

Atomic Structure (quantized energy levels)

5

mp = 1.673 × 10−27 kg

<latexit sha1_base64="0a5L/kyuRDmRL+ob9UlvI6Jsq84=">ACDXicbVC7SgNBFJ31GRMfq5Y2g4lgY9hNwNgIQRvLCOYB2RhmJ5NkyMzsMjMbCEv8ABt/xUZBERsLezs/RGsnj0ITD1w4nHMv97jh4wq7Tif1sLi0vLKamItmVrf2Nyt3cqKogkJmUcsEDWfKQIo4KUNdWM1EJEPcZqfq985Ff7ROpaCu9CAkDY46grYpRtpITvDmyE8hW72uJCHnqacKOg61/FRrjC8iT3JYa8zbNpJ+uMAeJOyXpYubr8a2f+i417Q+vFeCIE6ExQ0rVXSfUjRhJTEjw6QXKRIi3EMdUjdUILO2EY+/GcIDo7RgO5CmhIZj9fdEjLhSA+6bTo50V816I/E/rx7p9kjpiKMNBF4sqgdMagDOIoGtqgkWLOBIQhLam6FuIskwtoEmDQhuLMvz5NKLuvms7lLk8YZmCAB9sA+OAQuKIAiuAlUAY3IJ78ASerTvrwXqxXietC9Z0Zhf8gfX+A3yMncI=</latexit>

me ≈ mp/1836 mn ∼ mp

<latexit sha1_base64="PL9ef2vqR2zk4gaycuqGdusJ+Kk=">ACFnicbVDLTgIxFO3gC/GFunTiCZuxBlIlCXRjUtM5JEwOmUAo1tp2k7BEL4Cjd+iYkbFxLj1rjzQ3RtARcKnuQmJ+fcm3vCSWj2rjuh5NYWFxaXkmuptbWNza30ts7FR3FCpMyjlikaiHShFByoYaRmpSEcRDRqrh7cXYr3aJ0jQS16YvSYOjtqAtipGxUpA+vun5foHBEIfSamiHuSBhCfQK+RPJ46wjqYcjvUgnXGz7gRwng/JFM8+HwYde+SkH63W9GOZEGMyQ1nXPlaYxQMpQzMgw5ceaSIRvUZvULRWIE90YTN4awkOrNGErUraEgRP198QAca37PLSdHJmOnvXG4n9ePTatQmNAhYwNEXi6qBUzaCI4zg2qSLYsL4lCtqb4W4gxTCxiaZsiF4sy/Pk0ou6+WzuSubxjmYIgn2wD4Ah4A0VwCUqgDC4A4/gGYyce+fJeXFep60J52dmF/yB8/YNhqgrw=</latexit>
slide-6
SLIDE 6

ASTR/PHYS 2500: Foundations Astronomy Fall 2020: Week 03

Atomic Structure (quantized energy levels)

6

Photon emitted with wavelength/ frequency equal to difference in energy between allowed

  • rbits (energy

levels)

En = −mec2 2 ↵2 Z n2 ↵ ≡ 1 4⇡✏0 e2 ~c ≈ 7.30 × 10−3 ≈ 1 137

<latexit sha1_base64="27Lgzva+BgNAE1P3MWVuQo29Pi8=">ACjHicbVHdbtMwGHXC3xZgK3DJzSemSdysJGmlDqGhAWJCXA2JbhN1Gzmus1pzHGM7E5WV5+ABeAjegzveBqep+Nn4JEtH53w+/ny+XAlubBz/DMIbN2/dvrOxGd29d39ru/fg4Ympak3ZmFai0mc5MUxwycaW8HOlGakzAU7zS/etPrpJdOGV/KjXSo2Lcm5AWnxHoq6317m0k4gD1caEJdmTGgs7RxaQOYCLUgsxQ6VPj5KylcbQbdRpg9rnml+uGpHFDwIp7VhkuvHncrCXWuJFTjTQ1lgpX2BUX8QA7a8ZAaSeOb2Bn+035bJYNRkvZ24H68KroNkDXYOXx4Nv35/9f46/3A84rWJZOWCmLMJImVnTqiLaeCNRGuDVOEXpBzNvFQEj/C1K3CbGDXM3MoKu2PtLBi/7hSGnMsx9Z0nswlzVWvJ/2qS2xf7UcalqyTtHipqAbaCdjMw5pRK5YeEKq5nxXogvgcrN9f5ENIrn75OjhJ+8mgn37wabxGXW2gx+gJeoSNEKH6B06RmNEg83gWbAfPA+3wmH4IjzoWsNgfecR+qfCo1+3usWF</latexit>
slide-7
SLIDE 7

ASTR/PHYS 2500: Foundations Astronomy Fall 2020: Week 03

Energy Levels

7

∆E = En − En0 = (13.6 eV) Z2  1 (n0)2 − 1 n2

  • <latexit sha1_base64="bqw9mgF8fHl5v7Lg+vyS8IO63Cw=">ACUnicbVJNTxsxFHRCW2hK2wDHXqyiSuFAtJtKwAWJT4kjlZqAGm8ir/M2sbC9K/stUrRa/hR3/gIS4tJDfwaXHgpOQqsWOpKt8bw3sj12nCnpMAi+V6pzL16+ml94Xuz+Pbd+/rScseluRXQFqlK7WnMHShpoI0SFZxmFriOFZzEZ/uT+sk5WCdT8xXHGUSaD41MpODopX5dsgNQyOkh3aHfUPX/VyYHsus1FB6kbFaI/zc3LgomNUOuXaxbdeizIFCXZYrkowrJo/Las9Vrl+h/Z+BVlVg5HGPXrq0EzmI+J+EjWd3ZDS5/LF2Z4379hg1SkWswKBR3rhsGUYFtyiFgrLGcgcZF2d8CF1PDdfgomIaSUk/eWVAk9T6YZBO1b8dBdfOjXsOzXHkXtam4j/q3VzTLaiQposRzBitlGSK4opneRLB9KCQDX2hAsr/VmpGHGfB/pXqPkQwqdXfk46raPvPXFp7FHZlgH8hH0iAh2SQ75IgckzYR5JrckV/kvnJb+Vn1v2TWq08elbIP6guPgB7F7UW</latexit>

(Energies correspond to neutral hydrogen)

slide-8
SLIDE 8

ASTR/PHYS 2500: Foundations Astronomy Fall 2020: Week 03

Absorption of Energy

8

Photoexcitation Collisional Excitation

slide-9
SLIDE 9

ASTR/PHYS 2500: Foundations Astronomy Fall 2020: Week 03

Absorption of Energy

9

Photoionization Collisional Ionization

slide-10
SLIDE 10

ASTR/PHYS 2500: Foundations Astronomy Fall 2020: Week 03

Emission of Energy

10

Spontaneous Emission Stimulated Emission Collisional De-excitation

slide-11
SLIDE 11

ASTR/PHYS 2500: Foundations Astronomy Fall 2020: Week 03

Emission of Energy

11

Radiative Recombination

slide-12
SLIDE 12

ASTR/PHYS 2500: Foundations Astronomy Fall 2020: Week 03

Kirchoff’s Laws

12

  • A solid, liquid, or dense gas produces a continuous

spectrum.

  • A tenuous gas in front of a hot background produces

an absorption spectrum.

  • A tenuous gas in front of a cool background produces

an emission spectrum.

slide-13
SLIDE 13

ASTR/PHYS 2500: Foundations Astronomy Fall 2020: Week 03 13

slide-14
SLIDE 14

ASTR/PHYS 2500: Foundations Astronomy Fall 2020: Week 03 14

slide-15
SLIDE 15

ASTR/PHYS 2500: Foundations Astronomy Fall 2020: Week 03

Spectra are like Fingerprints

15

They encode what and how much of an element is present in a gas (of a cloud, star, etc.), how hot it is, and whether it’s being excited by something else Each element has a unique pattern

  • f lines, which can be seen in

absorption or emission

∆E = En − En0 = (13.6 eV) Z2  1 (n0)2 − 1 n2

  • <latexit sha1_base64="bqw9mgF8fHl5v7Lg+vyS8IO63Cw=">ACUnicbVJNTxsxFHRCW2hK2wDHXqyiSuFAtJtKwAWJT4kjlZqAGm8ir/M2sbC9K/stUrRa/hR3/gIS4tJDfwaXHgpOQqsWOpKt8bw3sj12nCnpMAi+V6pzL16+ml94Xuz+Pbd+/rScseluRXQFqlK7WnMHShpoI0SFZxmFriOFZzEZ/uT+sk5WCdT8xXHGUSaD41MpODopX5dsgNQyOkh3aHfUPX/VyYHsus1FB6kbFaI/zc3LgomNUOuXaxbdeizIFCXZYrkowrJo/Las9Vrl+h/Z+BVlVg5HGPXrq0EzmI+J+EjWd3ZDS5/LF2Z4379hg1SkWswKBR3rhsGUYFtyiFgrLGcgcZF2d8CF1PDdfgomIaSUk/eWVAk9T6YZBO1b8dBdfOjXsOzXHkXtam4j/q3VzTLaiQposRzBitlGSK4opneRLB9KCQDX2hAsr/VmpGHGfB/pXqPkQwqdXfk46raPvPXFp7FHZlgH8hH0iAh2SQ75IgckzYR5JrckV/kvnJb+Vn1v2TWq08elbIP6guPgB7F7UW</latexit>
slide-16
SLIDE 16

ASTR/PHYS 2500: Foundations Astronomy Fall 2020: Week 03 16

Stellar Types (different masses/temperatures)

slide-17
SLIDE 17

ASTR/PHYS 2500: Foundations Astronomy Fall 2020: Week 03 17

“blueshifted” “redshifted” unshifted unshifted

z = ∆λ λ = ∆ν ν

<latexit sha1_base64="STxWXR7tpGVxIUjG4Vm4zWTgYDw=">ACJHicbVBNS8MwGE7n15xfVQ8iXoJD8DTaeXAgwlAPHie4D1jLSN0C0vTkqTCLPsxXvwrXjxMxYMe9OrPMPsQdPOFhIfng+R9vJhRqSzrzcjMzS8sLmWXcyura+sb5uZWTUaJwKSKIxaJhockYZSTqKkUYsCAo9Rupe93yo12+IkDTi16oXEzdEbU4DipHSVMs8uYWn0AkEwqlzQZhC0GE67aN+gNmDzRor5aZt4qWKOBs8CegHy59DnYef/arbTMZ8ePcBISrjBDUjZtK1ZuioSimJF+zkiRHuojZpashRSKSbjpbswPN+DCIhD5cwRH7O5GiUMpe6GlniFRHTmtD8j+tmaig5KaUx4kiHI8fChIGVQSHjUGfCoIV62mAsKD6rxB3kC5E6V5zugR7euVZUCsW7KNC8Uq3cQbGkwV7YB8cAhscgzK4BVQBRjcgQcwAE/GvfFovBivY2vGmGS2wZ8xPr4BaiCpGg=</latexit>

Allows us to infer motions along the “line of sight”

Doppler Shift

slide-18
SLIDE 18

ASTR/PHYS 2500: Foundations Astronomy Fall 2020: Week 03

Lines are not delta functions!

18

i.e., the difference b/t energy levels is NOT exact

Motion-induced Broadening (small Doppler shifts cause lines to appear more broad) Other Types of Broadening

  • Thermal Broadening
  • Rotational Broadening
  • Turbulent Broadening
  • Natural Broadening
  • Pressure Broadening
  • Zeeman Broadening

broadened

slide-19
SLIDE 19

ASTR/PHYS 2500: Foundations Astronomy Fall 2020: Week 03

Natural Broadening

19

dNphot dt = n2A21

<latexit sha1_base64="dhIj1pfrbqTDAnhLXGRNS3H5zk=">ACEXicZVA9SwNBEN2L3/EraiFisyiVbgLgrEQojZWomA0kIRjb28vWbK3d+zOCeG4n2DlT7ESFMTWRrDSxtaf4SYR0eTBwO9GWbmebHgGmz73cqNjU9MTk3P5Gfn5hcWC0vLlzpKFGVGolI1TyimeCSVYGDYLVYMRJ6gl15neOef3XNlOaRvIBuzJohaUkecErASG5huxEoQlMfn7pQ4U4bkeQZakPGT7A0i3hQzctOVneLWzaRbsPEqcH7JZKX+rn58rZ25hbeGH9EkZBKoIFrXHTuGZkoUcCpYlm8kmsWEdkiL1Q2VJGS6mfYfyvCWUXwcRMqUBNxX/06kJNS6G3qmMyTQ1sNeT/z1tv6tgqDcTLmME2CSDjYFicAQ4V482OeKURBdQwhV3ByLaZuYiMCE2EvBGf5lFyWis5ucf/cxHGEBphG62gD7SAH7aEKOkFnqIoukF36AE9WrfWvfVkPQ9ac9bPzAr6B+vlG/2hoB0=</latexit>

A21 ∼ 108 s−1 ∼ 1 s−1

<latexit sha1_base64="XyWySONoEu6hAReORWhu2+ZqXs=">ACJHicbZDLSsNAFIYn9VbjLerSzWBR3FiSUrDipurGZQV7gSYtk+m0HTqThJmJUEJ9Fze+ihsXnDhxmdx2ga0rQcGfv7vHM6c348Ylcq2v4zM0vLK6lp23dzY3NresXb3ajKMBSZVHLJQNHwkCaMBqSqGlEgiDuM1L3B9djXr8nQtIwuFPDiHgc9QLapRgpbWti8t2UnBG8Bi6knIHbtVekhcwaEctZJTVzX/KUzqG3l7Lw9KbgonFTkQFqVtvXudkIcxIozJCUTceOlJcgoShmZGS6sSQRwgPUI0tA8SJ9JLJkSN4pJ0O7IZCv0DBift3IkFcyiH3dSdHqi/n2dj8jzVj1S15CQ2iWJEATxd1YwZVCMeJwQ4VBCs21AJhQfVfIe4jgbDSuZo6BGf+5EVRK+SdYv78tpgrX6VxZMEBOAQnwAFnoAxuQAVUAQaP4Bm8gjfjyXgxPozPaWvGSGf2wUwZ3z9AV6GQ</latexit>

(permitted) (forbidden) Heisenberg uncertainty principle

∆x · ∆p & ~

<latexit sha1_base64="8KerPwWbMpl07ZIutzxSImCXMA=">ACDnicbVDLSgMxFM3UV62vUZeKBEvBVZkRQd0VdeGyBfuAzlAymbQNzTxI7ohl6NKVG3/FjRF3Lp25zf4E6aPhbYeCJycw/JPV4suAL+jIyC4tLyvZ1dza+sbmlrm9U1NRIimr0khEsuERxQPWRU4CNaIJSOBJ1jd612O/Potk4pH4Q30Y+YGpBPyNqcEtNQyC84VE0DwHXaoHwGeXmPsdECnAux0PSJbZt4qWmPgeWJPSb60P6x83x8My3z0/EjmgQsBCqIUk3bisFNiQROBRvknESxmNAe6bCmpiEJmHLT8ToDXNCKj9uR1CcEPFZ/J1ISKNUPD0ZEOiqW8k/uc1E2ifuSkP4wRYSCcPtROBIcKjbrDPJaMg+poQKrn+K6ZdIgkF3WBOl2DPrjxPasdF+6R4XtFtXKAJsmgPHaIjZKNTVELXqIyqiKIH9IRe0KvxaDwb8b7ZDRjTDO76A+Mjx+mAJ71</latexit>

(∆x c )(∆p · c) & ~ ∆t·∆E & ~

<latexit sha1_base64="bSRVNnGxFlfgT0X+1IPg8k3PxI=">ACTHicbVDLSgMxFM3Ud31VXboJFqVuyowU1J34AJcK9gFNKZnbTBvMPEjuiGXoB7px4c6vcONCEcHUzkKrFwIn5x7c3P8REmDrvsFGZm5+YXFpeKyura+uljc2GiVMNog6xinXL50YoGYk6SlSilWjBQ1+Jpn97Ntabd0IbGUc3OExEJ+T9SAYSOFqW4IKCzSHjJ0LhZzejzIY7dM9WsmJhDLoxUhn1LWRzsopGzgc0ZK+YezD17+f1iytotld2q+130L/ByUCZ5XVLT6wXQxqKCEFxY9qem2An4xolKDEqstSIhMt74u2hREPhelk32GM6K5lejSItT2RXzM/uzIeGjMPStM+Q4MNPamPxPa6cYHUyGSUpigmDwWpohjTcbK0J7UAVEMLOGhpd6Uw4DZctPkXbQje9Jf/gsZB1atVj69r5ZPTPI5Fsk12SIV45JCckEtyReoEyAN5IW/k3Xl0Xp0P53NiLTh5zxb5VYX5L34asK8=</latexit>
slide-20
SLIDE 20

ASTR/PHYS 2500: Foundations Astronomy Fall 2020: Week 03

Broadened Line Shapes

20

(ν − ν0)/σ

<latexit sha1_base64="HudVlDgkiTtqQ3UZlwQENzvQOg=">AB/XicbVDLSgMxFM3UV62v8bFzE1qEilhnRFB3RTcuK9gHdIYhk6Y1NMkMSUYh+JP+AFuXCji1v9w178xfSy09cCFwzn3cu89Ycyo0o4ztHILi0vLK/nVwtr6xuaWvb3TUFEiManjiEWyFSJFGBWkrqlmpBVLgnjISDPsX4/85gORikbiTqcx8TnqCdqlGkjBfZe2RPJsanAOYQn0FO0x1Fgl5yKMwacJ+6UlKpF7+h5WE1rgf3tdSKcCI0ZkiptuvE2s+Q1BQzMih4iSIxwn3UI21DBeJE+dn4+gE8MEoHdiNpSmg4Vn9PZIgrlfLQdHKk79WsNxL/89qJ7l74GRVxonAk0XdhEdwVEUsEMlwZqlhiAsqbkV4nskEdYmsIJwZ19eZ40TivuWeXy1qRxBSbIg31QBGXgnNQBTegBuoAg0fwAt7Au/VkvVof1uekNWdNZ3bBH1hfP3WblvE=</latexit>

Lorentzian Profile (natural broadening) Gaussian Profile (realistic broadening)

slide-21
SLIDE 21

ASTR/PHYS 2500: Foundations Astronomy Fall 2020: Week 03

Lines are not delta functions!

21

i.e., the difference b/t energy levels is NOT exact

Other Types of Broadening

  • Natural Broadening
  • Pressure Broadening
  • Zeeman Broadening

broadened Dense environments, frequent collisions induce electric fields that modify energy levels

slide-22
SLIDE 22

ASTR/PHYS 2500: Foundations Astronomy Fall 2020: Week 03

Doppler Broadening

22

Thermal Broadening

slide-23
SLIDE 23

ASTR/PHYS 2500: Foundations Astronomy Fall 2020: Week 03

Velocity distribution of particles in thermal equilibrium have a Maxwell-Boltzmann distribution

23

F(v)dv = 4π ⇣ m 2πkT ⌘3/2 v2 exp ✓ −mv2 2kT ◆ dv

<latexit sha1_base64="MJzhNeDrAxmoAFTYcYOtEN/yKg=">ACTHicbVBNSyNBFOyJrh/ZD+N69NIoQjxsdiYK6mHBVRCPCkaFTAw9nTdJk56eoftNMAzq7zv3YuHve3B3+DFgyKCPUkOfmxBQ1H16nV3BYkUBl3n1Oamv40Mzs3X/785eu3hcri91MTp5pDg8cy1ucBMyCFgYKlHCeaGBRIOEs6O8X/tkAtBGxOsFhAq2IdZUIBWdopXaFH1QH67QzoL/op8I6ksIseqHmvEsyrN6ofXpSe5r0e3h+kW28bOe08FnfpwmUzG6Y9JoDBs6HXC7m5XVt2aOwL9SLwJWd397V7dLv5R+3KX78T8zQChVwyY5qem2ArYxoFl5CX/dRAwnifdaFpqWIRmFY2KiOna1bp0DW9ikI/V1ImORMcMosJMRw57xXi/7xmiuF2KxMqSREUH18UpJiTItmaUdo4CiHljCuhX0r5T1me0Hbf9mW4L3/8kdyWq95m7WdY9vGHhljiyTFVIlHtkiu+SQHJEG4eSa3JEH8ujcOPfOk/M8Hi05k8wSeYPSzAt+qbRo</latexit>

F(E)dE = F(v) dv dE = 2 √πkT ✓ E kT ◆1/2 exp ✓ − E kT ◆

<latexit sha1_base64="V6IV0raS0R8lm7Sd1GaZfVP2RmA=">ACZXicbVFPb9MwHXCv64waMfEhQM/MSG1B7qkQto4IG2gThyHtG6TmlI5jtNadZxg/1JRmXyq3fkQ3Dhw4cLXwG16gG1PsvX03vJ9nNcSGEwCH56/p279+4/aGw1Hz7afvyk1d45N3mpGR+yXOb6MqaGS6H4EAVKfloTrNY8ot4/mHlXy4NiJXZ7gs+DijUyVSwSg6adL6dtIZdCEZwDs46Sy6EKWaMpvAonLboHJyrfQrG5kvGm1UiArmcFZBJHmKndoeVHalRVpMZ9j9bMP9vgvwr8UmBa9vy01ae0EvWANuknBD9o6Og6tf7e/qdNL6ESU5KzOukElqzCgMChxbqlEwyatmVBpeUDanUz5yVNGMm7Fdt1TBK6ckObaLYWwVv+dsDQzZpnFLplRnJnr3kq8zRuVmB6OrVBFiVyx+qC0lIA5rCqHRGjOUC4doUwLd1dgM+rqQPcxTVdCeP3JN8l5vxe+6b395Np4T2o0yHPyknRISA7IEflITsmQMPLba3htb8f742/7u/6zOup7m5mn5D/4L/4CVsS47Q=</latexit>

hxi = Z xf(x)dx

<latexit sha1_base64="mflhfuhL1SCgkRUq2N8VNgjbp70=">ACnicbVC7SgNBFJ2Nrxhfq5Y2o0GITdgVRQU1QRvLCOYB2RBmJ7PJkNkHM3clIa2sfFDbCwUsfUL7PwI/8HJo9DEAxcO59zLvfe4keAKLOvLSMzMzs0vJBdTS8srq2vm+kZJhbGkrEhDEcqKSxQTPGBF4CBYJZKM+K5gZbd9OfDLt0wqHgY30I1YzSfNgHucEtBS3dx2BPgFHewI3mzBef4Ds8AC14mc4ebnTqZtrKWkPgaWKPSTqfyx7m7r4fC3Xz02mENPZAFQpaq2FUGtRyRwKlg/5cSKRYS2SZNVNQ2Iz1StN3ylj3e10sBeKHXpK4bq74ke8ZXq+q7u9Am01KQ3EP/zqjF4x7UeD6IYWEBHi7xYAjxIBfc4JREF1NCJVc34pi0hCQaeX0iHYky9Pk9J+1j7InlzrNC7QCEm0hXZQBtnoCOXRFSqgIqLoHj2hF/RqPBjPxpvxPmpNGOZTfQHxscPbPqb0g=</latexit>

hvi = r 8kT πm

<latexit sha1_base64="yCyLyYA2aHZ4iKOigQ17U5yzPx8=">ACFnicbVDJSgNBEO1xjXGLevTSGAQvhlRjLgFvegtQhYhE0NPpydp0rPYXRMIw3yFz/CH9CDB0W8ijf/xs5y0OiDgsd7VTVc0LBFZjmlzExOTU9M5uaS8vLC4tZ1ZWKyqIJGVlGohAXjtEMcF9VgYOgl2HkhHPEazqdM7frXLpOKBX4JeyOoeafnc5ZSAlhqZbVswF45wF9uSt9pwgo+xrW4lxLYrCY3zuINLSWyHtJ0shkzZw5AP5LrBHJFg4fLp9u9k6Ljcyn3Qxo5DEfqCBK1SwzhHpMJHAqWJK2I8VCQjukxWqa+sRjqh4P3krwpla2A2kLh/wQP05ERNPqZ7n6E6PQFuNe3xP68WgZuvx9wPI2A+HS5yI4EhwP2McJNLRkH0NCFUcn0rpm2i4wCdZFqHYI2/JdUdnLWbu7gSqdxhoZIoXW0gbaQhfZRAV2gIiojiu7QI3pBr8a98Wy8Ge/D1gljNLOGfsH4+AbzsqGe</latexit>

hEi = 3 2kT

<latexit sha1_base64="jIFZrndZqsoW5TfBKR+Pm8mDEo=">AC3icbVC7SgNBFJ31GeMraiFiMyQIVmE3CkZQCYpgGSEvyIYwO5lNhsw+mLkrhCW9jb9iY6GIrb3YaWPrZzh5FJp4MLhnHu59x4nFyBaX4YM7Nz8wuLiaXk8srq2npqY7OigkhSVqaBCGTNIYoJ7rMycBCsFkpGPEewqtO9GPjVGyYVD/wS9ELW8Ejb5y6nBLTUTKVtwVw4wZfYlrzdgTN8im1XEhof9ONcH3dxqZnKmFlzCDxNrDHJFPJfb9uf3zvFZurdbgU08pgPVBCl6pYZQiMmEjgVrJ+0I8VCQrukzeqa+sRjqhEPf+njPa20sBtIXT7gofp7IiaeUj3P0Z0egY6a9Abif149AjfiLkfRsB8OlrkRgJDgAfB4BaXjILoaUKo5PpWTDtEJwE6vqQOwZp8eZpUclnrMHt8rdM4RyMk0C5Ko31koSNUQFeoiMqIolt0jx7Rk3FnPBjPxsuodcYz2yhPzBefwDNs51p</latexit>
  • Avg. particle speed
  • Avg. particle

kinetic energy

slide-24
SLIDE 24

ASTR/PHYS 2500: Foundations Astronomy Fall 2020: Week 03

Doppler Broadening

24

Thermal Broadening line-of-sight “velocity dispersion” (width of a Gaussian distribution)

σlos = ✓ kT µmp ◆1/2 ≈ 100 m s−1 ✓ T 1 K ◆1/2 µ−1/2

<latexit sha1_base64="sha6bIJ4r+Awp9jxNzS2Djv/YLg=">ACa3icbVHLbhMxFPUMrzZAG+iClhYVJXKoum4QoIukELZIGBRpKatlElHseTWLHln0HNbImi34EH9Zd/6BSxT/gPBbQcCVLx+fec2wf50YKB0lyHcX37j94+GhltfH4ydO19eaz5ydOV5bxDtNS27OcOi5FyTsgQPIzYzlVueSn+ejztH/6k1sndHkMY8N7ig5KUQhGIVBZ8zJ1YqBo5lOrsNSuxh9xKnkBOzgtLGV+dFz7VFVYZabGqRWDIbw92RvP+yoMVZfYJIk5leTVx97ndJvbCYOwQDMvm2JFbVdDTArLmVtJZ4WVAFmCr/enX9/ZXe3uUNa/SvmaV4iUwSZ3rksRAz1MLgkleN9LKcUPZiA54N8CSKu56fpZVjbcD08eFtmGVgGfs3wpPlXNjlYdJRWHo7vam5P963QqKDz0vSlMBL9n8oKSGDSeBo/7wnIGchwAZVaEu2I2pCEgCN/TCGQu09eBif7LfKudfAjpHGI5rWCXqE3aAcR9B610Rd0hDqIoZtoLXoRbUa/434Zfx6PhpHC80G+qfi7T9kSbyK</latexit>

∆λ λ ≈ σlos c

<latexit sha1_base64="6lByNcnbVFXusR+qy9wRo1XjhKI=">ACKnicbVDLSgMxFM34tr5GXYi4CYrgqsyIYN3Vx8JlBauFTil30kwNJpMhyYhlmO9x468I4kKpLty48DNMH4JaDwQO5zLzT1hwpk2ntd1xsYnJqemZ2YLc/MLi0vu8sqFlqkitEokl6oWgqacxbRqmOG0ligKIuT0Mrw+7vmXN1RpJuNz0loQ0A7ZhEjYKzUdA+DSAHJghPKDeCA28kW5Nk3wQEkiZK3eBjTrC2gmQVKYC51nmckb7pbXtHrA48Sf0i2yqX3x7Xz/VK030KWpKkgsaGcNC67nuJaWSgDCOc5oUg1TQBcg1tWrc0BkF1I+ufmuNtq7RwJV9scF9edEBkLrjghtUoC50n+9nvifV09NVGpkLE5SQ2MyWBSlHBuJe73hFlOUGN6xBIhi9q+YXIEtxdh2C7YE/+/Jo+Rit+jvFQ/ObBtHaIAZtIE20Q7y0T4qo1NUQVE0B16QM/oxbl3npyu8zaIjnDmVX0C87HF57WrQw=</latexit>
slide-25
SLIDE 25

ASTR/PHYS 2500: Foundations Astronomy Fall 2020: Week 03

Lines are not delta functions!

25

i.e., the difference b/t energy levels is NOT exact

Motion-induced Broadening (small Doppler shifts cause lines to appear more broad)

  • Thermal Broadening
  • Rotational Broadening
  • Turbulent Broadening

broadened
