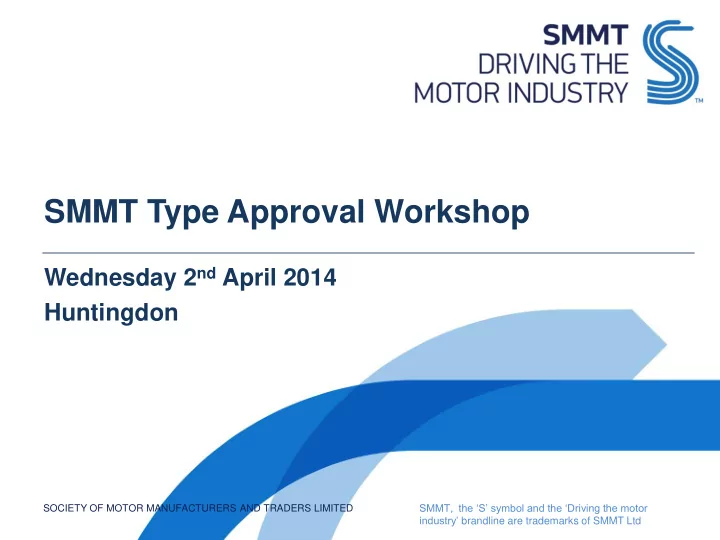

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED

SMMT, the ‘S’ symbol and the ‘Driving the motor industry’ brandline are trademarks of SMMT Ltd

SMMT Type Approval Workshop

Wednesday 2nd April 2014 Huntingdon

slide-2
SLIDE 2

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED

SMMT, the ‘S’ symbol and the ‘Driving the motor industry’ brandline are trademarks of SMMT Ltd

Welcome address

Allan McKenzie. Deputy Head and Senior Technical Manager, SMMT

slide-3
SLIDE 3

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 3

Purpose of today To give you:

  • An overview of type approval

– What is it? – The approval routes available – How to obtain approval – The tools to assist you

slide-4
SLIDE 4

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 4

Draft SMMT Type Approval Interactive Workshops PROGRAMME Time Subject Speaker 09:30 - 10:00 Registration - networking and refreshments 10:00 – 10:05 Welcome Allan McKenzie, Deputy Head and Senior Manager, Vehicle Legislation, SMMT 10:05 – 10.15 SMMT Membership How the SMMT works and benefits of being a member Nigel Base, Commercial Vehicle Development Manager, SMMT 10:15 – 11.00 Type Approval – The process Overview of how to obtain Type Approval Mike Protheroe, VCA 11:00 – 11:15 Refreshments and networking 11:15 – 11:45 SMMT Technical Department How the legislation evolved, how the SMMT has influenced change and how we are continually influencing the future. How the SMMT can help your business and the SMMT SENTA tool. Tony Hopkins, Technical Manager, SMMT 11:45 – 12:30 Individual Vehicle Approval Process How the process works and how to obtain an approval Nigel Maden, DVSA 12:30 – 13:30 Lunch and networking 13:30 – 16:00 Individual discussions Opportunity to talk to the agencies and the SMMT SMMT, DVSA, VCA

slide-5
SLIDE 5

THE SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED

SMMT, the ‘S’ symbol and the ‘Driving the motor industry’ brandline are trademarks of SMMT Ltd

Nigel Base Commercial Vehicle Manager

About the SMMT

slide-6
SLIDE 6

PAGE 6 SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED

What is the SMMT?

Established in 1902, SMMT supports the interests of UK automotive. One of the largest and most influential trade bodies in the UK, SMMT is a member organisation that represents over 600 automotive companies. Promoting the interests of industry at home and abroad, SMMT acts as the voice for UK automotive promoting a united position to government, stakeholders and the media.

SMMT provides members with:

  • A representative forum to engage with UK governments and EU institutions.
  • Automotive data and market intelligence.
  • Data analysis services.
  • International and national exhibition opportunities.
  • Practical technical advice.
slide-7
SLIDE 7

THE SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 7

The UK Automotive Sector

+700,000 jobs dependent on automotive 140,000 in manufacturing

£60.5bn turnover £12bn value added Industry annually invests in R&D 1.6 million cars annually 2.5 million engines

slide-8
SLIDE 8

THE SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 8

UK commercial vehicle manufacturing by site

Alexander Dennis Bus/Coach Guildford 1,949 MINI Van Oxford 1,886 Dennis Eagle Trucks Warwick 1,065 IBC Van + minibus Luton 43,640 Land Rover Light 4x4 Solihull 10,151 Leyland Trucks Leyland 15,400 Optare bus Leeds 444

2013 – 112,039 (-21.7%)

Ford Southampton 12,989 Vauxhall Ellesmere Port 157 Source: SMMT PIE data

slide-9
SLIDE 9

THE SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 9

SMMT Structure

Communications International Automotive Information Services Mike Hawes CEO Tim Abbott President SMMT Departments Legal Member Services and Business Improvement Public Policy and Vehicle Legislation Aftermarket Bus and Coach Car Automotive Components Commercial Vehicle Design Engineering Light Trailer and Trailer Equipment SMMT Executive Board SMMT member sections

slide-10
SLIDE 10

THE SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 10

How does the SMMT deliver to its members’ needs?

Type Approval International Business Noise Policy Co-ordination Public Affairs etc... Committees/Working Groups External bodies (Government, media, stakeholders) SMMT provides a secure forum for debate discussion of issues affecting industry and an influential voice to channel communications Policy Technical Environment Communications Economics Departments Car Bus/Coach Aftermarket CV Design Eng. Electric Vehicles Engines LTTE Sections Components Components

slide-11
SLIDE 11

THE SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 11

Other SMMT services

Market Intelligence

Production Outlook Report Production International Exchange Export International Exchange

Other Support Services

R&D Tax Credits Legal helpline Product recall insurance Currency solutions MVRIS Motorparc VATit

slide-12
SLIDE 12

PAGE 12 SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED

www.smmt.co.uk/members-lounge/member-services

How SMMT can support your business

Business Development Business Support

Open Forum Meet the Buyer Meet the Funder Open Access Automotive Supplier Finder International and National Exhibition Opportunities Funding and Support SME Regional Roadshows Section Committees and Working Groups Technical advice and guidance Networking

  • pportunities

Climate Change Agreement

slide-13
SLIDE 13

THE SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 13

Representation through the SMMT

SMMT provides a forum for debate and representation on issues affecting industry.

(Please note this table it is not complete with all the committees and working groups. Click here to view all)

Trade Sections Committees Working Groups

Aftermarket Automotive Components Bus and Coach Car Commercial Vehicle Group Design Engineering Group Electric Vehicle Group Engines Light Trailer and Trailer Equip Digital Radio Economics Education and Development Engineering Environmental Policy International business group Legal E-business and Logistics Forum MVRIS Management Policy Co-ordination Public Affairs Committee Quality Panel Customer Service (Motor Codes) Technology Vehicle Warranty Products (Motor Codes) Vehicle Legislation: Brakes WG Light vehicle powertrain WG Lighting and signalling WG Passive safety WG Type approval WG Vehicle security and insurance WG Environment: End of life vehicle WG Fuels WG Hazardous materials WG Manufacturing environment WG Noise WG Sustainability WG Low volume manufacturers WG

slide-14
SLIDE 14

THE SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 14

Commercial Vehicle Group

The Commercial Vehicle Group (CVG) deals with commercial vehicles from light vans to maximum capacity trucks. It supports businesses across the sector, including vehicle manufacturers, importers bodybuilders, trailer manufacturers, component industries, aftermarket services and other interested groups. Main activities

  • Representing the commercial vehicle sector’s interests at UK and EU

level

  • Informing and consulting on legislative developments
  • Providing technical and market information

Nigel Base Commercial Vehicle Development Manager nbase@smmt.co.uk

slide-15
SLIDE 15

THE SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 15

slide-16
SLIDE 16

THE SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 16

Trailer & Bodywork Technical Committee

This committee represents the interests of SMMT members who manufacture, import, distribute or retail any of the following:

  • Heavy commercial trailers .
  • Bodywork manufactured and fitted to both commercial vehicles and trailers.
  • Towing attachments for vehicles.
  • Trailer or bodywork components or accessories.

Main activities:

  • Representing members’ interests to the

UK government and other relevant

  • rganisations.
  • Providing technical information.
  • Consulting and informing its members on

legislative developments.

Current work includes:

  • Liaison with the SMMT Type Approval

Working Group, DfT & VCA regarding an alternative process for obtaining NSSTA.

  • Proposed amendment to the rear

underrun regulation.

  • Revision of standard EN 12642:2006 on

strength of body structures.

slide-17
SLIDE 17

THE SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 17

Type Approval WG

The Type Approval Working Group monitors future Type Approval draft regulations, standards, and vehicle legislation through participation with UK government bodies (i.e. DfT) and official bodies in the UN and in Europe. There are over 60 EC Directives and Regulations and also over 120 UNECE Regulations relating to Type Approval, covering every aspects of motor vehicle and trailer manufacture.

These requirements can be found in 2007/46/EC the Framework Directive. This Directive allows for many routes for vehicle type approval:

  • European Whole Vehicle Type Approval (ECWVTA).
  • European Small Series Type Approval (ESSTA).
  • National Small Series Type Approval (NSSTA).
  • National Individual Vehicle Approval (NIVA).

Tony Hopkins Technical Manager thopkins@smmt.co.uk

slide-18
SLIDE 18

THE SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 18

slide-19
SLIDE 19

THE SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 19

slide-20
SLIDE 20

THE SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 20

Save the date 2014 April 29 – May 1

slide-21
SLIDE 21

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED

SMMT, the ‘S’ symbol and the ‘Driving the motor industry’ brandline are trademarks of SMMT Ltd

Mike Protheroe, Standards and Legislation Manager, VCA

Type Approval

slide-22
SLIDE 22

www.dft.gov.uk/vca

Type Approval Mike Protheroe February 2014

slide-23
SLIDE 23

www.dft.gov.uk/vca

Outline

  • Type Approval Regulations
  • Type Approval Process
  • Type Approval Documents
  • Conformity of Production
slide-24
SLIDE 24

www.dft.gov.uk/vca

Type Approval in a Nutshell

  • Whole Vehicle Type Approval authorises a

manufacturer to:

– produce vehicles to a proven specification – self-certify these as compliant with relevant legislation

  • Two fundamental requirements:

– Meeting the technical and administrative requirements and capturing the design – Ensuring that subsequent production vehicles are manufactured in conformance with the approved design

24

slide-25
SLIDE 25

www.dft.gov.uk/vca

Type Approval Regulations

  • The type approval regulations are;

– UK Statutory Instrument 2009 No. 717

www.legislation.gov.uk/uksi/2009/717/contents/made

  • These enact directive 2007/46/EC into law
  • Manufacturers can choose between;

– ECWVTA – NSSTA – IVA

slide-26
SLIDE 26

www.dft.gov.uk/vca

Type Approval Regulations

29 October 2014 - Final Implementation Date

  • Applies to

– Multi stage approval for medium & heavy trucks (category N2 & N3) – Single & Multi stage approval for Special Purpose Vehicles (category N1 – N3, M2, M3, O1 – O4)

  • See Schedule 3 of the UK Statutory Inst.
slide-27
SLIDE 27

www.dft.gov.uk/vca

Type Approval Process

  • From website

(click image to jump to the page)

slide-28
SLIDE 28

www.dft.gov.uk/vca

Type Approval Process

What this really means;

Vehicles Vehicles Systems Systems

Understand the legislation Plan what needs to be done Develop compliant designs Prepare approval documents Get tests & reports done Develop (& use!) Quality Manual Create Control Plans Write Process Documents Maintain Records ObtaIn CoP Clearance Get final approval

4 months (minimum) à ? months (it depends on …)

slide-29
SLIDE 29

www.dft.gov.uk/vca

Type Approval Process

Vehicles can be approved in either;

  • Single stage approval

Image: Magnus Manske

  • Multi stage approval

Image: Unisouth

slide-30
SLIDE 30

www.dft.gov.uk/vca

Type Approval Process

  • Single stage approval

– in general terms, built to completion in respect of chassis and body by a single manufacturer

  • Multi stage approval

– in general terms, those where the chassis manufacturer and body manufacturer are different and each plays a part in the approval of the vehicle

slide-31
SLIDE 31

www.dft.gov.uk/vca

Type Approval Process

Focus on Multi stage approval

  • Stage 1 (Base Vehicle) manufacturer has

already done most of the hard work!

  • Stage 2 (3 in some cases) manufacturer(s) /

body builder(s) responsible only for aspects they add / change

– Maybe 6 or 7 items

slide-32
SLIDE 32

www.dft.gov.uk/vca

Type Approval Documents

  • Information documents follow a basic and

recognisable format and have information about;

– you (the manufacturer) – your products (the type of vehicle or system)

  • Most directives / regulations will have a

template for an information document

– if there isn’t one the relevant parts should be taken from Annex I of 2007/46/EC or SENTA

slide-33
SLIDE 33

www.dft.gov.uk/vca

Compiling Information

Information Document

Info Doc

Certificate(s) & Test Report(s) Photographs & Drawings

Type Approval

Template

Information Folder Index Information Package

slide-34
SLIDE 34

www.dft.gov.uk/vca

Type Approval Documents

slide-35
SLIDE 35

www.dft.gov.uk/vca

Type Approval Documents

slide-36
SLIDE 36

www.dft.gov.uk/vca

Type Approval Documents

slide-37
SLIDE 37

www.dft.gov.uk/vca

Type Approval Documents

slide-38
SLIDE 38

www.dft.gov.uk/vca

Type Approval Documents

slide-39
SLIDE 39

www.dft.gov.uk/vca

Type Approval Documents

slide-40
SLIDE 40

www.dft.gov.uk/vca

Type Approval Documents

slide-41
SLIDE 41

www.dft.gov.uk/vca

Type Approval Documents

slide-42
SLIDE 42

www.dft.gov.uk/vca

Type Approval Documents

slide-43
SLIDE 43

www.dft.gov.uk/vca

Type Approval Documents

slide-44
SLIDE 44

www.dft.gov.uk/vca

Type Approval Documents

Letter of Association

  • Sets out relationship

between stages

– Always required for ECWVTA – May not be needed if you apply for NSSTA

slide-45
SLIDE 45

www.dft.gov.uk/vca

Example TVV Matrix

Stage 1: BX1FAC1 à Stage 2: BX1FVAC1M10

45 From earlier slide; 1.3.3. Powered axles (number, position, interconnection): ??FV??????:1, axle 1, Not applicable ??RV??????:1, axle 2, Not applicable

slide-46
SLIDE 46

www.dft.gov.uk/vca

Applying for Type Approval

  • There is also some ‘scene setting’ guidance

attached to the application form

– Type Approval in general – Conformity of Production (CoP)

  • more on CoP later!
  • We have a checklist which will help you
  • rganise your application for approval to

ensure that you have done everything you need

46

slide-47
SLIDE 47

www.dft.gov.uk/vca

47

slide-48
SLIDE 48

www.dft.gov.uk/vca

Examples of items on the check list

48

slide-49
SLIDE 49

www.dft.gov.uk/vca

49

N3 Skiploader

slide-50
SLIDE 50

www.dft.gov.uk/vca

50

Skip Loader NSSTA – What needs testing ?

Lighting Installation Rear-underrun device Masses and dimensions Statutory plates Side guards Spray Suppression

! Installation check only ! ! Installation check only ! ! Installation check only ! ! Installation check only !

Rear registration plate space

! Inspection only ! ! Inspection only ! ! Inspection only !

EMC

! Declaration only ! ! Installation check only !

Means check the installation of approved components

slide-51
SLIDE 51

www.dft.gov.uk/vca

Conformity of Production (CoP)

  • CoP checks are done in parallel with Type

Approval tests and / or inspections

  • You can’t get Type Approval without CoP

– Manufacturers need to provide evidence of the ability to produce a series of products that exactly match the specification, performance and marking requirements

  • utlined in their type approval

documentation

slide-52
SLIDE 52

www.dft.gov.uk/vca

Conformity of Production (CoP)

  • CoP is fundamental to Type Approval

– VCA must have confidence in your manufacturing and change control systems to enable you to issue Certificates of Conformity (CoC) – Quality Management System – controlling the policies and day-to-day activities of the business that could influence conformity of the product to the approved ‘Type’

  • ISO9001 / TS16949 satisfy this requirement but are

not mandatory

52

slide-53
SLIDE 53

www.dft.gov.uk/vca

Conformity of Production (CoP)

  • CoP clearance is required for Type Approval

– Quality Management System – controlling the policies and day-to-day activities of the business that could influence conformity of the product to the approved ‘Type’

  • ISO9001 / TS16949 satisfy this requirement but are not

mandatory

– Control Plan – a detailed description of all the checks performed that ensure completed product conforms to each aspect of the approval

53

slide-54
SLIDE 54

www.dft.gov.uk/vca

54

Afterwards?

  • Issue Certificates of

Conformity (CoC)

– Your declaration that the vehicle in question meets the requirements – Used with previous stages CoC’s for registration – Only add information that you have affected

slide-55
SLIDE 55

www.dft.gov.uk/vca

  • Changes to your specification
  • Additions to your specification
  • Changes to base vehicle
  • Changes to legislation

55

Maintain your approval!!!!

slide-56
SLIDE 56

www.dft.gov.uk/vca

56

Whole Vehicle Type Approval Costs, the detail …

Whole vehicle type approval costs with VCA are;

  • S&C Admin & Cert fee £110
  • Technical fee

£89 per hour

  • CoP review / audit

£250 / £890 / £1,785

  • Whole Vehicle Cert fee

£75

  • Whole Vehicle Admin fee

£73

  • Technical fee

£89 per hour

slide-57
SLIDE 57

www.dft.gov.uk/vca

So what does it all mean?

  • 1st type  £2,000 (approx)

– Add CoP costs (often £250 to £1,000 approx)

  • Subsequent types with same body from

£1,300 (approx)

– (e.g. on an alternative chassis)

57

slide-58
SLIDE 58

www.dft.gov.uk/vca

Some Issues Encountered

Simple stuff seems so easy to get wrong!

  • Number plate space (surface)

– wrong side, proprietary holder wrong size

  • Lamps

– additional lamps (not permitted) – wrong sort, wrong orientation – obscured…

58

slide-59
SLIDE 59

www.dft.gov.uk/vca

Some Issues Encountered

  • Got CoP, didn’t realise that they needed

– documents – tests – inspections, etc.

  • Component Approvals

– E marks needed – not just any mark!

slide-60
SLIDE 60

www.dft.gov.uk/vca

Some Issues Encountered

Documentation

  • Thought it was VCA’s job to make

manufacturers information document

  • Docs sent in one page at a time, not PDF
  • No drawings / drawings not good enough
  • Docs only on paper

– in a shopping basket!

slide-61
SLIDE 61

www.dft.gov.uk/vca

61

Contacts

  • Gareth Jones, Chief Engineer, Bristol

– gareth.jones@vca.gov.uk

  • Dave Picker, Chief Engineer, Nuneaton

– dave.picker@vca.gov.uk

slide-62
SLIDE 62

www.dft.gov.uk/vca

Questions?

Thanks for listening!

slide-63
SLIDE 63

www.dft.gov.uk/vca

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED

SMMT, the ‘S’ symbol and the ‘Driving the motor industry’ brandline are trademarks of SMMT Ltd

Coffee Break

slide-64
SLIDE 64

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED

SMMT, the ‘S’ symbol and the ‘Driving the motor industry’ brandline are trademarks of SMMT Ltd

The legislative process and the SMMT

Tony Hopkins. Technical Manager, SMMT

slide-65
SLIDE 65

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 65

In the past – National Type Approval

To register a Commercial vehicle of Categories N1, 2 & 3 7 areas of the vehicle were covered – Brakes Emissions Noise Smoke Front underrun (if applicable) Tyres Speed limiter (if applicable)

slide-66
SLIDE 66

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 66

In the past -

For trailers of Categories O1, 2, 3 & 4

No requirements

slide-67
SLIDE 67

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 67

So what happened?

For all categories of vehicle including trailers – European Community Whole Vehicle Type Approval EC Directive 2007/46/EC

slide-68
SLIDE 68

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 68

2007/46/EC

380 + Pages 21 Annexes 16 Amending Regulations Covers all vehicle categories and types Anything up to 60+ separate directives to comply with

slide-69
SLIDE 69

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 69

2007/46/EC

16 Amending Regulations Regulations 1060/2008, 78/2009, 79/2009, 385/2009, 595/2009, 661/2009, 371/2010, 2010/19, 183/2011, 582/2011, 678/2011, 65/2012, 1229/2012, 1230/2012, 143/2013 and 195/2013 All introduced since 2007

slide-70
SLIDE 70

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 70

2007/46/EC

Regulation 1060/2008 Introduced revised Annexes I, III, IV, VI, VII, XI & XV Annexes I & III are the Information documents to be supplied to the Approval Authority.

slide-71
SLIDE 71

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 71

2007/46/EC

Regulation 371/2010 Introduced revised Annex XV – Manufacturer as a Technical Service Regulation 183/2011 Introduced revised Annexes IV & VI – Requirements for the purpose of type approval & model of certificate

slide-72
SLIDE 72

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 72

2007/46/EC

Regulation 678/2011 Replaced Annex II and revised Annexes IV, IX & XI Requirements, Definitions, COC’s & Regulatory acts Regulation 1229/2012 Introduced revised Annexes IV - Requirements

slide-73
SLIDE 73

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 73

2007/46/EC

Since 2007: Annex IV either revised or amended 4 times Lists of regulatory Acts updated to cover Small Series changes etc. How has the SMMT influenced the process?

slide-74
SLIDE 74

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 74

2007/46/EC

Worked closely with the Small Series / Low Volume producers to ensure certain costly testable items are exempt testing or require reduced levels of testing. Examples: Frontal Impact Enhanced Stability Control OBD Requirements

slide-75
SLIDE 75

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 75

2007/46/EC

Masses & Dimensions - 1230/2012 Incorporated 2 Masses & Dimensions covering passenger car, commercial vehicles, buses and trailer M&D requirements into 1 Regulation. However, in its initial draft it removed the option for National Markets to allow exemptions to the requirements for vehicles / trailers operated within their specific market

slide-76
SLIDE 76

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 76

2007/46/EC

Masses & Dimensions - 1230/2012 Further lobbying by the SMMT resulted in amendments to the final document allowing a 2000 limit on trailers and 1200 limit over 4m height for National Approval and operations.

slide-77
SLIDE 77

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 77

Nationally

Vehicle Enhancement Scheme for N1 and certain N2 ‘Vans’. Concerns raised by Members regarding how to fit out vans with simple systems that only affect Masses & Dimensions Do these vehicles require full approval IVA? If so, additional costs burdens to industry and the end user.

slide-78
SLIDE 78

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 78

Nationally

Vehicle Enhancement Scheme for N1 and certain N2 ‘Vans’. Lobbied UK Government to allow these items to be considered ‘payload’ and hence exempt from approval requirements. Presented evidence to support the request based on

  • ther member states interpretation.
slide-79
SLIDE 79

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 79

Nationally

Vehicle Enhancement Scheme for N1 and certain N2 ‘Vans’. Outcome – DFT & VCA introduced the Enhancement Scheme Low cost scheme to ensure final vehicles comply with COP and legislative requirements.

slide-80
SLIDE 80

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 80

Nationally

Vehicle Enhancement Scheme for N1 and certain N2 ‘Vans’. Outcome – Discussions currently underway with the EU to amend 2007/46 to incorporate the changes allowed in the scheme

slide-81
SLIDE 81

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 81

2007/46/EC

What is over the horizon? General Safety Regulation – 661/2009 Comes into Force for new registrations from 14th November 2014 Draft document covering the specific procedures, tests and technical requirements currently being finalised at the EU.

slide-82
SLIDE 82

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 82

2007/46/EC

What is over the horizon? General Safety Regulation – 661/2009 Repeals 50 directives and combines requirements into 1 regulation Reduces need for testing to EEC requirements as UN ECE Regulations Approvals accepted where available

slide-83
SLIDE 83

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 83

2007/46/EC

General Safety Regulation – 661/2009 Issues with conflict between proposed update to Annex IV for Small Series vehicles and current required standards. What is the SMMT doing? Ongoing dialogue with the DFT & EU to attempt to reach a consolidated opinion.

slide-84
SLIDE 84

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 84

2007/46/EC

Conformity of Production (COP) is the key part of the type approval process. It ensures that: Once a product has been ‘Type Approved’ the holder of the approval has to demonstrate the ability to produce a series

  • f these products that conform to the specification and

performance requirements of the relevant regulations or directives. Will the 10th, 100th 1000th meet the requirements and perform the same as the one type approved?

slide-85
SLIDE 85

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 85

SI 2009 No 717

Part 6 - Miscellaneous Enforcement - Forgery, false statements, etc

  • 33. (1) A person commits an offence if, with intent to deceive, that

person− (a) forges, alters or uses a document to which Paragraph (2) applies, or (b) lends to, or allows to be used by, any other person a document to which Paragraph (2) applies, or (c) makes, or has possession of, any document so closely resembling a document to which Paragraph (2) applies as to be calculated to deceive.

slide-86
SLIDE 86

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 86

SI 2009 No 717

Part 6 - Miscellaneous Enforcement - Forgery, false statements, etc (2) This Paragraph applies to− (a) an EC type approval certificate, (b) an EC certificate of conformity, (c) a national small series type approval, (d) a national small series certificate of conformity, or (e) an individual approval certificate.

slide-87
SLIDE 87

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 87

SI 2009 No 717

Part 6 - Miscellaneous Enforcement - Forgery, false statements, etc

(3) A person guilty of an offence under Paragraph (1) is liable−

(a) on summary conviction, to a fine not exceeding the statutory maximum, or (b) on conviction on indictment, to imprisonment for a term not exceeding 2 years, or to a fine, or to both.

slide-88
SLIDE 88

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 88

SI 2009 No 717

Part 6 - Miscellaneous Enforcement - Forgery, false statements, etc

(4) A person commits an offence if, in supplying information or

producing a document for the purpose of these Regulations, that person− (a) makes a statement which that person knows to be false in a material particular or recklessly makes a statement which is false in a material particular, or (b) produces, provides, sends or otherwise makes use of a document which that person knows to be false in a material particular or recklessly produces, provides or sends or otherwise makes use of a document which is false in a material particular.

slide-89
SLIDE 89

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 89

SI 2009 No 717

Part 6 - Miscellaneous Enforcement - Forgery, false statements, etc

(5) A person who contravenes Regulation 16, 22(1) or 23(1)

commits an offence. (6) A person guilty of an offence under Paragraph (4) or (5) is liable− (a) on summary conviction, to a fine not exceeding the statutory maximum, or (b) on conviction on indictment, to a fine.

slide-90
SLIDE 90

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 90

Items to consider for the future

Electronic Stability Control (ESC) & Advanced Emergency Braking Systems (AEBS) Introduction from now in stages on different categories

  • f vehicle. Conversion of a vehicle of one category to

another may have an influence on if such systems should be fitted. EU considering the issue and SMMT actively participates in the current discussions and lobbies as required.

slide-91
SLIDE 91

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 91

Items to consider for the future

As a Bodybuilder, you need to understand the what legislation is forthcoming and how it could affect the vehicles you are building.

slide-92
SLIDE 92

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 92

Nationally:

Revisions have been published to the VOSA IVA Manuals for N2/3 and M2/3 Brake test requirements have been published relating to IVA testing of trailers

slide-93
SLIDE 93

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 93

Summary

Automotive legislation is continually moving and changing. What has been indicated here has been derived from the SMMT and Members discussions and consultations at the UK, EC and Globally through the UNECE. The legislation is usually written to cover all categories of

  • vehicles. It is one of the roles of the SMMT to filter out only

those parts that are applicable to the vehicles that you

  • manufacture. This is especially true of the SENTA guide

which I will speak about further later.

slide-94
SLIDE 94

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 94

What other ways can we assist you?

slide-95
SLIDE 95

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 95

SENTA SMMT European and National Type Approval

slide-96
SLIDE 96

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 96

A step-by-step web-based programme to guide vehicle manufacturers, bodybuilders and suppliers through the European Community Whole Vehicle Type Approval application system. It also allows for national approval schemes for low volume manufacturers. For a new and subsequent approval application, SENTA will ease the lengthy documentary process. SENTA takes a manufacturer through Conformity of Production (COP) principles and examples, component and system applications, application documents and finally a Certificate of Conformity (COC).

SENTA - SMMT European and National Type Approval guide

slide-97
SLIDE 97

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 97

Opening page

slide-98
SLIDE 98

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 98

Opening page - COP

slide-99
SLIDE 99

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 99

Conformity of Production (COP)

slide-100
SLIDE 100

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 100

Conformity of Production (COP)

slide-101
SLIDE 101

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 101

Opening page – Help Guides

slide-102
SLIDE 102

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 102

Help Guide - Trucks

slide-103
SLIDE 103

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 103

Opening page

slide-104
SLIDE 104

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 104

First Page

slide-105
SLIDE 105

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 105

Section 1 – Start of page

slide-106
SLIDE 106

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 106

Section 1 – Page continuation

slide-107
SLIDE 107

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 107

Section 1 – End of page

slide-108
SLIDE 108

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 108

Section 2 – Start of page

slide-109
SLIDE 109

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 109

Complete any relevant questions within these sections as required. Any sections left blank will result in ‘N/A’ entered in the relevant section within the final document If a ‘positive’ answer is required within the relevant sections, then this must be entered.

Section 2 to Section 8

slide-110
SLIDE 110

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 110

Section 9

slide-111
SLIDE 111

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 111

Future legislation

Section 9 - Continued

slide-112
SLIDE 112

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 112

ANNEX I - Information Document

slide-113
SLIDE 113

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 113

The Annex 1 document produced will require minor modifications and or adjustments where the answer is highlighted in red. This will include:

  • Removing ‘N/A’ or reference to a section

number depending on the answer to be given.

  • General alignment of answer into ‘silo’ where

required.

  • Add reference to any Annexes as required

Technical file required covering any annexes The finished document will be in excess of 50 pages.

ANNEX I – Information Document

slide-114
SLIDE 114

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 114

Section 11 - General Type Approval Reference documents

slide-115
SLIDE 115

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 115

Section 12 – Component information documents

slide-116
SLIDE 116

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 116

Component approval information document

Opening page - Scope

slide-117
SLIDE 117

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 117

Component approval information document

Cover page

slide-118
SLIDE 118

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 118

Component approval information document

Information document pt 1

slide-119
SLIDE 119

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 119

Component approval information document

Information document pt 2

slide-120
SLIDE 120

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 120

Component approval information document

Information document pt 3

slide-121
SLIDE 121

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 121

Component approval information document

Information document pt 4

slide-122
SLIDE 122

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 122

Section 13 – Types, Variants & Versions (TVV)

slide-123
SLIDE 123

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 123

Section 15 – Certificates of Conformity

slide-124
SLIDE 124

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 124

MODEL B – SIDE 1 ECWVTA COMPLETED VEHICLES EC CERTIFICATE OF CONFORMITY Side 1 The undersigned ………………………………………………………..(Full name and position) hereby certifies that the vehicle: 0.1Make (Trade name of the manufacturer): …………………………………………………. 0.2: Type: …………………………………………………………………………………………………………. Variant(a):………………………………………………………………………………………………….. Version(a) ……………………………………………………………………………………………………….. 0.2.1 Commercial name: ………………………………………………………………………………………… 0.4 Vehicle category: …………………………………………………………………………………………… 0.5: Name and address of the manufacturer: ……………………………………………………… 0.6 Location and method of attachment of the statutory plates: ……………………… Location of the vehicle identification number: ……………………………………….. 0.9 Name and address of the manufacturer’s representative (if any): ………………………………………………………………………………………………………………………… 0.10 Vehicle identification number: …………………………………………..………………………………….. a) has been completed and altered(1) as follows: ………………………………………and b) conforms in all respects to the type described in approval (…type-approval number including extension number) issued

  • n (…date of issue) and

c) can be permanently registered in Member States having right/left (b) hand traffic and using metric/imperial(c) units for the speedometer(d) …………………………………………… ........................................................ (Place)(Date) (Signature) Attachments: Certificate of conformity delivered at each previous stage.

Side 1 of the Certificate of Conformity

slide-125
SLIDE 125

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 125

The Tour is a snapshot of what is contained in the SENTA Guide which is written to cover all categories

  • f vehicles and the possible Approval Routes.

It gives an indication of how the Guide works by showing parts of the Section pages and how they may be used. The application and compliance data included in the Tour is based on a European Approval for a large Truck built in two stages – ECWVTA N3 MSB

Take a Tour guideline information

slide-126
SLIDE 126

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 126

Summary

How can the SMMT help your business?

  • As a user of the SENTA system – Full technical support

in creating your documentation

  • As a member – Full support of the SMMT Technical

Department

  • Promoting your issues to the UK and wider

institutions

  • Assisting with general Type Approval issues
  • Keeping you informed of future legislation changes
  • Lobbying for change where required
slide-127
SLIDE 127

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED PAGE 127

Summary

How can the SMMT help your business? To help you further and new for 2014, the SMMT will be

  • ffering:
  • Cost effective consultation
  • Cost effective training
slide-128
SLIDE 128

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED

SMMT, the ‘S’ symbol and the ‘Driving the motor industry’ brandline are trademarks of SMMT Ltd

Nigel Maden, Approvals Process Manager, VOSA

Individual Vehicle Approval (IVA)

slide-129
SLIDE 129

129 Safety Standards Service

Driver and Vehicle Standards Agency Swansea

Individual Vehicle Approval (IVA)

slide-130
SLIDE 130

130 Safety Standards Service

  • EC Whole Vehicle Type Approval –

ECWVTA

  • National Small Series Type Approval -

NSSTA

  • Individual Vehicle Approval - IVA

Your options

slide-131
SLIDE 131

131 Safety Standards Service

Individual Vehicle Approval – Your Choice

  • Inspection of an individual vehicle to

establish compliance that results in the issue

  • f an Individual Approval Certificate
  • Least Onerous Criteria - Flexibility
  • Compliance – Combination of documentary

evidence of EC Directive compliance, declaration & visual inspection

What is IVA?

slide-132
SLIDE 132

132 Safety Standards Service

  • Imported HGVs up to 25 years old
  • Low volumes or bespoke HGVs multi stage

approval – date of manufacture from 29th October 2014

What may need HGV IVA

  • Low volumes or bespoke HGVs single

stage approval – date of manufacture from 29th October 2012

slide-133
SLIDE 133

133 Safety Standards Service

  • Obtain application form/guidance from Internet
  • Complete & send application to DVSA Swansea
  • Application check / evidence of compliance / data
  • Application sent to station of choice
  • Inspection arranged / completed
  • If successful Individual Approval Certificate issued

What’s the process?

slide-134
SLIDE 134

134 Safety Standards Service

  • Manufacturer
  • Distributor / Dealer / Supplier
  • Body Manufacturer / Coach builder
  • Operator / Converter
  • To take responsibility for submitting the

application and providing the data required.

  • Important to obtain Directive compliance to

support application

Who can apply?

slide-135
SLIDE 135

135 Safety Standards Service

  • Web -https://www.gov.uk/vehicle-

approval

  • IVA 1H - category N2 and N3 (Heavy goods)
  • with guidance notes

Complete an application

slide-136
SLIDE 136

136 Safety Standards Service

General info. eg

  • Applicant details
  • Appointment and payment details

Vehicle Details eg.

  • What type of body is fitted ?
  • Fuel Type / Engine number ?

The info. needed

slide-137
SLIDE 137

137 Safety Standards Service

  • Does the vehicle have evidence of

Directive Compliance ?

  • Has the vehicle been modified since

approval ?

  • Is the vehicle being assessed against a

Test Report or Model Report ?

Compliance info.

slide-138
SLIDE 138

138 Safety Standards Service

  • Brakes, Tyres and Suspension
  • Type of braking system
  • Axles with “Park” brake
  • Dimensions
  • Overall Length / Overall width
  • Weights

Annual Test Information (Plating)

More info.

slide-139
SLIDE 139

139 Safety Standards Service

Directive compliance – HGV

From DOM 29th April 2009

  • Noise
  • Emissions
  • Fuel Tanks
  • Rear Protective Device
  • Steering Effort
  • Braking
  • EMC
  • Anti Theft (if fitted)
slide-140
SLIDE 140

140 Safety Standards Service

  • Age related standards equating to NTA

requirements Eg. 2002 vehicle,

  • Noise
  • Emissions
  • Braking
  • EMC (spark Ignition only)

Directive Requirements pre 29/04/2009 HGV

slide-141
SLIDE 141

141 Safety Standards Service

Lights / Reflectors Lateral Protection Spray Suppression

  • Reg. Plate

Space Dimensions Seat Belts/Anchorages Defrost / Demist Couplings Exterior Projections Tyres Glass Wash Wipe Towing Hooks Headlamps Controls Speed Limiter Mirrors Horn

Visual Checks

Statutory Plates

slide-142
SLIDE 142

142 Safety Standards Service

  • Evidence that Directive standards are met
  • Manufacturer’s Letter of Compliance / CoC
  • Your own approval(s)
  • Directive test at a Technical Service (or

Approval Authority)

  • Model Report
  • Immobiliser/Alarm (both optional) –
  • Mobile Electronics Security Federation (MESF)
  • Thatchem Registered Installer (TRI)

How to prove compliance

slide-143
SLIDE 143

143 Safety Standards Service

A Model Report is..

  • A technical report that enables a DVSA

examiner to check that the specification of subsequent vehicles is the same in all relevant respects to the vehicle originally tested at the technical service.

slide-144
SLIDE 144

144 Safety Standards Service

Convertor

  • considers worst case scenarios

Basic process (third axle model report)

  • modifies vehicle, uses axles having

approval to ECE Regulations.

  • supplies Technical Service with vehicle and

all relative information

slide-145
SLIDE 145

145 Safety Standards Service

  • detailed system schematics,
  • completed proforma. (supplied by DVSA)
  • braking calculations (obtained from axle

manufacturer or brake system manufacturer or they can be provided by Technical Service)

  • axle information and brake approvals/test

report to Annex 11 and 19 of ECE Regulation 13

Info to the Technical Service

slide-146
SLIDE 146

146 Safety Standards Service

  • Technical Service
  • carries out tests including response time

energy consumption and dynamics

  • verifies compatibility, proforma specification

against vehicle and calculations.

  • sends complete package direct to DVSA

Swansea.

  • DVSA - receives and collates data and

creates a version 1 (draft) Model Report.

What the Technical Services do

slide-147
SLIDE 147

147 Safety Standards Service

  • Evidence of compliance for the items

requiring documentary evidence

  • Application form IVA1H
  • Fee

Apply to Swansea

slide-148
SLIDE 148

148 Safety Standards Service

  • Technical Service
  • Information
  • Logistical
  • Goods (N2 / N3)

£230 £46

  • Statutory Fee (pre funded account available)

The costs

slide-149
SLIDE 149

149 Safety Standards Service

  • Edinburgh (Livingston)
  • Manchester (Chadderton)
  • Derby
  • Avonmouth
  • Gillingham
  • Beverley
  • For heavy vehicles, 6 DVSA sites – potential
  • f private sites

DVSA test sites

slide-150
SLIDE 150

150 Safety Standards Service

  • Privately Owned Test Facility (POTF)

(under contract)

  • Manufacturer, Importer, Distributor, etc.
  • wned facility
  • Inspections conducted by DVSA or VCA

DVSA test at your site ?

  • Site requirements depending on your needs
slide-151
SLIDE 151

151 Safety Standards Service

  • Building
  • Suitable size/specification
  • Communication system / office

accommodation

  • Underside inspection facility
  • Headlamp test equipment

POTF site requirements

slide-152
SLIDE 152

152 Safety Standards Service

  • Outdoor area (potential requirements)
  • Turning Circle Area
  • Noise Test Area
  • Mirror Test Area

POTF site requirements ctd.

slide-153
SLIDE 153

153 Safety Standards Service

  • IVA Inspection time (approx)

HGV ….2.5 hrs. Approx test times

slide-154
SLIDE 154

154 Safety Standards Service

Inspection criteria

slide-155
SLIDE 155

155 Safety Standards Service

  • Individual Approval Certificate (IAC)
  • Notification of Refusal – 6 months to

apply for re–inspection.

  • Plate / Plating Certificate Issued

If it passes (or not)

slide-156
SLIDE 156

156 Safety Standards Service

  • Consider how approval will impact

your business

  • Communicate
  • Start the preparation
  • Try it out

Health Warning !!!

slide-157
SLIDE 157

157 Safety Standards Service

  • Web - https://www.gov.uk/vehicle-approval
  • e mail – approvals@vosa.gov.uk
  • Phone – 0300 123 9000

Need more info.

slide-158
SLIDE 158

158 Safety Standards Service

Any Questions............... ................. Sorry too late ! And finally ……….

slide-159
SLIDE 159

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED

SMMT, the ‘S’ symbol and the ‘Driving the motor industry’ brandline are trademarks of SMMT Ltd

Q&A session

slide-160
SLIDE 160

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED

SMMT, the ‘S’ symbol and the ‘Driving the motor industry’ brandline are trademarks of SMMT Ltd

Lunch

slide-161
SLIDE 161

SOCIETY OF MOTOR MANUFACTURERS AND TRADERS LIMITED

SMMT, the ‘S’ symbol and the ‘Driving the motor industry’ brandline are trademarks of SMMT Ltd

Thank you for attending

Society of Motor Manufacturers and Traders Ltd 71 Great Peter Street, London, SW1P 2BN www.smmt.co.uk
