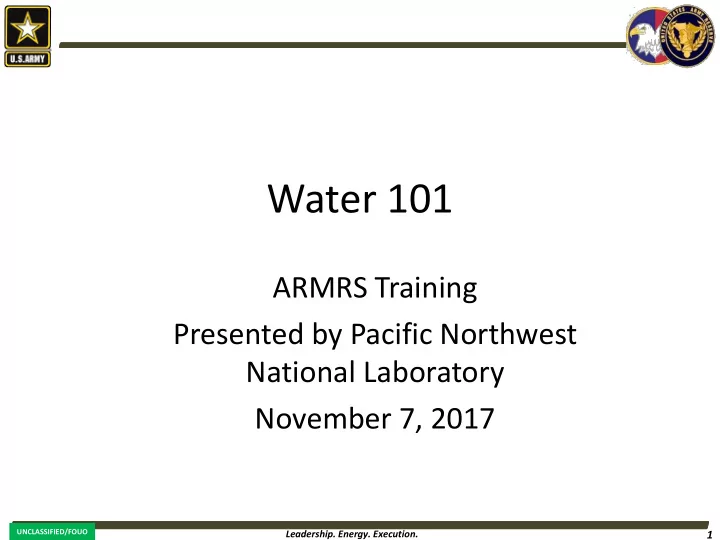

Water 101 ARMRS Training Presented by Pacific Northwest National - - PowerPoint PPT Presentation

• Leadership. Energy. Execution.

UNCLASSIFIED/FOUO

1

Water 101

ARMRS Training Presented by Pacific Northwest National Laboratory November 7, 2017

• Leadership. Energy. Execution.

UNCLASSIFIED/FOUO

2

• Trey Lewis
• Kate McMordie Stoughton
• Susan Loper
• Brian Boyd
• Emily Wendel

ARIMD Water Team

• Leadership. Energy. Execution.

UNCLASSIFIED/FOUO

3

• Introduction
• Water balance development
• Water efficiency
• Alternative water
• Water security
• Q&A

Agenda

• Leadership. Energy. Execution.

UNCLASSIFIED/FOUO

4

AEWRS Water Categories

Potable

Definition: Applications that use water that is of sufficient quality for human consumption Reporting: Quarterly water use for ALL applications that use potable water (building fixtures, vehicle wash, and landscape irrigation)

Industrial, Landscaping, and Agricultural (ILA)

Definition: Applications that use non-potable water from a freshwater source (surface or groundwater) in ILA applications Reporting: Quarterly water use for only non-potable freshwater used in ILA applications

Alternative water

Definition: Applications that use water NOT sourced from freshwater; sources include rainwater, condensate, discharge reuse Reporting: Quarterly water use from alternative water sources

• Leadership. Energy. Execution.

UNCLASSIFIED/FOUO

5

• Energy Policy Act of 2005 - Water conservation measures

and technologies must be life cycle cost-effective

• Energy Independence and Security Act 2007 – 25% of

covered facilities will be evaluated for water and energy annually

• Agency Strategic Sustainability Performance Plan –

Integrates requirements into a holistic departmental sustainability strategy

• Executive Order (EO) 13693 – Released March 2015;

supersedes EO 13423, EO 13514

• EO 13423 – 2% annual potable water use intensity (WUI) reduction – 16% by

fiscal year (FY) 2015, based on FY07 baseline

• EO 13514 – Extends EO 13423 through FY20; adds industrial, landscaping, and

agricultural (ILA) water use reduction

Federal Legislation

• Leadership. Energy. Execution.

UNCLASSIFIED/FOUO

6

Water Strategy Execution Plan – “Water House”

Goal 4: Build a Sustainable Water Program Foundation

Goal 1: Increase Water Efficiency Goal 2: Promote Water Conservation Goal 3: Utilize Alternative Water Sources

4.1 Communicate program successes and lessons learned 4.2 Utilize data to improve water management 4.3 Support the implementation of Net Zero Water sites 1.1 Operate and maintain existing buildings to be water efficient 1.2 Upgrade equipment and infrastructure to be water efficient 1.3 Design and renovate water efficient buildings and systems 3.1 Develop and plan alternative water projects 3.2 Maintain alternative water systems

36% Reduction in Indoor Water Use by 2025 30% Reduction in ILA Water Use by 2025

2.1 Train key staff in water conservation 2.2 Develop and deploy a water education and awareness program 2.3 Share best practices

• Leadership. Energy. Execution.

UNCLASSIFIED/FOUO

7

Net Zero Water

Reduce demand Increase efficiency Utilize alternative water

• Leadership. Energy. Execution.

UNCLASSIFIED/FOUO

8

OCAR Water Use Intensity Progress

• 100%
• 80%
• 60%
• 40%
• 20%

0% 20%

DEVENS RFTA FORT BUCHANAN FORT HUNTER LIGGETT FORT MCCOY PARKS CSTC 88TH RSC 9TH MSC 63RD RSC 81ST RSC 99TH RSC USAR

Water Use Intensity Change from Baseline (%)

Installation Comparison Water Performance FY07 - FY16 Facility Potable Water Use Intensity (gallon per square foot)

WUI % Change WUI % Reduction Goal Sites did not report FY07 baseline data; WUI reduction is based on FY noted in bar

FY16 Water Use Intensity Reduction Goal 18%

FY12 FY13 FY12 FY13

2.6 Water Use Intensity (gal/sf) 5.1 78.8 70.5 13.6 9.1 9.6 8.6 8.1 1.9 12.9

• Leadership. Energy. Execution.

UNCLASSIFIED/FOUO

9

OCAR Volumetric Water Use

50 100 150 200 250 FY2013Q1 FY2013Q2 FY2013Q3 FY2013Q4 FY2014Q1 FY2014Q2 FY2014Q3 FY2014Q4 FY2015Q1 FY2015Q2 FY2015Q3 FY2015Q4 FY2016Q1 FY2016Q2 FY2016Q3 FY2016Q4 FY2017Q1 FY2017Q2 FY2017Q3 FY2017Q4 Water Use (million gallons)

Volumetric Water Use Total for OCAR by Quarters (FY13-FY17)

• Leadership. Energy. Execution.

UNCLASSIFIED/FOUO

10

Planning and Data Analysis

Water Balance

Walkthrough Survey Water Efficiency Measures and Plan

Implementation and Monitoring

Comprehensive Assessment Process

• Leadership. Energy. Execution.

UNCLASSIFIED/FOUO

11

Water Uses

• Metered Uses
• Estimated Uses
• Leaks/Losses

Water Sources

• Municipal Systems
• Surface Water
• Groundwater

Water Balance

• Leadership. Energy. Execution.

UNCLASSIFIED/FOUO

12

Water Balance Steps

Determine water supply

• Collect water

bills for at least

• ne year
• Total site annual

water use Estimate end-uses

• Create an

equipment inventory:

• Plumbing
• Irrigation
• Vehicle wash
• Gather data on

equipment

• Estimate water

use

• Leadership. Energy. Execution.

UNCLASSIFIED/FOUO

13

Water Balance

Water Supply Water Uses

Unknown Vehicle Wash Irrigation Plumbing Supply Supply Supply Supply Total Water Use

Total Water Supply ≥ ∑ Water Uses Difference “unknown”

Unknown water use:

• Leaks
• Errors in

estimating methods

• Accounting

errors

• Leadership. Energy. Execution.

UNCLASSIFIED/FOUO

14

Water Balance Examples

Irrigation 36% Irrigation Leaks 25% Plumbing 18% Dining 7% Vehicle Wash 4% Leaks/losses 10%

Plumbing 45% Irrigation 17% Dining 12% Vehicle Wash 1% Leaks/losses 10% Misc 15%

BT Collins Camp Parks

• Leadership. Energy. Execution.

UNCLASSIFIED/FOUO

15

Water Balance Example

Oct Nov Dec Jan Feb Mar Apr May Jun Jul Aug Sep

Irrigation Plumbing Other Losses

• Leadership. Energy. Execution.

UNCLASSIFIED/FOUO

16

Water Efficiency Measures

• Water Management

Planning

1

• Information and Education

2

• Leak Detection

3

• Water-Efficient Landscape

4

• Water-Efficient Irrigation

5

• Toilets & Urinals

6

• Faucets & Showerheads

7

• Boiler/Steam Systems

8

• Single Pass Cooling

9

• Cooling Towers

10

• Commercial Kitchens

11

• Lab/Medical Equipment

12

• Other Intensive Equip.

13

• Alternative Water Sources

14

Federal Energy Management Program (FEMP) Water Efficiency Best Management Practices (BMPs)

FEMP BMPs: http://energy.gov/eere/femp/best-management-practices-water-efficiency

• Leadership. Energy. Execution.

UNCLASSIFIED/FOUO

17

Operation and Maintenance

Assess Assess equipment’s current condition, assess operation and maintenance practices Improve Implement strategies to improve water efficiency Maintain Maintain equipment that

• ptimizes water

use

Assess, Improve, and Maintain (AIM)

Plumbing Landscape and Irrigation Systems Vehicle Wash Dining Equipment

• Leadership. Energy. Execution.

UNCLASSIFIED/FOUO

18

EPA WaterSense

High Efficiency Tank Toilets High Efficiency Private Lavatory Faucets High Efficiency Flushing Urinals High Efficiency Showerheads Certified Irrigation Professionals Advanced Landscape Controllers Pre-rinse Spray Valves

WaterSense Website: http://www.epa.gov/watersense/

• Leadership. Energy. Execution.

UNCLASSIFIED/FOUO

19

High Efficiency Plumbing

Toilets Urinals Faucets Showerheads

“Low flow” is a NO GO!

• Leadership. Energy. Execution.

UNCLASSIFIED/FOUO

20

High Efficiency Toilet (HET) ≤ 1.28 gallon per flush (gpf) Standard Toilet = 1.6 gpf

Gravity Pressure assisted Dual flush

High Efficiency Plumbing

• Leadership. Energy. Execution.

UNCLASSIFIED/FOUO

21

High Efficiency Urinals (HEU) ≤ 0.5 gpf Standard Urinal = 1.0 gpf

Nonwater Urinal Flushing Most efficient flushing urinal: 1 pint per flush

High Efficiency Plumbing

• Leadership. Energy. Execution.

UNCLASSIFIED/FOUO

22

Piston Diaphragm

Look for long flush cycles

• ver 5 seconds.

Bypass orifice can become clogged, which causes long flush cycles and water waste

High Efficiency Plumbing

Diaphragm vs. Piston

There is some evidence that piston valves do not operate properly at pressure over 80 psi Acceptable pressure range: 20-80 psi

• Leadership. Energy. Execution.

UNCLASSIFIED/FOUO

23

• Private faucets: residential, hospitals,

hotels – High efficiency private faucets ≤ 1.5 gpm – Standard private faucets = 2.2 gpm

• Public faucets: offices, training facilities

– Plumbing code requires all public faucets not to exceed 0.5 gpm

High Efficiency Faucets - Private vs. Public High Efficiency Plumbing Sensored faucets do not save water!

• Leadership. Energy. Execution.

UNCLASSIFIED/FOUO

24

WaterSense Specification

• Flow rate cannot exceed 2.0

gpm

• Performance: Must meet

minimum spray force and coverage

• Pressure compensating heads

maintain pressure at the head

High Efficiency Plumbing High Efficiency Showerheads ≤ 2.0 gpm Standard Showerheads = 2.5 gpm

• Leadership. Energy. Execution.

UNCLASSIFIED/FOUO

25

AIM Action Items: Toilets and Urinals

Equipment/ Schedule Frequency Assess Improve/Maintain

Commercial Flushometer Toilets and Urinals Diaphragm Flush Valve

Annually BEM: Assess if flush valves have long flush cycles of greater than 5 seconds; this can indicate a broken, leaking, or improperly rated valve. Submit a workorder if required. Remove the cap of the valve and assess if the diaphragm gasket is dirty or brittle. Check the flush rating, which should be marked on gasket. If gasket is dirty: scrub gasket, check flush cycle length to see if flush cycle returns to normal length; if not, replace the gasket If gasket is brittle, replace with properly rated gasket. If gasket is improperly rated, replace valve with correctly rated retrofit kit. Check the flush volume adjustment screw and set to the manufacturer’s specifications.

Residential Tank Toilets Water Level

Annually BEM: Remove the tank lid and check if the water is flowing over the top of the overflow tube and if the tank water level is set at or below the manufacturer’s

• specifications. Submit a workorder if required.

Adjust the float to lower the tank water level for either of these cases. Replace the fill valve if the toilet continues to run after the float is adjusted.

Residential Tank Toilets Flapper Valve

Annually BEM: Conduct a flapper valve leak test by dropping dye or food coloring into the tank water, wait 10 minutes, and see if the dye has seeped into the bowl through the flapper valve. Submit a workorder if required. If there is dye seepage, first ensure that the flapper valve properly drops after a flush. If the flapper is fully dropping into place and seepage continues, the flapper is leaking and needs to be replaced.

Commercial Flushometer Toilets and Urinals Sensors

Annually BEM: Observe if flush sensor is nor working properly (e.g., double flushing) and needs calibration. Submit a workorder if required. Determine the current schedule of sensor calibration. Regularly calibrate automatic sensors every 6 months to ensure they are only activated after the user leaves the stall to reduce “double flushing”.

Non-water Urinals

Manufacturer’s specification Obtain maintenance schedule of non-water urinals and determine if it meets the manufacturer’s recommended maintenance. Clean and replace the sealant, cartridges or material in accordance with manufacturer’s recommendations.

Education and Outreach

Annually Post a sign in the restrooms that will provide a mechanism for occupants to report long flush cycles, visible leaks, and other maintenance issues. Note that using feet on toilet handles can damage flushing mechanism and should be avoided.

• Leadership. Energy. Execution.

UNCLASSIFIED/FOUO

26

AIM Action Items: Faucets and Showerheads

Equipment/ Schedule Frequency Assess Improve/Maintain

Leak Detection

Every 6 months BEM: Check for leaks in faucets and showers. Establish a protocol to fix leaks immediately once they are found.

Faucet and Shower Aerators/Flow Restrictors

Every 6 months BEM: Inspect faucets and showerheads for missing

• r broken aerators/flow restrictors. Aerators and

flow restrictors can often be broken or removed causing the fixture to flow at much higher flow

• rates. Submit a workorder if required.

BEM: Inspect for failing shower diverter valves. Submit a workorder if required. Replace if needed and install vandal-proof fixtures that are more difficult to break or remove.

Faucet Sensors

Every 6 months Determine the current schedule of sensor calibration. Regularly calibrate automatic sensors to ensure proper

• peration and reduce long wash cycles.

System Pressure

Annually Test system pressure to make sure it is between 20 and 60 psi. Water pressure can be measured with a pressure gauge connected to a water spigot, typically on the outside of a building. Fixtures will consume more than their rated amount of water and cause wear and tear on the fixture at high pressure. If the pressure is too high, install a pressure reducing valve. A pressure reducing valve is typically placed at the building water meter.

Education and Outreach

Annually BEM: Post a sign in the restrooms that will provide a mechanism for occupants to report visible leaks and

• ther maintenance issues.

Encourage users to take shorter showers; place clocks or timers in or near showers to allow users to track their timing better.

• Leadership. Energy. Execution.

UNCLASSIFIED/FOUO

27

Vehicle Wash

Look for open hoses Attach self closing nozzles Use pressure washers Check for leaks Consider recycling systems

• Leadership. Energy. Execution.

UNCLASSIFIED/FOUO

28

AIM Proposed Action Items: Vehicle Wash

Equipment/ Schedule Frequency Assess Improve/Maintain Equipment Maintenance

Every 6 months BEM: For pressure washers, inspect the sprayer, connecting hoses, and the water storage system for leaks and/or broken or missing components. Submit a workorder if required. BEM: Make sure that open hoses are not being used to wash vehicles. Submit a workorder to replace open hoses with hoses with spray nozzles. Make sure the main shut-off valve is functioning correctly. Check flow rates to ensure they are within manufacturer’s recommendations. For pressure washers perform the following: Repair or replace broken or leaking components, hoses, and system connections. Replace the main shut-off valve if it is not

• perating properly.

If there is no pressure washer, ensure that spray nozzles are attached to hoses. For facilities that use detergents, use high quality detergents to shorten the duration required to clean each vehicle.

System Pressure

Annually Routinely verify that system pressure is within manufacturer’s specifications. Minimize pump head pressure or install a pressure reducing valve to maintain system pressure based on manufacturer‘s recommendations.

Education and Outreach

Annually Assign a staff member to be responsible for checking equipment and repairing leaks. Encourage users to wash with brushes rather than water pressure to remove large debris from vehicles.

• Leadership. Energy. Execution.

UNCLASSIFIED/FOUO

29

Equipment Leak Detection

Plumbing Vehicle wash Irrigation systems

Leak Detection Walk the site and look for leaks!

• Leadership. Energy. Execution.

UNCLASSIFIED/FOUO

30

Irrigation Leaks at BT Collins

• Leadership. Energy. Execution.

UNCLASSIFIED/FOUO

31

Irrigation Inefficiencies at Fort Douglas

Sprinklers running 24 hours Irrigating during rain event Overwatering or broken heads Broken head

• Leadership. Energy. Execution.

UNCLASSIFIED/FOUO

32

AIM Proposed Action Items:

Equipment/ Schedule Frequency Assess Improve/Maintain Scheduling

At start of irrigation season and at major changes in weather patterns Review irrigation schedule to determine the time of day and days per week for each zone. Verify that the irrigation schedule is appropriate for climate, soil conditions, plant materials, and season. Irrigate during non-windy and low-sun periods to decrease evaporation; early mornings are typically the least windy. Change the watering schedule based upon changing weather conditions and as part of regular, periodic maintenance; consider installing a rain gauge that is tied into the irrigation controller to automatically shut

• ff the irrigation system during a rain event (called a “rain delay”).

For flat landscaped areas, water deeply and less frequently rather than lightly and often. A deep, less frequent schedule encourages deep roots resulting in more drought tolerant plants. Irrigate using a “cycle and soak” schedule for steep slopes where surface runoff is likely. If irrigation is controlled by an advanced weather-based or soil moisture-based controller, ensure that the system is properly programmed for the location and the specific landscape type.

Irrigation Monitoring

Once a month through the irrigation season Install an irrigation meter to measure the amount of water applied to the landscape. The meter should be an advanced meter with interval data capability and automatic data logging. Use this data for system analysis to monitor for system leaks and repair needs and to determine a water budget.

Equipment Maintenance

Once a month through the irrigation season BEM: Periodically walk the landscape grounds and check for standing water, which may indicate a leak. Submit a workorder if required. BEM: Ask the grounds manager to check emitter components for broken heads and leaks. Common examples of damaged emitters include broken heads, clogged nozzles, nozzle seal leaks, sunken heads, and tilted and misaligned heads. Require immediate repair of broken components; adjust as needed so that they efficiently water the landscape and not the hardscape.

Landscape and Irrigation

• Leadership. Energy. Execution.

UNCLASSIFIED/FOUO

33

AIM Proposed Action Items: Landscape and Irrigation

Equipment/ Schedule Frequency Assess Improve/Maintain Landscape Maintenance

Annually Review the current landscape maintenance practices (aeration, mowing, mulching, amendments, and weeding) and timing. Aerate turf at the beginning of the irrigation season to introduce oxygen into the soil and encourage deep root growth. Alternate turf mowing height between high and low levels and alternate mowing patterns that encourage deep root growth and drought tolerant turf. Add mulch to landscaped areas to help reduce evaporation, inhibit weed growth, cool plants’ root zone, and reduce erosion. Amend the landscape soil with organic matter 4 to 6 inches deep, which will help to capture stormwater and retain moisture. Keep landscaped areas weed free; weeds can take up valuable water and nutrients that are needed by the landscape. For new construction and renovations, design landscapes to be native and/or adaptive plantings that have low watering requirement. (Follow the new construction checklist requirements.)

System Pressure

Annually Verify that irrigation system pressure is within manufacturer specifications once per irrigation season. Install a pressure reducing valve if pressure is found to be over the manufacturer’s specification.

Performance Measurement

Annually Review grounds maintenance contracts to determine if water efficiency certification and water use/performance is part of contract requirements. Require the grounds maintenance staff/contractor to become an U.S. Environmental Protection Agency's (EPA) WaterSense Certified Irrigation Professional. Incorporate a water budget, which can be used as a performance standard for water consumption. Calculate water needs based on the landscape’s requirement and use that information to plan an irrigation schedule to meet those needs.

Irrigation Audit

Every 3 years Contract with a qualified irrigation auditor to perform a system irrigation audit that follows procedures outlined in the Irrigation Association’s Certified Landscape Irrigation Audit Program or

• equivalent. The result of the audit determines the system’s

distribution uniformity. Based on the results of the audit, make adjustments to the irrigation system to increase the distribution uniformity2.

Education and Outreach

Annually BEM: Provide a clear mechanism for building occupants to report an irrigation leak, broken and misaligned sprinkler heads, and watering during a rain event. Encourage grounds maintenance staff to sweep driveways and impervious surfaces rather than spraying them clean.

• Leadership. Energy. Execution.

UNCLASSIFIED/FOUO

34

Distribution System Leaks Leak noise loggers

• Listening devices attached to valves that detect leaks

Leak Detection Survey

• Typically performed by contracted specialists who use acoustic

listening equipment to detect and locate leaks

Resources

• AWWA Water Audit and Loss Control Program (http://www.awwa.org/)
• EPA Control and Mitigation of Drinking Water Losses in Distribution

Systems (http://www.epa.gov/region9/waterinfrastructure/waterlosscontrol/ )

• FEMP BMP #3 Distribution System Audits, Leak Detection, and Repair

(http://energy.gov/eere/femp/best-management-practice-3-distribution- system-audits-leak-detection-and-repair)

• Leadership. Energy. Execution.

UNCLASSIFIED/FOUO

35

• Acoustic leak detection system
• Series of 55 sensors on

distribution system

• Leak data transmitted wirelessly

into automated system

• Identified 8 leaks in 7 months

after installation

• Won FEMP water award in 2012

Tobyhanna Army Depot Leak Detection

• Leadership. Energy. Execution.

UNCLASSIFIED/FOUO

36

Typical Cost Effectiveness

• f Water Projects
• High efficiency faucets and showerheads
• Bundled plumbing project: high efficiency

toilets, urinals, faucets, and showerheads

• Irrigation system improvements
• Native landscaping conversion
• Leak detection and repair
• Commercial kitchen equipment
• Medical and laboratory equipment

$ $ $ $ $ $ $

Projects will be more favorable at combined marginal water and sewer rate of greater than $6 per kgal

• Leadership. Energy. Execution.

UNCLASSIFIED/FOUO

37

Alternative Water

Reduce freshwater demand and increase efficiency Maximize alternative water sources

Alternative water: onsite sources not from freshwater surface or groundwater sources Water Resiliency: alternative water is an important component for a resilient site!

• Leadership. Energy. Execution.

UNCLASSIFIED/FOUO

38

• Alternative Water: sources of water not from freshwater

(surface or groundwater sources)

• Reuse: discharge water from one application or process that is

captured, minimally treated, and is used in another application

• Reclaim: effluent generated by a wastewater treatment

facility that is treated to a level that is appropriate for use in non-potable applications

• Gray Water: lightly contaminated water from domestic uses

such as faucets, showers, and laundry; does not include water contaminated with human waste or food; minimally treated

Alternative Water - Terms

• Leadership. Energy. Execution.

UNCLASSIFIED/FOUO

39

Alternative Water – Types and Application

Rainwater Harvesting Gray Water Condensate Capture Process Discharge Wastewater Reclaim

Applications

• Irrigation
• Cooling Tower Make-up
• Toilet/Urinal Flushing
• Vehicle Wash
• Industrial applications

• Leadership. Energy. Execution.

UNCLASSIFIED/FOUO

40

Army Reserve Rainwater Harvesting

Grand Prairie USARC Harry Milton Kandel USARC Fort Buchanan ITTP

• Leadership. Energy. Execution.

UNCLASSIFIED/FOUO

41

Rainwater Harvesting Pilot Projects

• Three pilot projects:
• Grand Prairie USARC – non-potable for vehicle wash
• Harry Milton Kandel USARC – non-potable for vehicle

wash

• Fort Buchanan – potable for building use
• Demonstrate the technical feasibility and cost/benefit

rainwater harvesting

• Leadership. Energy. Execution.

UNCLASSIFIED/FOUO

42

Harry Milton Kandel Reserve Center

• Leadership. Energy. Execution.

UNCLASSIFIED/FOUO

43

Grand Prairie AFRC

• Leadership. Energy. Execution.

UNCLASSIFIED/FOUO

44

Rainwater Harvesting at Fort Buchanan

Middle School Water Harvesting 4,400 Gal PXTra Water Harvesting 4,400 Gal Bowling Center Water Harvesting 4,400 Gal High School Water Harvesting 9,000 Gal

• Leadership. Energy. Execution.

UNCLASSIFIED/FOUO

45

Fort Hunter Liggett: Wastewater Reclaimed Project

• Secondary treatment facility
• Potential uses of reclaimed

water:

• Central vehicle wash facility

(CVWF)

• Dust suppression
• 14.3 million gallons in

potential potable water reduction annually

Alternative Water – Fort Hunter Liggett

WWTP CVWF

• Leadership. Energy. Execution.

UNCLASSIFIED/FOUO

46

• UFC 1-200-02: Unified Facilities Criteria (UFC) High Performance and

Sustainable Building Requirements

• Requires compliance with American Society of Heating, Refrigeration,

and Air-conditioning Engineers (ASHRAE) 189.1: Standard for the Design of High Performance Green Buildings

• Guiding Principles: reduction in indoor and outdoor water use:

http://energy.gov/eere/femp/guiding-principles-federal-leadership-high-performance-and- sustainable-buildings

• Water-efficient product purchase requirements:
• WaterSense products: http://www.epa.gov/watersense
• FEMP designated water-efficient products:

http://energy.gov/eere/femp/energy-and-water-efficient-products

Army Reserve New Construction Water Requirements

• Leadership. Energy. Execution.

UNCLASSIFIED/FOUO

47

• Certified Water Efficiency Professional:

http://www.aeecenter.org/i4a/pages/index.cfm?pageID=4454

• 2 day training
• 4 hour exam

Water Management Certification

• Leadership. Energy. Execution.

UNCLASSIFIED/FOUO

48

FEMP Water Management Training

• 1. Water Management Basics
• 2. Managing Water Assessments in

Federal Facilities

• 3. Best Practices for

Comprehensive Water Management for Federal Facilities

https://www4.eere.energy.gov/femp/training/series/water

• management-planning-and-practice

** Free ** Federal focus ** Self-paced ** CEU credits

Water Management: Planning and Practice

• Leadership. Energy. Execution.

UNCLASSIFIED/FOUO

49

FEMP Water Efficiency Resources:

• Federal requirements and guidance:

https://www4.eere.energy.gov/femp/requirements/requirements_filt ering/water_use_reduction

• Water efficiency BMPs:

http://energy.gov/eere/femp/best-management-practices-water- efficiency

• Comprehensive water management strategy:

http://energy.gov/eere/femp/developing-water-management-strategy

• Alternative Water Sources Maps:

http://energy.gov/eere/femp/alternative-water-sources-maps

Resources

• Leadership. Energy. Execution.

UNCLASSIFIED/FOUO

50

• EPA WaterSense:

http://www.epa.gov/watersense/

• WaterSense BMPs:

http://www.epa.gov/watersense/commercial/bm ps.html

• WaterSense Water Budget Tool:

http://www.epa.gov/watersense/water_budget/

• Alliance for Water Efficiency:

http://www.allianceforwaterefficiency.org/ Other Resources

• Leadership. Energy. Execution.

UNCLASSIFIED/FOUO

51

After Efficiency

EFFICIENCY FOCUS RESILIENCY FOCUS MARKET SATURATION* WATER SECURITY CONCERNS

• Leadership. Energy. Execution.

UNCLASSIFIED/FOUO

52

Security Drivers

Army Directive 2017-07

Source: WIRED

• Leadership. Energy. Execution.

UNCLASSIFIED/FOUO

53

• AKA “Installation Energy & Water Security Policy”
• Critical Missions
• “Reduce risk to critical missions by being capable of providing

necessary energy and water for a minimum of 14 days”.

• ALL Missions
• Assured Access: Redundant and diverse sources of supply

(including renewable energy and alternative water) that meet evolving needs during normal and emergency operations.

• Reliable Infrastructure: “Infrastructure capable of onsite energy

and water storage”, “flexible and redundant distribution networks that meet mission requirements”

• Effective System Operations: Trained personnel who conduct

planning, ops. and sustainment for E&WS

Army Directive 2017-07

• Leadership. Energy. Execution.

UNCLASSIFIED/FOUO

54

• Locate Critical Assets and Facilities
• Assess Vulnerabilities
• Determine Acceptable & Unacceptable Risks
• Address Unacceptable Vulnerabilities
• Energy & Water Security (E&WS) Plan
• Regional and Facility-Specific Plans

Operational Changes Planned and Prioritized Projects

• Will discuss more in depth and gather

feedback at Wednesday’s E&WS sessions Water Security Path

• Leadership. Energy. Execution.

UNCLASSIFIED/FOUO

55 10 20 30 40 50 60 70 80 90 100 Install direct potable reuse Install rainwater harvesting Install WaterSense fixtures Eliminate non-critical uses Fix leaks BASELINE

Gallons per day

Externally-supplied potable water Internally-supplied potable water Internally-supplied nonpotable water

More Less Water Secure

Path Forward

• Leadership. Energy. Execution.

UNCLASSIFIED/FOUO

56

Thank you!

• Kate McMordie Stoughton:

kate.stoughton@pnnl.gov

• Trey Lewis: frank.w.lewis.ctr@mail.mil
• Brian Boyd: brian.boyd@pnnl.gov
• Susan Loper: susan.loper@pnnl.gov
