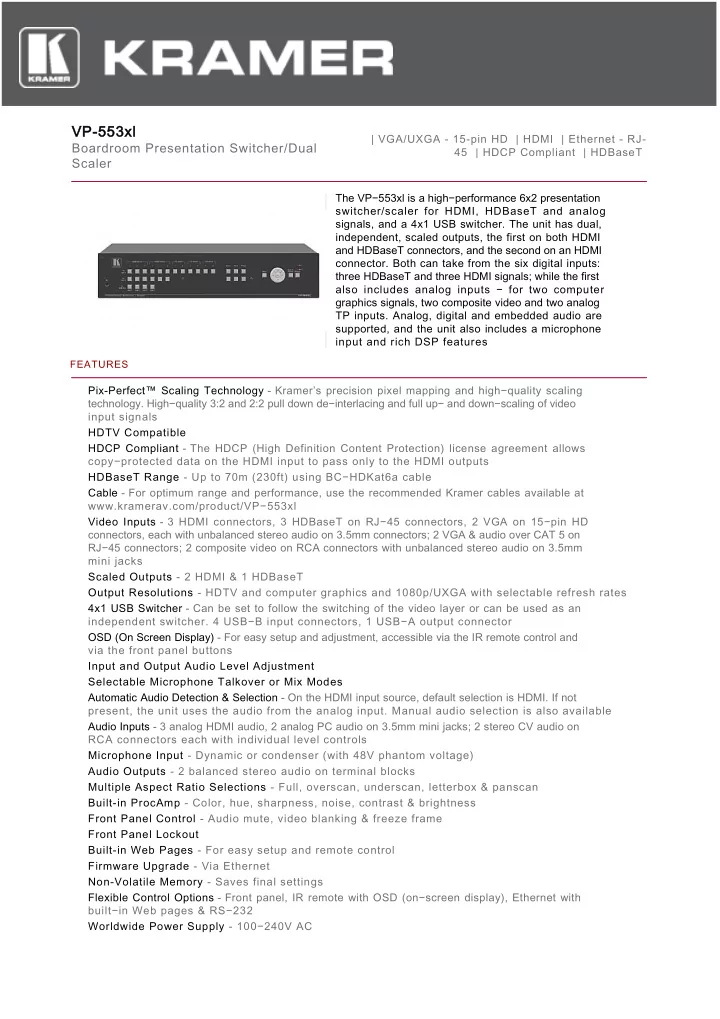

VP-553xl

Boardroom Presentation Switcher/Dual Scaler

| VGA/UXGA - 15-pin HD | HDMI | Ethernet - RJ- 45 | HDCP Compliant | HDBaseT The VP−553xl is a high−performance 6x2 presentation switcher/scaler for HDMI, HDBaseT and analog signals, and a 4x1 USB switcher. The unit has dual, independent, scaled outputs, the first on both HDMI and HDBaseT connectors, and the second on an HDMI

• connector. Both can take from the six digital inputs:

three HDBaseT and three HDMI signals; while the first also includes analog inputs − for two computer graphics signals, two composite video and two analog TP inputs. Analog, digital and embedded audio are supported, and the unit also includes a microphone input and rich DSP features

FEATURES

Pix-Perfect™ Scaling Technology - Kramer’s precision pixel mapping and high−quality scaling

• technology. High−quality 3:2 and 2:2 pull down de−interlacing and full up− and down−scaling of video

input signals HDTV Compatible HDCP Compliant - The HDCP (High Definition Content Protection) license agreement allows copy−protected data on the HDMI input to pass only to the HDMI outputs HDBaseT Range - Up to 70m (230ft) using BC−HDKat6a cable Cable - For optimum range and performance, use the recommended Kramer cables available at www.kramerav.com/product/VP−553xl Video Inputs - 3 HDMI connectors, 3 HDBaseT on RJ−45 connectors, 2 VGA on 15−pin HD connectors, each with unbalanced stereo audio on 3.5mm connectors; 2 VGA & audio over CAT 5 on RJ−45 connectors; 2 composite video on RCA connectors with unbalanced stereo audio on 3.5mm mini jacks Scaled Outputs - 2 HDMI & 1 HDBaseT Output Resolutions - HDTV and computer graphics and 1080p/UXGA with selectable refresh rates 4x1 USB Switcher - Can be set to follow the switching of the video layer or can be used as an independent switcher. 4 USB−B input connectors, 1 USB−A output connector OSD (On Screen Display) - For easy setup and adjustment, accessible via the IR remote control and via the front panel buttons Input and Output Audio Level Adjustment Selectable Microphone Talkover or Mix Modes Automatic Audio Detection & Selection - On the HDMI input source, default selection is HDMI. If not present, the unit uses the audio from the analog input. Manual audio selection is also available Audio Inputs - 3 analog HDMI audio, 2 analog PC audio on 3.5mm mini jacks; 2 stereo CV audio on RCA connectors each with individual level controls Microphone Input - Dynamic or condenser (with 48V phantom voltage) Audio Outputs - 2 balanced stereo audio on terminal blocks Multiple Aspect Ratio Selections - Full, overscan, underscan, letterbox & panscan Built-in ProcAmp - Color, hue, sharpness, noise, contrast & brightness Front Panel Control - Audio mute, video blanking & freeze frame Front Panel Lockout Built-in Web Pages - For easy setup and remote control Firmware Upgrade - Via Ethernet Non-Volatile Memory - Saves final settings Flexible Control Options - Front panel, IR remote with OSD (on−screen display), Ethernet with built−in Web pages & RS−232 Worldwide Power Supply - 100−240V AC

TECHNICAL SPECIFICATIONS INPUTS:

3 HDMI connectors (HDMI, HDCP), 2 VGA on 15−pin HD connectors, 2 composite video on RCA connectors, 2 analog TP on RJ−45 connectors, 3 HDBT on RJ−45 connectors, 4 USB−B ports, 3 unbalanced analog audio on 3.5mm mini jacks for HDMI, 2 unbalanced analog audio on 3.5mm mini jacks for PC, 1 Aux in balanced stereo audio on 5−pin terminal block connectors, 2 balanced audio (L and R) RCA connectors for CV

OUTPUTS:

1 HDBT on RJ−45 connector, 2 HDMI connectors (HDMI, HDCP), 1 USB port, 1 monitor out balanced stereo on a 5−pin terminal block connector, 1 line out balanced stereo on a 5−pin terminal block connector

OUTPUT RESOLUTIONS:

NATIVE, 640x480@60, 800x600@60, 1024x768@60, 1280x768@60, 1360x768@60, 1280x720@60, 1280x800@60, 1280x1024@60, 1440x900@60, 1400x1050@60, 1680x1050@60, 1600x1200@60, 1920x1080@60, 1920x1200@60, 720x480p@60, 1280x720p@60, 1920x1080i@60, 1920x1080p@60, 720x576p@60, 1280x720p@50, 1920x1080i@50, 1920x1080p@50

CONTROLS:

TP 1, TP 2, CV 1, CV 2, HDBT 1, HDBT 2, HDBT 3, PC 1, PC 2, HDMI 1, HDMI 2, HDMI 3, USB 1, USB 2, USB 3, USB 4 input selector buttons; 2 blank, 2 mute, 2 freeze buttons; menu, enter, menu arrows, reset to XGA/720p, OSD SELECT, 2 RS−232, IR, Ethernet, 2 level and EQ trimmers, line/mic selector switch, cond/dyn selector switch, mono/stereo selector switch, REM for muting audio

POWER CONSUMPTION:

100−240V AC, 43VA max

OPERATING TEMPERATURE:

0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE:

−40° to +70°C (−40° to 158°F)

HUMIDITY:

10% to 90%, RHL non−condensing

PRODUCT DIMENSION:

19" x 11.93 x 2U (43.6cm x 30.30cm 8.80cm) W, D, H

PRODUCT WEIGHT:

3.7kg (8.0lbs) approx

SHIPPING DIMENSION:

52.60cm x 47.50cm x 18.40cm (20.71" x 18.70" x 7.24" ) W, D, H

SHIPPING WEIGHT:

5.1kg (11.2lbs) approx

INCLUDED ACCESSORIES:

Power cord, rack "ears", IR remote control

OPTIONS:

Kramer BC−HDKat6a cable
