Vision Based Wheel Condition Monitoring Kambiz Nayebi Beena Vision Systems, Inc. Y O U R L O G O Beena Vision Systems Inc. 1 Condition Based Maintenance Benefits for the Industry High Availability of Rolling Stock Optimum use of

slide-1
SLIDE 1

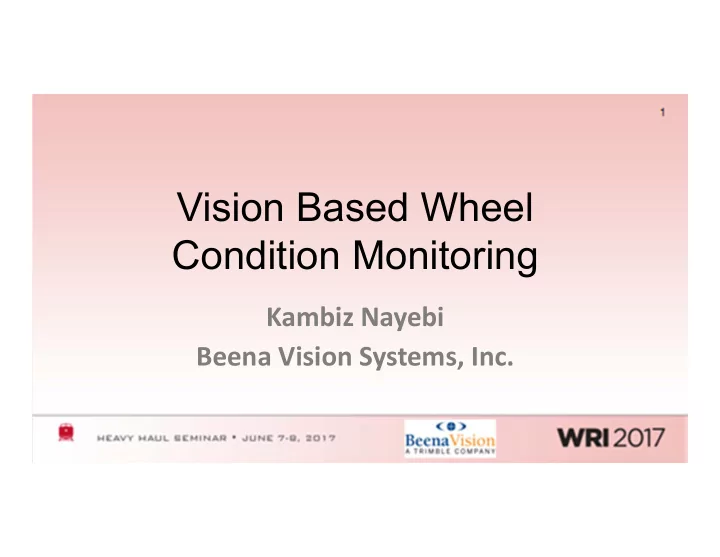

1 Beena Vision Systems Inc.

Y O U R L O G O

Vision Based Wheel Condition Monitoring

Kambiz Nayebi Beena Vision Systems, Inc.

slide-2
SLIDE 2

2 Beena Vision Systems Inc.

Condition Based Maintenance

Benefits for the Industry

  • High Availability of Rolling Stock
  • Optimum use of personnel for Maintenance
  • Preventative Maintenance
  • Need Based Maintenance vs Time based Maintenance
  • Minimizing Timely and Unscheduled Maintenance to Prevent Adverse Impact on Operation
  • Monitoring Leading Indicators
  • General Fleet Weakness and Failure Point Detection
  • Cost Savings
  • Reduce Risk to Personnel / Increased Safety
slide-3
SLIDE 3

3 Beena Vision Systems Inc.

Industry Expectations from TCM systems

Reduced Cost with Higher Reliability, Freight vs Passenger

Operations Consideration

  • Painless Operation
  • Reliability
  • Availability
  • Verifiability
  • High Enough Accuracy
  • High Data Quality
  • Actionable Information

Business Considerations

  • Inspection of Rolling Stock Using Technology
  • Predict and Prevent Failures
  • Move Hard Decision Away from the

Maintenance Crew

  • Minimize Depot Maintenance Visits
  • Use Labor to Repair
  • Drive Planning and the Supply Chain through

CM

  • Prevent Disasters
slide-4
SLIDE 4

4 Beena Vision Systems Inc.

Main Wayside Detector Types

From 40’s to 2101’s and Future

Wayside Detectors have been deployed since early 1950’s with first talkers at 60’s

 GEN 1: Hotbox/Hot Wheel (1950’s with IR Detectors)  GEN 2: WILD and Acoustic Bearing Detectors (1980’s)  GEN 3: Wheel Profile Measurement (Early 2000’s)  GEN 4: Brake Shoe and simpler Image Based Systems (2000’s)  GEN 5: Vision Based Inspection Systems (2010’s)  Next Generation: Full Vision Inspection along with Multispectral/Thermal/3D aligned with other non‐ contact sensing technologies There has been some attempts to bring Ultrasonic, EMAT, X‐Ray, Thermal, Radar, Lidar and other NDT techniques to mainline wayside detection systems.

slide-5
SLIDE 5

5 Beena Vision Systems Inc.

Characteristics of Vision Based Systems

Cameras to Improve Inspector Eyes

  • Versatility: Cameras see a Whole Lot
  • Fast: Sophisticated Inspections at Speed
  • Easy Verification: Verification is Usually Very Easy with Access to Images
  • Data Presentation: Intuitive with Combination of Data and Images
  • Processing Categories: Measurements vs. Inspections (Detection)
  • System Categories: Component Specific to Area Specific Imaging
  • Capabilities: Complex and Accurate Measurements/Inspections
slide-6
SLIDE 6

6 Beena Vision Systems Inc.

Characteristics of Vision Based Systems

Complexities of Vision Based Systems

  • High Computational Complexity: Demand for High Computational Power
  • Development Time: Sophisticated Vision Algorithms Takes Time to Mature
  • Large Data Volume: GBytes of Data per Train
  • Power: Some Systems are Power Hungry
  • Availability: Keeping Systems Fully Operational 24/7
  • Ambient Light is the Main Enemy: Only a Well Designed System Can do the Job
  • Not as Easy as it may Look!
slide-7
SLIDE 7

7 Beena Vision Systems Inc.

Usually Multiple Sensors are Installed in One Location

In this site systems that are installed listed from left to right: Coupler Inspection System, Undercarriage Inspection System, Wheel Profile Measurement, Brake Shoe Measurement, and Truck Inspection Systems

A Typical US Vision Detector Site

slide-8
SLIDE 8

8 Beena Vision Systems Inc.

Usually Multiple Tracks are Equipped with Detectors

This is a double track site with several systems installed on each track.

A Typical Western Australian Site

slide-9
SLIDE 9

9 Beena Vision Systems Inc.

A Typical Passenger Train Inspection Site

A Typical Successful Example

Helsinki, Finland Passenger Train Operation

  • Wheel Profile and Brake Pad Units Installed
  • Painless Operation for 5 years
  • Very Reliable
  • More than 99.9% Availability
  • Yearly Verification
  • Accuracy to the Level of 0.2mm
  • High Quality Data
  • Replaced Manual Measurement for Daily

Maintenance

  • Operates on Different Types of Rolling Stock
slide-10
SLIDE 10

10 Beena Vision Systems Inc.

Different Vision System Types (1)

Laser Based Systems

Wheel Profile Measurmet Total Wheel Inspection Brake Pad/Shoe Measurement

slide-11
SLIDE 11

11 Beena Vision Systems Inc.

Different Vision System Types (2)

Pure Image Based Systems

Brake Shoe Measurement Bogie (Truck) Inspection Undercarriage Inspection

slide-12
SLIDE 12

12 Beena Vision Systems Inc.

Different Vision System Types (3)

Laser/3D/Image/Thermal Imaging Based Systems

Pantograph Inspection Total Train Inspection Brake Disk Measurement

slide-13
SLIDE 13

13 Beena Vision Systems Inc.

Typical Images from Different Systems

Real Images from Real Systems

slide-14
SLIDE 14

14 Beena Vision Systems Inc.

US/Australia /Europe Sites

slide-15
SLIDE 15

15 Beena Vision Systems Inc.

Complete Optical Wheel Inspection

slide-16
SLIDE 16

16 Beena Vision Systems Inc.

Full Wheel Inspection Station

Static and Dynamic Wheel Measurements

STATIC

  • Wheel Profile
  • Wheel Diameter
  • Wheel Equivalent Conicity
  • Wheel Surface Defect
  • Wheel Plate Inspection
  • Broken Wheel Sections
  • Externally Visible Cracks
  • Internal Defects and Cracks

DYNAMIC

  • Wheel Hunting
  • Angle of Attack
  • Back to Back
  • Wheel Surface Temperature
slide-17
SLIDE 17

17 Beena Vision Systems Inc.

Wheel Profile Measurement

WheelView

Standard Measurements

  • Flange Height
  • Flange Thickness
  • Flange Slope
  • Tread Hollow
  • Rim Thickness
  • Back‐to‐Back
  • Tread Rollover
  • False flange
  • Tracking Position
  • Wheel Diameter (Option with WV‐F/I/D)

Typical Accuracy

  • Flange Height, Thickness, Hollow:

 General accuracy: ±0.5mm  Low speed depot: ±0.3mm

  • B2B: ±1.0mm
  • Rim Thickness: ±1.0mm
  • Diameter: ±2.5mm
slide-18
SLIDE 18

18 Beena Vision Systems Inc.

Wheel Profile Measurement

Raw Images from WVF

slide-19
SLIDE 19

19 Beena Vision Systems Inc.

Measure Wheel Profile

Full End to End Profile

slide-20
SLIDE 20

20 Beena Vision Systems Inc.

Wheel Profile Measurement

Flange Thickness Measurement

slide-21
SLIDE 21

21 Beena Vision Systems Inc.

From Wheel Profile and Impact to Wheel Condition

  • Wheel profiles are measured at one or few points on the wheel.
  • In wheel profile measurement systems, inherent assumption is that wheel wear is uniform.
  • Impact measurement systems have an inherent assumption that the contact patch is on

the defective part of the wheel and impact measurement can detect it.

  • Even so, many condemnable wheel defects may not have significant wheel impact.
  • Impact measurement requires a minimum speed of travel.
  • Many catastrophic wheel failures do usually either start with small surface defects or

demonstrate themselves as an anomaly on the wheel surface.

  • Optical Wheel Surface Inspection has turned out to be a viable solution that can fill in the

gaps.

slide-22
SLIDE 22

22 Beena Vision Systems Inc.

Wheel Surface Scanning Operation

slide-23
SLIDE 23

23 Beena Vision Systems Inc.

TreadView and WheelView

This site was developed to evaluate the performance of a fully automated wheel condition monitoring system. This site sees up to 60 trains a day.

A Wheel Inspection Station

slide-24
SLIDE 24

24 Beena Vision Systems Inc.

Wheel Inspection in a Freight Track

TreadView

slide-25
SLIDE 25

25 Beena Vision Systems Inc.

BNSF Installation of TreadView

slide-26
SLIDE 26

26 Beena Vision Systems Inc.

slide-27
SLIDE 27

27 Beena Vision Systems Inc.

Full Surface Condition Monitoring

Static Wheel Measurements

  • Wheel Surface Defects

 Shelling  Spalling  Dents  Flats  Fatigue Cracks  Out of Round  Built‐up tread  Grooves  Broken and Separated Sections  Externally Visible Cracks  Shattered Rim  Wear Variation along the wheel surface  Significant Spread Rim  Vertical Split Rim

slide-28
SLIDE 28

28 Beena Vision Systems Inc.

Sample Wheel Defects

Detectable with TreadView

Dent Shelled Built‐up Shattered Spalled Skid Flat

slide-29
SLIDE 29

29 Beena Vision Systems Inc.

More Defective Wheels

Built‐up and Broken Rim

Built‐Up Tread Broken Rim

slide-30
SLIDE 30

30 Beena Vision Systems Inc.

TreadView and WheelView

With this station, the task of Wheel Inspection is completely eliminated from the shop floor. Wear, Tread, and Plate condition monitoring are all performed automatically.

A Full Vision Based Wheel Inspection Station

slide-31
SLIDE 31

31 Beena Vision Systems Inc.

Full Wheel Inspection System

TreadView

Standard Measurements

  • Shelled/Spalling/RCF Wheel
  • Flat Wheel (Skid, Localized Collapse,

Polygonazation)

  • Built‐up Tread
  • Wheel Profile Variation
  • Wheel OOR
  • Missing/Broken/Shocked Flange/Tread
  • Tread Groove
  • Angle of Attack and Wheel Hunting

Typical Accuracy

  • Out of Round : ±0.25mm
  • Wheel Surface Defects:

 Lateral : ±0.1mm  Longitudinal: ± 1mm  Depth: ±0.2mm

  • Longitudinal for low speed depot:

±0.3mm

slide-32
SLIDE 32

32 Beena Vision Systems Inc.

Perfect Wheel

slide-33
SLIDE 33

33 Beena Vision Systems Inc.

Hollow Wheel

Measured Across the Whole Wheel

slide-34
SLIDE 34

34 Beena Vision Systems Inc.

Flat Wheel

Size and Depth are Measured

slide-35
SLIDE 35

35 Beena Vision Systems Inc.

A Sample 3D Map of a Defective Wheel

Shelling

slide-36
SLIDE 36

36 Beena Vision Systems Inc.

TreadView Surface Defect

A Detected Shell Example

slide-37
SLIDE 37

37 Beena Vision Systems Inc.

3D Wheel Surface Data

A Shell is detected on the wheel surface

slide-38
SLIDE 38

38 Beena Vision Systems Inc.

Another Wheel Surface Defect

Shelled/Spalled/Built‐up Tread Wheel Detection

slide-39
SLIDE 39

39 Beena Vision Systems Inc.

Wheel Surface Imaging

Visual Inspection

slide-40
SLIDE 40

40 Beena Vision Systems Inc.

Visual Inspection of Wheel Flats

Automatic Detection and Size Evaluation

slide-41
SLIDE 41

41 Beena Vision Systems Inc.

Out of Round Measurement

23 mm 76 mm 137 mm

Depth – 0.37 mm Depth – 0.61 mm

68 mm

OOR Graph From Manual measurements

35 mm length 139 mm length 80 mm length 68 mm length

OOR Graph From TRDV

0.46 mm depth 0.50 mm depth

slide-42
SLIDE 42

42 Beena Vision Systems Inc.

Broken Wheel and its Detection Model

Rendering

slide-43
SLIDE 43

43 Beena Vision Systems Inc.

Wheel Surface Representation

Color Depth Display

slide-44
SLIDE 44

44 Beena Vision Systems Inc.

Cracked/Broken Wheel Plate

Use Wheel Plate Images

slide-45
SLIDE 45

45 Beena Vision Systems Inc.

Conclusion

Wayside Detectors and Vision Based Condition Monitoring Systems,

  • Role of Wayside Condition Monitoring Systems in the Railroad Industry has become

pronounced in the last two decades

  • Vision Based Inspection Systems is now playing a significant role in this sector
  • Wheel Inspection technology has reached to a mature state where a full inspection
  • f the wheel is possible at full track speed.
  • Vision Based CM systems are irreversibly changing railroad maintenance
  • perations worldwide.
  • Acknowledgements: BNSF Railway
slide-46
SLIDE 46

46 Beena Vision Systems Inc.

Thank You / Questions

www.beenavision.com Kambiz Nayebi
