Young Persons Lecture Competition Acoustic Based Condition Monitoring Kyle Saltmarsh The Outline The Identity Crisis Acoustic Based Condition Monitoring The How Applications in Industry Conclusion The Identity Crisis

slide-1

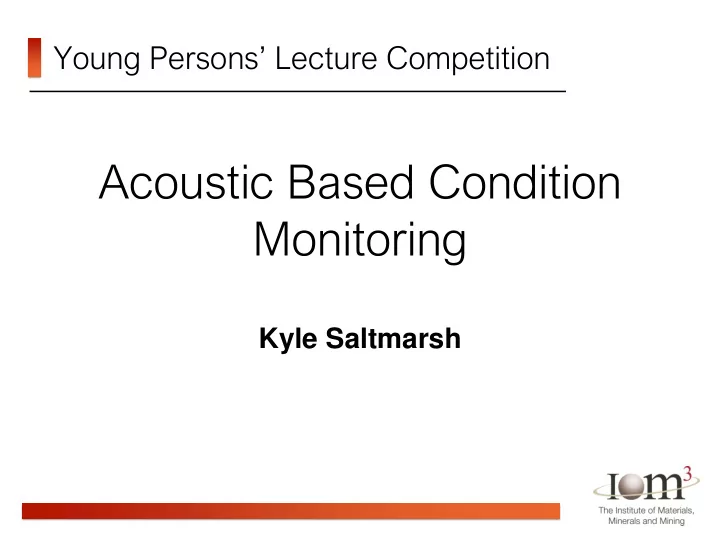

SLIDE 1

Acoustic Based Condition Monitoring

Young Persons’ Lecture Competition

Kyle Saltmarsh

slide-2
SLIDE 2

The Outline

  • The Identity Crisis
  • Acoustic Based Condition Monitoring
  • The How
  • Applications in Industry
  • Conclusion
slide-3
SLIDE 3

The Identity Crisis (About Me)

slide-4
SLIDE 4

Acoustic Based Condition Monitoring

  • Sounds tell stories
  • You do this all the time
  • On-site technicians do this
  • Technology does this
slide-5
SLIDE 5

An Example in Action

slide-6
SLIDE 6

Problem Statement

How do you use acoustics to monitor equipment in noisy environments?

slide-7
SLIDE 7

Beamforming

Robust Adaptive Beamforming - Jian Li & Petre Stoica

slide-8
SLIDE 8

Beamforming Applications

slide-9
SLIDE 9

Signal Processing

Fourier Techniques and Applications - Joseph Fourier

slide-10
SLIDE 10

Extracting Acoustic Features

Healthy Bearing Unhealthy Bearing Feature #1 Feature #2

slide-11
SLIDE 11

Model: Neural Network

Feature #1 Feature #2 Output #1 Equipment Type Output #2 Health Status

slide-12
SLIDE 12

Problem Solved

slide-13
SLIDE 13

Unearthed Mine Hackathon 2017

How can we more effectively use sound in mining?

slide-14
SLIDE 14

Healthy Vs. Corroded Bearing

Industry Data: Woodside Fin Fans

slide-15
SLIDE 15

Microphone Array

slide-16
SLIDE 16

Beamforming

slide-17
SLIDE 17

Signal Magnification

slide-18
SLIDE 18

Time Series

slide-19
SLIDE 19

Acoustic Feature Extraction

Feature #1 Feature #2

slide-20
SLIDE 20

Model Performance: Confusion Matrix

Accuracy: 99.5% True Condition Normal Fin Fan Corroded bearing Fin Fan Prediction Normal Fin Fan 176 1 Corroded bearing Fin Fan 2 167

slide-21
SLIDE 21

Conclusion

  • Sounds tell stories
  • Acoustics, signal processing and predictive

modelling

  • Application in Industry (Rio Tinto)
  • Easy Implementation
slide-22
SLIDE 22

Thank You

Questions?

slide-23
SLIDE 23

Contents

  • The Identity Crisis
  • Rio Tinto RailBam
  • Beamforming
  • Signal Processing
  • Feature Extraction
  • Predictive Model
  • Unearthed 2017
