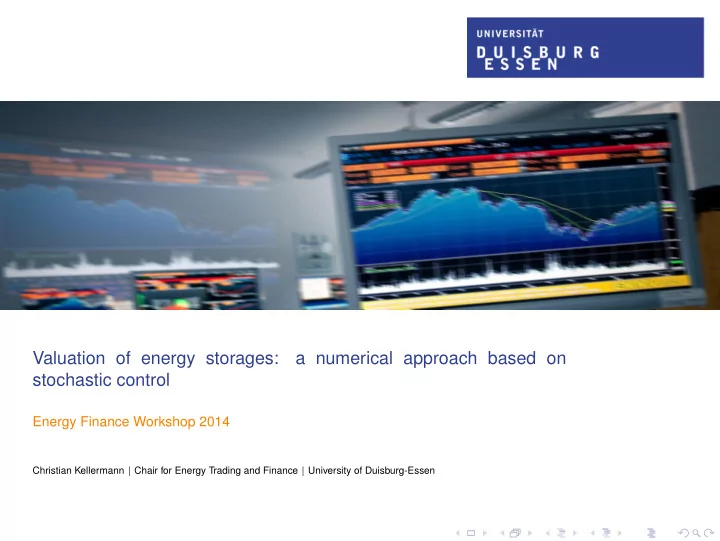

Valuation of energy storages: a numerical approach based on stochastic control

Energy Finance Workshop 2014

Christian Kellermann | Chair for Energy Trading and Finance | University of Duisburg-Essen

Page 2/22 |

Outline

Motivation Model Numerics

Christian Kellermann | Stolberg, Harz | May 8, 2014

Page 3/22 | Motivation

StoBeS Project

Our project "Stochastic Methods for Management and Valuation of Centralized and Decentralized Energy Storages in the Context of the Future German Energy System" is part of

Christian Kellermann | Stolberg, Harz | May 8, 2014

Page 4/22 | Motivation

Research interest

We aim to develop methods to value different types of storages.

The value of the storage for the remaining time window as a function of current input numbers.

Christian Kellermann | Stolberg, Harz | May 8, 2014

Value Inventory Price Value in 10^7 $

Page 5/22 | Motivation

Status Quo

The standard example is a gas storage.

◮ Forward or spot? ◮ Intrinsic, rolling intrinsic or extrinsic value?

Christian Kellermann | Stolberg, Harz | May 8, 2014

Page 6/22 | Motivation

Literature

Once we have an objective function for the extrinsic value, there are two approaches:

◮ develop the HJB equations and use FD-Methods to solve the

P(I)DE (see Davison et al.),

◮ use the Longstaff-Schwartz approach (see Carmona/Ludkovski or

Boogert/de Jong). This consists of

• 1. Monte Carlo simulation,
• 2. Least Squares regression.

Christian Kellermann | Stolberg, Harz | May 8, 2014

Page 7/22 | Model

Advantages

We choose the approach by Carmona and Ludkovski because

◮ it is easy to implement, ◮ it is applicable to various settings, ◮ various extensions can be implemented.

Christian Kellermann | Stolberg, Harz | May 8, 2014

Page 8/22 | Model

Value function

V(t, p, c) := sup

u∈U

E(p,c) T

t

f(s, us, Cs, Ps)ds − K(u) + g(PT, CT, uT)

• ,

where we have

◮ the time t ∈ [0, T], ◮ a price process P, ◮ the strategy u for our storage, i.e. the decision which amount of

• ur commodity we would like to inject or to withdraw,

◮ the current inventory level C ∈ [Cmin, Cmax] with

dCs = a(us, Cs)ds.

Christian Kellermann | Stolberg, Harz | May 8, 2014

Page 9/22 | Model

Payoff and penalty

V(t, p, c) := sup

u∈U

E(p,c) T

t

f(s, us, Cs, Ps)ds − K(u) + g(PT, CT, uT)

• ,

where we have

◮ the payoff f(s, us, Cs, Ps), which depends linear on a(.); ◮ the penalty term g(PT, CT, uT); ◮ a sum of switching costs K(u).

Christian Kellermann | Stolberg, Harz | May 8, 2014

Page 10/22 | Model

Impulse Control

Let U := U(t, p, c, i) be the set of admissible controls with ut = i. We specify our control as u := ((v1, τ1), (v2, τ2), ...), where vi ∈ {1, −1, 0} - "in, out, store" - and τi is the optimal stopping time or rather the optimal switching time. The simplified impulse set is a result of the so-called bang-bang property. Furthermore, we can make profitable use of the iterative scheme for impulse control!

Christian Kellermann | Stolberg, Harz | May 8, 2014

Page 11/22 | Model

Multiple Switching Problem

Let X = (P, C) be the state of our system. We consider the case, where at most m switches are allowed, i.e. Um(t, x). We define for k = 1, . . . , m

◮ V 0(t, x, i) = E

T

t f(s, i, xs)ds + g(T, XT)|Xt = x

• ,

◮ V k(t, x, i) = supΘ≤T E

Θ

t f(s, i, xs)ds + Mk,i(Θ, x)

• ,

◮ where Mk,i(Θ, x) = maxj=i{−Ki,j + V k−1(Θ, x, j)} is the

intervention operator.

Christian Kellermann | Stolberg, Harz | May 8, 2014

Page 12/22 | Model

ǫ-optimal Control

From Carmona/Ludkovski or Øksendal/Sulem we find

◮ τm−k+1 := inf

• s ≥ τm−k : V k(s, x, i) = Mk,i(s, x)
• ,

◮ V m(t, x, i) = supu∈Um V(t, x, u) and ◮ limm→∞ V m(t, x, i) = V(t, x, i).

Christian Kellermann | Stolberg, Harz | May 8, 2014

Page 13/22 | Numerics

Conditions

Alltogehter, we make use of

◮ the fact, that we get an initial value problem, because V(T, p, c)

is deterministic w.r.t. g(.),

◮ the bang-bang property, ◮ a time grid plus the Bellman principle, ◮ the extended Longstaff and Schwartz approach.

Christian Kellermann | Stolberg, Harz | May 8, 2014

Page 14/22 | Numerics

Rewriting our objective

For a fixed time point t1 we get V(t1, p, c, i) = sup

u∈U

E(p,c) T

t1

f(s, us, Cs, Ps)dsK(u) + g(PT, CT, uT)

• ↓

sup

τ≤T

E(p,c) τ

t1

f(s, ut, Cs, Ps)ds−K(i, uτ) + V(τ, Pτ, Cτ, uτ)

• ↓

f(t1, ut1, c, p) + max

j∈{−1,0,1}

• − K(i, j) + E(p,c)
• V(t2, Pt2, Ct2, j)
• Christian Kellermann |

Stolberg, Harz | May 8, 2014

Page 15/22 | Numerics

Parameter

For our computations we use the gas price process d log Pt = 17.1(log 3 − log Pt)dt + 1.33dWt (with parameters from Carmona/Ludkovski) and

◮ a time interval of 1 year with 200 trading days, ◮ inventory bounds [0, 8], ◮ loading rates ain = .06 and aout = .25, ◮ continuous cost Kus = 0.1c/365 and switching costs of

Kswitch = 0.25,

◮ the penalty V(T, p, c, i) = −2p(4 − c)+.

Christian Kellermann | Stolberg, Harz | May 8, 2014

Page 16/22 | Numerics

First Algorithm

We

◮ discretize the inventory using a grid C0 with 80 equidistant

intervals and

◮ simulate N = 10.000 price paths.

At T we know the N × 80 different values. Besides the standard grid C0 we consider also the shifted ones C1 and C−1, where the shift depends on ain or aout.

Christian Kellermann | Stolberg, Harz | May 8, 2014

Page 17/22 | Numerics

First Algorithm

Starting with the initial value(s) in T, we go backwards. For two consecutive points in time t1 < t2, we know V(t2, .) (on C0).

• 1. We interpolate V(t2, .) on C−1 and C1.
• 2. For all c ∈ C0 and each strategy i ∈ {−1, 0, 1} we carry out a

linear regression for V(t2, c + ai, pn

t2) on the first 4 monomials of

pn

t1, where 0 ≤ n ≤ N.

Christian Kellermann | Stolberg, Harz | May 8, 2014

Page 18/22 | Numerics

First Algorithm

• 3. We compute the three estimators for the "continuation value" and

determine w.r.t. to the payoff function the maximal value.

Value

The storage value for a fixed inventory as a function of the price if we switch to INJECTION, STORE or WITHDRAWAL.

Christian Kellermann | Stolberg, Harz | May 8, 2014

INJ STO WITH Control before: Price

Page 19/22 | Numerics

Second Algorithm

Now we simulate also C and thus we reduce the computation by one for-loop. For each path and for each node we get a tuple (Pn

t , Cn t ) for

each strategy i ∈ {1, 0, −1}.

• 1. In T we pick Cn

T from an uniform distribution on [Cmin, Cmax].

• 2. In the regression step we consider V(t2, .) and the monomials in

Pn

t1 and Cn t2 for each i ∈ {−1, 0, 1}.

• 3. Before the computation of the estimators we have to determine

Cn

t1: we choose a distribution on {1, 0, −1} so that E[a] = 0. That

leads to Cn

t1(i) = Cn t2(j(ω)) − aj(ω).

• 4. If ˆ

j(i) ≡ j(ω), we take V(.) instead of ˆ V(.).

Christian Kellermann | Stolberg, Harz | May 8, 2014

Page 20/22 | Numerics

Second Algorithm

The value of the storage for the remaining time window as a function of current input numbers.

Christian Kellermann | Stolberg, Harz | May 8, 2014

Value in 10^7 $ Value Inventory Price

Page 21/22 | Numerics

Second Algorithm

At a fixed time point the optimal decision for INJECTION, STORE or WITHDRAWAL depending on price and inventory at a certain .

Christian Kellermann | Stolberg, Harz | May 8, 2014

Inventory Price

Page 22/22 |

References

A.Boogert, C.De Jong: Gas Storage Valuation Using a Monte Carle Method, 2008 R.Carmona, M.Ludkovski: Valuation of energy storage: an

• ptimal switching approach, 2010

B.Øksendal, A.Sulem: Applied Stochastic Control of Jump Diffusions, 2007 M.Thompson, M.Davison, H.Rasmussen: Natural Gas Storage Valuation and Optimization: A Real Options Application, 2009

Thank you for your attention...
