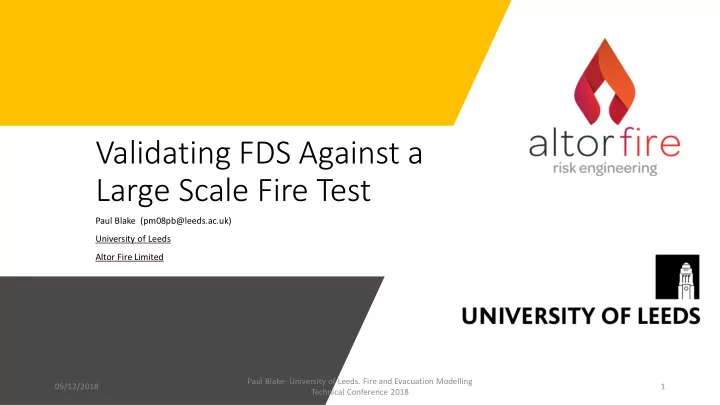

Validating FDS Against a Large Scale Fire Test

Paul Blake (pm08pb@leeds.ac.uk) University of Leeds Altor Fire Limited

05/12/2018 Paul Blake- University of Leeds. Fire and Evacuation Modelling Technical Conference 2018 1

slide-2
SLIDE 2

Introduction

  • About me…
  • MSc research program completed in 2015.
  • Part-time student Ph.D. University of Leeds, UK.
  • Altor Fire

05/12/2018 Paul Blake- University of Leeds. Fire and Evacuation Modelling Technical Conference 2018 2

slide-3
SLIDE 3

Today…

  • Replicate a full scale fire test in FDS

6.2.0

  • Compare the material backing

functions in FDS 6.2.0;

  • Void
  • Exposed
  • Insulated

05/12/2018 Paul Blake- University of Leeds. Fire and Evacuation Modelling Technical Conference 2018 3

slide-4
SLIDE 4

My ongoing research aims……

  • Fire testing of external walling materials, conducted at the University of

Leeds, then replicate the test results in FDS 6.2.0.

  • Quantify the Heat Release Rate (HRR) of a full height fire. Determining if

there is a correlation between the visible flame height of a fire height fire and the heat release rate.

  • Use CFD (FDS) to accurately model the conditions that are evident during a

full height fire.

  • Assess the current fire test standards for external walling systems against

actual fire conditions in tall buildings.

  • Design evacuation models that can be applied to the conditions of a full

height fire at the building including a simultaneous evacuation of buildings not designed for such a procedure.

05/12/2018 Paul Blake- University of Leeds. Fire and Evacuation Modelling Technical Conference 2018 4

slide-5
SLIDE 5

A Full Height Fire…

  • External floor-to-floor travel
  • Internal fire spread: ineffectual

compartmentalisation

  • Combustible external surfaces

The Tall Building Fire Safety Network

05/12/2018 Paul Blake- University of Leeds. Fire and Evacuation Modelling Technical Conference 2018 5

slide-6
SLIDE 6

External Walling Systems (Facades)

05/12/2018 Paul Blake- University of Leeds. Fire and Evacuation Modelling Technical Conference 2018 6

slide-7
SLIDE 7

BS8414-1:2015 Full scale fire test

Fire performance of external cladding

  • systems. Test method for non-loadbearing

external cladding systems applied to the masonry face of a building.

  • Main face (>2600mm x >6000mm)
  • Wing face (>1500mm x >6000mm)
  • Combustion chamber (2000mm)
  • Wood crib fire
  • Level 1 and Level 2 thermocouples
  • 1800 seconds duration of test
  • Narrative taken

05/12/2018 Paul Blake- University of Leeds. Fire and Evacuation Modelling Technical Conference 2018 7

slide-8
SLIDE 8

Test criteria….

The performance criteria and for the failure of a test is defined in BR 135; “Fire performance of external thermal insulation for walls of multi-storey buildings, third edition”. and is as follows;

  • The fire spread start time defined as the time when the temperature

measured by an external thermocouple as Level 1 exceeds 2000C above ambient.

  • A failure occurs due to external fire spread is determined when an external

thermocouple at Level 2 exceeds 6000C for at least 30 seconds within 15 minutes of the fire spread start time.

  • A failure due to internal fire spread is determined when any internal

thermocouple at Level 2 exceeds 6000C above ambient temperature for at least 30 seconds within 15 minutes of the fire spread time.

05/12/2018 Paul Blake- University of Leeds. Fire and Evacuation Modelling Technical Conference 2018 8

slide-9
SLIDE 9

05/12/2018 9

slide-10
SLIDE 10

BRE-DCLG Test-1 Results

Parameter Result Ts Start temperature 18.40C ts Start time 130 seconds after the ignition of the crib Peak temperature/time at Level 2, External 813.90C at 390 seconds after ts Peak temperature/time at Level 2, Cavity 410.40C at 380 seconds after ts Peak temperature/time at Level 2, Insulation 218.40C at 380 seconds after ts

05/12/2018 Paul Blake- University of Leeds. Fire and Evacuation Modelling Technical Conference 2018 10

Polyethylene (PE) cladding core Polyisocyanurate (PIR) insulation

slide-11
SLIDE 11

Setup in FDS

  • Thermocouples.
  • Inside wall temperature devices.
  • Heat Release Rate Per Unit Area:

2100kW.

  • Mesh size is defined by the

“EXPOSED” function.

  • Surface front adjusted.

05/12/2018 Paul Blake- University of Leeds. Fire and Evacuation Modelling Technical Conference 2018 11

slide-12
SLIDE 12

Conductive Heat Flux in FDS (Eq1)

ሶ 𝑟𝑑

" = ℎ(𝑈 𝑕 − 𝑈 𝑥)

Where; h is the convective heat transfer coefficient Tg is the gas temperature Tw is the surface wall temperature.

05/12/2018 Paul Blake- University of Leeds. Fire and Evacuation Modelling Technical Conference 2018 12

slide-13
SLIDE 13

05/12/2018 Paul Blake- University of Leeds. Fire and Evacuation Modelling Technical Conference 2018 13

Where the radiation shape is unity, the radiative heat flux is given by: ሶ 𝑟𝑠

" = 𝜁𝜏(𝑈 𝑥 4 − 𝑈 𝑏 4)

Where:

  • 𝜁= emissivity
  • 𝜏= Stefan-Boltzmann constant (5.670x10-8 W/m2∙K4)
  • 𝑈

𝑥= wall temperature

  • 𝑈

𝑏= ambient temperature

Conductive Heat Flux in FDS (Eq2))

slide-14
SLIDE 14

Conductive Heat Flux in FDS (Eq3)

05/12/2018 Paul Blake- University of Leeds. Fire and Evacuation Modelling Technical Conference 2018 14

For steady state heat conduction through a uniform material with no internal heat generation, the conductive heat flux reads;is given by

Where: 𝑙= conductivity 𝑢ℎ𝑗𝑑𝑙= thickness of the material 𝑈

𝑐𝑏𝑑𝑙= wall temperature (back)

𝑈

𝑔𝑠𝑝𝑜𝑢= wall temperature (front)

slide-15
SLIDE 15

Materials, Layers and Surfaces

Material Depth (mm) Cladding Aluminium 0.5 Polyethylene (PE) 3.0 Aluminium 0.5 Insulation layer Polyisocyanurate (PIR) 80 Air 80

  • Void: Air gap, open to heat

fluxes.

  • Exposed: Heat can be conducted

through the material.

  • Insulated: No heat is lost from

the rear of the material.

05/12/2018 Paul Blake- University of Leeds. Fire and Evacuation Modelling Technical Conference 2018 15

slide-16
SLIDE 16

05/12/2018 Paul Blake- University of Leeds. Fire and Evacuation Modelling Technical Conference 2018 17

Most reactive Next most reactive Against the three surface backings

slide-17
SLIDE 17

BRE-DCLG Test-1 Results

Parameter Result Ts Start temperature 18.40C ts Start time 130 seconds after the ignition of the crib Peak temperature/time at Level 2, External 813.90C at 390 seconds after ts Peak temperature/time at Level 2, Cavity 410.40C at 380 seconds after ts Peak temperature/time at Level 2, Insulation 218.40C at 380 seconds after ts

05/12/2018 Paul Blake- University of Leeds. Fire and Evacuation Modelling Technical Conference 2018 18

Polyethylene (PE) cladding core Polyisocyanurate (PIR) insulation

slide-18
SLIDE 18

Level 2– External: 1029-C

05/12/2018 Paul Blake- University of Leeds. Fire and Evacuation Modelling Technical Conference 2018 19

0.00 100.00 200.00 300.00 400.00 500.00 600.00 700.00 800.00 900.00 0.00 100.00 200.00 300.00 400.00 500.00 600.00

Temperature (C) Time (s)

Level 2 External 1029-C

Void 1029-C Exposed 1029-C Insulated 1029-C BRE-CLG 1029-C

slide-19
SLIDE 19

Level 2– External: 1026-C

05/12/2018 Paul Blake- University of Leeds. Fire and Evacuation Modelling Technical Conference 2018 20

0.00 100.00 200.00 300.00 400.00 500.00 600.00 700.00 800.00 0.00 100.00 200.00 300.00 400.00 500.00 600.00

Level 2 External 1026-C

BRE-CLG 1026--C Void 1026-C Exposed 1026-C Insulated 1026-C

slide-20
SLIDE 20

Level 2- Cavity: 1028-C

05/12/2018 Paul Blake- University of Leeds. Fire and Evacuation Modelling Technical Conference 2018 21

0.00 50.00 100.00 150.00 200.00 250.00 300.00 350.00 400.00 450.00 0.00 100.00 200.00 300.00 400.00 500.00 600.00 700.00

Temperature (C) Time (s)

Level 2 1028-C Cavity

Void 1028-C Exposed 1028-C Insulated 1028-C BRE-CLG 1028-C

slide-21
SLIDE 21

Level 2- Cavity: 1025-C

05/12/2018 Paul Blake- University of Leeds. Fire and Evacuation Modelling Technical Conference 2018 22

0.00 50.00 100.00 150.00 200.00 250.00 300.00 350.00 400.00 0.00 100.00 200.00 300.00 400.00 500.00 600.00 700.00

Temperature (C) Time (s)

Level 2 Cavity 1025-C

BRE-CLG 1025-C Void 1025-C Exposed 1025-C Insulated 1025-C

slide-22
SLIDE 22

Level 2- Insulation: 1027-C

05/12/2018 Paul Blake- University of Leeds. Fire and Evacuation Modelling Technical Conference 2018 23

0.00 50.00 100.00 150.00 200.00 250.00 0.00 100.00 200.00 300.00 400.00 500.00 600.00

Temperature (C) Time (s)

Level 2 Insulation 1027-C

Void 1027-C Exposed 1027-C Insulated 1027-C BRE-CLG 1027-C

slide-23
SLIDE 23

Level 2- Insulation: 1024-C

05/12/2018 Paul Blake- University of Leeds. Fire and Evacuation Modelling Technical Conference 2018 24

50 100 150 200 250 300 0.00 100.00 200.00 300.00 400.00 500.00 600.00

Temperature (C) Time (s)

Level 2 Insulation 1024-C

BRE=CLG 1024-C Void 1024-C Exposed 1024-C Insulated 1024-C

slide-24
SLIDE 24

Conclusion & Progression

  • The result of the modelling is based on a single test.
  • Modelling against a fixed temperature
  • Will complete the BRE-DCLG test reports
  • Not all Polyethylene's are created equal.
  • Adjustments to the ramp-up time.
  • The insulation and cavities are hard to replicate post test.
  • Void and Exposed material backing.
  • Air channels

05/12/2018 Paul Blake- University of Leeds. Fire and Evacuation Modelling Technical Conference 2018 25

slide-25
SLIDE 25

Thank you

Any questions?
