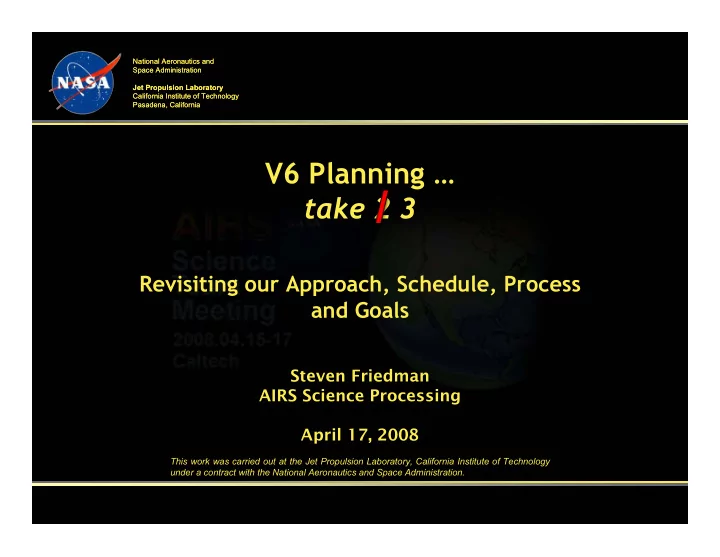

SLIDE 1

Steven Friedman AIRS Science Processing April 17, 2008

National Aeronautics and Space Administration Jet Propulsion Laboratory California Institute of Technology Pasadena, California

This work was carried out at the Jet Propulsion Laboratory, California Institute of Technology under a contract with the National Aeronautics and Space Administration.

V6 Planning … take 2 3

Revisiting our Approach, Schedule, Process and Goals

National Aeronautics and Space Administration Jet Propulsion Laboratory California Institute of Technology Pasadena, California

SLIDE 2

National Aeronautics and Space Administration Jet Propulsion Laboratory California Institute of Technology Pasadena, California

AIRS: 2007-10-11 - 1

Approach Putting everything in its proper time and place

Provide sufficient time to develop a quality V6 product

exhibiting significant improvement over V5 Time allocated for:

Preliminary investigations,

prototyping and demonstration tests

Development time – greater than 1 year for development and test
Integration into AIRS PGE at JPL
Testing – six months allocated for comprehensive tests
Mid-course corrections, status checks at least two more Science

Team meetings (Fall 2007 [this meeting] and Spring 2008)

We are here We are here now! now!

SLIDE 3

National Aeronautics and Space Administration Jet Propulsion Laboratory California Institute of Technology Pasadena, California

AIRS: 2007-10-11 - 2

V6 Schedule

I D T S t a F i n 1 A I R S S

W

e d 7 F r i 1 2 V 5 W e d 7 W e d 7 / 3 V 6 T u e 1 F r i 1 4 5 V 6 E n T u e 1 F r i 1 6 V 6 C T u e 1 F 7 V 6 K i c k

f

T u e 1 F r i 1 8 V 6 M

n

1 F 9 S c i e n c e T T F 1 V 6 A l M T h u 7 1 N e t M e t i n T h u 7 / T h u 7 1 2 I s u e F r i 7 F 1 3 V 6 P r M

n

8 M

n

3 1 4 L e v e l M

n

8 T u e 9 1 5 L e v e l M

n

8 W e d 1 1 6 I t e r a M M

n

3 1 7 S T u e 1 F r i 1 1 8 L e v e l M F 1 9 M a t c h M F r i 2 2 V M

n

3 F 2 1 V 6 C a M

n

3 M

n

3 2 G e n e r T u e 3 F 2 3 P G E T T u e 4 F r i 7 2 4 L e T u e 4 F r i 2 5 L e T u e 4 F r i 6 2 6 L e M F 2 7 M a t c h M F 2 8 S c i e n M

n

6 F r i 7 2 9 D

c

u m M

n

6 / F 3 P a c k a M

n

7 F r i 8 3 1 V 6 D e M

n

7 M

n

7 3 2 F i n a l T u e 7 F 3 V 6 P a M

n

8 F r i 8 3 4 V 6 C

M
n

8 T u e 8 3 5 J P L U W e d 8 / F r i 8 3 6 H a n d

F

r i 8 F r i 8 3 7 D e l i v F F 3 8 G E S D M

n

8 F r i 1 3 9 V 6 I n t e g r M

n

8 F r i 1 4 V 6 E n M

n

1 F r i 1 4 1 V 6 D a F r i 1 F r i 1 V 6 C

7

3 / 3 S c i V 6 B u i l d 7 / 2 7 G E S D 8 / 2 8 / 7 / 2 V 6 O p 1 / N

v

D e c J a n F e b M a r A p r M a y J u n J u l A u g S e p O c t N

v

D e c J a n F e b M a r A p r M a y J u n J u l A u g S e p O c t N

v

D e c Q 2 Q 3 Q 4 Q 1 Q 2 Q 3 Q 4 Q 1 Q 2 2 9

SLIDE 4

National Aeronautics and Space Administration Jet Propulsion Laboratory California Institute of Technology Pasadena, California

AIRS: 2007-10-11 - 3

I D T S t a F i n 4 5 V 6 E n d

t
T

u e 1 F r i 1 / 1 6 V 6 C

n

c e p T u e 1 F 7 V 6 K i c k

f

T u e 1 F r i 1 / 1 8 V 6 C

n

c eM

n

1 F r i 9 S c i e n c e T e T F 1 V 6 M T h u 7 / 1 1 N e t M e t i T h u 7 T h u 7 / 1 1 2 I s F r i 7 F 1 3 V 6 P r

d

u c M

n

8 M

n

3 / 3 1 4 L e v e l 1 P G M

n

8 / T u e 9 / 3 1 5 L e v e l 2 P M

n

8 W e d 1 2 / 3 1 6 I t e r a t i v e M M

n

3 / 3 1 7 S c i e n c e T u e 1 F r i 1 / 1 1 8 L e v e l 3 P M F 1 9 M a M

n

F r i 2 / 1 3 2 V 6 T M

n

3 F 2 1 V 6 C a n d i d a t e B u M

n

3 / M

n

3 / 3 2 G e n e r a t i

T

u e 3 F 2 3 P G E T e s t i T u e 4 F r i 7 / 2 4 2 4 L e v e l 1 T u e 4 F 2 5 L e T u e 4 / F r i 6 / 1 2 2 6 L e M F 2 7 M a M F 2 8 S c i M

n

6 / F r i 7 / 2 4 2 9 D

c

u m e n t a M

n

6 F V 6 C

7

/ 3 / S c i S O N D J F M A M J J A S O N D J F M A M J J A S H a l f H a l f H a l f H a l f 2 , 2 8 2 9

V6 Schedule

Science Team: V6 Algorithms Research (6 months) and Development (6 months) Science Team: V6 Verification (6 weeks) Integration (7 months) and Test (3 months)

SLIDE 5

National Aeronautics and Space Administration Jet Propulsion Laboratory California Institute of Technology Pasadena, California

AIRS: 2007-10-11 - 4

V6 Milestones

Schedule includes sufficient time for:
Preliminary investigations / prototyping – six months
Total development time – greater than 1 year
Testing – three months

V6 Kickoff – Science Team MTG October 2007 Concept Development and Prototyping ends April 2008 V6 Content Determination - Science Team MTG April 2008 V6 Algorithm Development ends July 2008 V6 Status – closure issues - Science Team MTG July 2008 V6 Code Integration at JPL (CCB controlled) August 2008 – March 2009 V6 Candidate Build March 2009 V6 Integration and Test April - June 2009 Science Team Verification of V6 Products June – July 2009 V6 Delivery to GES DISC August 2009 V6 Operational November 2009 We are here We are here now! now! Can we do it? Can we do it?

SLIDE 6

National Aeronautics and Space Administration Jet Propulsion Laboratory California Institute of Technology Pasadena, California

AIRS: 2007-10-11 - 5

Process

Concept Phase
Science Team is encouraged to develop new concepts approaches that will

result in significant improvements to AIRS products

CCB will move slowly – approving minimal changes to code base
Control changes to mitigate externalities
Development Phase
Prior to delivery, developer must demonstrate functionality and

effectiveness in working prototype

Science Team and AIRS Project will concur on significant changes
Developer must Demonstrate that code produces same (and

intended) results once integrated into a working prototype of the AIRS PGE at JPL in the AIRS development environment

Code does not cause adverse downstream effects
Integration and Test Phase
Tightly controlled code
CCB will not entertain new concepts, good ideas,

well intentioned improvements, …

SLIDE 7

National Aeronautics and Space Administration Jet Propulsion Laboratory California Institute of Technology Pasadena, California

AIRS: 2007-10-11 - 6

L1 Improvement Priorities

Level 1B Priorities
Improve Spectral Calibration
Maintain Channel Properties
Allow Dynamic Noise Estimates
Level 1C – This is a New Product!
Resampled L1B product to constant spectral grid, etc.
Operations Priorities
Instrument Maintenance and Calibration
Trending Performance and Icing

SLIDE 8

National Aeronautics and Space Administration Jet Propulsion Laboratory California Institute of Technology Pasadena, California

AIRS: 2007-10-11 - 7

L2 Improvement Priorities

Improve Boundary Layer Sensitivity
Incorporate accurate Emissivity Product to support weather forecasting
Improve Boundary Layer Sensitivity over land and ice of all products
Improve Yield in Critical Areas: Polar, proximity to storms, above clouds
Initialization State and Error Estimation
Evaluate alternate error propagation to improve basis of errors
RTA Improvement: Reduces Biases in water and gases
Trace Gas Retrieval Improvement: CO, CH4, O3
Improve OLR Retrieval
Cloud and Dust Retrievals: Demonstrate IR value for cloud/dust products

– Potential new products!

Mid Tropospheric CO2 – This is a new product!

SLIDE 9

National Aeronautics and Space Administration Jet Propulsion Laboratory California Institute of Technology Pasadena, California

AIRS: 2007-10-11 - 8

L3 Improvement Priorities

L3 Priorities
Incorporate new Products
Reduce Sampling Bias Effects
Alternate Formats for Users

SLIDE 10

National Aeronautics and Space Administration Jet Propulsion Laboratory California Institute of Technology Pasadena, California

AIRS: 2007-10-11 - 9

Validation Priorities

Comprehensive Validation of:
Water Vapor
Clouds
Aerosols
CO, CO2, CH4, O3
Validate Sites:
Polar Regions
Boundary Layer
Aircraft Campaigns

These activities These activities should be well should be well under way now under way now

SLIDE 11

National Aeronautics and Space Administration Jet Propulsion Laboratory California Institute of Technology Pasadena, California

Most Effective use of AIRS Lenticular Card

AIRS: 2008-04-17 - 10
