SLIDE 1
2
Outline
Contextualization Research Goals Methodology Results Conclusions and Future Work
Nuno Antunes DSN 2009, June 29 - July 2, Estoril, Portugal
Using Web Security Scanners to Detect Vulnerabilities in Web - - PowerPoint PPT Presentation
Using Web Security Scanners to Detect Vulnerabilities in Web - - PowerPoint PPT Presentation

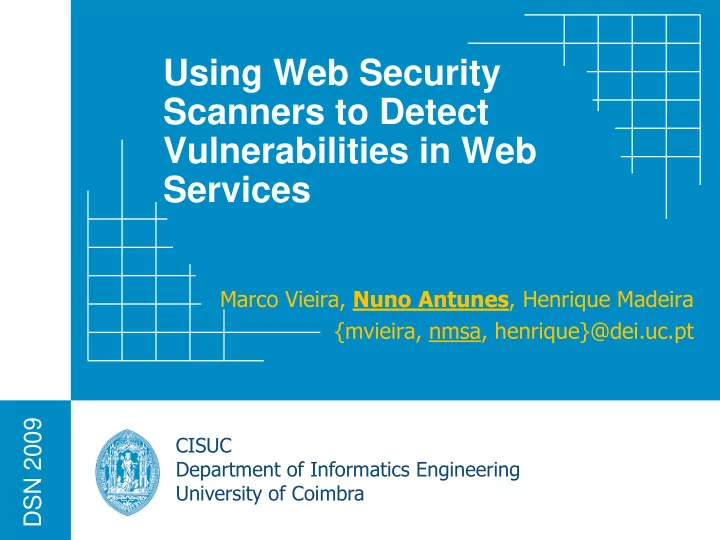

Using Web Security Scanners to Detect Vulnerabilities in Web Services Marco Vieira, Nuno Antunes , Henrique Madeira {mvieira, nmsa, henrique}@dei.uc.pt DSN 2009 CISUC Department of Informatics Engineering University of Coimbra Outline
SLIDE 2
SLIDE 3
3
Contextualization
Web services are increasingly becoming a
strategic component in a wide range of
- rganizations
Web services are so exposed that any
existing vulnerability will most probably be uncovered/exploited
Both providers and consumers need to
assess services’ security
Nuno Antunes DSN 2009, June 29 - July 2, Estoril, Portugal
SLIDE 4
4
Web Services
Nuno Antunes DSN 2009, June 29 - July 2, Estoril, Portugal
SLIDE 5
5
Web Services Security
Security threats
Hackers are moving their focus to applications’ code Traditional security mechanisms
(Firewall, IDS, encryption) cannot mitigate these attacks
Vulnerabilities like SQL Injection and XPath Injection
are particularly relevant
Developers must
Apply best coding practices Security testing!
Nuno Antunes DSN 2009, June 29 - July 2, Estoril, Portugal
SLIDE 6
6
Vulnerability Examples
public String auth(String login, String pass) throw SQLException { String sql = "SELECT * FROM users WHERE "+ "username='" + login + "' AND "+ "password='" + pass + "'"; ResultSet rs = statement.executeQuery(sql); (…) } public void delete(String str) throw SQLException{ String sql = "DELETE FROM table "WHERE id='" + str + "'"; statement.executeUpdate(sql); } ' OR 1=1 -- "SELECT * FROM users WHERE username='' OR 1=1 -- ' AND password=''“; "DELETE FROM table WHERE id='' OR '' = ''"; ' OR ''='
Nuno Antunes DSN 2009, June 29 - July 2, Estoril, Portugal
SLIDE 7
7
Software Testing techniques
White-box testing:
The analysis of the application’s code
Black-box testing:
The analysis of application’s execution searching for
vulnerabilities
Known as penetration testing
Gray-box testing:
Approaches that combine black box and white box
Nuno Antunes DSN 2009, June 29 - July 2, Estoril, Portugal
SLIDE 8
8
Web Security Scanners
Easy and widely-used way to test
applications searching vulnerabilities
Use fuzzing techniques to attack applications Perform thousands of tests in an automated
way
What is the effectiveness of these tools?
Can programmers rely on these tools?
Nuno Antunes DSN 2009, June 29 - July 2, Estoril, Portugal
SLIDE 9
9
Research Goals
Study the effectiveness of the scanners Identify common types of vulnerabilities In the context of web service environments
Nuno Antunes DSN 2009, June 29 - July 2, Estoril, Portugal
SLIDE 10
10
Methodology
Apply leading commercial scanners in public
web services
300 Web Services tested
Randomly selected
4 Scanners used (including two different
versions of a brand)
Nuno Antunes DSN 2009, June 29 - July 2, Estoril, Portugal
SLIDE 11
11
Experimental Study
Preparation
Select services and scanners
Execution
Test the services using the scanners
Verification
Identify false positives
Analysis
Analysis and systematization of results
Nuno Antunes DSN 2009, June 29 - July 2, Estoril, Portugal
SLIDE 12
12
Scanners
Nuno Antunes DSN 2009, June 29 - July 2, Estoril, Portugal
SLIDE 13
13
Vulnerabilities Found
SQL injection XPath Injection Code Execution Possible Parameter Based Buffer Overflow Possible Username or Password Disclosure Possible Server Path Disclosure
Nuno Antunes DSN 2009, June 29 - July 2, Estoril, Portugal
SLIDE 14
14
Vulnerability Types VS1.1 VS1.2 VS2 VS3
# Vuln. # WS # Vuln. # WS # Vuln. # WS # Vuln. # WS SQL Injection 217 38 225 38 25 5 35 11 XPath Injection 10 1 10 1 Code Execution 1 1 1 1 Possible Parameter Based Buffer Overflow 4 3 Possible Username or Password Disclosure 47 3 Possible Server Path Disclosure 17 5 Total 228 40 236 40 25 5 103 22
Overall results analysis
Nuno Antunes DSN 2009, June 29 - July 2, Estoril, Portugal
SLIDE 15
15
SQL Injection
Nuno Antunes DSN 2009, June 29 - July 2, Estoril, Portugal
VS1.2 225
SLIDE 16
16
SQL Injection
VS1.1 VS1.2 198 19 27
Nuno Antunes DSN 2009, June 29 - July 2, Estoril, Portugal
SLIDE 17
17
SQL Injection
VS1.1 VS3 VS1.2 172 19 24 6 26 3
Nuno Antunes DSN 2009, June 29 - July 2, Estoril, Portugal
SLIDE 18
18
SQL Injection
VS1.1 VS2 VS3 VS1.2 171 19 24 5 21 5 2 1 1 3
Nuno Antunes DSN 2009, June 29 - July 2, Estoril, Portugal
SLIDE 19
19
SQL Injection
VS1.1 VS2 VS3 VS1.2 171 19 24 5 21 5 2 1 1 3
?
Nuno Antunes DSN 2009, June 29 - July 2, Estoril, Portugal
SLIDE 20
20
False positive when
the error/answer obtained is related to an
application robustness problem.
the same problem occurs when the service is
executed with valid inputs
Confirmed Vulnerabilities when
is possible to observe that a SQL command was
invalidated by the “injected” values
the “injected” values lead to exceptions raised by
the database server
is possible to access unauthorized resources
False Positives examination
Nuno Antunes DSN 2009, June 29 - July 2, Estoril, Portugal
SLIDE 21
21
False Positives results
116 116 17 21 14 26 8 5 87 83 9 25 50 75 100 125 150 175 200 225 VS1.1 VS1.2 VS2 VS3 False Positives Doubtful Confirmed Vulnerabilities
40% 37% 11,6% 6,5% 32% 25,7% 14%
Nuno Antunes DSN 2009, June 29 - July 2, Estoril, Portugal
SLIDE 22
22
SQL Injection without False Positives
VS1.2 142
Nuno Antunes DSN 2009, June 29 - July 2, Estoril, Portugal
SLIDE 23
23
SQL Injection without False Positives
VS1.1 VS1.2 3 127 15
Nuno Antunes DSN 2009, June 29 - July 2, Estoril, Portugal
SLIDE 24
24
SQL Injection without False Positives
VS1.1 VS3 VS1.2 24 3 103 15 2
Nuno Antunes DSN 2009, June 29 - July 2, Estoril, Portugal
SLIDE 25
25
SQL Injection without False Positives
VS1.1 VS2 VS3 VS1.2 21 1 3 3 1 2 102 15 1
Nuno Antunes DSN 2009, June 29 - July 2, Estoril, Portugal
SLIDE 26
26
SQL Injection without False Positives
VS1.1 VS2 VS3 VS1.2 21 1 3 3 1 2 102 15 1
?
Nuno Antunes DSN 2009, June 29 - July 2, Estoril, Portugal
SLIDE 27
27
Coverage analysis
Scanner # SQL Injection Vulnerabilities Coverage % VS1.1 130 87.2% VS1.2 142 95.3% VS2 25 16.8% VS3 26 17.4% Total 149 100%
Real number of vulnerabilities unavailable
It is possible to make a comparative analysis
Overestimated Coverage values!!
Nuno Antunes DSN 2009, June 29 - July 2, Estoril, Portugal
SLIDE 28
28
Common Vulnerabilities
149 16 10 1 1
SQL Injection (149) Possible Server Path Disclosure (16) XPath Injection (10) Code Execution (1) Possible Parameter Based Buffer Overflow (1)
Nuno Antunes DSN 2009, June 29 - July 2, Estoril, Portugal
SLIDE 29
29
Conclusions
A large number of vulnerabilities was observed SQL Injection vulnerabilities are prevalent Selecting a scanner for web services is a very
difficult task
Different scanners detect different types of vulnerabilities High false positives rates Low coverage rates
Can we do better?
Nuno Antunes DSN 2009, June 29 - July 2, Estoril, Portugal
SLIDE 30
30
Preliminary work
Develop a new approach for vulnerabilities
detection
Detect SQL Injection and XPath Injection
vulnerabilities effectively
Generate workload and attackload Analyze responses Analyze vulnerabilities to avoid False
positives
Nuno Antunes DSN 2009, June 29 - July 2, Estoril, Portugal
SLIDE 31
31
Preliminary Work Results
47 47 17 21 52 13 25 4 4 13 93 86 1 14 20 40 60 80 100 120 140 160 180 VS1.1 VS1.2 VS2 VS3 VS.WS False Positives Doubtful Confirmed
Nuno Antunes DSN 2009, June 29 - July 2, Estoril, Portugal
SLIDE 32
32
Innovations introduced
Generation of a more complete workload:
A better knowledge of service’s behavior
A complete attackload
All attacks used by scanners and other present in
bibliography
Better analysis of service’s responses:
Compare with valid requests Robustness testing applied
Nuno Antunes DSN 2009, June 29 - July 2, Estoril, Portugal
SLIDE 33
33
Questions?
Nuno Antunes DSN 2009, June 29 - July 2, Estoril, Portugal
