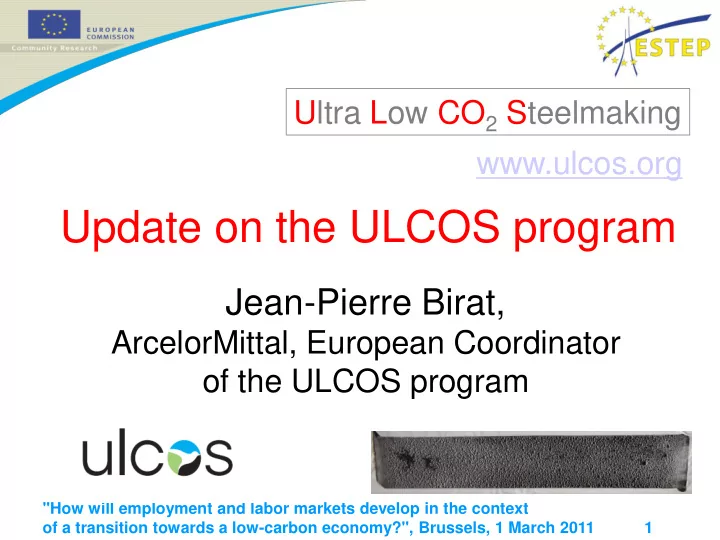

Ultra Low CO 2 Steelmaking www.ulcos.org Update on the ULCOS program Jean-Pierre Birat, ArcelorMittal, European Coordinator of the ULCOS program "How will employment and labor markets develop in the context of a transition towards a

slide-1
SLIDE 1

"How will employment and labor markets develop in the context

  • f a transition towards a low-carbon economy?", Brussels, 1 March 2011

1

Update on the ULCOS program

Jean-Pierre Birat,

ArcelorMittal, European Coordinator

  • f the ULCOS program

Ultra Low CO2 Steelmaking www.ulcos.org

slide-2
SLIDE 2

"How will employment and labor markets develop in the context

  • f a transition towards a low-carbon economy?", Brussels, 1 March 2011

2

Outline

  • timeline and perspective
  • the ULCOS process solutions
  • ULCOS-BF
  • HIsarna
  • ULCORED
  • ULCOwin & ULCOlysis
  • conclusions
slide-3
SLIDE 3

"How will employment and labor markets develop in the context

  • f a transition towards a low-carbon economy?", Brussels, 1 March 2011

3

Outline

  • timeline and perspective
  • the ULCOS process solutions
  • ULCOS-BF
  • HIsarna
  • ULCORED
  • ULCOwin & ULCOlysis
  • conclusions
slide-4
SLIDE 4

"How will employment and labor markets develop in the context

  • f a transition towards a low-carbon economy?", Brussels, 1 March 2011

4

Timeline

Rio Kyoto ETS in EU 2013 2020 2050 1st papers from Steel IISI working groups ULCOS II ULCOS II pilots ULCOS II deployment ULCOS worldsteel CO2 BP ULCOS II demonstrators

slide-5
SLIDE 5

"How will employment and labor markets develop in the context

  • f a transition towards a low-carbon economy?", Brussels, 1 March 2011

5

Outline

  • timeline and perspective
  • the ULCOS process solutions
  • ULCOS-BF
  • HIsarna
  • ULCORED
  • ULCOwin & ULCOlysis
  • conclusions
slide-6
SLIDE 6

"How will employment and labor markets develop in the context

  • f a transition towards a low-carbon economy?", Brussels, 1 March 2011

6

ULCOS process solutions…

Coal & sustainable biomass Natural gas Electricity Revamped BF Greenfield Revamped DR Greenfield ULCOS-BF HIsarna ULCORED ULCOWIN ULCOLYSIS Pilot tests (1.5 t/h) Demonstration under way Pilot plant (8 t/h) start-up 2010 Pilot plant (1 t/h) to be erected in 2011 ? Laboratory

slide-7
SLIDE 7

"How will employment and labor markets develop in the context

  • f a transition towards a low-carbon economy?", Brussels, 1 March 2011

7

ULCOS-BF with >> 50% reduction

0,00 0,10 0,20 0,30 0,40 0,50 0,60 0,70 0,80 0,90 1,00 1,10 ULCOS- BF sinter plant reheating furnace steel plant hot stoves lime kiln coke

  • vens

compared to ULCOS-BF Mill emissions compared to emissions of the benchmark Mill Rate of CO2 capture (each bar means adding one more plant to the Steel Mill)

Cumulated capture rate

100% capture

slide-8
SLIDE 8

"How will employment and labor markets develop in the context

  • f a transition towards a low-carbon economy?", Brussels, 1 March 2011

8

Virgin & recycling routes…

500 1000 1500 2000 2500 3000 2010 2050 trend 2050 LC Steel production (Mt/yr) CO2 generation (Mt/yr)

today 2050 BAU trend

Mt/yr

2050 low-carbon economy

socio-economic projections

slide-9
SLIDE 9

"How will employment and labor markets develop in the context

  • f a transition towards a low-carbon economy?", Brussels, 1 March 2011

9

Energy (GJ/tHRC)

0,0 5,0 10,0 15,0 20,0 25,0 BBF BBF+CCS(PP) TGR-BF V4 HISARNA HISARNA+CCS HISARNA+EAF HISARNA+CCS+EAF MIDREX MIDREX+CCS ULCORED ULCOWIN ULCOLYSIS GJ/t HRC

Coals, oil and other C-rich sources Natural gas and biomass gas Electricity and energy vectors (steam, H2)

slide-10
SLIDE 10

"How will employment and labor markets develop in the context

  • f a transition towards a low-carbon economy?", Brussels, 1 March 2011

10

CO2 reduction (tCO2/tHRC)

  • 2,0
  • 1,5
  • 1,0
  • 0,5

0,0 0,5 1,0 1,5 2,0 BBF BBF+CCS(PP) TGR-BF V4 HISARNA HISARNA+CCS HISARNA+EAF HISARNA+CCS+EAF MIDREX MIDREX+CCS ULCORED ULCOWIN ULCOLYSIS t CO2/t HRC Scope 1 Scope 2 CO2 captured

slide-11
SLIDE 11

"How will employment and labor markets develop in the context

  • f a transition towards a low-carbon economy?", Brussels, 1 March 2011

11

Operating costs (index)

20 40 60 80 100 120 140 BBF BBF+CCS(PP) TGRBF V4 HISARNA HISARNA+EAF HISARNA+CCS HISARNA+CCS+EAF ULCORED MIDREX MIDREX + CCS ULCOWIN ULCOLYSIS CO2 release Raw material and energy Fix

slide-12
SLIDE 12

"How will employment and labor markets develop in the context

  • f a transition towards a low-carbon economy?", Brussels, 1 March 2011

12

Cost of avoided CO2

0,0 10,0 20,0 30,0 40,0 50,0 60,0 70,0 80,0 90,0 100,0 BBF BBF+CCS(PP) TGR-BF V4 HISARNA HISARNA+CCS HISARNA+EAF HIS+CCS+EAF MIDREX MIDREX+CCS ULCORED ULCOWIN ULCOLYSIS

2010 index

slide-13
SLIDE 13

"How will employment and labor markets develop in the context

  • f a transition towards a low-carbon economy?", Brussels, 1 March 2011

13

Productivity

  • all ULCOS solutions expected to operate

at higher productivity than the conventional process they substitute for, e.g. 30% for ULCOS-BF

slide-14
SLIDE 14

"How will employment and labor markets develop in the context

  • f a transition towards a low-carbon economy?", Brussels, 1 March 2011

14

ULCOS II consortium

MoU stage

slide-15
SLIDE 15

"How will employment and labor markets develop in the context

  • f a transition towards a low-carbon economy?", Brussels, 1 March 2011

15

Outline

  • timeline and perspective
  • the ULCOS process solutions
  • ULCOS-BF
  • HIsarna
  • ULCORED
  • ULCOwin & ULCOlysis
  • conclusions
slide-16
SLIDE 16

"How will employment and labor markets develop in the context

  • f a transition towards a low-carbon economy?", Brussels, 1 March 2011

16

ULCOS-BF

CO2 CO O2 Underground storage of CO2 0.8 t/tsteel

  • 100 kg coke/tsteel

CO2 emissions of the steel plant: - 60%

slide-17
SLIDE 17

"How will employment and labor markets develop in the context

  • f a transition towards a low-carbon economy?", Brussels, 1 March 2011

17

ULCOS-BF project

CO2 storage ULCOS I

3 projets RFCS + 1 FP

Eisenhüttenstadt-EHS

Florange

slide-18
SLIDE 18

"How will employment and labor markets develop in the context

  • f a transition towards a low-carbon economy?", Brussels, 1 March 2011

18

CO2 storage

Storage in a deep saline aquifer, with pipe transport of dense CO2 from capture site.

slide-19
SLIDE 19

"How will employment and labor markets develop in the context

  • f a transition towards a low-carbon economy?", Brussels, 1 March 2011

19

ULCOS-BF: key figures

Timeline:

  • Eisenhüttenstadt project

approved December 2010

  • NER-300 proposal filed in Paris
  • n 9 February 2011, to cover the

Florange demonstrator

  • Consortium Agreement under

final stage of negotiation among members

  • start up 2013 in Germany and

2014 (BF) - 2015 (Storage) in

  • France. 10 years of operation in

France planned for 2016-2025

  • permitting process launched for

storage; FEED studies for the BF

Important milestones

  • exploration permit approved
  • start of site geophysical

exploration

  • FEED studies for BF & pipeline
  • filing of NER-300 in Brussels
  • answer from the EU, etc.

Targets (demonstrator):

  • 700,000 t/yr stored for 10 years
  • 94% capture rate

Budgets:

  • still a regret solution…
slide-20
SLIDE 20

"How will employment and labor markets develop in the context

  • f a transition towards a low-carbon economy?", Brussels, 1 March 2011

20

Outline

  • timeline and perspective
  • the ULCOS process solutions
  • ULCOS-BF
  • HIsarna (pilot: 2011-2014)
  • ULCORED
  • ULCOwin & ULCOlysis
  • conclusions
slide-21
SLIDE 21

"How will employment and labor markets develop in the context

  • f a transition towards a low-carbon economy?", Brussels, 1 March 2011

21

iron Iron ore Coal Oxygen Oxygen

CCF cyclone (CORUS) Smelter (HIsmelt)

HIsarna

CCS

slide-22
SLIDE 22

"How will employment and labor markets develop in the context

  • f a transition towards a low-carbon economy?", Brussels, 1 March 2011

22

HIsarna

slide-23
SLIDE 23

"How will employment and labor markets develop in the context

  • f a transition towards a low-carbon economy?", Brussels, 1 March 2011

23

Outline

  • timeline and perspective
  • the ULCOS process solutions
  • ULCOS-BF
  • HIsarna
  • ULCORED
  • ULCOwin & ULCOlysis
  • conclusions
slide-24
SLIDE 24

"How will employment and labor markets develop in the context

  • f a transition towards a low-carbon economy?", Brussels, 1 March 2011

24

ULCORED

  • EDRP* planned by LKAB in Luleå

(1 t/hr)

  • ULCORED features implemented

within an RFCS project to be proposed in 2012 at the earliest

* Experimental Direct Reduction Pilot

slide-25
SLIDE 25

"How will employment and labor markets develop in the context

  • f a transition towards a low-carbon economy?", Brussels, 1 March 2011

25

Outline

  • timeline and perspective
  • the ULCOS process solutions
  • ULCOS-BF
  • HIsarna
  • ULCORED
  • ULCOwin & ULCOlysis
  • conclusions
slide-26
SLIDE 26

"How will employment and labor markets develop in the context

  • f a transition towards a low-carbon economy?", Brussels, 1 March 2011

26

ULCOwin

electrowinning cell

  • 4 kg samples
  • pure Fe + O2 evolution
  • 110 °C (=room temperature

electroreduction)

  • water alkaline electrolyte
slide-27
SLIDE 27

"How will employment and labor markets develop in the context

  • f a transition towards a low-carbon economy?", Brussels, 1 March 2011

27

ULCOlysis

  • 1 g samples
  • pure Fe + O2 evolution
  • 1550 °C = pyroelectrolysis
  • slag electrolyte
slide-28
SLIDE 28

"How will employment and labor markets develop in the context

  • f a transition towards a low-carbon economy?", Brussels, 1 March 2011

28

Outline

  • timeline and perspective
  • the ULCOS process solutions
  • ULCOS-BF
  • HIsarna
  • ULCORED
  • ULCOwin & ULCOlysis
  • conclusions
slide-29
SLIDE 29

"How will employment and labor markets develop in the context

  • f a transition towards a low-carbon economy?", Brussels, 1 March 2011

29

Conclusion: innovation & risks

  • if the demonstrators are successful…
  • …and if the economic conditions for

implementing the ULCOS routes are right…

  • … then deployment should follow up for most of

the Steel Mills in Europe, and, eventually in the world, for the Steel Industry to meet its post- Kyoto targets

  • however, ULCOS was a research initiative, has

turned into a demonstration initiative but it IS NOT a plan for reducing the emissions of the Steel sector!

slide-30
SLIDE 30

"How will employment and labor markets develop in the context

  • f a transition towards a low-carbon economy?", Brussels, 1 March 2011

30

Thank you!
