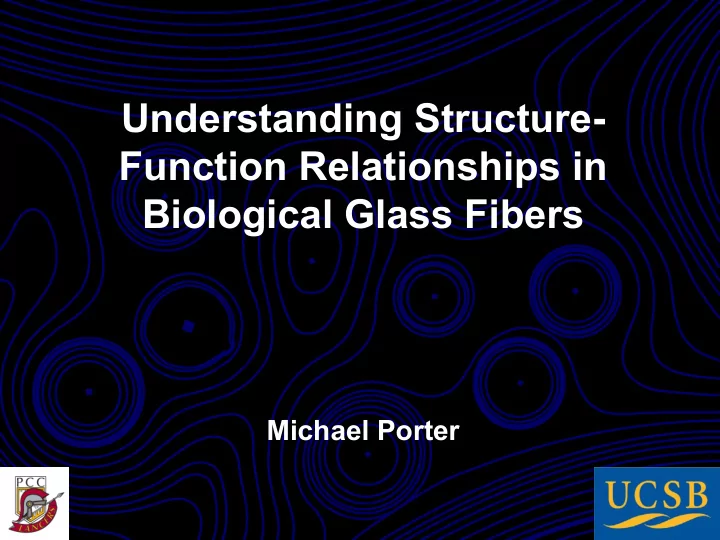

Understanding Structure- Function Relationships in Biological Glass Fibers Michael Porter Project Mentor: James Weaver Faculty Advisor: Dan Morse Structural Diversity of Siliceous Sponge Skeletal Elements (Spicules) Hexactinellids
SLIDE 2
SLIDE 3
Structural Diversity of Siliceous Sponge Skeletal Elements (Spicules)
SLIDE 4
Hexactinellids
Haeckel, 1904
SLIDE 5
Sponge Spicule Nomenclature
Generally classified into two major groups Microscleres: Typically less than 500µm
Small-scale skeletal support
Megascleres: Typically greater than 1mm
Large-scale skeletal support
SLIDE 6
Skeletal System of Rhabdocalyptus dawsoni
SLIDE 7
- R. dawsoni Spicule Cross-Sections
75µm
SLIDE 8
Fracture Dynamics in Laminated Spicules
Energy Dissipating Organics
Applied Stress Stepped-Fracture No Catastrophic Failure!
Molecular Shock- Absorbers
SLIDE 9
Structural Analysis of Euplectella aspergillum Spicules
50µm x 10cm
SLIDE 10
Skeletal Lattice of E. aspergillum
100µm
SLIDE 11
Etching of E. aspergillum Skeletal Lattice with HF
SLIDE 12
- E. aspergillum Skeletal Lattice Cross-Sections
5mm 50µm
SLIDE 13
Maximum Tension
Giant Anchor Spicule of Monorhaphis chuni
Maximum Compression
0.5m
1º 2º
5mm
SLIDE 14
Maximum Tension
Giant Anchor Spicule of Monorhaphis chuni
Maximum Compression
35µm
1 3 2 4
SLIDE 15
Skeletal System of Aphrocallistes vastus
SLIDE 16
Spicules greater that a few millimeters in length exhibit a unique laminated architecture which effectively retards crack propagation through these materials. Layer number increases with spicule length and typically decreases in thickness outward from the core. Large spicules confronting uniaxial loading exhibit a unique graded architecture for enhanced fracture resistance.
Conclusions
SLIDE 17
Identify the specific bio-macromolecules that direct the synthesis of these remarkable structures. Model the mechanics of these spicules. Apply the lessens learned in these studies toward the synthesis of more fracture-resistant composite materials.
