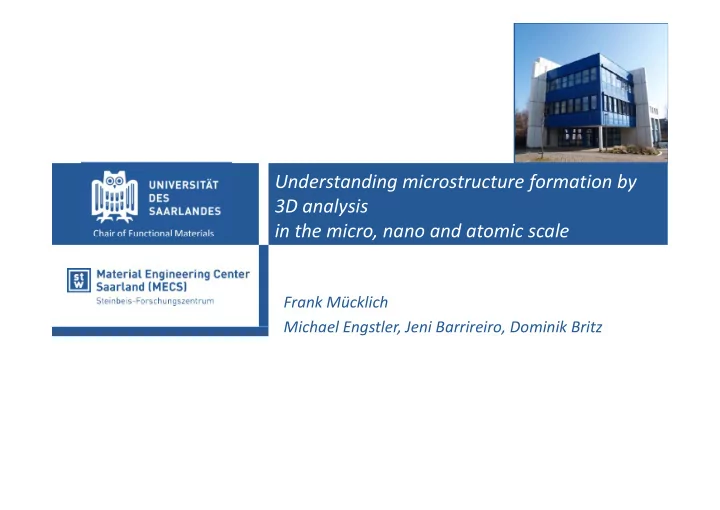

SLIDE 1

Chair of Functional Materials

Understanding microstructure formation by 3D analysis in the micro, nano and atomic scale

Frank Mücklich Michael Engstler, Jeni Barrireiro, Dominik Britz

slide-2
SLIDE 2

Chair of Functional Materials

Internationality Flavio Soldera

Material Engineering Center Saarland Steinbeis Research Center

Innovation & Transfer

Institute Functional Materials Saarland University

Basic Research

Aluminium Michael Engstler

Concept of the Institute

METZ: 3D Microstructure Analysis | Frank Mücklich| muecke@matsci.uni-sb.de 2 Electr.Contacts Kim Trinh Antimicrobial Michael Hans Energetic Mat. Christoph Pauly Surface Design Carsten Gachot Steel Dominik Britz Atom Probe Jeni Barrirero

slide-3
SLIDE 3

Chair of Functional Materials

  • surface stability
  • new contact materials
  • metallic materials Cu, Pt, Ni..
  • energetic Materials (RuAl)
  • CNT based materials
  • architectured surfaces
  • topography, phases, grains
  • Laser Interference Metallurgy
  • micro / nano tribology
  • new functionalities (bio…)

New Materials New Surfaces

Research Focal Points of the Institute

METZ: 3D Microstructure Analysis | Frank Mücklich| muecke@matsci.uni-sb.de 3

New insights into the microstructure of materials 3D  Micro – Nano – Atomic Scale

Image analysis – Stereology – Tomography - 3D analysis

  • surface stability
  • new contact materials
  • metallic materials Cu, Pt, Ni..
  • energetic Materials (RuAl)
  • CNT based materials
  • architectured surfaces
  • topography, phases, grains
  • Laser Interference Metallurgy
  • micro / nano tribology
  • new functionalities (bio…)
slide-4
SLIDE 4

Chair of Functional Materials

3D microstructure:  quantitative key to understand the genesis of processing and correlation to properties

METZ: 3D Microstructure Analysis | Frank Mücklich| muecke@matsci.uni-sb.de 4

slide-5
SLIDE 5

Chair of Functional Materials

the right property at the right place

 various steels - aluminium - magnesium - CFRP …

magnesium agnesium soft, well malleable soft, well malleable deep eep-drawing steel drawing steel strong, well malleable trong, well malleable mulitphase steel ulitphase steel higher strength steels

METZ: 3D Microstructure Analysis | Frank Mücklich| muecke@matsci.uni-sb.de 5

Quelle: Porsche

highest strength steels (TRIP, TWIP) Al-based materials

slide-6
SLIDE 6

Chair of Functional Materials

Al-Si alloys for light weight engines

Hypoeutectic

primary Al-dendrites and Al-Si eutectic

binary phase diagramm

METZ: 3D Microstructure Analysis | Frank Mücklich| muecke@matsci.uni-sb.de 6

Al-Si eutectic at 577°C and 12,6% Si Alloys with 5-14% Si are of importance

„modification“

slide-7
SLIDE 7

Chair of Functional Materials

Al-Si – microstructure morphology change  tremendous impact on mechanical properties

same processing (T, t,…) same Al:Si ratio

  • understand mechanism?
  • already optimum?

colour: different cooling rate

Courtesy T.Herfurth, Foundry Institute Düsseldorf IfG

Stiff and tough!!!

Modification

METZ: 3D Microstructure Analysis | Frank Mücklich| muecke@matsci.uni-sb.de 7

deformation energy (a.u.) plastic deformation (bending, a.u.) deformation energy (a.u.) plastic deformation (bending, a.u.)

colour: different cooling rate

Courtesy T.Herfurth, Foundry Institute Düsseldorf IfG

stiff but brittle! Stiff and tough!!!

slide-8
SLIDE 8

Chair of Functional Materials

Tomography at the micro / submicro scale (X-ray-CT, Synchrotron)

Zn Zn2Mg (Al Mg (Al2Cu) F < 0.4 Cu) F < 0.4 Al Al3(Sc,Zr Sc,Zr) F > 0.4 ) F > 0.4 → 0.17 vol% 0.17 vol% > 1500/mm > 1500/mm3

  • pores (LA)

pores (LA)

  • Zn

Zn2

2Mg (Al

Mg (Al2

2Cu)

Cu)

  • Al

Al3

3(Sc,Zr)

(Sc,Zr) (HA) (HA) 0.3 vol% 0.3 vol% 16 16-17 vol% 17 vol% Pores Intermetallics

METZ: 3D Microstructure Analysis | Frank Mücklich| muecke@matsci.uni-sb.de 8

28.10.2015

0.09 × 0.11 × 0.07 mm3 0,27 × 0,29 × 0,12 mm3 Visualization of dendrites

  • J. Kastner et al,

Materials characterization 62, 99-107 (2011)

0.5 mm

Lab-CT: Resolution: µm - sub-µm Volume: 10

  • 10 µm³

10 18

slide-9
SLIDE 9

Chair of Functional Materials

(100 µm)3 (1 mm)3 (10 mm)3

X-ray Tomography

(Synchrotron)

Microstructure Analysis  Scale Bridging

METZ: 3D Microstructure Analysis | Frank Mücklich| muecke@matsci.uni-sb.de 9 1 nm 10 nm 100 nm 1 µm 10 µm 100 µm (100 nm)3 (1 µm)3 (10 µm)3

APT STEM FIB/SEM

slide-10
SLIDE 10

Chair of Functional Materials

Tomography in the nano scale:  FIB/SEM-nanotomography

Serial Sectioning

SEM Imaging FIB, Ga-Ions Sputtering (10nm precision)

 Well established contrasts in SEM available

correlated 2D-images „Pixel“ x-y 3D-Images „Voxel“ x-y-z

3D-Reconstruction

METZ: 3D Microstructure Analysis | Frank Mücklich| muecke@matsci.uni-sb.de 10

SEM-View

 Well established contrasts in SEM available

BSE SE EBSD Fe C Mg S EDX

Resolution: 10-30nm Volume: 10 -10 µm³

4 5

slide-11
SLIDE 11

Chair of Functional Materials

Al-Si (7% Si) primary Al eutectic Si

100ppm Sr doping

„Al-Si modification“ = Si eutectic morphology change caused by 100ppm doping  disconnecting Si eutectic

72 x 100 x 38 µm3 37 x 17 x 35 µm3

unmodified modified

METZ: 3D Microstructure Analysis | Frank Mücklich| muecke@matsci.uni-sb.de 11

slide-12
SLIDE 12

Chair of Functional Materials

Consequences for mechanical properties  3D visualization of local mean curvature

unmodified eutectic silicon Sr-modified eutectic silicon

METZ: 3D Microstructure Analysis | Frank Mücklich| muecke@matsci.uni-sb.de 12

  • flat thin plate-like structures
  • high curvature at edges

 Sharp notches: cracking!

  • rounded corals
  • spatial curvature distribution

 ductility and elongation

slide-13
SLIDE 13

Chair of Functional Materials

Growth of Si into the AlSi eutectic melt

Undistorted growth of Si

  • Growth along the (111) planes in [211] direction
  • Si-plates, (111) planes parallel to the surface

Twin plane re-entrant edge (TPRE) – mechanism [1]

  • Branching of the Si-plates by twinning

METZ: 3D Microstructure Analysis | Frank Mücklich| muecke@matsci.uni-sb.de 13 [1] Kobayashi, K.F. und Hogan, L.M. Journal of Materials Science. 1985, Bd. 20, S. 1961‐1975.

[1]

EBSD

slide-14
SLIDE 14

Chair of Functional Materials

The re-entrant twin grooves are poisoned by the modifying element  Radius (Sr:Si) = 1.5  max. effect! Multiplication of twins Activation of all twin systems

Doping induced twinning – “poisoning” of growth

Doping Induced Twinning – Theory [Lu et al.]

  • Impurities (like Sr) cause twinning
  • Branching of the Si-structure

METZ: 3D Microstructure Analysis | Frank Mücklich| muecke@matsci.uni-sb.de 14

TPRE mechanism is retarded/hindered Multiplication of twins Activation of all twin systems

Sr at twins in Si and at the Al-Si interface ?  TEM and Atom Probe Tomography

Lu, Shu‐Zu und Hellawell Metallurgical Transactions A. 1987, Bd. 18A, S. 1721‐1733.

slide-15
SLIDE 15

Chair of Functional Materials

TEM: compare eutectic Si (unmodified/modified)

unmodified eutectic silicon

  • planar interface Si-Al
  • planar twin planes
  • Small spherical particles

METZ: 3D Microstructure Analysis | Frank Mücklich| muecke@matsci.uni-sb.de 15

Sr-modified eutectic silicon

  • curved interface Si-Al
  • Irregular twin planes
  • Small spherical particles
  • Rod-shaped particles

Jenifer Barrirero, Michael Engstler, Naureen Ghafoor, Niels de Jonge, Magnus Odén, Frank Mücklich; Journal of Alloys and Compounds 611 (2014) 410–421

slide-16
SLIDE 16

Chair of Functional Materials

Al-Si Sample

(Temp. 40 Kelvin)

+

t I t1 t I

(x1|y1|z=„1“) (x2|y2|z=„2“)

HV

_

UHV

Looking for the Decisive Role of 100ppm Sr Doping  Tomography in Atomic Scale

METZ: 3D Microstructure Analysis | Frank Mücklich| muecke@matsci.uni-sb.de 16

t t2

(x2|y2|z=„2“)

HV pulse Laser pulse

  • r

Resolution: 0.5 nm Volume: 10 -10 µm³

  • 3
  • 4
slide-17
SLIDE 17

Chair of Functional Materials

Segregations of Sr AND Al inside of the Si-Eutectic  ratio Al : Sr is constant !

METZ: 3D Microstructure Analysis | Frank Mücklich| muecke@matsci.uni-sb.de 17

slide-18
SLIDE 18

Chair of Functional Materials

Segregations of Sr AND Al inside of the Si-Eutectic  ratio Al : Sr is constant !

METZ: 3D Microstructure Analysis | Frank Mücklich| muecke@matsci.uni-sb.de 18 Barrirero et al., Journal of Alloys and Compounds 611 (2014) 410

slide-19
SLIDE 19

Chair of Functional Materials

Constant atomic ratio Al : Sr  what does that mean?

The Si growth is restricted by the formation of clusters of SrAl2Si2 at the solidification front

 explain the presence of Aluminium in the crystallographic defects?

METZ: 3D Microstructure Analysis | Frank Mücklich| muecke@matsci.uni-sb.de 19

SrAl4 SrAl2Si2 (τ1)

577±1º 12.2 at.%

slide-20
SLIDE 20

Chair of Functional Materials

If that is true – than also modifications with Na atoms  should work alike ?

METZ: 3D Microstructure Analysis | Frank Mücklich| muecke@matsci.uni-sb.de 20

slide-21
SLIDE 21

Chair of Functional Materials

Al:Sr

Modification via phase formation at solidification front?  Significant difference in the ratio - Al:Sr > Al:Na

The Si growth is restricted by the formation of clusters of NaAlSi at the solidification front. (confirmation of analogy for Sr)

METZ: 3D Microstructure Analysis | Frank Mücklich| muecke@matsci.uni-sb.de 21

Al:Na

slide-22
SLIDE 22

Chair of Functional Materials

deviations from the composion ratio of perfect phases?  limitation of contributing Al atoms

METZ: 3D Microstructure Analysis | Frank Mücklich| muecke@matsci.uni-sb.de 22

slide-23
SLIDE 23

Chair of Functional Materials

Sr modification Al:Sr ≈ 2 Na modification Al:Na ≈ 1

Conclusion: cluster formation might be predicted  by phase composition at the ternary eutectic point

METZ: 3D Microstructure Analysis | Frank Mücklich| muecke@matsci.uni-sb.de 23

Al2Si2Sr cluster formation at the solidification front AlSiNa cluster formation at the solidification front

slide-24
SLIDE 24

Chair of Functional Materials

If that is true – than also modification with Eu  should result in a constant ratio of Al:Eu

METZ: 3D Microstructure Analysis | Frank Mücklich| muecke@matsci.uni-sb.de 24

Li et al - Acta Materialia 84 (2015) 153 - 163

slide-25
SLIDE 25

Chair of Functional Materials

If that is true – than also modification with Eu  should result in a constant ratio of Al:Eu

METZ: 3D Microstructure Analysis | Frank Mücklich| muecke@matsci.uni-sb.de 25

Silicon Aluminium Europium

slide-26
SLIDE 26

Chair of Functional Materials

Al Si Eu

Conclusion: for modification with Eu the atomic ratio  Al:Eu = 2:1 and the corresponding phase should be...

METZ: 3D Microstructure Analysis | Frank Mücklich| muecke@matsci.uni-sb.de 26

Al2Si2Eu

slide-27
SLIDE 27

Chair of Functional Materials

How to optimize such microstructures?

micro macro nano

FIB-SEM tomography X-ray tomography 3D simulation

  • f mechanical

properties

METZ: 3D Microstructure Analysis | Frank Mücklich| muecke@matsci.uni-sb.de 27

nano

FIB-SEM tomography correlative TEM and APT 3D microstructure simulation

  • f larger volumes

propose growth mechanism

slide-28
SLIDE 28

Chair of Functional Materials

Stochastical microstructural modelling of relevant structural scenarios for Al-Si

Step 3: From graph structure to corals colony: dilation Step 2: Competitive growth model: 'birth-and-death' process Step 1: Single coral model: multivariate time series

  • time series approach: curvature of the corals
  • 'win/lose' criterion: spatial expansion of branches
  • 'birth-and-death' process: distances between corals
  • Matérn hardcore process: intensity of the number of corals
  • dilation: volume fraction

METZ: 3D Microstructure Analysis | Frank Mücklich| muecke@matsci.uni-sb.de 28

Stochstical geometry and virtual microstructure Collaboration Volker Schmidt (University of Ulm)

  • time series approach: curvature of the corals
  • 'win/lose' criterion: spatial expansion of branches
  • 'birth-and-death' process: distances between corals
  • Matérn hardcore process: intensity of the number of corals
  • dilation: volume fraction
  • G. Geiselmann; O. Stenzel; A. Kruglova; F. Muecklich, V. Schmidt
  • Comp. Materials Science 69(2013)289-298
slide-29
SLIDE 29

Chair of Functional Materials

Starting from FIB/SEM tomographic data

Real data cube 1) Stems extraction Skeletonization 2)

METZ: 3D Microstructure Analysis | Frank Mücklich| muecke@matsci.uni-sb.de 29

Polygonal track: (α1; β1; l1)T, (α2; β2; l2)T... αi – azimuthal angle βi – polar angle li – length of a segment Stems extraction 3)

  • G. Geiselmann; O. Stenzel; A. Kruglova; F. Muecklich, V. Schmidt
  • Comp. Materials Science 69(2013)289-298
slide-30
SLIDE 30

Chair of Functional Materials

Experimental and virtual microstructure  verification by 3D measures

Sample VV SV [m-1] MV [m-2] χv [m-3] NV [m-3]

METZ: 3D Microstructure Analysis | Frank Mücklich| muecke@matsci.uni-sb.de 30

Original structure Virtual structure Sample VV SV [m-1] MV [m-2] χv [m-3] NV [m-3]

Real 0,14 5,27e+5 3,84e+11 4,80e+15 1,04e+16 Simulated 0,13 4,95e+5 4,80e+11 4,65e+15 1,32e+16

slide-31
SLIDE 31

Chair of Functional Materials

Experimental and virtual Al-Si microstructure –  simulate mechanically properties

Pure Al Statistical Al-Si network microstructure Virtual Al-Si Microstructure Real Al-Si Microstructure

Stress [a.u.] METZ: 3D Microstructure Analysis | Frank Mücklich| muecke@matsci.uni-sb.de 31

Virtual Al-Si Microstructure

Strain [a.u.]

Homogeni- zation, virtual mechanics and FEM Colaboration Stefan Diebels (Saarland University)

M.Roland; A. Kruglova; N. Harste, F. Mücklich; S. Diebels Image Analysis and Stereology 33(2014)1, 29-37

slide-32
SLIDE 32

Chair of Functional Materials

m

10-10 10-9 10-8 10-7 10-6 10-5 10-4 10-3 10-2 10-1 100 101

Å nm µm mm cm m atomar nano mikro 3D Atomsonden- Tomographie FIB/REM Nanotomographie Röntgen-CT Elektronen- (TEM) Tomographie mikroskopische Serienschnitttomographie

Tomography – Trying to Bridge the Gap Between  Relevant Resolution vs. Adequate Sampling Volume

mm µm nm atom

METZ: 3D Microstructure Analysis | Frank Mücklich| muecke@matsci.uni-sb.de 32 m

10-10 10-9 10-8 10-7 10-6 10-5 10-4 10-3 10-2 10-1 100 101

Å nm µm mm cm m atomar nano mikro 3D Atomsonden- Tomographie FIB/REM Nanotomographie Röntgen-CT Elektronen- (TEM) Tomographie mikroskopische Serienschnitttomographie

Atom Probe TEM FIB-SEM Metallographic X-Ray T o m o g r a p h y

slide-33
SLIDE 33

Chair of Functional Materials

Scale bridging  also up to larger sampling volume

(100 µm)3 (1 mm)3 (10 mm)3

X-ray Tomography

(Synchrotron)

Mechanical Serial Sectioning

METZ: 3D Microstructure Analysis | Frank Mücklich| muecke@matsci.uni-sb.de 33 1 nm 10 nm 100 nm 1 µm 10 µm 100 µm (100 nm)3 (1 µm)3 (10 µm)3

APT STEM FIB/SEM Mechanical Serial Sectioning

slide-34
SLIDE 34

Chair of Functional Materials

Sample surface  measuring

Metallographic serial sectioning  improved hight resolution (example steel)

removal [µm] Removal rate [µm/min] removal [µm] removal rate [µm/min]

Status quo: 0.42 ± 0.038 µm

D Britz, J Webel, F Mücklich Dörrenbächer (steel) award 2014

METZ: 3D Microstructure Analysis | Frank Mücklich| muecke@matsci.uni-sb.de 34 Sample surface  polishing Polishing tool removal rate [µm/min] number of sections

Status quo: 0.42 ± 0.038 µm Resolution: >250nm Volume: 10 -10 µm³

7 10…22

slide-35
SLIDE 35

Chair of Functional Materials

Improved hight resolution by color etching  contrast without material removal

Dominik Britz

METZ: 3D Microstructure Analysis | Frank Mücklich| muecke@matsci.uni-sb.de 35

slide-36
SLIDE 36

Chair of Functional Materials

Color Etching (Beraha) Orientation dependent layer formation

METZ: 3D Microstructure Analysis | Frank Mücklich| muecke@matsci.uni-sb.de 36

(100) (101) (111)

 Orientation dependent height profile EBSD

slide-37
SLIDE 37

Chair of Functional Materials

Additional microstructure information  by metallographic tomography

METZ: 3D Microstructure Analysis | Frank Mücklich| muecke@matsci.uni-sb.de 37

Measurement in 2D  Effect of connectivity 200 400 600 800 1000 Euler number Particles 4000 8000 12000 16000 20000 Euler number Particles Measurement in 3D  Effect of connectivity

slide-38
SLIDE 38

Chair of Functional Materials

Metallographic Tomography of large Volume  discover connectivties over large distances

METZ: 3D Microstructure Analysis | Frank Mücklich| muecke@matsci.uni-sb.de 38

slide-39
SLIDE 39

Chair of Functional Materials

Internationality Flavio Soldera

Material Engineering Center Saarland Steinbeis Research Center

Innovation & Transfer

Institute Functional Materials Saarland University

Basic Research

Aluminium Michael Engstler

Thank you for you attention

METZ: 3D Microstructure Analysis | Frank Mücklich| muecke@matsci.uni-sb.de 39 Electr.Contacts Kim Trinh Antimicrobial Michael Hans Energetic Mat. Christoph Pauly Surface Design Carsten Gachot Steel Dominik Britz Atom Probe Jeni Barrirero

slide-40
SLIDE 40

Contact: Chair of Functional Materials Saarland University

  • Prof. Dr.-Ing. Frank Mücklich

Campus D3 3 66123 Saarbrücken Tel.: +49 681 302 70500

Thank you for your attention.

Contact: Chair of Functional Materials Saarland University

  • Prof. Dr.-Ing. Frank Mücklich

Campus D3 3 66123 Saarbrücken Tel.: +49 681 302 70500

www.mec-s.de info@mec-s.de Chair of Functional Materials www.fuwe.uni-saarland.de

muecke@matsci.uni-sb.de

Hisham Aboulfadl

slide-41
SLIDE 41

Chair of Functional Materials

How to Analyze the 3D Microstructure?  Stereology versus Tomography?

Stereology of particles general shape assumptions valid convex particles representative microstructure volume No need for tomography often less effort for statistical reliability

Spherical Polyhedral equiaxial Non equiaxial

METZ: 3D Microstructure Analysis | Frank Mücklich| muecke@matsci.uni-sb.de 41

Tomography

Topological information non convex particles not isolated particles Complex 3D shape complex arrangement local inhomogeneity
