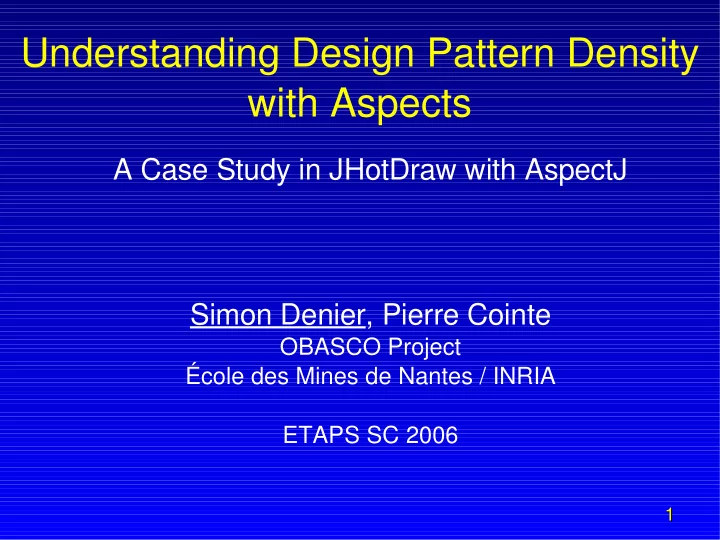

Understanding Design Pattern Density with Aspects

A Case Study in JHotDraw with AspectJ Simon Denier, Pierre Cointe

OBASCO Project École des Mines de Nantes / INRIA ETAPS SC 2006

2 2

What is Pattern Density?

• From “JUnit: a Cook's Tour”, Gamma & Beck
• Mature frameworks show a high density of patterns
• especially around key abstractions (TestCase in JUnit)
• because patterns provide leverage to extend the framework
• but they also make code harder to change (because of tangling)
• “easier to use, harder to change”
• What means “harder to change” exactly?

3 3

Density, Composition, and Aspects

• A high density most probably implies that some design

patterns compose together

• Aspects enable modularization of crosscutting concerns
• Hannemann et al shows some new modular, reusable

implementations of design patterns with AspectJ

• Intuition: better modularization by aspects could ease, or

at least highlight, the composition of design patterns

4 4

Incremental Approach with JHotDraw

• JHotDraw: a framework for structured drawing
• a design exercise with several design patterns (high density of

patterns around Figure, the key abstraction)

• Our incremental approach:
• isolate a base framework (more basic than the current one)
• enhance the base with functions involving design patterns
• have the option to come back to basic framework at no cost
• for example, by a selection of modules at compile-time
• Purpose: show the impact of design patterns composed

together without/with aspects

5 5

Example: View observes Figures

• Purpose: Figures notify View when they change, in order

to optimize redraw with their clipping area

aView aDrawing figure2 figure1 figure3 notify subjects

• bserver

6 6

Example: Observer aspect

aspect FigureOberver { /* Structure by Inter-Type Declaration (ITD) */ private Vector Figure.observers = new Vector(); /* Registration */ pointcut registerObserver(Figure f, View v): (...) after(Figure f, View v): registerObserver(f, v){ f.observers.add(v); } /* Notification Points */ pointcut changed(Figure f): this(f) && execution(void Figure+.move(..)); /* Notification Process */ after(Figure f): changed(f) { for (int i = 0; i < f.observers.size(); i++) f.observers.elementAt(i).invalidate(f); } }

• General case (multiple observers per subject)

7 7

Single View vs Multiple Views

8 8

Singleton-Observer (1)

• Single view on drawing and figures
• Simplification of the Observer pattern when observer is a

Singleton (global access)

• no structure to hold list of observers
• no registration of observer
• simple notification process

View.instance().invalidate(f);

• Object impact: insert notification points in code
• Simple implementation, easy to understand, simple to use

9 9

Singleton-Observer (2)

• Multiple views on drawing and figures
• General case of Observer pattern
• Object impact: invasive modifications
• define list of observers in subjects
• insert (de)registration points for observers
• dispatch notification process
• Notification points: same as for Singleton
• Unfortunately, we have lost the simple collaboration with

singleton view

10 10

Singleton-Observer with Aspects

• Observer pattern is modularized in one aspect
• Aspects can be easily plugged/unplugged
• Solution:
• provide two aspects, one general and one for the Singleton case
• selection by user based on current configuration of framework

(single view or multiple views)

• Future work: automatic selection based on detection of

Singleton?

11 11

Composite-Decorator and Observer

• Add GroupFigure (Composite) and BorderDecorator
• build tree of Figures under Drawing
• Problem: BorderDecorator modifies the clipping area of its

underneath Figure

• the Figure knows when to notify
• the view must get the clipping area from the BorderDecorator

aView aDrawing figure2 figure1 figure3 aGroupFigure aBorderDecorator

12 12

Object Solution: O + C-D → CoR + C-D

• Transform Observer into a Chain of Responsibility
• a Figure notify its parent in the hierarchy of figures, either a

GroupFigure or a BorderDecorator

• the Drawing stops the recursive process and notifies the view(s)
• BorderDecorator can handle notifications from its child and

modify them aView aDrawing figure2 figure1 figure3 aGroupFigure aBorderDecorator

*

13 13

Object Impact

• BorderDecorator and GroupFigure become both
• bservers and subjects
• although GroupFigure is not primarely concerned
• View is involved to stop the recursive process
• All notifications must follow the chain

14 14

O + C-D with Aspects

• A change command defines a recursive control flow

whenever it is sent down the tree of Figures

• use AspectJ pointcuts based on control flow (cflow)
• Only the Observer aspect is modified
• the impact is limited to pointcuts (contrary to the overall impact of

Chain of Responsibility)

• Can we do better? Yes!
• different pointcuts on different actions = different strategies for

notification (not just chained handling)

15 15

Top-Level Observer

• Notify only the top level action, because action necessarily

triggers a change (example: move action)

• Simple (well-known) solution in AspectJ

pointcut changed (Figure f): this(f) && execution(void Figure+.move(..)) && !cflowbelow(execution(void Figure+.move(..)))

aView aDrawing figure2 figure1 figure3 aGroupFigure aBorderDecorator

16 16

Path Observer (BorderDecorator)

• get top-most BorderDecorator (the one which defines the overall

clipping area for the current action)

pointcut topmost(Figure f): this(f) && execution(void Figure+.setAttribute(..)) && !cflowbelow(execution(void Figure+.setAttribute(..)))

• pass it on the underneath join point to replace the current Figure

pointcut changed(Figure f): cflowbelow(topmost(f)) && execution(void Figure+.setAttribute(..))

aView aDrawing figure2 figure1 figure3 aGroupFigure aBorderDecorator

17 17

Impact of Pattern Density on Objects

• What is “harder to change”?
• Inner modification (Singleton-Observer)
• Broad transformation on a set of classes (Chain of

Responsibility)

• Invasive impact, the basic solution is lost

18 18

Contributions of Aspects

• Impact limited to one module or simply pointcuts
• Adaptation is fine grained with pointcuts but has also a

large scale (a control flow across many objects)

• allows reasoning on a large scale, even for small details
• Aspects provide better modularization between classes
• But the pointcut language is tailored to provide meaningful

adaptation following class relationships (e.g. cflow)

19 19

Specificity of Aspects?

• cflow constructs can be emulated if we have an inspector
• n the execution stack
• Inter-type declaration is akin to mixin inheritance or traits
• So nothing specific, but well integrated into aspects
• Why not integrate other mechanisms into language?
• seek for expressiveness on common design pattern structure:

recursivity, indirection

20 20

Questions?
