UCONN Energy Conservation C.O.R.E Assessment Matrix December 19, 2008 Energy Budget Goals Primary Goal Reduce volatility of gas pricing by increased hedging Currently at near historical low prices Secondary Goals Increase

slide-1
SLIDE 1

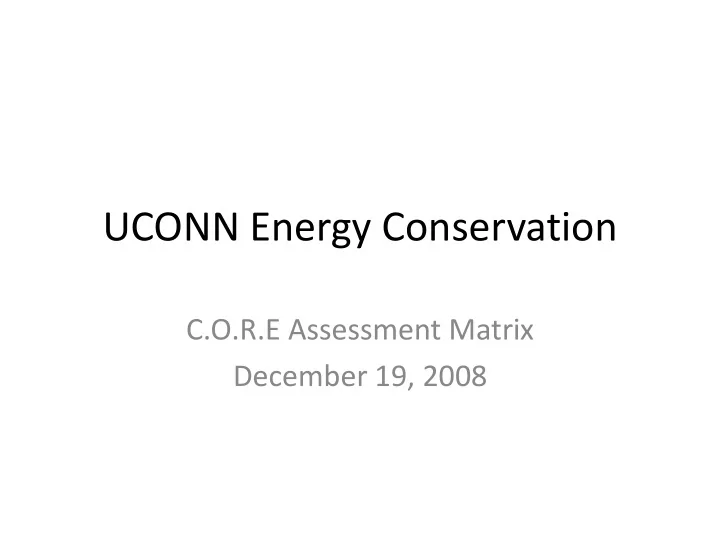

UCONN Energy Conservation

C.O.R.E Assessment Matrix December 19, 2008

slide-2
SLIDE 2

Energy Budget Goals

  • Primary Goal

– Reduce volatility of gas pricing by increased hedging – Currently at near historical low prices

  • Secondary Goals

– Increase outreach programs – Reduce average consumption

slide-3
SLIDE 3

Energy Expenditures

  • CY08 Estimate

– $ 18.71 Million – 7,354 Mwh – 1.81 Million MMBTU

$0.00 $1.00 $2.00 $3.00 $4.00 $5.00 $6.00 $7.00 $8.00 $9.00 $10.00 $0.00 $5.00 $10.00 $15.00 $20.00 $25.00 $30.00 $35.00 CY99 CY00 CY01 CY02 CY03 CY04 CY05 CY06 CY07 CY08 Gas Price $$$/MMBTU Energy Spend in Million $$$

UCONN Storrs Energy Bill Compared to NYMEX

UCONN Energy Bill NYMEX Average

CY07 $22.32 Million 11,123 Mwh 1.73 Million MMBTU CY06 $25.97 Million 53,648 Mwh 0.79 Million MMBTU (6 mth)

slide-4
SLIDE 4

Monitoring Capability

  • FASER Version 5.0 Software (1999)

– Monitors all accounts with energy vendors – Database maintained by Accounts Payable since 2006 by Bruce Gerber/Michael Virone – Updates/Patches required

  • PowerLogic Square D Software

– Monitors on campus sub-meters – Ideally suited for electrical tracking/troubleshooting – Capable of energy use reporting

slide-5
SLIDE 5

Monitoring Capability

(Continued)

  • Andover Building Management System

– Capable of control, monitoring, and reporting – 150 Buildings can be controlled

  • Phoenix Control Systems (Lab Hoods)

– Used in Labs and Animal Care Facilities where airflow tolerances are critical

  • CT Water

– Monitors campus supplied customers

  • Metering Program – In process

– 30 water meters, minimal users – 20 electrical meters – 10 steam meters

slide-6
SLIDE 6

Energy Hogs

  • Develop lists of Top Ten “Energy Hogs”
  • Encourage Energy Hog managers to

proactively administer conservation efforts

  • Develop conservation goals addressing issues

discovered

  • Pursue high ROI improvements
  • Distribute progress reports
slide-7
SLIDE 7

CL&P Supplied Energy Hogs

July 2007 to Current

$0.00 $2,000.00 $4,000.00 $6,000.00 $8,000.00 $10,000.00 $12,000.00 $14,000.00 $16,000.00 $18,000.00 SPRING MANOR FARMS WATER TREATMENT PLANT ANIMAL ISOLATION BARN LONGLEY BLDG

  • RT. 195 ST

LIGHTS MDC Pump Station Birch Rd OFFICE OF SPECIAL SVC AGRONOMY PLANT & SOIL CAMPUS SHOPPING PLAZA Celeron Path

Nayden Clinic

slide-8
SLIDE 8

UCONN Main CL&P Meters

$0.00 $100,000.00 $200,000.00 $300,000.00 $400,000.00 $500,000.00 $600,000.00 $700,000.00 Jul-07 Aug-07 Sep-07 Oct-07 Nov-07 Dec-07 Jan-08 Feb-08 Mar-08 Apr-08 May-08 Jun-08 Jul-08 Aug-08 Sep-08 MAIN CAMPUS DEPOT CAMPUS MAIN

slide-9
SLIDE 9

Sample Monthly Electrical Report

Willimantic Well Field

$0.00 $2,000.00 $4,000.00 $6,000.00 $8,000.00 $10,000.00 $12,000.00 $14,000.00 $16,000.00 $18,000.00 Jul-07 Aug-07 Sep-07 Oct-07 Nov-07 Dec-07 Jan-08 Feb-08 Mar-08 Apr-08 May-08 Jun-08 Jul-08 Aug-08 Sep-08

UCONN Spring Manor Farms CL&P Electrical FY08-Current

slide-10
SLIDE 10

CNG Energy Hogs

July 2007 to Current

$0.00 $5,000.00 $10,000.00 $15,000.00 $20,000.00 $25,000.00 $30,000.00 $35,000.00

slide-11
SLIDE 11

Sample Monthly Gas Report

$0.00 $2,000.00 $4,000.00 $6,000.00 $8,000.00 $10,000.00 $12,000.00 $14,000.00 $16,000.00 $18,000.00 Jul-07 Aug-07 Sep-07 Oct-07 Nov-07 Dec-07 Jan-08 Feb-08 Mar-08 Apr-08 May-08 Jun-08 Jul-08 Aug-08 Sep-08

Longley Building Natural Gas

slide-12
SLIDE 12

Converting Gas to Electricity

$0.00 $500,000.00 $1,000,000.00 $1,500,000.00 $2,000,000.00 $2,500,000.00 Jul-07 Aug-07 Sep-07 Oct-07 Nov-07 Dec-07 Jan-08 Feb-08 Mar-08 Apr-08 May-08 Jun-08 Jul-08 Aug-08 Sep-08

UCONN Central Utility Plant Natural Gas

CUP BOILERS COGEN GENERATION COGEN DEMAND

slide-13
SLIDE 13

Sample PowerLogic Monthly Report

500 1000 1500 2000 2500

UCONN COGEN Supplied Building Electrical Energy Hogs FY08-Current

Average Power (kw) Demand Peak (kw)

slide-14
SLIDE 14

Conservation Project Types

  • Lighting – High Efficiency/Low Wattage
  • VFD – Variable Speed Drive on motors/fans
  • Occupancy Sensors – Hallways and Stairs
  • Energy Star Program – Appliances/Equipment
  • CO2 Sensors- Air change optimization
slide-15
SLIDE 15

Previous Conservation Projects

Equipment Life Cycle Savings

  • Biology Physics Building New (2002)
  • Engineering IT Building New (2003)
  • Pharmacy Biology New (2005)
  • North Parking Garage (2006)
  • South Parking Garage (2006)
slide-16
SLIDE 16

New Potential Conservation

  • Industry Recruitment/Support

– CCEF - Operational Demonstration Program – New Energy Technology Program

  • Leasing/Lease Purchase CCEF - CT Solar Lease Program
  • Property Tax Exemption Property Tax Exemption for

Renewable Energy Systems

  • State Grant Program C

– CEF - Community Innovations Grant Program – CCEF - On-Site Renewable DG Program – CCEF - Project 150 Initiative – DPUC - Capital Grants for Customer-Side Distributed Resources

  • State Loan Program

– CHIF - Energy Conservation Loan – DPUC - Low-Interest Loans for Customer-Side Distributed Resources

  • State Rebate Program

– CCEF - Affordable Housing Initiative Solar PV Rebate Program – CCEF - Solar PV Rebate Program – Furnace and Boiler Replacement Rebate Program

  • Utility Grant Program The United Illuminating Company -

Energy Conscious Blueprint Grant Program

  • RenewablesPortfolio Standard Renewable Portfolio Standard
  • Alternative Fuel and Vehicle Policies U.S. Department of

Energy's Alternative Fuels Data Center

  • Utility Rebate Program

– Connecticut Light & Power - Commercial Energy Efficiency Rebates – Connecticut Light & Power - Energy Opportunities Efficiency Program – Connecticut Light & Power - Express Rebate Programs – Connecticut Light & Power - Operation and Maintenance Program

  • Alternative Fuel and Vehicle Incentives U.S. Department of

Energy's Alternative Fuels Data Center

  • Rules, Regulations & Policies
  • Appliance/Equipment Efficiency Standards Energy Efficiency

Standards for Appliances

  • Building Energy Code Connecticut Building Energy Code with

Green Building Provisions

  • Contractor Licensing Solar and Wind Contractor Licensing
  • Energy Standards for Public Buildings Green Building

Standards for State Facilities

  • Generation Disclosure Fuel Mix and Emissions Disclosure
  • Green Power Purchasing/Aggregation Connecticut - Green

Power Purchase Plan

  • Net Metering Connecticut - Net Metering
  • Public Benefits Fund

– Connecticut Clean Energy Fund – Connecticut Energy Efficiency Fund

slide-17
SLIDE 17

Building Schedule Reduction Savings

Weekend and Holiday Break

10000 11000 12000 13000 14000 15000 16000 17000 18000 19000 20000

UCONN Campus Electrical Load

Hourly Average

slide-18
SLIDE 18

Building Schedule Reduction Savings

Weekend and Holiday Break

10000 11000 12000 13000 14000 15000 16000 17000 18000 19000 20000

Kwh Demand

UCONN Campus Electrical Load

Hourly Average

Modified Building Schedule [School In Session 12/01 - 12/12] [School Break 12/12 - 12/22] Weekend Weekend

slide-19
SLIDE 19

Building Schedule Reduction Savings

Weekend and Holiday

40 50 60 70 80 90 100 110 120 S t e a m F l

  • w

( K p p h )

UCONN Campus Steam Use

COGEN Hourly Average

slide-20
SLIDE 20

Example Schedule Reductions

Breaks & Holidays

Building Name Occupied Hours Revised Occupied Hours Total Hours Reduced Percentage run time Saved on AHU/FCU Percentage

  • f

Building’s Energy Kwh Reduction Monthly Savings

Music Orchestra & Library 16 10 6 37.5% 40% 1142 $88.19

Field House 17 10 7 41.1% 55% 1072 $82.78 Chemistry 17 10 7 41.1% 40% 1800 $139.00 Engineering & UTEB 16 7 9 43.7% 40% 681 $52.59 Student Union 15 10 5 33.3% 55% 3009 $232.37

slide-21
SLIDE 21

Savings Thumb Rule

Cooling Thermostat Heating Thermostat

slide-22
SLIDE 22

Out Reach Savings Potential

Non Automated Lighting

Assumptions Residential Buildings Classroom & Office Buildings High Tech & Science Buildings Lighting Load 20% 40% 30% Focused Compliance 25% 25% 25% Example Building South Campus Dorm Torrey Life Science Chemistry Kwh Savings/Month 1700 2300 7800 $$/Mwh @COGEN Cost 10.38 10.38 10.38 Total Savings/Month $ 170.00 $ 230.00 $ 780.00 Annualized Storrs Savings $28,814 $38,980 $132,203

slide-23
SLIDE 23

Example Resident Hall Setback

3% Savings Per 1°F (proves Rule of Thumb)

Building Name Square Footage

December 2008 Kwh Data Setback 72°F to 65°F Average 25%

Mon. Tues. Weds. Thurs. Set- point Reduced Average Delta % Change

Beard 34,878 462 646 409 326 435 109

  • 33%

Bethune 25,130 419 514 344 254 381 127

  • 33%

Crandall 34,878 258 323 200 147 229 82

  • 36%

Flesche 25,130 171 190 144 119 157 38

  • 24%

French 25,130 256 320 236 192 246 54

  • 21%

Merritt 25,130 181 297 208 147 195 48

  • 25%

Grasso 34,878 638 846 645 505 641 136

  • 21%
slide-24
SLIDE 24

Steam Trap & Line Maintenance Program Potential Savings

  • 153 Buildings (7M square feet) Supplied
  • ~5,000 Steam Traps on Campus
  • Water Make-Up of 33-42 Million Gallons/Year
  • $2.2 to 3.0 Million/Year Loss

– 11-15% of Total Energy Cost

  • 60% of loss occurs in steam lines & traps
  • 40% of loss occurs in condensate lines
