U.S. General Services Administration/ Customs & Border Protection February 25, 2016 San Ysidro LPOE, CA San Ysidro LPOE Master Plan San Ysidro LPOE Master Plan PHASE 1E VATC WEST PED West Pedestrian Facility WEST PEDESTRIAN Design

slide-1
SLIDE 1

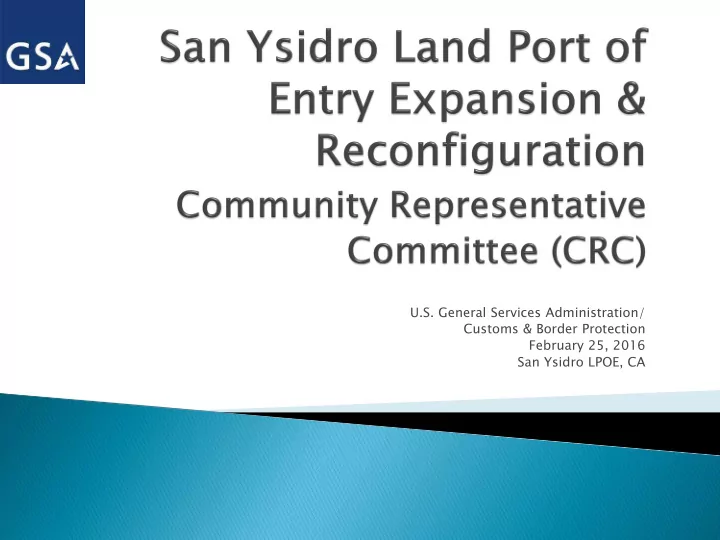

U.S. General Services Administration/ Customs & Border Protection February 25, 2016 San Ysidro LPOE, CA

slide-2
SLIDE 2

San Ysidro LPOE Master Plan

slide-3
SLIDE 3

San Ysidro LPOE Master Plan

PHASE 1E VATC WEST PED

slide-4
SLIDE 4

West Pedestrian Facility

WEST PEDESTRIAN Design – Build Start Fall 2014 Design Completed Spring 2015 Construction Started Spring 2015 Construction completion June 2016 Plan for 10 NB Pedestrian processing lanes Plan for 2 SB pedestrian processing lanes POV return to US inspection area Pedestrian Repatriation processing Public Plaza Area

slide-5
SLIDE 5
slide-6
SLIDE 6

PedWest Transit Center

slide-7
SLIDE 7
slide-8
SLIDE 8

07/31/15 – WPB: Vapor Barrier Installation 07/30/15 – WPB: Sand Placement

slide-9
SLIDE 9

Virginia Avenue Transit Center (VATC)

VA Transit Center

Concept Design Start Winter 2014 Concept Design Completed Spring 2015 Community Workshop June 04, 2015 Design – Build Start Summer 2015 Construction completion June 2016

VATC Plans to Accommodate: 4 Buses, 10 Taxi, 18 POV and 5 Pedicabs.

slide-10
SLIDE 10
slide-11
SLIDE 11
slide-12
SLIDE 12
slide-13
SLIDE 13
slide-14
SLIDE 14

Phase 2 Improve NB/SB Pedestrian Through-put on East Side

PHASE 2 – FUNDING

Funded December 2014

PHASE 2 - SCHEDULE

Design Start Fall 2015 Design completion Spring 2016 Construction Start Summer 2016 Construction completion Summer 2019

slide-15
SLIDE 15

Phase 2

  • Plan for 6 SB lanes pedestrian processing
  • Plan for 20 NB pedestrian processing lanes.
  • Pedestrian Plaza adjacent to Public Access
  • Administrative Facilities
  • Renovation/restoration of the Historic Customs House to include

Southbound Pedestrian Processing

slide-16
SLIDE 16

Phase 2 Proposed Construction – View from Northbound Pedestrian Shade Canopy

slide-17
SLIDE 17

Phase 2 Proposed Construction – Approach to Main Pedestrian Building from Mexico

slide-18
SLIDE 18

Phase 2 Proposed Construction – NB Pedestrian Processing

slide-19
SLIDE 19

Phase 2 Proposed Construction – Looking South from the Pedestrian Plaza

slide-20
SLIDE 20

Phase 2 Proposed Construction – Looking South Pedestrian Plaza Rendering

slide-21
SLIDE 21

Phase 2 Proposed Construction – Public Entry North of the Pedestrian Building

slide-22
SLIDE 22

Phase 2 Proposed Construction – View from Pedestrian Bridge Looking South

slide-23
SLIDE 23

Phase 2 Proposed Construction – Looking Outside 2nd Floor of the Historic Custom House

slide-24
SLIDE 24

Phase 2 Proposed Construction – Looking Inside 1st Floor of the Historic Custom House

slide-25
SLIDE 25

Phase 3 Improve SB & NB Vehicle Through-put

Design Start Summer 2014 Design completion Summer 2015 Construction Start Spring 2016 Construction completion Summer 2019

slide-26
SLIDE 26

Phase 3

  • Add 8 lanes of NB throughput and adds 15 NB inspection

booths

  • 10 SB lanes will significantly reduce queue length when CBP

is operating its pulse and surge southbound inspections.

  • Employee parking structure
slide-27
SLIDE 27

Phase 3 Proposed Construction – Additional Primary Lanes / Secondary Inspection

slide-28
SLIDE 28

Phase 3 Proposed Construction – Southbound Lanes

slide-29
SLIDE 29

Phase 3 Proposed Construction – Southbound Lanes & Headhouse Building

slide-30
SLIDE 30

Phase 3 Proposed Construction – Employee Parking Structure

slide-31
SLIDE 31

Start of Phase 3

slide-32
SLIDE 32

Phase 3 Completed

slide-33
SLIDE 33
