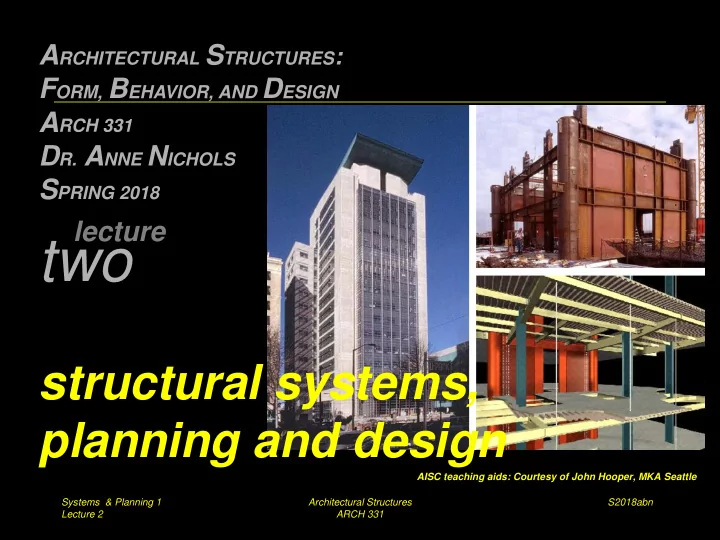

A RCHITECTURAL S TRUCTURES : F ORM, B EHAVIOR, AND D ESIGN A RCH 331 D R. A NNE N ICHOLS S PRING 2018 lecture two structural systems, planning and design AISC teaching aids: Courtesy of John Hooper, MKA Seattle Systems & Planning 1

slide-1
SLIDE 1

S2018abn

two

structural systems, planning and design

Systems & Planning 1 Lecture 2 Architectural Structures ARCH 331

lecture

AISC teaching aids: Courtesy of John Hooper, MKA Seattle

ARCHITECTURAL STRUCTURES: FORM, BEHAVIOR, AND DESIGN ARCH 331

  • DR. ANNE NICHOLS

SPRING 2018

slide-2
SLIDE 2

S2018abn

Project

Systems & Planning 2 Lecture 2 Architectural Structures ARCH 331

slide-3
SLIDE 3

S2018abn

Structural Organization

  • classifications

– geometry

  • line-forming
  • surface-forming

– stiffness

  • rigid
  • flexible

– one-way or two-way

  • spatial organization and load transfer

– materials

Systems & Planning 3 Lecture 2 Architectural Structures ARCH 331

slide-4
SLIDE 4

S2018abn Systems & Planning 4 Lecture 2 Architectural Structures ARCH 331

Structural Components

  • bearing walls
  • columns
  • beams
  • flat plates
  • trusses
  • arches
  • shells
  • cables
slide-5
SLIDE 5

S2018abn Systems & Planning 5 Lecture 2 Architectural Structures ARCH 331

Bearing Walls

slide-6
SLIDE 6

S2018abn Systems & Planning 6 Lecture 2 Architectural Structures ARCH 331

Bearing Walls

  • behavior as “deep beams”
slide-7
SLIDE 7

S2018abn Systems & Planning 7 Lecture 2 Architectural Structures ARCH 331

Columns & Walls

slide-8
SLIDE 8

S2018abn Systems & Planning 8 Lecture 2 Architectural Structures ARCH 331

Beams & Plates

slide-9
SLIDE 9

S2018abn Systems & Planning 9 Lecture 2 Architectural Structures ARCH 331

Beams & Plates

slide-10
SLIDE 10

S2018abn Systems & Planning 10 Lecture 2 Architectural Structures ARCH 331

Trusses and Shells

slide-11
SLIDE 11

S2018abn Systems & Planning 11 Lecture 2 Architectural Structures ARCH 331

Arches and Cables

slide-12
SLIDE 12

S2018abn Systems & Planning 12 Lecture 2 Architectural Structures ARCH 331

Building Framing

  • Components or Assemblages
slide-13
SLIDE 13

S2018abn Systems & Planning 13 Lecture 2 Architectural Structures ARCH 331

Building Framing

slide-14
SLIDE 14

S2018abn Systems & Planning 14 Lecture 2 Architectural Structures ARCH 331

System Selection

  • evaluation of alternatives
slide-15
SLIDE 15

S2018abn Systems & Planning 15 Lecture 2 Architectural Structures ARCH 331

System Selection

slide-16
SLIDE 16

S2018abn Systems & Planning 16 Lecture 2 Architectural Structures ARCH 331

Structural Design Criteria

  • components stay together
  • structure acts as whole to be stable

– resist sliding – resist overturning – resist twisting and distortion

  • internal stability

– interconnectedness

  • strength & stiffness
slide-17
SLIDE 17

S2018abn Systems & Planning 17 Lecture 2 Architectural Structures ARCH 331

Structural Design Sequences

  • first-order design

– structural type and organization – design intent – contextual or programmatic

  • second-order

– structural strategies – material choice – structural systems

  • third-order

– member shaping & sizing

slide-18
SLIDE 18

S2018abn Systems & Planning 18 Lecture 2 Architectural Structures ARCH 331

Systems by Materials

  • Wood
  • Steel
  • Concrete
  • Masonry
  • Composite
slide-19
SLIDE 19

S2018abn Systems & Planning 19 Lecture 2 Architectural Structures ARCH 331

  • all-wood framing systems

– studs, beams, floor diaphragms, shearwalls – glulam arches & frames – post & beams – trusses

  • composite construction

– masonry shear walls – concrete – steel

Timber Construction

slide-20
SLIDE 20

S2018abn Systems & Planning 20 Lecture 2 Architectural Structures ARCH 331

Timber Construction

  • studs, beams
  • floor diaphragms & shear walls
slide-21
SLIDE 21

S2018abn Systems & Planning 21 Lecture 2 Architectural Structures ARCH 331

Timber Construction

  • glulam arches & frames

– manufactured or custom shapes – glue laminated – bigger members

slide-22
SLIDE 22

S2018abn Systems & Planning 22 Lecture 2 Architectural Structures ARCH 331

Timber Construction

  • post & beam
  • trusses
slide-23
SLIDE 23

S2018abn Systems & Planning 23 Lecture 2 Architectural Structures ARCH 331

Timber Construction

  • composite construction
slide-24
SLIDE 24

S2018abn Systems & Planning 24 Lecture 2 Architectural Structures ARCH 331

Steel

  • cast iron – wrought iron - steel
  • cables
  • columns
  • beams
  • trusses
  • frames

http:// nisee.berkeley.edu/godden

slide-25
SLIDE 25

S2018abn Systems & Planning 25 Lecture 2 Architectural Structures ARCH 331

Steel Construction

  • standard rolled shapes
  • open web joists
  • plate girders
  • decking
slide-26
SLIDE 26

S2018abn Systems & Planning 26 Lecture 2 Architectural Structures ARCH 331

Steel Construction

  • welding
  • bolts
slide-27
SLIDE 27

S2018abn Systems & Planning 27 Lecture 2 Architectural Structures ARCH 331

Steel Construction

  • fire proofing

– cementicious spray – encasement in gypsum – intumescent – expands with heat – sprinkler system

slide-28
SLIDE 28

S2018abn Systems & Planning 28 Lecture 2 Architectural Structures ARCH 331

Concrete

  • columns
  • beams
  • slabs
  • domes
  • footings

http:// nisee.berkeley.edu/godden

slide-29
SLIDE 29

S2018abn Systems & Planning 29 Lecture 2 Architectural Structures ARCH 331

Concrete Construction

  • cast-in-place
  • tilt-up
  • prestressing
  • post-tensioning

http:// nisee.berkeley.edu/godden

slide-30
SLIDE 30

S2018abn Systems & Planning 30 Lecture 2 Architectural Structures ARCH 331

Concrete Floor Systems

  • types & spanning direction
slide-31
SLIDE 31

S2018abn Systems & Planning 31 Lecture 2 Architectural Structures ARCH 331

Concrete Floor Systems

slide-32
SLIDE 32

S2018abn Systems & Planning 32 Lecture 2 Architectural Structures ARCH 331

Masonry

  • columns
  • beams
  • arches
  • walls
  • footings
slide-33
SLIDE 33

S2018abn

Grids and Patterns

  • often adopted early in design

– give order – cellular, ex.

  • vertical and horizontal
  • square and rectangular

– single-cell – aggregated bays

Systems & Planning 33 Lecture 2 Architectural Structures ARCH 331

slide-34
SLIDE 34

S2018abn Systems & Planning 34 Lecture 2 Architectural Structures ARCH 331

Grids and Patterns

slide-35
SLIDE 35

S2018abn Systems & Planning 35 Lecture 2 Architectural Structures ARCH 331

Systems

  • total of components
  • behavior of whole
  • classifications

– one-way – two-way – tubes – braced – unbraced

slide-36
SLIDE 36

S2018abn Systems & Planning 36 Lecture 2 Architectural Structures ARCH 331

One-Way Systems

  • horizontal vs. vertical
slide-37
SLIDE 37

S2018abn Systems & Planning 37 Lecture 2 Architectural Structures ARCH 331

Two-Way Systems

  • spanning system less obvious
  • horizontal

– plates – slabs – space frames

  • vertical

– columns – walls

slide-38
SLIDE 38

S2018abn Systems & Planning 38 Lecture 2 Architectural Structures ARCH 331

Two-Way Systems

slide-39
SLIDE 39

S2018abn Systems & Planning 39 Lecture 2 Architectural Structures ARCH 331

Roof Shapes

  • coincide
  • within
slide-40
SLIDE 40

S2018abn Systems & Planning 40 Lecture 2 Architectural Structures ARCH 331

Tubes & Cores

  • stiffness
slide-41
SLIDE 41

S2018abn Systems & Planning 41 Lecture 2 Architectural Structures ARCH 331

Span Lengths

  • crucial in selection
  • f system
  • maximum spans
  • n charts aren’t

absolute limits, but usual maximums

  • increase L, increase depth2 required

(ex. cantilever)

  • deflections depend on L
slide-42
SLIDE 42

S2018abn Systems & Planning 42 Lecture 2 Architectural Structures ARCH 331

Approximate Depths

slide-43
SLIDE 43

S2018abn Systems & Planning 43 Lecture 2 Architectural Structures ARCH 331

Loading Type and Structure Type

  • light uniform loads

– surface forming elements – those that pick up first load dictate spacing

  • f other elements
  • heavy concentrated loads

– member design unique

  • distributed vs. concentrated structural

strategies

– large beam vs. many smaller ones

slide-44
SLIDE 44

S2018abn Systems & Planning 44 Lecture 2 Architectural Structures ARCH 331

Design Issues

  • lateral stability – all directions
slide-45
SLIDE 45

S2018abn Systems & Planning 45 Lecture 2 Architectural Structures ARCH 331

Design Issues

  • configuration
slide-46
SLIDE 46

S2018abn Systems & Planning 46 Lecture 2 Architectural Structures ARCH 331

Design Issues

  • vertical load resistance

walls columns

slide-47
SLIDE 47

S2018abn Systems & Planning 47 Lecture 2 Architectural Structures ARCH 331

Design Issues

  • lateral load resistance
slide-48
SLIDE 48

S2018abn Systems & Planning 48 Lecture 2 Architectural Structures ARCH 331

Design Issues

  • lateral load resistance
slide-49
SLIDE 49

S2018abn Systems & Planning 49 Lecture 2 Architectural Structures ARCH 331

Design Issues

  • multi-story

– cores, tubes, braced frames

slide-50
SLIDE 50

S2018abn Systems & Planning 50 Lecture 2 Architectural Structures ARCH 331

Design Issues

  • multi-story

– avoid discontinuities

  • vertically
  • horizontally
slide-51
SLIDE 51

S2018abn Systems & Planning 51 Lecture 2 Architectural Structures ARCH 331

Foundation Influence

  • type may dictate fit

– piles vs. mats vs. spread – capacity of soil to sustain loads

  • high capacity – smaller area
  • f bearing needing and can

spread out

  • low capacity – multiple

contacts and big distribution areas

slide-52
SLIDE 52

S2018abn Systems & Planning 52 Lecture 2 Architectural Structures ARCH 331

Grid Dependency on Floor Height

  • wide grid = deep beams

– increased building height – heavier – foundation design

  • codes and zoning

may limit

  • utilize depth for

mechanical

slide-53
SLIDE 53

S2018abn Systems & Planning 53 Lecture 2 Architectural Structures ARCH 331

Large Spaces

  • ex. auditoriums, gyms, ballrooms
  • choices

– separate two systems completely and connect along edges – embed in finer grid – staggered truss

slide-54
SLIDE 54

S2018abn Systems & Planning 54 Lecture 2 Architectural Structures ARCH 331

Meeting of Grids

  • common to use more than one grid
  • intersection important structurally
  • can use different structural materials

– need to understand their properties

  • mechanical
  • thermal
slide-55
SLIDE 55

S2018abn Systems & Planning 55 Lecture 2 Architectural Structures ARCH 331

Meeting of Grids

  • horizontal choices
slide-56
SLIDE 56

S2018abn Systems & Planning 56 Lecture 2 Architectural Structures ARCH 331

Meeting of Grids

  • vertical choices
slide-57
SLIDE 57

S2018abn Systems & Planning 57 Lecture 2 Architectural Structures ARCH 331

Other Conditions

  • circulation
  • building service systems

– one-way systems have space for parallel runs – trusses allow for transverse penetration – pass beneath or interstitial floors

  • for complex or extensive

services or flexibility

slide-58
SLIDE 58

S2018abn Systems & Planning 58 Lecture 2 Architectural Structures ARCH 331

Other Conditions

  • poking holes for member services

– horizontal

  • need to consider area

removed, where removed, and importance to shear

  • r bending

– vertical

  • requires framing at edges
  • can cluster openings to

eliminate a bay

– double systems

slide-59
SLIDE 59

S2018abn Systems & Planning 59 Lecture 2 Architectural Structures ARCH 331

Fire Safety & Structures

  • fire safety requirements can impact

structural selection

  • construction types

– light

  • residential
  • wood-frame or unprotected metal

– medium

  • masonry

– heavy

  • protected steel or reinforced concrete
slide-60
SLIDE 60

S2018abn Systems & Planning 60 Lecture 2 Architectural Structures ARCH 331

Fire Safety & Structures

  • degree of occupancy hazards
  • building heights
  • maximum floor areas between fire wall

divisions

– can impact load bearing wall location

slide-61
SLIDE 61

S2018abn Structural Planning 61 Lecture 2 Architectural Structures ARCH 331

Fire Safety & Structures

  • resistance ratings by failure type

– transmission failure

  • fire or gasses move

– structural failure

  • high temperatures reduce strength

– failure when subjected to water spray

  • necessary strength
  • ratings do not pertain to usefulness of

structure after a fire
