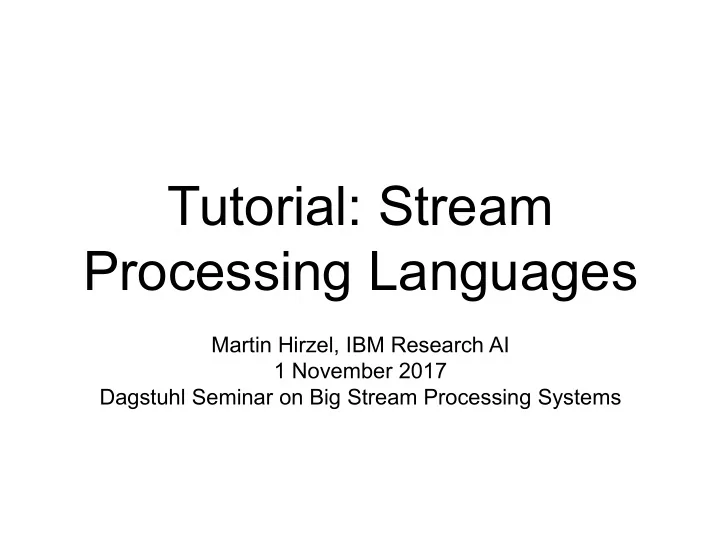

Tutorial: Stream Processing Languages

Martin Hirzel, IBM Research AI 1 November 2017 Dagstuhl Seminar on Big Stream Processing Systems

DSLs ⊇ DSELs (aka EDSLs)

Martin Hirzel, IBM Research AI 2 Modular Domain Specific Languages and Tools [ICSR’98]

Definitions

• A stream is a conceptually infinite ordered

sequence of data items.

• A streaming application is a computer

program that continuously ingests input streams and produces output streams.

• A stream processing language is a DSL

(domain-specific language) for writing streaming applications.

Martin Hirzel, IBM Research AI 3

Requirements

Martin Hirzel, IBM Research AI 4

Performance Generality Productivity

Fast streaming on a cluster Hide complexity of distributed system Support diverse application domains

Different prioritization drives language diversity

Outline

• Streaming SQL: CQL
• Synchronous Dataflow: StreamIt
• Explicit Stream Graph: SPL
• Complex Events: MatchRegex
• Reactive: ActiveSheets
• Controlled Natural Language: META
• Foundational Calculus: Brooklet

Martin Hirzel, IBM Research AI 5

Streaming SQL: CQL

Martin Hirzel, IBM Research AI

The CQL continuous query language: semantic foundations and query execution [VLDBJ’06]

6

SQL, plus IStream and Window

Streaming SQL: CQL

Martin Hirzel, IBM Research AI River: An Intermediate Language for Stream Processing [SP&E'16] 7

Relational algebra, plus convert streams from/to relations S2R Operators R2R Operators R2S Operators Windows: now, unbounded, sliding, tumbling, time, partitioned, F Classic relational algebra: select, project, union, group-by, aggregate, join, F IStream: inserts, DStream: deletes, RStream: relations

Streaming SQL: CQL

Martin Hirzel, IBM Research AI 8

Insert newest Evict oldest Trigger aggregation L T Front Back

• In general: policies specified

as time or count or delta

• Special case T = L also

known as tumbling

size granularity

The CQL continuous query language: semantic foundations and query execution [VLDBJ’06]

Synchronous Dataflow: StreamIt

Martin Hirzel, IBM Research AI StreamIt: A Compiler for Streaming Applications [MIT TR'05] 9

float->float pipeline ABC { add float->float filter A() { work pop … push 2 { … } } add float->float filter B() { work pop 3 push 1 { … } } add float->float filter C() { work pop 2 push … { … } } }

A B C

2 3 1 2 F F B pops 3 per firing B pushes 1 per firing Statically known push/pop rates

Synchronous Dataflow: StreamIt

Martin Hirzel, IBM Research AI

Dynamic Expressivity with Static Optimization for Streaming Languages [DEBS'13]

10

A B C

F F

A B C A B C A B C A B C A B C

2 3 1 2 Statically known firing schedule and FIFO queue sizes

Explicit Stream Graph: SPL

Martin Hirzel, IBM Research AI ibmstreams.github.io 11

Explicit Stream Graph: SPL

Martin Hirzel, IBM Research AI

SPL: An Extensible Language for Distributed Stream Processing [TOPLAS'17]

12

Kind of type Type example Literal example Number int32 42 String ustring "Saarbrücken" Boolean boolean true Enumeration enum<error,info,trace> LogLevel.info XML xml<"schemaURI"> '<x a="b">55</x>'x Tuple tuple<float64 x, float64 y> {x=0.5, y=0.8} Map map<ustring, int32> {"Mon": -1, "Fri": 1} List list<int32> [1, 2, 3]

Strongly and statically typed Composite types (tuple, map, list) can nest Streams can carry any tuple type

Complex Events: MatchRegex

Martin Hirzel, IBM Research AI

http://www.cs.cornell.edu/bigreddata/cayuga/

13

M-shape (double-top) stock pattern Series of rising peaks and troughs Deep drop below start

• f match

Complex Events: MatchRegex

Martin Hirzel, IBM Research AI Partition and Compose: Parallel Complex Event Processing [DEBS'12] 14

Composite events Simple events Regular expression Aggregation Key Operator only, no extensions to SPL syntax

Reactive: ActiveSheets

Martin Hirzel, IBM Research AI

Stream Processing with a Spreadsheet [ECOOP'14] (Distinguished Paper Award)

15

=SUM(C3:C10) =B3*C3 =B10*C10 =SUM(G3:G10) =A15 =C15 =C12/G12 =B15<G15

Scrolling Scrolling

Reactive: ActiveSheets

Martin Hirzel, IBM Research AI

Spreadsheets for Stream Processing with Unbounded Windows and Partitions (DEBS'16)

16

Sheets Time Columns Rows Need more than two dimensions in practice

Controlled Natural Language: META

Martin Hirzel, IBM Research AI

http://www.ibm.com/software/products/en/odm

17

• -- data model ---

a Client is a business entity identified by a name. a Client is related to a marketer (a Marketer). a Read Event is a business event time-stamped by a date. a Read Event is related to a client (a Client). a Read Event has a topic. a Read Event has a length (a number).

• -- agent descriptor ---

'ClientRules' is an agent related to a Client , processing events :

• Read Event , where this Client comes from the client of this Read Event
• -- event-condition-action rule ---

when a Read Event occurs if the length of this Read Event is more than 'Average Read Event Length' then emit a new Alert where the client is 'the Client' , the topic is the topic of this Read Event , the marketer is the marketer of 'the Client' ;

• -- global event query ---

define 'Average Read Event Length' as the average length of all Read Events during the last period of 6 hours . 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28

Controlled Natural Language: META

Martin Hirzel, IBM Research AI 18

WXS Shard Analytics agent Event agent WXS Shard Analytics agent Event agent WXS Shard Analytics agent Event agent Event router Event Action

Exactly-once event processing Transaction Replication Shuffle, using X10 META: Middleware for Events, Transactions, and Analytics [IBMRD'16]

Foundational Calculus: Brooklet

Martin Hirzel, IBM Research AI A Universal Calculus for Stream Processing Languages [ESOP'10] 19

Pure opaque functions, explicit state

Foundational Calculus: Brooklet

Martin Hirzel, IBM Research AI

From a Calculus to an Execution Environment for Stream Processing [DEBS'12] (Best Paper Award)

20

Atomic steps, non-determinism, fire on any port

Democratization of Streaming

Martin Hirzel, IBM Research AI

Medical Telco Science Finance F Insights Actions Streaming engine High-level programming experience
