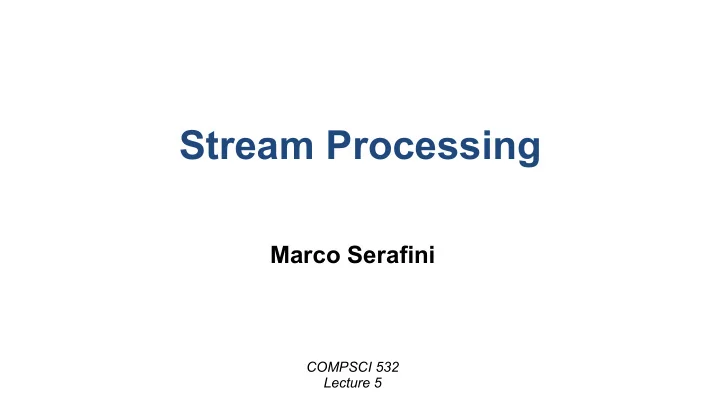

SLIDE 1

Stream Processing

Marco Serafini

COMPSCI 532 Lecture 5

SLIDE 2

22

Stream vs. Batch Processing

Batch processing
Bounded input
Bounded one-shot computation
Bounded output
Stream processing
Unbounded input: data stream
Unbounded computation: always on
Unbounded output

SLIDE 3

33

Advantages and Disadvantages

Advantages of stream processing
Many real-time datasets are data streams (e.g. IoT)
Near real-time results
No need for accumulating data for processing
Streaming operators typically require less memory
Disadvantages of stream processing
Need to deal with timing semantics
Some operators are harder to implement with streaming
Especially if we want operator state to be constant
E.g. Find median
Stream algorithms are often approximations

SLIDE 4

44

Streaming Computation

Dataflow Graph of (possibly stateful) operators
Data streams connecting them
Tuples in the stream: <key, [timestamp,] value>
FIFO channels
Partitioning
Operators are parallelized into subtasks based on key
Streams are split into partitions

SLIDE 5

55

Example: Streaming Inverted Index

How could the architecture look like?
What kind of streams would we have?
What kind of operators?

SLIDE 6

66

Windowing

Windows create batches for bounded operations
Example: aggregation
Tuples replicated on multiple windows

SLIDE 7

77

Event and Processing Time

Event time
Time when events occurs
Associated to event itself
Immutable
Processing time
Time when event is processed
Depends on system

implementation

Mutable
Q: Which one is easier to

program with?

SLIDE 8

88

Watermarks

Event-time processing
Requires reordering since event time ≠ processing time
Example: process all events generated [from, to)
Low watermarks
How to know that I got all events until event-time T?
Watermark is a special message telling us that
Forwarded throughout dataflow graph
If an operator has multiple input channels, forward minimum

(earliest) low watermark across inputs

Punctuations
Similar to watermarks

SLIDE 9

99

Triggers

Watermarks can be too fast (when?) or too slow

(when?)

Triggers are used to process a window based on a

processing time signal

Problem: what to do with the window once triggering?
Discard? Accumulate? Retract?

SLIDE 10

10

Spark Structured Streaming

Define a relational query on stream
System incrementally updates output tables

SLIDE 11

11

System Implementation

SLIDE 12

12 12

Stream Processing Systems

“Pure” streaming systems
Tuple-at-a-time semantic
Example: Apache Storm, Apache Flink
Micro-batching
Create small batches of inputs and then execute batched

computation

Example: Spark Streaming
System implementation ≠ programming semantics

SLIDE 13

13

Control vs. Data Messages

Control messages are injected in event stream
Checkpoint markers
Inserting them in stream helps consistent snapshot
Watermarks for windowing
Inserting them in stream allows triggering windows
Coordination barriers
Inserting them in stream allows marking event before-after

barrier

SLIDE 14

14

Implementing Batch on Streaming

DataSet abstraction in Flink
Example
Q: How to implement map-reduce on Flink?
A: Control messages
Mappers send an “eof” marker to each reducer when done
Reducer do not process until they receive markers from all mappers

SLIDE 15

15

Fault Tolerance

Streaming: stateful operators
Cannot rerun the whole stream from beginning
Spark Streaming: Lineage (Spark) + checkpoints
Flink: Periodic checkpointing of stateful operators
Export API to application to define state to be checkpointed
How to checkpoint?

SLIDE 16

16

Distributed Checkpoints

Uncoordinated Checkpoint?

Domino effect

Coordinated checkpoint
Consistent cut: no message received but not sent
Distributed checkpointing protocol (Chandy-Lamport)

SLIDE 17

17

Chandy-Lamport Protocol

Assumptions
Originator process starts it
FIFO channels
One checkpoint at a time
Goal: checkpoint state + all in-flight messages
Algorithm
Originator checkpoints its state and sends checkpoint marker
Upon receiving checkpoint marker
Checkpoint and send checkpoint marker on each channel
Record subsequent messages on each channel until receive checkpoint marker back

SLIDE 18

18

Load Balancing

How to balance load in tuple-at-a-time system?
Redistribute keys
Move key from one server to another
Require migrating operator state
Replicate and aggregate
Multiple copies of the same operator compute partial results
A downstream operator aggregates them
Power of both choices

SLIDE 19

19

Lambda Architecture

Compromise between accuracy and freshness
Requires maintaining 2 platforms and 2 implementations

Persistent store (e.g. Kafka) Incoming data stream Stream Processing Batch Processing Periodically Result of analysis (e.g. Index) Recreate accurate results Update approximate results Real-time

SLIDE 20

20 20

Regulating the Data Flow

Backpressure
If receiver operator cannot process inputs fast enough…
... Block or slow down senders (recursively if needed)
Intermediate buffer pools (queues)
Decouple communication from consuming messages
Conflicting requirements
Throughput: batch output messages, don’t send one by one
Latency: send messages asap
Tradeoff: Send when either
Max batch size reached (e.g. 1 kB) or
Timeout (e.g. 5 milliseconds)

SLIDE 21

21

Exercise

SLIDE 22

22

Exercise: Online Store

Two input streams
One has ad clicks: <user_ID, time, ad_ID>
The other has ad impressions: <ad_ID, time, user_ID>
Design DataFlow application that
Correlates ad impressions with user clicks (for billing)
Correlated = click happens within 10 seconds after ad
Questions
Which operators? How are they partitioned?
Watermarks?
Triggers?

SLIDE 23

23

Possible Implementation

Streaming operator
Receives both streams
Partitioned by ad_ID
Join by ad_ID and return <ad_ID, user_ID, ad_time>
Windowing: session
When an ad appears, gather all clicks for 5 minutes
Watermarks
Both input streams emit a low watermark every second
Earliest low watermark triggers the window
Triggers: aggregate and retract
