Mission Resilience & Sustainability Training Water 202: Turning Audits and CEWWEs into Successful Projects Presented By: Varun Sood 63 rd Readiness Division Emily Wendel - PNNL Kate McMordie Stoughton PNNL Brian Boyd - PNNL

slide-1
SLIDE 1
  • Leadership. Energy. Execution.

UNCLASSIFIED / FOUO

1

07 OCT 2017

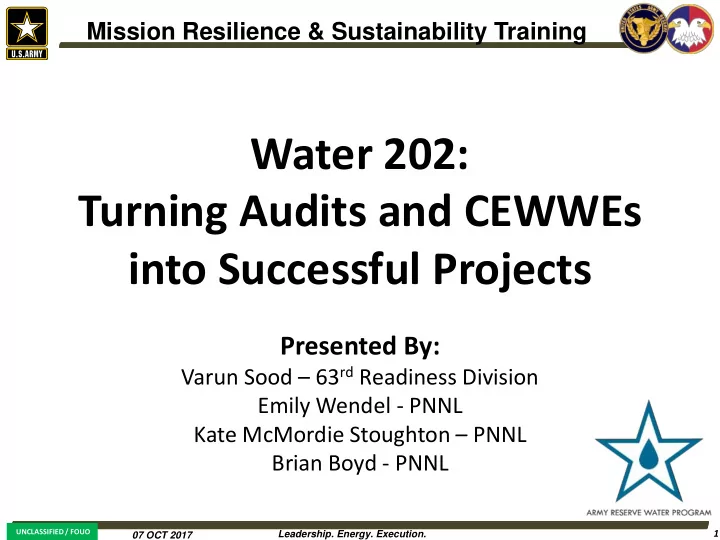

Water 202: Turning Audits and CEWWEs into Successful Projects

Mission Resilience & Sustainability Training

Presented By:

Varun Sood – 63rd Readiness Division Emily Wendel - PNNL Kate McMordie Stoughton – PNNL Brian Boyd - PNNL

slide-2
SLIDE 2
  • Leadership. Energy. Execution.

UNCLASSIFIED / FOUO

2

07 OCT 2017

Speakers

  • Emily Wendel
  • Pacific Northwest National Laboratory
  • Building Performance Evaluation

Technical Team Lead

  • Emily.Wendel@pnnl.gov
  • Varun Sood
  • Sain Engineering Associates, Inc.
  • Resource Efficiency Manager
  • 63rd Readiness Division
  • Varun.Sood.ctr@mail.mil
slide-3
SLIDE 3
  • Leadership. Energy. Execution.

UNCLASSIFIED / FOUO

3

07 OCT 2017

Speakers

  • Kate McMordie Stoughton
  • Pacific Northwest National Laboratory
  • Engineer – Water Team Lead
  • Katherine.McMordieStoughton@pnl.gov
  • Brian Boyd
  • Pacific Northwest National Laboratory
  • Engineer
  • brian.boyd@pnnl.gov
slide-4
SLIDE 4
  • Leadership. Energy. Execution.

UNCLASSIFIED / FOUO

4

07 OCT 2017

Learning Objectives

  • This session will address these questions:
  • What are the greatest challenges and opportunities for water

projects for each Installation and RSC?

  • Which types of projects are typically the most cost effective

for the Army Reserve?

  • How do I calculate the correct water rate for each project

type?

  • What resources are available for standardizing water

efficiency projects across a region or installation?

slide-5
SLIDE 5
  • Leadership. Energy. Execution.

UNCLASSIFIED / FOUO

5

07 OCT 2017

Project Challenges

Lo Low SIR w SIR

Lack of Command Interest Lack of Opportunities

Using Other Funding

Don’t Get Funded

Not My Area

  • f Expertise

Low Priority

slide-6
SLIDE 6
  • Leadership. Energy. Execution.

UNCLASSIFIED / FOUO

6

07 OCT 2017

What are the largest challenges to successfully completing water projects at your RSC or Installation?

slide-7
SLIDE 7
  • Leadership. Energy. Execution.

UNCLASSIFIED / FOUO

7

07 OCT 2017

Varun Sood

63rd Readiness Division

slide-8
SLIDE 8
  • Leadership. Energy. Execution.

UNCLASSIFIED / FOUO

8

07 OCT 2017

Why Develop Water Projects?

  • Aging Infrastructure
  • Population Growth
  • Regional Droughts
  • Increasing Utility Rates
slide-9
SLIDE 9
  • Leadership. Energy. Execution.

UNCLASSIFIED / FOUO

9

07 OCT 2017

Water Audit

  • Use a proper checklist to document existing

equipment and usage patterns

– Take pictures of nameplate data – Interview facility maintenance staff

  • Use proper tools to document information

such as flow rates or building water pressure

– Water pressure gauge – Water flow bag – Leak detection tablets

slide-10
SLIDE 10
  • Leadership. Energy. Execution.

UNCLASSIFIED / FOUO

10

07 OCT 2017

Water Audit Checklist

slide-11
SLIDE 11
  • Leadership. Energy. Execution.

UNCLASSIFIED / FOUO

11

07 OCT 2017

Water Audit Checklist

slide-12
SLIDE 12
  • Leadership. Energy. Execution.

UNCLASSIFIED / FOUO

12

07 OCT 2017

Audit Tools

slide-13
SLIDE 13
  • Leadership. Energy. Execution.

UNCLASSIFIED / FOUO

13

07 OCT 2017

Water Balance

  • Use the data from the walkthrough to perform

an end use analysis

slide-14
SLIDE 14
  • Leadership. Energy. Execution.

UNCLASSIFIED / FOUO

14

07 OCT 2017

Identify Potential Projects

  • Plumbing Retrofits
  • Fix Water Leaks
  • Install Smart Meters
  • Reduce Irrigation Use
  • Rainwater Harvesting
  • Vehicle Wash Recycling
  • Reduce Sewer Charges ($ Savings)
  • Reduce fixed meter charges ($ savings)
slide-15
SLIDE 15
  • Leadership. Energy. Execution.

UNCLASSIFIED / FOUO

15

07 OCT 2017

How to Fund Projects

  • QUTM Funds
  • ERCIP Projects
  • SRM Projects
  • PM Contractor & GPC Purchase
  • 3rd party financing – bundle with energy
slide-16
SLIDE 16
  • Leadership. Energy. Execution.

UNCLASSIFIED / FOUO

16

07 OCT 2017

63d Division Initiative #1 Standardizing Plumbing Equipment

slide-17
SLIDE 17
  • Leadership. Energy. Execution.

UNCLASSIFIED / FOUO

17

07 OCT 2017

Objective

  • Create a standardized plumbing equipment

specification for the entire region

  • Specify water flow rate requirements and use

proven technologies

  • Eliminate expensive replacement parts and

reduce equipment failures

  • Save water and O&M costs
slide-18
SLIDE 18
  • Leadership. Energy. Execution.

UNCLASSIFIED / FOUO

18

07 OCT 2017

Toilets and Urinals

  • Flushometer Toilet Replacement

– Max flow rate of 1.28 gallons per flush

  • Tank-type Toilet Replacement

– Install pressure-assisted WaterSense labeled toilet – Max flow rate of 1.0 gallon per flush

  • Urinal Replacement

– WaterSense labeled fixtures – Max flow rate of 0.13 gallons per flush

slide-19
SLIDE 19
  • Leadership. Energy. Execution.

UNCLASSIFIED / FOUO

19

07 OCT 2017

Flush Valve Specification

  • Install piston type flush valves

and eliminate the use of diaphragm valves

  • Eliminate the use of battery

powered or electronic flush valves to reduce maintenance

  • Eliminate flush volume

adjustments

slide-20
SLIDE 20
  • Leadership. Energy. Execution.

UNCLASSIFIED / FOUO

20

07 OCT 2017

Diaphragm vs. Piston

Bypass orifice can become clogged, which causes long flush cycles and water waste

slide-21
SLIDE 21
  • Leadership. Energy. Execution.

UNCLASSIFIED / FOUO

21

07 OCT 2017

Restroom Lavatories

  • Install tamper proof faucet aerators
  • Max flow rates for public restrooms:

– Manual faucets – 0.5 gallons per minute – Automatic faucets – 0.25 gallons per cycle (retrofits only)

  • Max flow rates for private restrooms:

– 1.5 gallons per minute – WaterSense labeled faucet aerators

  • Eliminate battery powered and electronic

faucets

slide-22
SLIDE 22
  • Leadership. Energy. Execution.

UNCLASSIFIED / FOUO

22

07 OCT 2017

Showerheads

  • Install WaterSense labeled products only
  • Install tamper proof showerheads
  • Max flow rate of 2.0 gallons per minute
  • Eliminate showerhead flow rate adjustment
slide-23
SLIDE 23
  • Leadership. Energy. Execution.

UNCLASSIFIED / FOUO

23

07 OCT 2017

63d Division Initiative #2 Reduce Irrigation Costs

slide-24
SLIDE 24
  • Leadership. Energy. Execution.

UNCLASSIFIED / FOUO

24

07 OCT 2017

Objective

  • Started the initiative in response to the CA

drought and increasing water fees

slide-25
SLIDE 25
  • Leadership. Energy. Execution.

UNCLASSIFIED / FOUO

25

07 OCT 2017

Advantages

  • Xeriscape/native landscape projects help

reduce water consumption

  • Reduction in grounds maintenance costs
  • Visually attractive landscapes
  • Drought tolerant
slide-26
SLIDE 26
  • Leadership. Energy. Execution.

UNCLASSIFIED / FOUO

26

07 OCT 2017

Scope of Work

  • Remove existing grass turf and plants that

require constant irrigation

  • Provide chemical treatment, weed fabric,

trimming and clearing

  • Install new landscape consisting of river rock,

boulders, artificial turf and native plant species

  • Install drip irrigation (if necessary)
slide-27
SLIDE 27
  • Leadership. Energy. Execution.

UNCLASSIFIED / FOUO

27

07 OCT 2017

Project Funding

  • SRM Funds

– Four (4) projects completed

  • QUTM Funds

– One (1) funded project – One (1) unfunded project

  • MILCON Program

– Two (2) projects under construction – Three (3) projects in design phase

slide-28
SLIDE 28
  • Leadership. Energy. Execution.

UNCLASSIFIED / FOUO

28

07 OCT 2017

Project Examples

slide-29
SLIDE 29
  • Leadership. Energy. Execution.

UNCLASSIFIED / FOUO

29

07 OCT 2017

Helpful Links

  • FEMP Water Efficiency Resources:

– http://energy.gov/eere/femp/best-management- practices-water-efficiency

  • EPA Resources:

– http://www.epa.gov/watersense/

  • PNNL Resources:

– http://sustainable.pnnl.gov/water.stm

  • Alliances for Water Efficiency:

– http://www.allianceforwaterefficiency.org/

slide-30
SLIDE 30
  • Leadership. Energy. Execution.

UNCLASSIFIED / FOUO

30

07 OCT 2017

Emily Wendel

Pacific Northwest National Laboratory

slide-31
SLIDE 31
  • Leadership. Energy. Execution.

UNCLASSIFIED / FOUO

31

07 OCT 2017

Evaluation Program Directives

Energy Independence and Security Act (EISA) of 2007 Section 432 and the Army Comprehensive Energy and Water Evaluations (CEWE) Policy (23 Aug 2012) requires the Commands to: 1. Evaluate 75% of installation’s energy and water every 4 years (floor area may be used as a proxy)

  • At least 25% of facilities evaluated per year

2. Conduct comprehensive energy and water evaluations that must include:

  • Energy and water retrofit measures
  • Re- or retro-commissioning measures
slide-32
SLIDE 32
  • Leadership. Energy. Execution.

UNCLASSIFIED / FOUO

32

07 OCT 2017

Net Zero CEWWE

Controls Focused CEWWE Standard CEWWE

Remote Controls Evaluation

Desk Eval.

5 Types of Facility Evaluations

On-Site Remote

slide-33
SLIDE 33
  • Leadership. Energy. Execution.

UNCLASSIFIED / FOUO

33

07 OCT 2017

Water’s Role in each CEWWE Type

  • Net Zero: Deep water retrofits, conservation, and

alternative water

  • Controls Focused: Newer buildings, so plumbing

focused

  • Standard: Plumbing, irrigation and rainwater

harvesting for vehicle wash

  • Remote Controls: Interval meter analysis and

benchmarking usage combined with occupancy data from controls

  • Desk: Interval meter analysis and benchmarking

usage, reviews of past projects implemented and/or identified

slide-34
SLIDE 34
  • Leadership. Energy. Execution.

UNCLASSIFIED / FOUO

34

07 OCT 2017

Overall ARIMD CEWWE Program Impact (FY14-17)

150 sites

$75M in projects 38% of SF

Energy

21% avg. savings per evaluation 10% savings for USAR

  • verall

Water

25% avg. savings per evaluation 6% savings for USAR

  • verall

Waste

47 sites evaluated Recycling program improvements

slide-35
SLIDE 35
  • Leadership. Energy. Execution.

UNCLASSIFIED / FOUO

35

07 OCT 2017

Water Conservation Savings and Investment Costs by Region

Overall Use, Mgal Water Conservation Potential Investment, $k Mgal % of RSC Use $k

63rd

30 2.6 9% 53 580

81st

39 2.0 5% 23 259

88th

93 9.1 10% 42 524

99th

14 0.2 2% 3 23

Water Conservation Opportunity

slide-36
SLIDE 36
  • Leadership. Energy. Execution.

UNCLASSIFIED / FOUO

37

07 OCT 2017

FY17 Water Conservation Potential

slide-37
SLIDE 37
  • Leadership. Energy. Execution.

UNCLASSIFIED / FOUO

38

07 OCT 2017

FY16 Water Conservation Potential

slide-38
SLIDE 38
  • Leadership. Energy. Execution.

UNCLASSIFIED / FOUO

39

07 OCT 2017

WUI Reduction (kgal/SF)

slide-39
SLIDE 39
  • Leadership. Energy. Execution.

UNCLASSIFIED / FOUO

40

07 OCT 2017

Economics by Region

Region Standalone Projects Overall SPP Overall SIR 88th 48% 12.5 1.0 99th 69% 8.2 1.5 81st 52% 10.8 1.1 63rd 52% 11.5 1.0

slide-40
SLIDE 40
  • Leadership. Energy. Execution.

UNCLASSIFIED / FOUO

41

07 OCT 2017

Economics by Measure

Retrofit Type Standalone Projects Overall SPP Overall SIR Faucets 89% 1.3 9.5 Showers 70% 3.8 3.1 Urinals 10% 23.8 0.5 Toilets 14% 20.0 0.6 Other 23% 7.4 1.6

slide-41
SLIDE 41
  • Leadership. Energy. Execution.

UNCLASSIFIED / FOUO

42

07 OCT 2017

LCCA Calculations

  • Economic Life: 15 years
  • Utility rates
  • Region
  • Water billing

W S MW NE

Plumbing Tool Specific Inputs

  • Occupant schedule
  • Fixture types/counts
  • Fixture operating

parameters (flowrates) Irrigation Tool Specific Inputs

  • Landscape type/area
  • Observed appearance
  • Irrigation season
  • Irrigation system

General Inputs

slide-42
SLIDE 42
  • Leadership. Energy. Execution.

UNCLASSIFIED / FOUO

43

07 OCT 2017

Economics

  • Simple Payback Period
  • SIR

Water Life Cycle Cost Analysis

Investment Costs

  • Design
  • Labor
  • Equipment
  • Overhead

Utility Savings

  • Electric, Natural Gas
  • Water
  • $ Savings

1391

Discount Factor O&M Savings

slide-43
SLIDE 43
  • Leadership. Energy. Execution.

UNCLASSIFIED / FOUO

44

07 OCT 2017

Example 1

Using a Blended Rate for Water Analysis

Water Use Water Cost Blended Rate Estimate ($/kgal) 10 79.25 7.925

Sample bill Water Tariff

Use, kgal Cost, $ Blended Rate 2 $17.36 $8.68 3 $18.93 $6.31 14 $36.20 $2.59 Use, kgal Cost, $ Marginal Rate 2 $3.14 $1.57 3 $4.71 $1.57 14 $21.98 $1.57

Example 2 Total $ / Total Use Removing meter fees

slide-44
SLIDE 44
  • Leadership. Energy. Execution.

UNCLASSIFIED / FOUO

45

07 OCT 2017

Tips & Tricks, Common LCCA mistakes 2. When to use sewer rate (Yes for plumbing, No for irrigation, vehicle wash, cooling towers) 3. Not capturing O&M impact for alternative water 1. Misinterpreting units from water bills (CCF vs. kgal?) 4. Estimating savings way too high or way too low 5. Large amount of water unaccounted for

slide-45
SLIDE 45
  • Leadership. Energy. Execution.

UNCLASSIFIED / FOUO

46

07 OCT 2017

  • Ways to bundle water projects
  • Across sites
  • Within a site/building

Project Development: Bundling Water

Measure Category Total Savings ($/yr) Investment ($) Simple Payback (yr) SIR Building Envelope $4,784 $18,776 3.9 1.3 Controls $7,440 $12,666 1.7 1.2 Lighting $70,011 $1,087,449 15.5 1.0 Plumbing 1,835 107,686 58.7 0.2 Irrigation $10,042 $66,083 6.6 1.8 Other $413 $1,056 2.6 3.5 Total $94,525 $1,293,716 13.7 1.02

slide-46
SLIDE 46
  • Leadership. Energy. Execution.

UNCLASSIFIED / FOUO

47

07 OCT 2017

FY18-24 QUTM/POM Projects

5 10 15 20 25 20 40 60 80 100 120 Water Savings, kgal # of Projects # of Projects Water Savings

slide-47
SLIDE 47
  • Leadership. Energy. Execution.

UNCLASSIFIED / FOUO

48

07 OCT 2017

  • PNNL can QA simple projects and can help

develop more complicated projects Project Development

slide-48
SLIDE 48
  • Leadership. Energy. Execution.

UNCLASSIFIED / FOUO

49

07 OCT 2017

Roundtable Discussion

  • What are the largest challenges you face on

water projects?

  • What are the largest opportunities you have
  • n water projects?
  • What do you wish you could tell yourself one

year ago?
