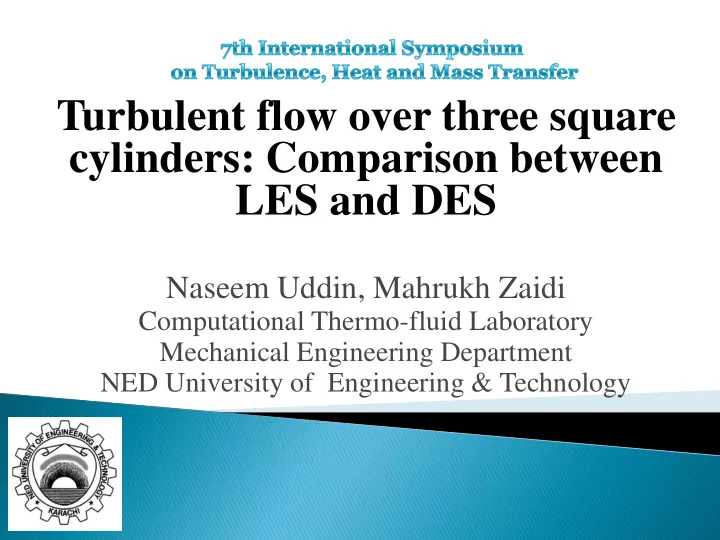

Turbulent flow over three square cylinders: Comparison between LES and DES

Naseem Uddin, Mahrukh Zaidi

Computational Thermo-fluid Laboratory Mechanical Engineering Department NED University of Engineering & Technology

• Introduction
• Some Applications
• Problem definition
• Computational Setup
• Results
• Conclusion
• N. Uddin, M. Zaidi

2

• Flow separates
• Vortices formed
• Lift (L) and Drag (D) produces
• Vibration induces

NED Universi sity ty of Engineer eering ng and T Technolog

• gy,

, Pakista tan

3

• N. Uddin, M. Zaidi

Streamline plot from LDV Time and spanwise average streamlines from LES

• Experimental
• Lyn et al. (1995)
• Numerical
• Sohankar (2006)

NED Universi sity ty of Engineer eering ng and T Technolog

• gy,

, Pakista tan

4

• N. Uddin, M. Zaidi

Instantaneous vorticity contours for the tandem square cylinders

• Numerical
• Etminan et al. (2011)
• Numerical
• Nazari et al. (2009)

5

NED Universi sity ty of Engineer eering ng and T Technolog

• gy,

, Pakista tan

5

• N. Uddin, M. Zaidi

• Stacks
• Tall buildings

(skyscrapers) in a city

NED University of Engineering and Technology, Pakistan

NED Universi sity ty of Engineer eering ng and T Technolog

• gy,

, Pakista tan

6

• N. Uddin, M. Zaidi

• Pipelines
• Electrical transmission

lines

• Bundles of tube in heat

exchanger

NED Universi sity ty of Engineer eering ng and T Technolog

• gy,

, Pakista tan

7

• N. Uddin, M. Zaidi

• Computational Domain
• Domain Size
• 40w × 16w × 4w
• Computational Grid
• Hexahedral grids
• LES: 6.3 million
• DES: 3.2 million

NED Universi sity ty of Engineer eering ng and T Technolog

• gy,

, Pakista tan

8

• N. Uddin, M. Zaidi

• INLET: Uniform Velocity inlet
• WALLS: No-slip at cylinder walls and top and bottom

walls of domain

• WALLS: Periodic boundary conditions in spanwise

direction

• For LES (Large Eddy Simulation)
• OUTLET: Convective outlet boundary condition
• For DES (Detached Eddy Simulation)
• OUTLET: Pressure outlet boundary condition

NED Universi sity ty of Engineer eering ng and T Technolog

• gy,

, Pakista tan

9

• N. Uddin, M. Zaidi

• Dynamic Smagorinsky model is used. (Germano)
• FASTEST (Flow Analysis Solving Transport Equations

Simulating Turbulence)

• Space Discretisation: 2nd Order (Central Difference)
• Time Discretisation: 2nd Order Implicit (Crank-Nicolson

Method)

• Coupling of pressure & velocity fields: SIMPLE Algorithm
• Computations on HP Pro-Liant cluster in Thermo-fluid

laboratory of Mechanical Engineering department of NED University of Engineering & Technology

NED Universi sity ty of Engineer eering ng and T Technolog

• gy,

, Pakista tan

10

• N. Uddin, M. Zaidi

• Spalart-Allmaras model is used
• Fluent ANSYS Inc. (version 12)
• Space Discretisation: 2nd Order (Central Difference)
• Time Discretisation: 2nd Order Implicit (Crank-Nicolson

Method)

• Coupling of pressure & velocity fields: SIMPLE Algorithm
• Computations on HP Pro-Liant cluster in Thermo-fluid

laboratory of Mechanical Engineering department of NED University of Engineering & Technology

NED Universi sity ty of Engineer eering ng and T Technolog

• gy,

, Pakista tan

11

• N. Uddin, M. Zaidi

12

NED Universi sity ty of Engineer eering ng and T Technolog

• gy,

, Pakista tan

12

• N. Uddin, M. Zaidi

13

NED Universi sity ty of Engineer eering ng and T Technolog

• gy,

, Pakista tan

13

• N. Uddin, M. Zaidi

NED Universi sity ty of Engineer eering ng and T Technolog

• gy,

, Pakista tan

14

• N. Uddin, M. Zaidi

NED Universi sity ty of Engineer eering ng and T Technolog

• gy,

, Pakista tan

15

• N. Uddin, M. Zaidi

16

NED Universi sity ty of Engineer eering ng and T Technolog

• gy,

, Pakista tan

16

• N. Uddin, M. Zaidi

17

NED Universi sity ty of Engineer eering ng and T Technolog

• gy,

, Pakista tan

17

• N. Uddin, M. Zaidi

• The flow field over square cylinders is very complex due to

inherent flow unsteadiness and anisotropy.

• There are distinct coherent structures present in the separated flow

regions which are undulating in time and space.

• DES is capable of capturing 3D complex flow generated in the

wake of bluff bodies while consuming less time and computing resources as compared to LES.

• For the wall-to-wall spacing of 6w between the cylinders, the

drag coefficient and Strouhal number on the first square cylinder are similar to that of the experimental findings of Lyn et al. (1995) for the case of flow over single square cylinder.

NED Universi sity ty of Engineer eering ng and T Technolog

• gy,

, Pakista tan

18

• N. Uddin, M. Zaidi
