Trigger for Phase 1 Marco Bellato, Fabio Montecassiano, Andrea Triossi, Sandro Ventura CMS Week, CERN, 11 Nov 2012 1 DT Layout after Relocation UXC USC Cu OF Sector Server Board DTTF OF Cu Collector TwinMux DTTF No schedule

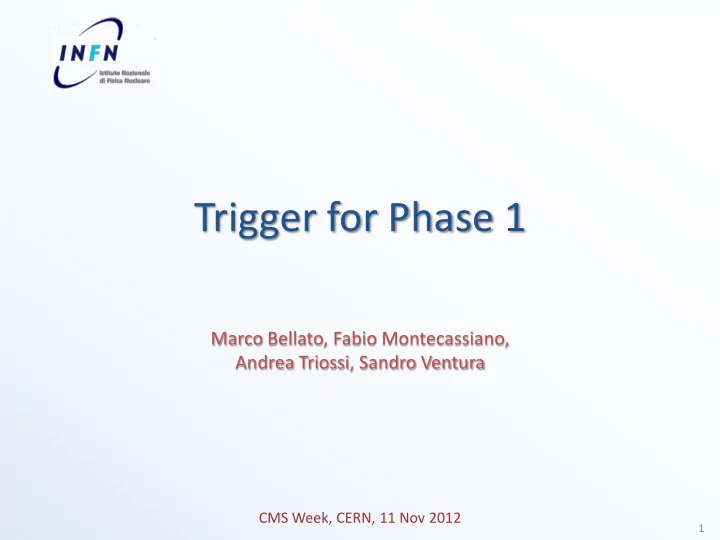

slide-1
SLIDE 1

Trigger for Phase 1

CMS Week, CERN, 11 Nov 2012

Marco Bellato, Fabio Montecassiano, Andrea Triossi, Sandro Ventura

1

slide-2
SLIDE 2

DT Layout after Relocation

Server Board Cu OF OF Cu Sector Collector TwinMux DTTF µDTTF Schedule: 2015 – validation on a slice 2016 – full deployment USC UXC

  • No schedule interference for achieving

validation tests

  • Backward compatible with old SC links

2

slide-3
SLIDE 3
  • 2 sectors served per card (64x480Mbps ≈ 30Gbps)
  • 2x10Gbps links needed per sector to ship all data
  • 3 copies of links for redundancy

6 links per sector 12 links total

TwinMux I/O Requirement

  • 2 sectors served per card
  • 64x480Mbps LVDS pairs from minicrate
  • 12x1.6Gbps GOL links from old SC

TwinMux input link count TwinMux output link count

3

slide-4
SLIDE 4

KINTEX-7 SNAP12 RX GTX Sele ctIO GTX

TwinMux

De-mux Level Translator CML to LVDS SNAP12 TX

Input: Max Output: 64 @ 480Mbps from CUOF

  • r

12 @ 1.6Gbps from SC 12 @ 10Gbps to DTTF

JDSU PL-RCP-02-S53-11 Micrel SY58024U Micrel SY55855V Xilinx XC7K355T Avago AFBR-810

30 µTCA 1-slot board 6 front panel SNAP12 RX and 1 TX on the back (no rear transition module)

4

slide-5
SLIDE 5
  • D. Acosta

5

slide-6
SLIDE 6
  • D. Acosta

6

slide-7
SLIDE 7

Full DT Trigger Chain

.....

64 Twin Mux

.....

64

. . . . .

480 Mbps 80 bit/BX 640 bit/BX Twin Mux Tracker (phase II) RPC µDTTF

. . . . .

30 boards 12 boards GMT 2x6.4 Gbps 192 Gbps 4800 bit/BX 740 Gbps 72 Transceivers µDTTF µDTTF µDTTF µDTTF µDTTF SP CSCTF MP7 820 Gbps 80 Transceivers

7

slide-8
SLIDE 8

Bit Signal Name Signal Function 0 - 11 PHI_ST1a_0 - PHI_ST1a_11 12 bit Phi (Position) of Station #n UP 12 - 21 PHIB_ST1a_0 - PHIB_ST1a_9 10 bit Phi_b (Bending Angle) of Station #n UP 22 - 24 Q_ST1a_0 - Q_ST1a_2 3 bit Quality of Station #n UP 25 TSTAG_ST1a 1 bit Second TS Tag of Station #n UP 26 CCB_RDY_ST1a ccb_ready Station #n UP 27 CALSIG_ST1a 1 bit Control (Calibration Data) of Station #n UP 28 BC0_ST1a Bunch Crossing Zero Bit Station #n UP 29 PAR_ST1a Parity over data from Station #n UP 30 - 37 ETA_HIT_ST1_0 - ETA_HIT_ST1_7 8 Eta hit bits of Station #n 38 - 39 BXCNT_ST1a_0, BXCNT_ST1a_1 2 bit BX Counter LSbits of Station #n 40 - 51 PHI_ST1b_0 - PHI_ST1b_11 12 bit Phi (Position) of Station #n DOWN 52 - 61 PHIB_ST1b_0 - PHIB_ST1b_9 10 bit Phi_b (Bending Angle) of Station #n DOWN 62 - 64 Q_ST1b_0 - Q_ST1b_2 3 bit Quality of Station #n DOWN 65 TSTAG_ST1b 1 bit Second TS Tag of Station #n DOWN 66 CCB_RDY_ST1b ccb_ready Station #n DOWN 67 CALSIG_ST1b 1 bit Control (Calibration Data) of Station #n DOWN 68 BC0_ST1b Bunch Crossing Zero Bit Station #n DOWN 69 PAR_ST1b Parity over data from Station #n DOWN 70 - 77 ETA_Q_ST1_0 - ETA_Q_ST1_7 8 Eta quality bits of Eta Station #n 78 BC0_ST1b BC0 signal bit of Eta Station #n 79 TRG_ST1 Trigger bit of Station #n Bit Station #n 0 - 79 1 80 - 159 2 160 - 239 3 240- 319 4

Data Structure

8

slide-9
SLIDE 9
  • 29x1.6Gbps GOL links per wedge 348 input links in total
  • 6 to 1 links mux 5x9.6Gbps links per wedge
  • 3 copies of links for redundancy

15 links per wedge 180 links total

Common Developments

RPC link count

  • 10Gbps lane on backplane to AMC13?
  • Virtex?

ROS?

9
