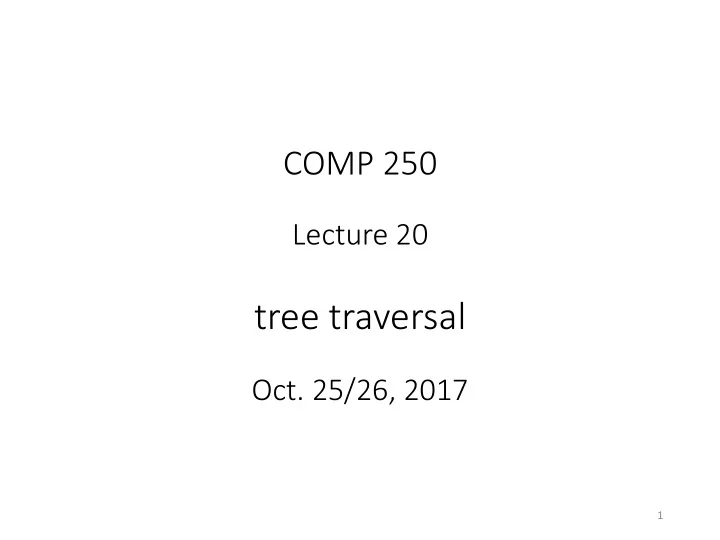

SLIDE 1
1
COMP 250
Lecture 20
tree traversal
- Oct. 25/26, 2017
2
tree traversal Oct. 25/26, 2017 1 2 Tree Traversal How to visit - - PowerPoint PPT Presentation
tree traversal Oct. 25/26, 2017 1 2 Tree Traversal How to visit - - PowerPoint PPT Presentation
COMP 250 Lecture 20 tree traversal Oct. 25/26, 2017 1 2 Tree Traversal How to visit (enumerate, iterate through, traverse ) all the nodes of a tree ? 3 depthfirst (root){ // preorder if (root is not empty){ visit root for each
SLIDE 2
SLIDE 3
Tree Traversal
3
How to visit (enumerate, iterate through, traverse… ) all the nodes
- f a tree ?
SLIDE 4
depthfirst (root){ // “preorder” if (root is not empty){ visit root for each child of root depthfirst( child ) } }
1
4
SLIDE 5
depthfirst (root){ // “preorder” if (root is not empty){ visit root for each child of root depthfirst( child ) } }
1
2 3
5
SLIDE 6
depthfirst (root){ // “preorder” if (root is not empty){ visit root for each child of root depthfirst( child ) } }
1
2 3 4 5
6
SLIDE 7
depthfirst (root){ // “preorder” if (root is not empty){ visit root for each child of root depthfirst( child ) } }
1
2 7 8 11 3 4 10 9 5 6
7
SLIDE 8
Preorder Traversal
e.g. Printing a directory (visit = print)
8
Documents (directory) Music (directory) Eminem (directory) Lose Yourself (file) Raffi (directory) Shake My Sillies Out (file) Baby Beluga (file) Videos (directory) : (file) Work (directory) COMP250 (directory) : Research (directory) :
My Documents
Music Videos Work Raffi Eminem
COMP 250 Lose Yourself Baby Beluga Shake my sillies out
Research
SLIDE 9
“Visit” implies that you do something at that node. Analogy: you aren’t visiting London UK if you just fly through Heathrow.
9
SLIDE 10
depthfirst (root){ // “postorder” if (root is not empty){ for each child of root depthfirst( child ) visit root } }
10
Q: Which node is visited first?
SLIDE 11
depthfirst (root){ // “postorder” if (root is not empty){ for each child of root depthfirst( child ) visit root } }
1
11
SLIDE 12
depthfirst (root){ // “postorder” if (root is not empty){ for each child of root depthfirst( child ) visit root } }
1 2
12
SLIDE 13
depthfirst (root){ // “postorder” if (root is not empty){ for each child of root depthfirst( child ) visit root } }
5 1 4 2 3
13
SLIDE 14
depthfirst (root){ // “postorder” if (root is not empty){ for each child of root depthfirst( child ) visit root } }
11 5 6 10 9 1 4 8 7 2 3
14
SLIDE 15
height(v){
if (v is a leaf) return 0 else{ h = 0 for each child w of v h = max(h, height(w)) return 1 + h } }
4
2 1 3 1 1 2 1
Example 1 postorder: recall last lecture
15
visit = return value of height
SLIDE 16
Example 2 Postorder: What is the total number of bytes in all files in a directory?
16
SLIDE 17
numBytes(root){ if root is a leaf return number of bytes at root else { sum = 0 for each child of root{ sum += numBytes(child) } return sum } }
By ‘visit’ here, we mean determining the number of bytes for a node, e.g. If we were to store ‘sum’ at the node.
17
SLIDE 18
a
b g h k c d j i e f NOTE: Same call sequence occurs for preorder vs postorder. Letter order corresponds to depthfirst() call order
18
SLIDE 19
a
b g h k c d j i e f
Call stack for depthfirst()
e f c d d d d d i j k b b b b b b b b b g h h h h h h h a a a a a a a a a a a a a a a a a a a a a
19
SLIDE 20
a
b g h k c d j i e f
Call stack for depthfirst()
e f c d d d d d i j k b b b b b b b b b g h h h h h h h a a a a a a a a a a a a a a a a a a a a a
20
SLIDE 21
a
b g h k c d j i e f
Call stack for depthfirst()
e f c d d d d d i j k b b b b b b b b b g h h h h h h h a a a a a a a a a a a a a a a a a a a a a
21
SLIDE 22
a
b g h k c d j i e f
Call stack for depthfirst()
e f c d d d d d i j k b b b b b b b b b g h h h h h h h a a a a a a a a a a a a a a a a a a a a a
22
SLIDE 23
Tree traversal
Recursive
- depth first (pre- versus post-order)
Non-Recursive
- using a stack
- using a queue
23
SLIDE 24
treeTraversalUsingStack(root){ initialize empty stack s s.push(root) while s is not empty { cur = s.pop() visit cur // moving ‘visit cur’ to be for each child of cur // after for loop s.push(child) // changes nothing } }
24
SLIDE 25
treeTraversalUsingStack(root){ initialize empty stack s s.push(root) while s is not empty { cur = s.pop() visit cur } }
25
SLIDE 26
treeTraversalUsingStack(root){ initialize empty stack s s.push(root) while s is not empty { cur = s.pop() visit cur for each child of cur s.push(child) } }
26
SLIDE 27
27
What is the order of nodes visited ?
SLIDE 28
a
b g h k c d j i e f
k j j j h i i i i i f g g g g g g g g g d e e e a _ b b b b b b b b b b b _ c c c c c c c _ treeTraversalUsingStack(root){ initialize empty stack s s.push(root) while s is not empty { cur = s.pop() visit cur for each child of cur s.push(child) } }
28
SLIDE 29
a
b g h k c d j i e f
k j j j h i i i i i f g g g g g g g g g d e e e a _ b b b b b b b b b b b _ c c c c c c c _ treeTraversalUsingStack(root){ initialize empty stack s s.push(root) while s is not empty { cur = s.pop() visit cur for each child of cur s.push(child) } }
29
SLIDE 30
a
b g h k c d j i e f
k j j j h i i i i i f g g g g g g g g g d e e e a _ b b b b b b b b b b b _ c c c c c c c _ treeTraversalUsingStack(root){ initialize empty stack s s.push(root) while s is not empty { cur = s.pop() visit cur for each child of cur s.push(child) } }
30
SLIDE 31
a
b g h k c d j i e f
k j j j h i i i i i f g g g g g g g g g d e e e a _ b b b b b b b b b b b _ c c c c c c c _ treeTraversalUsingStack(root){ initialize empty stack s s.push(root) while s is not empty { cur = s.pop() visit cur for each child of cur s.push(child) } }
31
SLIDE 32
a
b g h k c d j i e f
k j j j h i i i i i f g g g g g g g g g d e e e a _ b b b b b b b b b b b _ c c c c c c c _ treeTraversalUsingStack(root){ initialize empty stack s s.push(root) while s is not empty { cur = s.pop() visit cur for each child of cur s.push(child) } }
32
SLIDE 33
a
b g h k c d j i e f
k j j j h i i i i i f g g g g g g g g g d e e e a _ b b b b b b b b b b b _ c c c c c c c _ treeTraversalUsingStack(root){ initialize empty stack s s.push(root) while s is not empty { cur = s.pop() visit cur for each child of cur s.push(child) } }
33
SLIDE 34
a
b g h k c d j i e f
k j j j h i i i i i f g g g g g g g g g d e e e a _ b b b b b b b b b b b _ c c c c c c c _ treeTraversalUsingStack(root){ initialize empty stack s s.push(root) while s is not empty { cur = s.pop() visit cur for each child of cur s.push(child) } }
34
SLIDE 35
a
b g h k c d j i e f
k j j j h i i i i i f g g g g g g g g g d e e e a _ b b b b b b b b b b b _ c c c c c c c _ treeTraversalUsingStack(root){ initialize empty stack s s.push(root) while s is not empty { cur = s.pop() visit cur for each child of cur s.push(child) } }
35
SLIDE 36
a
b g h k c d j i e f
k j j j h i i i i i f g g g g g g g g g d e e e a _ b b b b b b b b b b b _ c c c c c c c _ treeTraversalUsingStack(root){ initialize empty stack s s.push(root) while s is not empty { cur = s.pop() visit cur for each child of cur s.push(child) } }
36
SLIDE 37
a
b g h k c d j i e f
k j j j h i i i i i f g g g g g g g g g d e e e a _ b b b b b b b b b b b _ c c c c c c c _ treeTraversalUsingStack(root){ initialize empty stack s s.push(root) while s is not empty { cur = s.pop() visit cur for each child of cur s.push(child) } }
37
SLIDE 38
a
b g h k c d j i e f
recursive abcdefghijk non-recursive (stack) ahkjigbdfec
Stack based method is depth first, but visits children from right to left
38
SLIDE 39
Pre- or post order?
39
treeTraversalUsingStack(root){ initialize empty stack s s.push(root) while s is not empty { cur = s.pop() visit cur for each child of cur s.push(child) visit cur } } Moving the visit does not make it post order. Why not?
SLIDE 40
treeTraversalUsingQueue(root){ initialize empty queue q q.enqueue(root) while q is not empty { cur = q.dequeue() visit cur for each child of cur q.enqueue(child) } } treeTraversalUsingStack(root){ initialize empty stack s s.push(root) while s is not empty { cur = s.pop() visit cur for each child of cur s.push(child) } }
What if we use a queue instead?
40
SLIDE 41
a
b c d i e f h g j k
a
Queue state at start of the while loop
treeTraversalUsingQueue(root){ initialize empty queue q q.enqueue(root) while q is not empty { cur = q.dequeue() visit cur for each child of cur q.enqueue(child) } }
41
SLIDE 42
a
b c d i e f h g j k
a b c d
Queue state at start of the while loop
treeTraversalUsingQueue(root){ initialize empty queue q q.enqueue(root) while q is not empty { cur = q.dequeue() visit cur for each child of cur q.enqueue(child) } }
42
SLIDE 43
a
b c d i e f h g j k
a b c d c d e f
Queue state at start of the while loop
treeTraversalUsingQueue(root){ initialize empty queue q q.enqueue(root) while q is not empty { cur = q.dequeue() visit cur for each child of cur q.enqueue(child) } }
43
SLIDE 44
a
b c d i e f h g j k
a b c d c d e f d e f
Queue state at start of the while loop
treeTraversalUsingQueue(root){ initialize empty queue q q.enqueue(root) while q is not empty { cur = q.dequeue() visit cur for each child of cur q.enqueue(child) } }
44
SLIDE 45
a
b c d i e f h g j k
a b c d c d e f d e f e f g h i
Queue state at start of the while loop
treeTraversalUsingQueue(root){ initialize empty queue q q.enqueue(root) while q is not empty { cur = q.dequeue() visit cur for each child of cur q.enqueue(child) } }
45
SLIDE 46
a
b c d i e f h g j k
a b c d c d e f d e f e f g h i f g h i g h i j k h i j k i j k j k k
treeTraversalUsingQueue(root){ initialize empty queue q q.enqueue(root) while q is not empty { cur = q.dequeue() visit cur for each child of cur q.enqueue(child) } }
46
SLIDE 47
breadth first traversal
a
b c d i e f h g j k
for each level i visit all nodes at level i
- rder visited: abcdefghijk
47
SLIDE 48
Implementation Details Recall: ‘first child, next sibling’
class TreeNode<T>{ T element; TreeNode<T> firstChild; TreeNode<T> nextSibling; : : } class Tree<T>{ TreeNode<T> root; : : }
48
SLIDE 49
49
