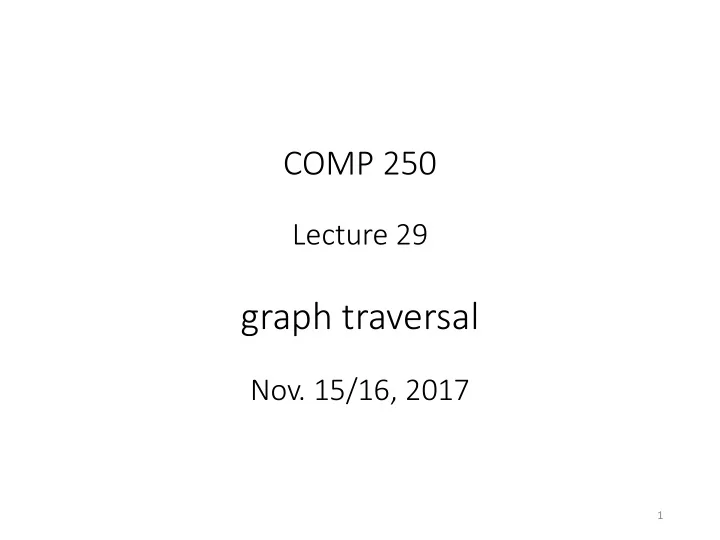

SLIDE 1
1
COMP 250
Lecture 29
graph traversal
- Nov. 15/16, 2017
Today
- Recursive graph traversal
- depth first
- Non-recursive graph traversal
- depth first
- breadth first
2
graph traversal Nov. 15/16, 2017 1 Today Recursive graph - - PowerPoint PPT Presentation
graph traversal Nov. 15/16, 2017 1 Today Recursive graph - - PowerPoint PPT Presentation
COMP 250 Lecture 29 graph traversal Nov. 15/16, 2017 1 Today Recursive graph traversal depth first Non-recursive graph traversal depth first breadth first 2 Heads up! There were a few mistakes in the slides for Sec. 001
SLIDE 2
SLIDE 3
3
Heads up! There were a few mistakes in the slides for Sec. 001 for today’s
- lecture. So if you are following
the lecture recordings and using these (corrected) slides, then you will notice some differences.
SLIDE 4
depthfirst__Tree (root){ if (root is not empty){ root.visited = true // “preorder” for each child of root depthfirst__Tree( child ) } }
Recall: tree traversal (recursive)
4
SLIDE 5
Graph traversal (recursive)
Need to specify a starting vertex. Visit all nodes that are “reachable” by a path from a starting vertex.
f g c d a e b h
5
SLIDE 6
depthFirst_Graph(v){ v.visited = true for each w such that (v,w) is in E // w in v.adjList _______?___________ }
Graph traversal (recursive)
6
// Here “visiting” just means “reaching”
SLIDE 7
depthFirst_Graph(v){ v.visited = true for each w such that (v,w) is in E // w in v.adjList if ! (w.visited) // avoids cycles depthFirst_Graph(w) }
Graph traversal (recursive)
7
// Here “visiting” just means “reaching”
SLIDE 8
b e f f f f f c c c c c c c a f g c d a e b h
Call Stack for depthFirst(a)
8
depthFirst_Graph(v){ v.visited = true for each w such that (v,w) is in E if ! (w.visited) depthFirst_Graph(w) }
SLIDE 9
b e f f f f f c a a f g c d a e b h
Call Stack for depthFirst(a)
9
depthFirst_Graph(v){ v.visited = true for each w such that (v,w) is in E if ! (w.visited) depthFirst_Graph(w) }
SLIDE 10
b e f c c a a a f g c d a e b h
Call Stack for depthFirst(a)
10
depthFirst_Graph(v){ v.visited = true for each w such that (v,w) is in E if ! (w.visited) depthFirst_Graph(w) }
SLIDE 11
b e f f f f f c c c c c c c a a a a a a a a a f g c d a e b h
Call Stack for depthFirst(a)
11
depthFirst_Graph(v){ v.visited = true for each w such that (v,w) is in E if ! (w.visited) depthFirst_Graph(w) }
SLIDE 12
b e f f f f f c c c c c c c a a a a a a a a a f g c d a e b h
Call Stack for depthFirst(a)
12
depthFirst_Graph(v){ v.visited = true for each w such that (v,w) is in E if ! (w.visited) depthFirst_Graph(w) }
SLIDE 13
Call Tree
13
f g c d a e b h
root
b e f f f f f c c c c c c c a a a a a a a a a
SLIDE 14
Example 2
14
g d a h e b i f c a - (b,d) b - (a,c,e) c - (b,f) d - (a,e,g) e - (b,d,f,h) f - (c,e,i) g - (d,h) h - (e,g,i) i - (f,h)
Adjacency List What is the call tree for depthFirst( a ) ?
SLIDE 15
Example 2
15
g d a h e b i f c g d a h e b i f c
call tree for depthFirst(a)
SLIDE 16
16
Q: Non-recursive graph traversal ? A: Similar to tree traversal: Use a stack or a queue.
SLIDE 17
Recall: depth first tree traversal
(with a slight variation)
17
treeTraversalUsingStack(root){ initialize empty stack s visit root s.push(root) while s is not empty { cur = s.pop() for each child of cur{ visit child s.push(child) } } } Visit a node before pushing it onto the stack. Every node in the tree gets visited, pushed, and then popped.
SLIDE 18
Generalize to graphs…
18
graphTraversalUsingStack(v){ initialize empty stack s v.visited = true s.push(v) while (!s.empty) { u = s.pop() for each w in u.adjList{ if (!w.visited){ // the only new part w.visited = true s.push(w) } } } }
SLIDE 19
Example: graphTraversalUsingStack(a)
19
a g d a h e b i f c
a
SLIDE 20
Example: graphTraversalUsingStack(a)
20
d a b g d a h e b i f c
d a b ‘a’ is popped and both ‘b’ and ‘d’ are pushed. The traversal defines a tree, but it is not a “call tree”. Why not?
SLIDE 21
Example: graphTraversalUsingStack(a)
21
g d a e b g d a h e b i f c
g d e ‘d’ is popped and both ‘e’ and ‘g’ are pushed. a b b
SLIDE 22
Example: graphTraversalUsingStack(a)
22
g d a e b g d a h e b i f c
g h d e e ‘g’ is popped and ‘h’ is pushed. a b b b
h
SLIDE 23
Example: graphTraversalUsingStack(a)
23
g d a e b g d a h e b i f c
g h i d e e e ‘h’ is popped and ‘i’ is pushed. a b b b b
h i
SLIDE 24
Example: graphTraversalUsingStack(a)
24
g d a e b g d a h e b i f c
g h i f d e e e e ‘i’ is popped and ‘f’ is pushed. a b b b b b
h i f
SLIDE 25
Example: graphTraversalUsingStack(a)
25
g d a e b g d a h e b i f c
g h i f c d e e e e e ‘f’ is popped and ‘c’ is pushed. a b b b b b b
h i f c
SLIDE 26
Example: graphTraversalUsingStack(a)
26
g d a e b g d a h e b i f c
g h i f c d e e e e e e a b b b b b b b b
h i f c
Order of nodes visited: abdeghifc
SLIDE 27
a
b c d i e f h g j k
treeTraversalUsingQueue(root){ initialize empty queue q q.enqueue(root) while q is not empty { cur = q.dequeue() visit cur for each child of cur q.enqueue(child) } }
Recall: breadth first tree traversal
(see lecture 20)
27
for each level i visit all nodes at level i
SLIDE 28
Breadth first graph traversal
28
Given an input vertex, find all vertices that can be reached by paths of length 1, 2, 3, 4, ….
SLIDE 29
Breadth first graph traversal
29
graphTraversalUsingQueue(v){ initialize empty queue q v.visited = true q.enqueue(v) while (! q.empty) { u = q.dequeue() for each w in u.adjList{ if (!w.visited){ w.visited = true q.enqueue(w) } } } }
SLIDE 30
Example
30
f c d a e b
graphTraversalUsingQueue(c)
queue c
SLIDE 31
Example
31
f c d a e b
graphTraversalUsingQueue(c)
queue c f
SLIDE 32
Example
32
f c d a e b
graphTraversalUsingQueue(c)
queue c f be
Both ‘b’, ‘e’ are visited and enqueued before ‘b’ is dequeued.
SLIDE 33
Example
33
f c d a e b
graphTraversalUsingQueue(c)
queue c f be e
SLIDE 34
34
f c d a e b
graphTraversalUsingQueue(c) It defines a tree whose root is the starting vertex. It finds the shortest path (number of vertices) to all vertices reachable from starting vertex.
SLIDE 35
Example: graphTraversalUsingQueue(a)
35
g d a h e b i f c a
1
SLIDE 36
Example: graphTraversalUsingQueue(a)
36
g d a h e b i f c a bd
1 2 3
SLIDE 37
Example: graphTraversalUsingQueue(a)
37
g d a h e b i f c a bd dce
1 2 4 3 5
SLIDE 38
Example: graphTraversalUsingQueue(a)
38
g d a h e b i f c a bd dce ceg
1 2 4 3 5 6
SLIDE 39
Example: graphTraversalUsingQueue(a)
39
g d a h e b i f c a bd dce ceg egf
1 2 4 3 5 7 6
SLIDE 40
Example: graphTraversalUsingQueue(a)
40
g d a h e b i f c a bd dce ceg egf gfh
1 2 4 3 5 7 6 8
SLIDE 41
Example: graphTraversalUsingQueue(a)
41
g d a h e b i f c a bd dce ceg egf gfh fh hi i
1 2 4 3 5 7 6 8
SLIDE 42
Example: graphTraversalUsingQueue(a)
42
g d a h e b i f c a bd dce ceg egf gfh fh hi
1 2 4 3 5 7 6 8 9
SLIDE 43
Example: graphTraversalUsingQueue(a)
43
g d a h e b i f c a bd dce ceg egf gfh fh hi i
1 2 4 3 5 7 6 8 9
Note order of nodes visited: paths of length 1,2, 3, 4
SLIDE 44
Example: graphTraversalUsingQueue(a)
44
g d a h e b i f c
The traversal defines a tree, but it is not a “call tree”. Why not?
SLIDE 45
class Graph<T> { HashMap< String, Vertex<T> > vertexMap; class Vertex<T> { ArrayList<Edge> adjList; T element; boolean visited; } class Edge { Vertex endVertex; double weight; : } }
Recall: How to implement a Graph class in Java?
SLIDE 46
46
HEADS UP ! Prior to traversal, …. for each w in V w.visited = false How to implement this ?
SLIDE 47
47
class Graph<T> { HashMap< String, Vertex<T> > vertexMap; : public void resetVisited() { } }
HEADS UP ! Prior to traversal, …. for each w in V w.visited = false How to implement this ?
SLIDE 48
48
class Graph<T> { HashMap< String, Vertex<T> > vertexMap; : public void resetVisited() { for( Vertex<T> v : vertexMap.values() ){ v.visited = false; } }
HEADS UP ! Prior to traversal, …. for each w in V w.visited = false How to implement this ?
[ASIDE: I did something unnecessarily complicated on the Sec.001 slides. What I have above is better. ]
