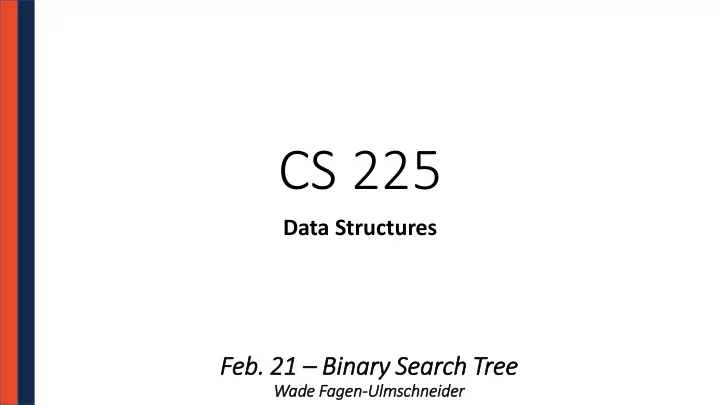

SLIDE 1
CS 225
Data Structures
- Feb. 21 – Binary Search Tre
ree
Wad ade Fag agen-Ulm lmschneid ider
CS 225 Data Structures Feb. 21 Binary Search Tre ree Wad ade Fag - - PowerPoint PPT Presentation
CS 225 Data Structures Feb. 21 Binary Search Tre ree Wad ade Fag - - PowerPoint PPT Presentation
CS 225 Data Structures Feb. 21 Binary Search Tre ree Wad ade Fag agen-Ulm lmschneid ider Traversal vs. . Search Traversal vs. Search: Traversal visits every node in the tree exactly once. Search finds one element in the tree.
SLIDE 2
SLIDE 3
Traversal vs. . Search
Traversal vs. Search:
- Traversal visits every node in the tree exactly once.
- Search finds one element in the tree.
SLIDE 4
Search: Breadth First vs. . Depth First
Strategy: Breadth First Search (BFS) / Traversal Strategy: Depth First Search (DFS) / Traversal
SLIDE 5
Running Times on a Binary ry Tree
U O M C W A T E S I N
SLIDE 6
Dictionary ry ADT
Data is often organized into key/value pairs: UIN Advising Record Course Number Lecture/Lab Schedule Node Incident Edges Flight Number Arrival Information URL HTML Page …
SLIDE 7
#ifndef DICTIONARY_H #define DICTIONARY_H class Dictionary { public: private: }; #endif
Dictionary.h
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
SLIDE 8
Binary ry Tree as a Search Structure
U O M C W A T E S I N
SLIDE 9
Binary ry ___________ Tree (B (BST)
A BST is a binary tree T such that:
13 10 25 12 37 38 51 40 84 89 66 95
SLIDE 10
#ifndef DICTIONARY_H #define DICTIONARY_H template <class K, class V> class BST { public: BST(); void insert(const K key, V value); V remove(const K & key); V find(const K & key) const; TreeIterator traverse() const; private: struct TreeNode { TreeNode *left, *right; K & key; V & value; TreeNode(K & k, V & v) : key(k), value(v), left(NULL), right(NULL) { } }; }; #endif
BST.h
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
SLIDE 11
template<typename K, typename V> ________________________ _find(TreeNode *& root, const K & key) const { }
13 10 25 12 37 38 51 40 84 89 66 95
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26
root
SLIDE 12
13 10 25 12 37 38 51 40 84 89 66 95
SLIDE 13
template<typename K, typename V> ________________________ _insert(TreeNode *& root, const K & key) { }
13 10 25 12 37 38 51 40 84 89 66 95
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26
root
SLIDE 14
13 10 25 12 37 38 51 40 84 89 66 95
SLIDE 15
13 10 25 12 37 38 51 40 84 89 66 95
SLIDE 16
template<typename K, typename V> ________________________ _remove(TreeNode *& root, const K & key) { }
13 10 25 12 37 38 51 40 84 89 66 95
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26
root
SLIDE 17
13 10 25 12 37 38 51 40 84 89 66 95
remove(40);
SLIDE 18
13 10 25 12 37 38 51 40 84 89 66 95
remove(25);
SLIDE 19
13 10 25 12 37 38 51 40 84 89 66 95
remove(10);
SLIDE 20
13 10 25 12 37 38 51 40 84 89 66 95
remove(13);
