Binary Search Trees 1 October 2020 OSU CSE 1 Faster Searching - PowerPoint PPT Presentation

Mar 14, 2023 •153 likes •890 views

Binary Search Trees 1 October 2020 OSU CSE 1 Faster Searching The BinaryTree component family can be used to arrange the labels on binary tree nodes in a variety of useful ways A common arrangement of labels, which supports searching

  1. Binary Search Trees 1 October 2020 OSU CSE 1

  2. Faster Searching • The BinaryTree component family can be used to arrange the labels on binary tree nodes in a variety of useful ways • A common arrangement of labels, which supports searching that is much faster than linear search, is called a binary search tree (BST) 1 October 2020 OSU CSE 2

  3. BSTs Are Very General • BSTs may be used to search for items of any type T for which one has defined a total preorder , i.e., a binary relation on T that is total , reflexive , and transitive 1 October 2020 OSU CSE 3

  4. BSTs Are Very General A binary relation on T may be viewed as a set of ordered pairs of T , or as a boolean -valued function R of • BSTs may be used to search for items of two parameters of type T that is true iff that pair is in the set. any type T for which one has defined a total preorder , i.e., a binary relation on T that is total , reflexive , and transitive 1 October 2020 OSU CSE 4

  5. BSTs Are Very General The binary relation R is total whenever: for all x, y: T • BSTs may be used to search for items of (R(x, y) or R(y, x)) any type T for which one has defined a total preorder , i.e., a binary relation on T that is total , reflexive , and transitive 1 October 2020 OSU CSE 5

  6. BSTs Are Very General The binary relation R is reflexive whenever: • BSTs may be used to search for items of for all x: T (R(x, x)) any type T for which one has defined a total preorder , i.e., a binary relation on T that is total , reflexive , and transitive 1 October 2020 OSU CSE 6

  7. BSTs Are Very General The binary relation R is transitive whenever: for all x, y, z: T • BSTs may be used to search for items of ( if R(x, y) and R(y, z) then R(x, z)) any type T for which one has defined a total preorder , i.e., a binary relation on T that is total , reflexive , and transitive 1 October 2020 OSU CSE 7

  8. Simplifications • For simplicity in the following illustrations, we use only one kind of example: – T = integer – The ordering is ≤ • For simplicity (and because of how we will use BSTs), we assume that no two nodes in a BST have the same labels 1 October 2020 OSU CSE 8

  9. Simplifications • For simplicity in the following illustrations, we use only one kind of example: – T = integer Both these simplifications – The ordering is ≤ are inessential: BSTs are not • For simplicity (and because of how we will limited to these situations! use BSTs), we assume that no two nodes in a BST have the same labels 1 October 2020 OSU CSE 9

  10. BST Arrangement Properties • A binary tree is a BST whenever the arrangement of node labels satisfies these two properties: 1. For every node in the tree, if its label is x and if y is a label in that node’s left subtree, then y < x 2. For every node in the tree, if its label is x and if y is a label in that node’s right subtree, then y > x 1 October 2020 OSU CSE 10

  11. The Big Picture x 1 October 2020 OSU CSE 11

  12. The Big Picture Every label y in this tree satisfies y < x x 1 October 2020 OSU CSE 12

  13. The Big Picture Every label y in this tree satisfies y > x x 1 October 2020 OSU CSE 13

  14. And It’s So Everywhere x 1 October 2020 OSU CSE 14

  15. And It’s So Everywhere Every label y in this tree satisfies y < x x 1 October 2020 OSU CSE 15

  16. And It’s So Everywhere Every label y in this tree satisfies y > x x 1 October 2020 OSU CSE 16

  17. Examples of BSTs 7 3 4 5 2 5 1 3 6 9 1 October 2020 OSU CSE 17

  18. Non-Examples of BSTs 1 3 3 5 2 2 5 1 4 4 9 1 October 2020 OSU CSE 18

  19. Non-Examples of BSTs 1 3 3 5 2 2 5 1 4 4 Property 1 is 9 violated here. 1 October 2020 OSU CSE 19

  20. Non-Examples of BSTs 1 3 3 5 2 2 5 1 4 4 Property 1 is 9 violated here. 1 October 2020 OSU CSE 20

  21. Non-Examples of BSTs 1 3 3 5 2 2 5 1 4 4 Property 2 is 9 violated here. 1 October 2020 OSU CSE 21

  22. Searching for x • Suppose you are trying to find whether any node in a BST t has the label x • There are only two cases to consider: – t is empty – t is non-empty 1 October 2020 OSU CSE 22

  23. Searching for x • Suppose you are trying to find whether any node in a BST t has the label x • There are only two cases to consider: – t is empty – t is non-empty Easy: Report x is not in t . 1 October 2020 OSU CSE 23

  24. Searching for x r 1 October 2020 OSU CSE 24

  25. Searching for x Does x = r ? If so, report that x is in t . If not ... r 1 October 2020 OSU CSE 25

  26. Searching for x Is x < r ? If so, report the result of searching for x in this tree. If not ... r 1 October 2020 OSU CSE 26

  27. Searching for x Then it must be the case that x > r . Report the result of searching for x in this tree. r 1 October 2020 OSU CSE 27

  28. Why It’s Faster Than Linear Search • You need to compare to the root of the tree, and then (only if the root is not what you’re searching for) search either the left or the right subtree—but not both – Compare to linear search, where you might have to look at all the items, which would be equivalent to searching both subtrees 1 October 2020 OSU CSE 28

  29. Example: Searching for 5 8 1 October 2020 OSU CSE 29

  30. Example: Searching for 5 Does 5 = 8 ? No ... 8 1 October 2020 OSU CSE 30

  31. Example: Searching for 5 Is 5 < 8 ? Yes, so report the result of searching for 5 in this tree. 8 1 October 2020 OSU CSE 31

  32. Recursion • Searching the left subtree at this point simply involves making a recursive call to the method that searches a BST • Against our usual advice about recursion, let’s trace into that call and see what happens – Why? Because some people, e.g., interviewers, may expect you to understand BSTs without mentioning recursion/induction 1 October 2020 OSU CSE 32

  33. Example: Searching for 5 8 3 1 October 2020 OSU CSE 33

  34. Example: Searching for 5 Does 5 = 3 ? No ... 8 3 1 October 2020 OSU CSE 34

  35. Example: Searching for 5 Is 5 < 3 ? No ... 8 3 1 October 2020 OSU CSE 35

  36. Example: Searching for 5 Then it must be the case that 5 > 3 . Report the result of searching for 5 in this tree. 8 3 1 October 2020 OSU CSE 36

  37. It’s Another Recursive Call • Let’s continue tracing into calls ... 1 October 2020 OSU CSE 37

  38. Example: Searching for 5 8 3 6 1 October 2020 OSU CSE 38

  39. Example: Searching for 5 Does 5 = 6 ? No ... 8 3 6 1 October 2020 OSU CSE 39

  40. Example: Searching for 5 Is 5 < 6 ? Yes, so report the result of searching for 5 in the (empty) left subtree. 8 3 6 1 October 2020 OSU CSE 40

  41. The Recursion Stops Here • Remember, we already noted that when searching for something in an empty tree, we can simply report it is not there • No new recursive call results 1 October 2020 OSU CSE 41

  42. Example: Searching for 5 How many nodes did the algorithm visit, and compare labels to 5 ? At worst, how many 8 could it be? 3 6 1 October 2020 OSU CSE 42

  43. Example: Searching for 5 What about in this tree? 8 5 1 October 2020 OSU CSE 43

  44. Wait! How Can This Work? • With the BinaryTree components, there are no methods to “move down the tree” • This is why recursion is crucial – To search a subtree, you disassemble the original tree, search in one of the subtrees, and then (re)assemble it before returning the answer 1 October 2020 OSU CSE 44

  45. Refined Searching for x r 1 October 2020 OSU CSE 45

  46. Refined Searching for x Does x = r ? If so, report that x is in t . If not ... r 1 October 2020 OSU CSE 46

  47. Refined Searching for x Disassemble t into the root and its two subtrees. r 1 October 2020 OSU CSE 47

  48. Refined Searching for x Is x < r ? If so, remember the result of searching for x in this tree. If not ... r 1 October 2020 OSU CSE 48

  49. Refined Searching for x Then it must be the case that x > r . Remember the result of searching for x in this tree. r 1 October 2020 OSU CSE 49

  50. Refined Searching for x Before returning the result of the search, (re)assemble t from its parts. r 1 October 2020 OSU CSE 50

  51. Inserting x • Suppose now you are trying to insert into a BST t the label x (which we assume to be not already in t ; remember that there are no duplicate labels in t ) • There are only two cases to consider: – t is empty – t is non-empty 1 October 2020 OSU CSE 51

  52. Inserting x • Suppose now you are trying to insert into a BST t the label x (which we assume to be not already in t ; remember that there are no duplicate labels in t ) • There are only two cases to consider: – t is empty – t is non-empty Easy: Make x the root of the updated t . 1 October 2020 OSU CSE 52

  53. Inserting x r 1 October 2020 OSU CSE 53

  54. Inserting x There is no reason to ask whether x = r ; why? r 1 October 2020 OSU CSE 54

  55. Inserting x Is x < r ? If so, insert x into this tree. If not ... r 1 October 2020 OSU CSE 55

  56. Inserting x Then it must be the case that x > r . Insert x into this tree. r 1 October 2020 OSU CSE 56

Download Presentation
Download Policy: The content available on the website is offered to you 'AS IS' for your personal information and use only. It cannot be commercialized, licensed, or distributed on other websites without prior consent from the author. To download a presentation, simply click this link. If you encounter any difficulties during the download process, it's possible that the publisher has removed the file from their server.

Recommend

Binary Search Trees A binary search tree is a binary tree T such that - each internal node

Binary Search Trees A binary search tree is a binary tree T such that - each internal node

AVL T REES Binary Search Trees AVL Trees AVL Trees 1 Binary Search Trees A binary search tree is a binary tree T such that - each internal node stores an item (k, e) of a dictionary. - keys stored at nodes in the left subtree of

547 views • 26 slides
Binary Search Trees and Balanced Binary Search Trees using AVL Trees Mark Redekopp David Kempe

Binary Search Trees and Balanced Binary Search Trees using AVL Trees Mark Redekopp David Kempe

1 CSCI 104 Binary Search Trees and Balanced Binary Search Trees using AVL Trees Mark Redekopp David Kempe Sandra Batista 2 Properties, Insertion and Removal BINARY SEARCH TREES 3 Binary Search Tree Binary search tree = binary tree

630 views • 61 slides
Balanced Binary Search Trees Balanced Binary Search Trees height is O(log n), where n is the

Balanced Binary Search Trees Balanced Binary Search Trees height is O(log n), where n is the

Balanced Binary Search Trees Balanced Binary Search Trees height is O(log n), where n is the Indexed AVL trees number of elements in the tree Indexed red-black trees AVL (Adelson-Velsky and Landis) Indexed operations also

253 views • 6 slides
Balanced Binary Search Trees Balanced Binary Search Trees height is O(log n), where n is the

Balanced Binary Search Trees Balanced Binary Search Trees height is O(log n), where n is the

Balanced Binary Search Trees Balanced Binary Search Trees height is O(log n), where n is the Indexed AVL trees number of elements in the tree Indexed red-black trees AVL (Adelson-Velsky and Landis) Indexed operations also

297 views • 8 slides
/ + - * * 5 3 2 6 5 2 Examples Binary Trees BSTs Augmenting BinExpr General Trees

/ + - * * 5 3 2 6 5 2 Examples Binary Trees BSTs Augmenting BinExpr General Trees

Trees Readings: HtDP , sections 14, 15, 16. Topics: Introductory examples and terminology Binary trees Binary search trees Augmenting trees Binary expression trees General arithmetic expression trees Nested lists Examples Binary Trees

1.19k views • 31 slides
Trees, Binary Search Trees, Lab 7, Project 2 Bryce Boe

Trees, Binary Search Trees, Lab 7, Project 2 Bryce Boe

Trees, Binary Search Trees, Lab 7, Project 2 Bryce Boe 2013/11/13 CS24, Fall 2013 Outline Stack/Queue Review Trees Binary Search Trees

557 views • 31 slides
Objectives To design and implement a binary search tree (25.2). To represent binary trees

Objectives To design and implement a binary search tree (25.2). To represent binary trees

Chapter 25 Binary Search Trees Liang, Introduction to Java Programming, Tenth Edition, (c) 2013 Pearson Education, Inc. All 1 rights reserved. Objectives To design and implement a binary search tree (25.2). To represent binary trees

443 views • 18 slides
Lecture 7 Binary Search Trees and Red-Black Trees Announcements HW 3 released! (Due Friday)

Lecture 7 Binary Search Trees and Red-Black Trees Announcements HW 3 released! (Due Friday)

Lecture 7 Binary Search Trees and Red-Black Trees Announcements HW 3 released! (Due Friday) Today: binary search trees Brief foray into data structures! See CS 166 for more! What are binary search trees? You may remember

974 views • 45 slides
The problem with binary search trees Height-balanced trees AVL trees Search time average case:

The problem with binary search trees Height-balanced trees AVL trees Search time average case:

The problem with binary search trees Height-balanced trees AVL trees Search time average case: lg( n ) Tyler Moore Search time worst case: n Can you construct such a tree? CS 2123, The University of Tulsa Solution: height-balanced binary trees

212 views • 4 slides
Binary Search Trees Binary Search Trees K08

Binary Search Trees Binary Search Trees K08

Binary Search Trees Binary Search Trees K08 / 1 Search Search Searching for a specic value within a large

816 views • 62 slides
Balanced Search Trees Binary Search Trees Binary Search Tree Binary Search Tree A binary tree is

Balanced Search Trees Binary Search Trees Binary Search Tree Binary Search Tree A binary tree is

Balanced Search Trees Binary Search Trees Binary Search Tree Binary Search Tree A binary tree is a binary search tree if each element in the left subtree is smaller than the root, each element in the right subtree is larger than the root,

757 views • 51 slides
Lecture 6: Binary Search Trees (BST) and Red-Black Trees (RBTs) Instructor: Saravanan

Lecture 6: Binary Search Trees (BST) and Red-Black Trees (RBTs) Instructor: Saravanan

Lecture 6: Binary Search Trees (BST) and Red-Black Trees (RBTs) Instructor: Saravanan Thirumuruganathan CSE 5311 Saravanan Thirumuruganathan Outline 1 Data Structures for representing Dynamic Sets Binary Search Trees (BSTs) Balanced Search

1.14k views • 87 slides
Balanced Binary Search Trees height is O(log n), where n is the number of elements in the

Balanced Binary Search Trees height is O(log n), where n is the number of elements in the

Balanced Binary Search Trees height is O(log n), where n is the number of elements in the tree AVL (Adelson-Velsky and Landis) trees red-black trees get, put, and remove take O(log n) time Balanced Binary Search Trees

533 views • 16 slides
CS 171: Introduction to Computer Science II Binary Search Trees Binary Search Trees

CS 171: Introduction to Computer Science II Binary Search Trees Binary Search Trees

CS 171: Introduction to Computer Science II Binary Search Trees Binary Search Trees Generalized from Linked List. Advantages: Fast to search Fast to insert and delete Fast to insert and delete Recall the search and

602 views • 32 slides
How efficient are binary search trees? Balanced search trees Balancing a tree means to keep the

How efficient are binary search trees? Balanced search trees Balancing a tree means to keep the

CS206 CS206 How efficient are binary search trees? Balanced search trees Balancing a tree means to keep the left and right subtree of Binary search tree operations take time O ( h ) , where h is the every node of roughly equal size.

200 views • 3 slides
Binary search trees Dictionary ADT Binary search tree properties Search Insertion February 04,

Binary search trees Dictionary ADT Binary search tree properties Search Insertion February 04,

Binary search trees Dictionary ADT Binary search tree properties Search Insertion February 04, 2019 Cinda Heeren / Will Evans / Geoffrey Tien 1 By the way... Here is a reference to the &quot;three dots&quot; tree traversal shown in

602 views • 17 slides

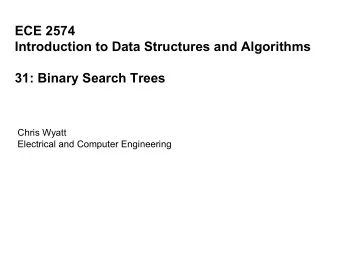

31: Binary Search Trees Chris Wyatt Electrical and Computer Engineering Recall the binary search

31: Binary Search Trees Chris Wyatt Electrical and Computer Engineering Recall the binary search

ECE 2574 Introduction to Data Structures and Algorithms 31: Binary Search Trees Chris Wyatt Electrical and Computer Engineering Recall the binary search algorithm using a sorted list. We can represent the sorted list using a binary tree with

5.15k views • 20 slides

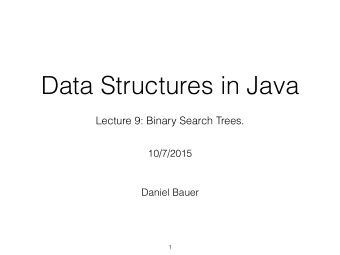

Data Structures in Java Lecture 9: Binary Search Trees. 10/7/2015 Daniel Bauer 1 Contents 1.

Data Structures in Java Lecture 9: Binary Search Trees. 10/7/2015 Daniel Bauer 1 Contents 1.

Data Structures in Java Lecture 9: Binary Search Trees. 10/7/2015 Daniel Bauer 1 Contents 1. Binary Search Trees 2. Implementing Maps with BSTs Map ADT A map is collection of (key, value) pairs. Keys are unique, values need not be.

565 views • 52 slides
Defense mechanisms How do we stop this from happening? sws1 1 Defenses Different strategies:

Defense mechanisms How do we stop this from happening? sws1 1 Defenses Different strategies:

Defense mechanisms How do we stop this from happening? sws1 1 Defenses Different strategies: Prevention Detection Reaction Ideally, youd like to prevent problems, but typically you cannot, so you have to make it

419 views • 17 slides
Letshego Holdings Ltd COVID-19 Update Version 2 June 2020 AGENDA 1 COVID-19 impact: Globally

Letshego Holdings Ltd COVID-19 Update Version 2 June 2020 AGENDA 1 COVID-19 impact: Globally

Letshego Holdings Ltd COVID-19 Update Version 2 June 2020 AGENDA 1 COVID-19 impact: Globally and Letshego footprint 2 COVID-19 : Our Response 3 Business Continuity: Impact Analysis 4 Deduction@Source (DAS) 5 Micro and Small

731 views • 15 slides

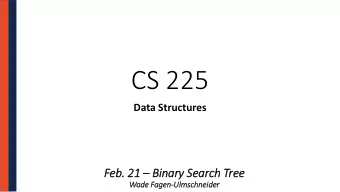

CS 225 Data Structures Feb. 21 Binary Search Tre ree Wad ade Fag agen-Ulm lmschneid ider

CS 225 Data Structures Feb. 21 Binary Search Tre ree Wad ade Fag agen-Ulm lmschneid ider

CS 225 Data Structures Feb. 21 Binary Search Tre ree Wad ade Fag agen-Ulm lmschneid ider Traversal vs. . Search Traversal vs. Search: Traversal visits every node in the tree exactly once. Search finds one element in the tree.

694 views • 20 slides

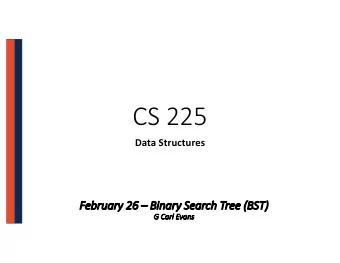

CS 225 Data Structures Fe February 26 Bi Binary Sea earch Tree ee (BS BST) G G Carl

CS 225 Data Structures Fe February 26 Bi Binary Sea earch Tree ee (BS BST) G G Carl

CS 225 Data Structures Fe February 26 Bi Binary Sea earch Tree ee (BS BST) G G Carl Evans Tr Traversal vs. Search Traversal vs. Search: Traversal visits every node in the tree exactly once. Search finds one element in the

581 views • 20 slides

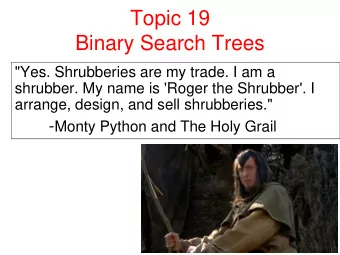

Topic 19 Binary Search Trees &quot;Yes. Shrubberies are my trade. I am a shrubber. My name is

Topic 19 Binary Search Trees &quot;Yes. Shrubberies are my trade. I am a shrubber. My name is

Topic 19 Binary Search Trees &quot;Yes. Shrubberies are my trade. I am a shrubber. My name is 'Roger the Shrubber'. I arrange, design, and sell shrubberies.&quot; - Monty Python and The Holy Grail The Problem with Linked Lists Accessing a

1.34k views • 21 slides

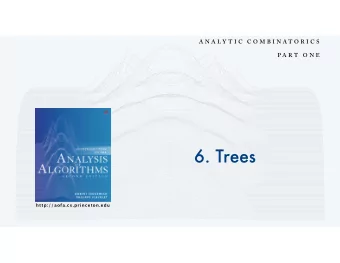

6. Trees http://aofa.cs.princeton.edu Review First half of class Introduced analysis of
