Virtual multi-antenna arrays for radio transmitter bearing estimation or How to do synthetic aperture radar with cell phones ? Franois Quitin Universit libre de Bruxelles (ULB), Belgium Brussels School of 1 Engineering Virtual AOA

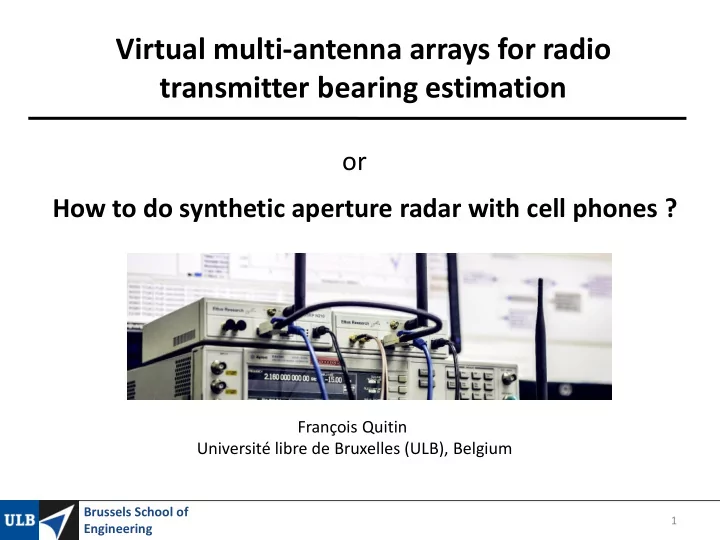

  1. Virtual multi-antenna arrays for radio transmitter bearing estimation or How to do synthetic aperture radar with cell phones ? François Quitin Université libre de Bruxelles (ULB), Belgium Brussels School of 1 Engineering

  2. Virtual AOA estimation / Synthetic aperture radar we want to measure the AOA of a Tx • Tx sends multiple packets (e.g. synch ’ signal) • Rx receives packets at multiple points along its trajectory  each received packet can be seen as a « virtual » antenna element  conventional MIMO AOA techniques Brussels School of 2 Engineering

  3. Outline Virtual AOA estimation • Method description  Difference with conventional MIMO AOA • Algorithms for LO offset and AOA estimation • IMU sensor processing • Implementation and results Brussels School of 3 Engineering

  4. Difference between V-AOA and MIMO-AOA 2 main differences in V-AOA case: 1) Position of « virtual antenna elements » depends on the λ /2 movement of Rx Tx λ /2 2) LO offset introduce phase Rx rotation in received trajectory packets Tx Brussels School of 4 Engineering

  5. LO offset between Tx and Rx … introduces a phase rotation in Rx packets • LO offset between Tx and Rx  net effect: frequency difference/offset 𝜕 0 between Tx and Rx • Receiver receives different packets (suppose no movement): – at time 𝑢 0 : 𝑠 𝑛 – at time 𝑢 1 : 𝑠 𝑛 𝑓 𝑘2𝜌𝑔 0 𝑢 1 −𝑢 0 – at time 𝑢 2 : 𝑠 𝑛 𝑓 𝑘2𝜌𝑔 0 𝑢 2 −𝑢 0 Rx does Tx not move Brussels School of 5 Engineering

  6. AOA estimation: system description System model • Transmitter sends packet with known header • Receiver correlates received baseband samples with (known) header  Phase of peak of correlation function corresponds to the phase of the channel • In a Line-of-Sight case (and periodic Tx), the angle is given by 0 + 2𝜌 𝜒 𝑜 = 𝜒 0 + 2𝜌𝑔 0 𝑜𝑈 𝑦 𝑜 cos 𝜄 + 𝑧 𝑜 sin 𝜄 𝜇 𝑢 𝑜 time elapsed between packet 0 and n 𝑦 𝑜 change in x-coordinates between packet 0 and n 𝑧 𝑜 change in y-coordinates between packet 0 and n Brussels School of 6 Engineering

  7. AOA estimation: system description Difference with conventional MIMO 𝜒 𝑜 = 𝜒 0 + 2𝜌 𝑦 𝑜 cos 𝜄 + 𝑧 𝑜 sin 𝜄 𝜇 λ /2 Tx λ /2 Rx trajectory Tx 0 𝑜𝑈 0 + 2𝜌 𝜒 𝑜 = 𝜒 0 + 2𝜌𝑔 𝑦 𝑜 cos 𝜄 + 𝑧 𝑜 sin 𝜄 𝜇 Brussels School of 7 Engineering

  8. Outline Virtual AOA estimation • Method description  Difference with conventional MIMO AOA • Algorithms for LO offset and AOA estimation • IMU sensor processing • Implementation and results Brussels School of 8 Engineering

  9. LO offset and angle estimation Start- and-stop (SaS) approach • Step 1: Receiver stands still  Only LO frequency offset cause phase to change Rx does Tx not move • Step 2: Receiver starts moving Rx trajectory  LO frequency offset is compensated:  Conventional MIMO estimation can be used Tx (MUSIC, ESPRIT, …) • Works if LO frequency offset does not change during movement phase  Movement should be short  Compatible with WSSUS assumption! Brussels School of 9 Engineering

  10. LO offset and angle estimation Joint estimation The signal model used in MUSIC can be augmented to accound for LO frequency offset 𝐳 𝑛 = 𝐛 𝑔 0 , 𝜄 𝑦 𝑛 + 𝐱[𝑛] with 0 𝑢 1 + 2𝜌 exp 𝑘 2𝜌𝑔 𝑦 1 cos 𝜄 + 𝑧 1 sin 𝜄 𝜇 0 𝑢 2 + 2𝜌 exp 𝑘 2𝜌𝑔 𝑦 2 cos 𝜄 + 𝑧 2 sin 𝜄 𝐛 𝑔 0 , 𝜄 = 𝜇 ⋮ 0 𝑢 𝑂 + 2𝜌 exp 𝑘 2𝜌𝑔 𝑦 𝑂 cos 𝜄 + 𝑧 𝑂 sin 𝜄 𝜇  MUSIC (or beamforming) can use this signal model and do joint search over 𝑔 0 and 𝜄 Brussels School of 10 Engineering

  11. Outline Virtual AOA estimation • Method description  Difference with conventional MIMO AOA • Algorithms for LO offset and AOA estimation • IMU sensor processing • Implementation and results Brussels School of 11 Engineering

  12. LO offset and angle estimation Determining 𝒚 𝒐 and 𝒛 𝒐 • Fraction of wavelength accuracy required Rx trajectory  D-GPS insufficient! • If antenna non-isotropic: orientation required • Only relative position is required • WSSUS assumption  Movement should be limited • We use a 3D-Inertial Measurement Unit (IMU)  Contains accelerometers and gyroscopes  Solution will drift from truth, but integration time is short due to WSSUS, so error will remain limited Brussels School of 12 Engineering

  13. Strap-down IMU = IMU attached to vehicle • accelerometers => measures acceleration along each axis • gyroscope => measures angular speed around each axis – Measurements are done in body frame , but positions needs to be known in navigation frame – Note: gravitation of ~9.78 m/s^2 (along D-axis) is always measured by accelerometer(s) Brussels School of 13 Engineering

  14. IMU processing Can be processed in EKF/UKF • Initial position/orientation need to be known Initial Orientation Angular speeds (rad/s) Accelerations (m/s^2) • Problems: 1) how to estimate initial orientation ? => use gravitation vector 2) how to estimate IMU biases ? => calibration procedure 3) Augment stability by using nonholonomic constraints Brussels School of 14 Engineering

  15. Outline Virtual AOA estimation • Method description  Difference with conventional MIMO AOA • Algorithms for LO offset and AOA estimation • IMU sensor processing • Implementation and results Brussels School of 15 Engineering

  16. Implementation Transmitter and receiver: USRP-N210 • Carrier frequency: 1 GHz • Tx and Rx use GPSDO with OCXO LO (20 ppb accuracy) • Tx sends 3G primary sequence – 128 samples long @ 1.8 MHz sample rate – Periodicity: 0.667 ms, but only one transmitter packet out of 15 considered  𝑈 0 = 10 ms • Rx sample rate = 3.6 MHz Brussels School of 16 Engineering

  17. Implementation Receiver details • Rx performs correlation in FPGA  Sends both correlation function (« peaks ») and BB samples to host • Rx accumulates 3 peaks (host processor)  Increased SNR • Peak detector in host processor receiver  Phase of peak is written to output file • IMU: XSens MTi-10 (automotive- grade) • Parallel thread to read IMU data @ 200 Hz  IMU values written to output file Brussels School of 17 Engineering

  18. Experimental setup in anaechoic chamber => only LOS • IMU z-axis placed parallel to vertical axis  Error of few ° cannot be avoided! • Turntable still for 30 s  then turned by 180° (about 5 s)  Radius of 30, 40 and 50 cm Brussels School of 18 Engineering

  19. Experimental setup note the « vertical » IMU placement antenna IMU USRP-N210 turntable Brussels School of 19 Engineering

  20. IMU processing Initial orientation: (pitch,roll)=( -0.79°, 3.18°) g along z-axis Small acceleration Rotation around and deceleration z-axis along x-axis Speeds mainly along x-axis Yaw changes from 180° to 0° Speeds along y-axis: - Centrifugal force - Integration errors Brussels School of 20 Engineering

  21. IMU processing Final estimated trajectory • Estimated trajectory drifts off at the end of movement • Room for improvement! – Introduce nonholonomic constraints (already done for standstill) – Improve bias estimation – Improve EKF/UKF parameters (requires to know process model accurately) Brussels School of 21 Engineering

  22. AOA estimation Stop-and-Start approach Phase noise and Phase before freq. offset compensation 7 Packet phases drift 6 5 after LO offset Phase (rad) 4 3 compensation 2 1 Packet phases 0 16 16.5 17 17.5 Time (s) before LO offset Phase change due compensation to movement Rx movement MUSIC spectrum from IMU with peak close to 90° Brussels School of 22 Engineering

  23. AOA estimation SaS approach: notes about MUSIC  AOA estimation error – Zero-mean – Standard deviation  Larger (virtual) arrays have better accuracy  Consistent with conventional MIMO theory Brussels School of 23 Engineering

  24. AOA estimation Joint estimator • Augmented signal model – joint search over 𝑔 0 and 𝜄 Brussels School of 24 Engineering

  25. AOA estimation Joint estimator  AOA estimation error – Zero-mean – Standard deviation  Larger (virtual) arrays have better accuracy  Performance of joint estimation worse than SaS approach, but more flexible ! Brussels School of 25 Engineering

  26. E-310 implementation Why? • Why not ? • Use embedded IMU and SDR • Test with low(er)-quality IMU and TCXO • Possible to mount on (autonomous) vehicles Brussels School of 26 Engineering

  27. E-310 implementation Architecture USRP E310 Filter AD 9361 XILINX ZYNQ 7020 banks RFIC Artix-7 FPGA PS-Dual Core ARM A9 Capturing IMU and RF Correlator and peak detector data IMU processing MUSIC algo. Tx chains and 2 nd Rx chain deactivated GPS receiver IMU Brussels School of 27 Engineering
