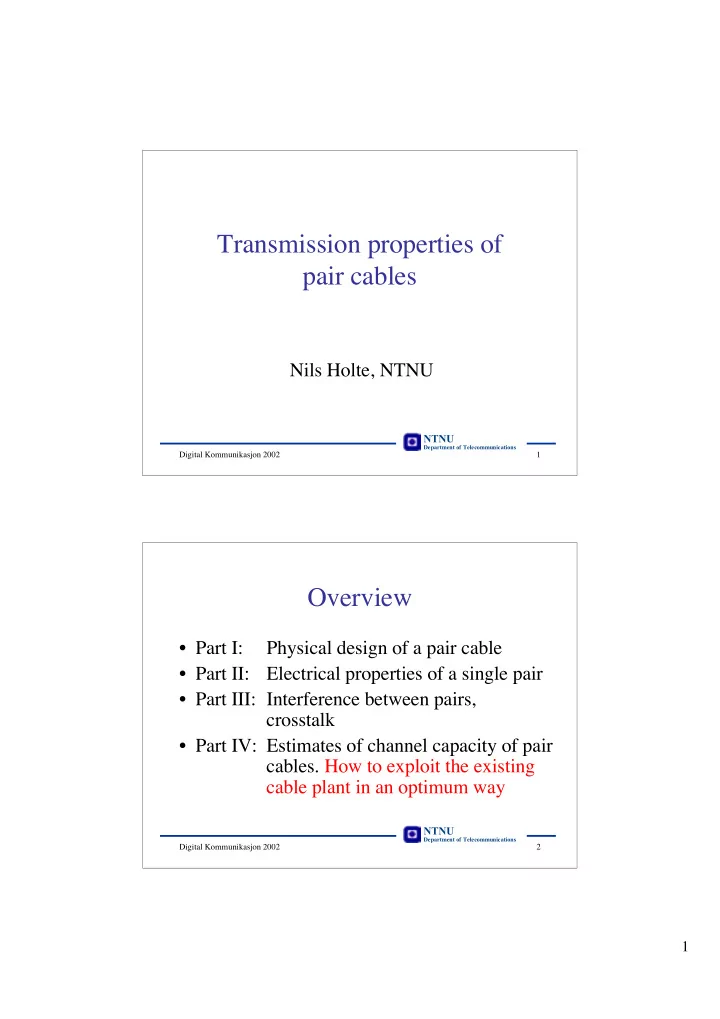

Transmission properties of pair cables Nils Holte, NTNU NTNU - - PDF document

1

Digital Kommunikasjon 2002 1

NTNU

Department of Telecommunications

Transmission properties of pair cables

Nils Holte, NTNU

Digital Kommunikasjon 2002 2

NTNU

Department of Telecommunications

Overview

• Part I:

Physical design of a pair cable

• Part II:

Electrical properties of a single pair

• Part III: Interference between pairs,

crosstalk

• Part IV: Estimates of channel capacity of pair
• cables. How to exploit the existing

cable plant in an optimum way

2

Digital Kommunikasjon 2002 3

NTNU

Department of Telecommunications

Part I Basic design of pair cables

• A single twisted pair
• Binder groups
• The cross-stranding principle
• Building binder groups and cables of

different sizes

• A complete cable

Digital Kommunikasjon 2002 4

NTNU

Department of Telecommunications

Cross section of a single pair

Most common conductor diameters: 0.4 mm, 0.6 mm (0.5 mm, 0.9 mm)

Insulation Conductor

3

Digital Kommunikasjon 2002 5

NTNU

Department of Telecommunications

A twisted pair

Digital Kommunikasjon 2002 6

NTNU

Department of Telecommunications

Typical pair cables of the Norwegian access network

• 0.4 and 0.6 mm conductor diameter
• Polyethylene insulation (expanded)
• Twisting periods in the interval

50 - 150 mm

• 10 pair cross-stranded binder groups
• 10 - 2000 pairs in a cable

4

Digital Kommunikasjon 2002 7

NTNU

Department of Telecommunications

Pair positions in a 10 pair binder group

Cross-stranding [13]: The positions of all the pairs are alternated randomly along the cable. Interference is thus randomised, and all pairs will be almost uniform

Digital Kommunikasjon 2002 8

NTNU

Department of Telecommunications

Cross-stranding

Cross-stranding technique: Each pair runs through a die in the cross-stranding matrix. The positions of the dies are set by a random generator

5

Digital Kommunikasjon 2002 9

NTNU

Department of Telecommunications

Design of binder groups up to 100 pairs

Digital Kommunikasjon 2002 10

NTNU

Department of Telecommunications

Design of binder groups up to 1000 pairs

6

Digital Kommunikasjon 2002 11

NTNU

Department of Telecommunications

Typical cable design (”Kombikabel”)

This cable may be used as: 1) overhead cable 2) buried cable 3) in water (fresh water)

Digital Kommunikasjon 2002 12

NTNU

Department of Telecommunications

Part II Properties of a single pair

• Equivalent model of a single pair
• Capacitance
• Inductance
• Skin effect
• Resistance
• Per unit length model of a pair
• The telegraph equation - solution
• Propagation constant
• Characteristic impedance
• Reflection coefficient, terminations

7

Digital Kommunikasjon 2002 13

NTNU

Department of Telecommunications

A single pair in uniform insulation

εr

2a 2r

A coarse estimate of the primary parameters R, L, C, G may be found assuming a >> r, uniform insulation, and no surrounding conductors

Digital Kommunikasjon 2002 14

NTNU

Department of Telecommunications

Model of a single pair in a cable

The electrical influence of the surrounding pairs in the cable may be modelled as an equivalent

• shield. This model

will give accurate estimates of R, L, C and G [12]

8

Digital Kommunikasjon 2002 15

NTNU

Department of Telecommunications

Capacitance of a single pair

C a r

r

= πε ε 2 ln

The capacitance per unit length of a single pair is given by: The capacitance of cables in the access network is 45 nF/km

Digital Kommunikasjon 2002 16

NTNU

Department of Telecommunications

Inductance of a single pair

L a r = µ π 2 ln

The inductance per unit length of a single pair is given by:

9

Digital Kommunikasjon 2002 17

NTNU

Department of Telecommunications

Skin effect

At high frequencies the current will flow in the outer part

• f the conductors, and the skin depth is given by [12]:

δ π µ µ σ = 1 f

r

σ is the conductance of the conductors

For copper the skin depth is given by:

δ = 2 11 , F

kHz

mm

δ δ = = 2 11 0 067 . . mm at 1 kHz mm at 1 MHz

Digital Kommunikasjon 2002 18

NTNU

Department of Telecommunications

Resistance of a conductor

The resistance per unit length of a conductor is for r << a given by:

R r r r r

C =

>> <<        1 1 2

2

σπ δ σπ δ δ for (low frequencies) for (high frequencies)

10

Digital Kommunikasjon 2002 19

NTNU

Department of Telecommunications

Resistance of a pair

The resistance per unit length of a pair will be the sum of the resitances of the two conductors and is given by:

R R r r r r

C

= ⋅ = >> <<        2 2 1

2

σπ δ σπ δ δ for (low frequencies) for (high frequencies)

Digital Kommunikasjon 2002 20

NTNU

Department of Telecommunications

Conductance of a pair

G C

l

= ⋅ δ ω

The conductance per unit length of a pair is given by:

δl is the dielectric loss factor

A typical value of the loss factor is δl = 0.0003. This means that the conductance is usually negligible for pair cables.

11

Digital Kommunikasjon 2002 21

NTNU

Department of Telecommunications

Per unit length model of a pair

L∆x R∆x G∆x C∆x U+∆U I+∆I ∆x

Digital Kommunikasjon 2002 22

NTNU

Department of Telecommunications

Model of a pair of length l

R, L, C, G x=0 x=l I(x) U(x)

12

Digital Kommunikasjon 2002 23

NTNU

Department of Telecommunications

The telegraph equation

d dx U x R j L I x Z I x d dx I x G j C U x Y U x ( ) ( ) ( ) ( ) ( ) ( ) ( ) ( ) = − + = − ⋅ = − + = − ⋅ ω ω

d dx U x Z Y U x

2

( ) ( ) = ⋅ ⋅

Combining the equations: From the circuit diagram:

Digital Kommunikasjon 2002 24

NTNU

Department of Telecommunications

Solution of the telegraph equation

U(x) c e c e I(x) c Z e c Z e

1 x 2 x 1 x 2 x

= ⋅ + ⋅ = − ⋅ + ⋅

⋅ − ⋅ ⋅ − ⋅ γ γ γ γ

c1 and c2 are constants γ is propagation constant Z0 is characteristic impedance

13

Digital Kommunikasjon 2002 25

NTNU

Department of Telecommunications

Propagation constant

α is the attenuation constant in Neper/km β is the phase constant in rad/km α α α

dB =

= 20 10 8 69 ln( ) . Neper to dB:

γ ω ω ω ω = ⋅ = + ⋅ + = + ⋅ Z Y R j L G j C R j L j C ( ) ( ) ( ) γ α β = + j

Digital Kommunikasjon 2002 26

NTNU

Department of Telecommunications

Characteristic impedance

Z Z Y R j L G j C R j L j C

0 =

= + + = + ( ) ( ) ( ) ω ω ω ω

At high frequencies R << jωL :

Z L C

0 =

The characteristic impedance is approximately 120 ohms at high frequencies for pair cables in the access network

14

Digital Kommunikasjon 2002 27

NTNU

Department of Telecommunications

Attenuation constant

α = + = = ⋅ R C L G L C R C L k f 2 2 2

1

At high frequencies (f > 100 kHz) R <<ωL. By series expansion of γ : At low frequencies (f < 10 kHz) R >>ωL. Hence:

γ ω ω α β ω = ⋅ = + ⋅ ⋅ = = ⋅ ⋅ = j C R j R C R C k f ( ) 1 2 2

2

Digital Kommunikasjon 2002 28

NTNU

Department of Telecommunications

Attenuation constant of pair cables

15

Digital Kommunikasjon 2002 29

NTNU

Department of Telecommunications

Phase constant

At high frequencies (f > 100 kHz):

β ω = ⋅ = ⋅ L C k f

3

Phase velocity:

v x t L C c

r

= = = = = ⋅ = ∆ ∆ wavelength cycle 2 2 1 π β π ω ω β ε

Phase velocity is 200 000 km/s for pair cables at high frequencies (εr = 2.3 for polyethylene)

Digital Kommunikasjon 2002 30

NTNU

Department of Telecommunications

Termination of a pair

R, L, C, G x=0 I(l) U(l) ZT x=l

16

Digital Kommunikasjon 2002 31

NTNU

Department of Telecommunications

Reflection coefficient

U(x) V e V e I(x) V Z e V Z e Z U I Z V V V V

x x x x T

= ⋅ + ⋅ = ⋅ − ⋅ = = + −

+ ⋅ − − − ⋅ − + ⋅ − − − ⋅ − + − + − γ γ γ γ ( ) ( ) ( ) ( )

( ) ( )

l l l l

l l

ρ = = − +

− +

V V Z Z Z Z Z

T T

Solution of telegraph equation including termination imp. ZT V+ is voltage of wave in positive direction at x=l V- is voltage of reflected wave in at x=l

Reflection coefficient:

No reflections (ρ =0) for ZT= Z0 . Ideal terminations are assumed in later crosstalk calculations

Digital Kommunikasjon 2002 32

NTNU

Department of Telecommunications

Part III Crosstalk in pair cables

• Basic coupling mechanisms
• Crosstalk coupling per unit length
• Near end crosstalk, NEXT
• Far end crosstalk, FEXT
• Statistical crosstalk coupling
• Average NEXT and FEXT
• Crosstalk power sum - crosstalk from many pairs
• Statistical distributions of crosstalk

17

Digital Kommunikasjon 2002 33

NTNU

Department of Telecommunications

Crosstalk mechanisms

Main contributions: Capacitive coupling Inductive coupling

Digital Kommunikasjon 2002 34

NTNU

Department of Telecommunications

Ideal and real twisting of a pair

Ideal twisting Actual twisting of a real pair The crosstalk level observed in real cables is caused mainly by deviations from ideal twisting

18

Digital Kommunikasjon 2002 35

NTNU

Department of Telecommunications

Crosstalk coupling per unit length

Digital Kommunikasjon 2002 36

NTNU

Department of Telecommunications

Crosstalk coupling per unit length

Normalised NEXT coupling coefficient [11]: Normalised FEXT coupling coefficient [11]:

κ β

N N i j i j i j

x j dU U dx C x C L x L

, , ,

( ) ( ) ( ) = ⋅ ⋅ = ⋅ +       1 1 2

2 1

Ci,j(x) is the mutual capacitance per unit length between pair i and j Li,j(x) is the mutual inductance per unit length between pair i and j β0 is the lossless phase constant,

β ω

0 =

⋅ L C

κ β

F F i j i j i j

x j dU U dx C x C L x L

, , ,

( ) ( ) ( ) = ⋅ ⋅ = ⋅ −       1 1 2

2 1

19

Digital Kommunikasjon 2002 37

NTNU

Department of Telecommunications

Near end crosstalk, NEXT

Digital Kommunikasjon 2002 38

NTNU

Department of Telecommunications

Near end crosstalk, NEXT

H f V V j x e dx

NE N x j x

( ) ( ) = =

− −

∫

20 10 2 2

β κ

α β l

Assuming weak coupling, the near end voltage transfer function is given by [11]:

20

Digital Kommunikasjon 2002 39

NTNU

Department of Telecommunications

NEXT between two pairs

10

• 1

10 10

1

30 40 50 60 70 80 90 100

Frequency, MHz Near end crosstalk, dB

pair combination pair combination pair combination average NEXT

Digital Kommunikasjon 2002 40

NTNU

Department of Telecommunications

Stochastic model of crosstalk couplings

Crosstalk coupling factors are white Gaussian stocastic processes: NEXT autocorrelation function [6]: FEXT autocorrelation function [6]:

R E x x k

F F F F

( ) ( ) ( ) ( ) τ κ κ τ δ τ = ⋅ +

[ ] =

⋅ R E x x k

N N N N

( ) ( ) ( ) ( ) τ κ κ τ δ τ = ⋅ +

[ ] =

⋅

kN and kF are constants

21

Digital Kommunikasjon 2002 41

NTNU

Department of Telecommunications

Average NEXT

p f E H f E V V k e dx k e k k f

NE N x N N

( ) ( )

.

= [

] =

        = = ⋅ −

( ) ≈

⋅ = ⋅

− −

∫

2 20 10 2 2 4 2 4 2 2 1 5

4 1 4 β β α β α

α l l N

NEXT increases 15 dB/decade with frequency Average NEXT power transfer function between two pairs [6]:

Digital Kommunikasjon 2002 42

NTNU

Department of Telecommunications

Far end crosstalk, FEXT

22

Digital Kommunikasjon 2002 43

NTNU

Department of Telecommunications

Far end crosstalk, FEXT

H f V V j x dx

FE F

( ) ( ) = =

∫

2 1 l l l

β κ

Assuming weak coupling, the far end voltage transfer function is given by [11]:

Digital Kommunikasjon 2002 44

NTNU

Department of Telecommunications

Average FEXT

q f E H f E V V k dx k k f

FE F F

( ) ( ) = [

] =

        = = ⋅ ⋅ = ⋅ ⋅

∫

2 2 1 2 2 2 2 l l l

l l β β

F2

FEXT increases 20 dB/decade with frequency FEXT increases 10 dB/decade with cable length Average FEXT power transfer function between two pairs [6]:

23

Digital Kommunikasjon 2002 45

NTNU

Department of Telecommunications

Crosstalk from N different pairs crosstalk power sum

• Only crosstalk between identical systems is

considered (self NEXT and self FEXT)

• Crosstalk from different pairs add on a

power basis

• Effective crosstalk is given by the sum of

crosstalk power transfer functions, which is denoted crosstalk power sum

Digital Kommunikasjon 2002 46

NTNU

Department of Telecommunications

Crosstalk from N different pairs crosstalk power sum

H f H f

NE ps NE i j j j i N

( ) ( )

, 2 2 1

=

[ ]

= ≠

∑

NEXT crosstalk power sum for pair no i:

H f H f

FE ps FE i j j j i N

( ) ( )

, 2 2 1

=

[ ]

= ≠

∑

FEXT crosstalk power sum for pair no i:

24

Digital Kommunikasjon 2002 47

NTNU

Department of Telecommunications

NEXT power sum

10

• 1

10 10

1

25 30 35 40 45 50 55 60 65 70

Frequency, MHz NEXT power sum, dB

NEXT ps, cable 1 NEXT ps, cable 2 NEXT ps, cable 3 average NEXT ps

Digital Kommunikasjon 2002 48

NTNU

Department of Telecommunications

Probability distributions of crosstalk

Crosstalk power transfer function for a single pair combination at a given frequency is gamma-distributed with probability density [6]: ν = 1.0 for NEXT ν = 0.5 for FEXT a is average crosstalk power

p z a z e

z z a

( ) ( ) = ⋅    ⋅ ⋅

− −

1

1

Γ ν ν

ν ν ν

25

Digital Kommunikasjon 2002 49

NTNU

Department of Telecommunications

Probability density of NEXT and FEXT for a single pair combination

0.5 1 1.5 2 2.5 3 0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 2

Amplitude relative to average power transfer function Probability density

ny = 0.5 (FEXT) ny = 1.0 (NEXT)

Digital Kommunikasjon 2002 50

NTNU

Department of Telecommunications

Probability of crosstalk for an arbitrary pair combination

Different pair combinations will have different levels

• f crosstalk coupling (different kN and kF).

It can be shown that: The crosstalk power transfer function for a random pair combination is approximately gamma-distributed The number of degrees of freedom, ν must be found

• empirically. ν < 1.0 for NEXT and ν < 0.5 for FEXT

26

Digital Kommunikasjon 2002 51

NTNU

Department of Telecommunications

Probability of crosstalk power sum

Crosstalk from different pairs add on a power basis. Hence, crosstalk power sum is approximately gamma-distributed with probability distribution:

p z a z e

ps ps ps ps z a

ps ps ps ps

( ) ( ) = ⋅       ⋅ ⋅

− −

1

1

Γ ν ν

ν ν ν aps=Na, where a is the average crosstalk of one pair combination νps=Nν , where ν is the number of degrees of freedom for a random pair combination N is the number of disturbing pairs

Digital Kommunikasjon 2002 52

NTNU

Department of Telecommunications

Probability density of crosstalk power sum

0.5 1 1.5 2 2.5 3 0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 2

Amplitude relative to average power sum Probability density

ny = 0.2 ny = 0.5 ny = 1.0 ny = 2.0 ny = 5.0

27

Digital Kommunikasjon 2002 53

NTNU

Department of Telecommunications

Worst case crosstalk

Crosstalk dimesioning is usually based upon the 99% point

• f NEXT and FEXT power sum, which is given by

(1% of the pairs will have crosstalk that exceeds this limit):

p f N E k f c q f N E k f c

ps ps ps ps 99 2 1 5 99 99 2 2 99

( ) ( ) ( ) ( )

.

= ⋅ [

]⋅

⋅ = ⋅ [

]⋅

⋅ ⋅

N F

for NEXT for FEXT ν ν l

c99(νps) is the ratio between the 99% point and the average power sum in the gamma distribution The expectations E[kN2] and E[kF2] are taken over all pair combinations

Digital Kommunikasjon 2002 54

NTNU

Department of Telecommunications

Empirical worst case NEXT model

p F N F

ps 99 4 0 6 1 5

10 49 ( )

. .

= ⋅    ⋅

− N is the number of disturbing pairs in the cable F is the frequency in MHz

International model of 99% point of NEXT power sum based upon 50 pair binder groups: This model fits well with 100% filled Nowegian cables with 10 pair binder groups

28

Digital Kommunikasjon 2002 55

NTNU

Department of Telecommunications

Empirical worst case FEXT model

q F N F L

ps 99 4 0 6 2

3 10 49 ( )

.

= ⋅ ⋅    ⋅ ⋅

− N is the number of disturbing pairs in the cable F is the frequency in MHz L is the cable length in km

International model of 99% point of FEXT power sum based upon 50 pair binder groups: This model fits well with 100% filled Nowegian cables with 10 pair binder groups

Digital Kommunikasjon 2002 56

NTNU

Department of Telecommunications

Part IV Channel capacity estimates [1,2,8]

• Shannon’s channel capacity formula
• Signal and noise models
• Realistic estimates of channel capacity
• Channel capacity per bandwidth unit
• One-way transmission
• Two-way transmission
• Crosstalk between different types of systems,

alien NEXT, alien FEXT

29

Digital Kommunikasjon 2002 57

NTNU

Department of Telecommunications

Shannon’s theoretical channel capacity

Maximum theoretical channel capacity in the frequency band [fl,fh]:

C S f N f df

Sh fl fh

= +      

∫ log

( ) ( )

2 1

bit/s

S(f): signal power density N(f): noise power density

Digital Kommunikasjon 2002 58

NTNU

Department of Telecommunications

Capacity per bandwidth unit

A realistic estimate of bandwidth efficiency [2]:

η λ ( ) log ( ) ( ) f C f k S f N f

eff

= = ⋅ + ⋅       ∆ ∆

2 1

bit/s/Hz

S(f): signal power density N(f): noise power density λ ≤ 1: factor for margin (safety margin + margin for mod.meth.) keff ≤ 1: factor for overhead (sync bits, RS-code, cyclic prefix)

30

Digital Kommunikasjon 2002 59

NTNU

Department of Telecommunications

Signal transmission

• Attenuation proportional to

due to skin effect (f > 100 kHz)

• Signal transfer function:

f

H f k f

dB

( ) exp = = −

( )

−

10

20 α l

l

αdB: attenuation constant in dB

Digital Kommunikasjon 2002 60

NTNU

Department of Telecommunications

Signal and noise models

• Signal:
• Noise models:

N F N F NEXT N F L e FEXT N AWGN

NEXT FEXT L AWGN

( )

.

= = ⋅ = ⋅ ⋅ ⋅ ⋅ =     

− − − −

10 3 10 10

4 1 5 4 2 2 8 α

S F e

L

( ) =

−2α

31

Digital Kommunikasjon 2002 61

NTNU

Department of Telecommunications

Channel capacity vs. frequency

2 4 6 8 10 5 10 15

Frequency, MHz Potential bandwith efficiency, bit/s/Hz

FEXT AWGN NEXT

L=1 km

Digital Kommunikasjon 2002 62

NTNU

Department of Telecommunications

Channel capacity vs frequency II

2 4 6 8 10 5 10 15

Frequency, MHz Potential bandwith efficiency, bit/s/Hz

• ne-way transmission

two-way transmission 2*two-way transmission 0.5 1 1.5 2 5 10 15

Frequency, MHz Potential bandwith efficiency, bit/s/Hz

• ne-way transmission

two-way transmission 2*two-way transmission

L=1 km L=3 km

32

Digital Kommunikasjon 2002 63

NTNU

Department of Telecommunications

Total channel capacity

R k S F N N df

• ne way

eff FEXT AWGN fl fh −

= + ⋅ +      

∫ log

( )

2 1

λ R k S F N N N df

two way eff NEXT FEXT AWGN fl fh −

= + ⋅ + +      

∫ log

( )

2 1

λ

One-way transmission: Two-way transmission:

The channel capacity is somewhat greater than this expression for two-way transmission due to uncorrelated NEXT in different frequency bands [9,10]

Digital Kommunikasjon 2002 64

NTNU

Department of Telecommunications

Assumptions for estimation of bitrates

• For one-way transmission, the total bitrate found

in the calculations must be divided by downstream and upstream transmission

• Identical systems in all pairs of the cable (only self

NEXT and self FEXT)

• All pairs are used, the cable is 100% filled
• Net bitrate is 90% of total bitrate (keff=0.90)
• Frequency band: f ≥ 100 kHz,

upper limit 11 MHz

33

Digital Kommunikasjon 2002 65

NTNU

Department of Telecommunications

Assumptions II

• Multicarrier modulation [7]
• Adaptive modulation in each sub-band
• M-TCM modulation in each sub-band

4 ≤ M ≤ 16384, 1 - 13 bit/s/Hz

• Distance to Shannon (λ): 9 dB

(6 dB margin + 3 dB for modulation)

• White noise: 80 dB below output signal
• Cable: 0.4 mm, 22.5 dB/km at 1 MHz

Digital Kommunikasjon 2002 66

NTNU

Department of Telecommunications

Potential range for .4 mm cable

1 2 3 4 5 10 20 30 40 50 60

Range, Km Bitrate, Mbit/s

• ne-way transmission

two-way transmission 1 2 3 4 5 10 20 30 40 50 60

Range, Km Bitrate, Mbit/s

• ne-way transmission

two-way transmission

VDSL ADSL

34

Digital Kommunikasjon 2002 67

NTNU

Department of Telecommunications

Potential range for .4 mm cable II

2 2.5 3 3.5 4 4.5 5 0.5 1 1.5 2 2.5 3 3.5 4

Range, Km Bitrate, Mbit/s

• ne-way transmission

two-way transmission

SHDSL+ SHDSL+ means a multicarrier system using approximately the same frequency band as SHDSL

Digital Kommunikasjon 2002 68

NTNU

Department of Telecommunications

Digital Subscriber Line systems, xDSL

• ADSL; Asymmetric Digital Subscriber Lines [5]

– Asymmetric data rates, 256 kbit/s - 8 Mbit/s downstream, range up to 4 - 5 km

• SHDSL; Symmetric High-speed Digital

Subscriber Lines [3]

– Symmetric data rates, 192 kbit/s - 2.3 Mbit/s, range up to 6 - 7 km

• VDSL; Very high-speed Digital Subscriber Lines

– Asymmetric or symmetric data rates (still under standardisation), up to 52 Mbit/s downstream, range typically ≤ 1 km [4]

35

Digital Kommunikasjon 2002 69

NTNU

Department of Telecommunications

Frequency allocations in the access network

Upstream Downstream

ADSL SHDSL low ADSL + VDSL Frequency, kHz Frequency, kHz 2 Mbit/s SHDSL SHDSL low 1104 2 Mbit/s SHDSL 125 211 400 1104 125 276 400

VDSL

SHDSL low ≤ 640 kbit/s

Digital Kommunikasjon 2002 70

NTNU

Department of Telecommunications

Conclusions

• Frequency planning in pair cables is very

important

• New systems should be introduced with

great care in order to preserve the potential transmission capacity of the cable

• Full rate SHDSL systems overlaps with

ADSL

36

Digital Kommunikasjon 2002 71

NTNU

Department of Telecommunications

References I

[1] J.-J. Werner, "The HDSL environment," IEEE Journal on Sel. Areas in Commun., August 1991, pp. 785-800 [2]

• T. Starr, J. M. Cioffi, P. J. Silverman, "Understanding digital

subscriber line technology," Prentice Hall, Upper Saddle River, 1999 [3] ITU-T Recommendation G.991.2, " Single-Pair High-Speed Digital Subscriber Line (SHDSL) transceivers", Geneva, 2001 [4] ETSI TS 101 270-1, V1.2.1, "Very high speed Digital Subscriber Line (VDSL); Part 1: Functional requirements", Sophia Antipolis, 1999 [5] ITU-T Recommendation G.992.1, "Asymmetric Digital Subscriber Line (ADSL) transceivers", Geneva, 1999

Digital Kommunikasjon 2002 72

NTNU

Department of Telecommunications

References II

[6]

• H. Cravis, T. V. Crater, "Engineering of T1 carrier system

repeatered lines," Bell System Techn. Journal, March 1963,

• pp. 431-486

[7]

• J. A. C. Bingham, "Multicarrier modulation for data transmission:

An idea whose time has come," IEEE Communications Magazine, May 1990, pp. 5-19 [8]

• N. Holte, “Broadband communication in existing copper cables

by means of xDSL systems - a tutorial”, NORSIG, Trondheim, October 2001 [9]

• N. Holte, “A new method for calculating the channel capacity in

pair cables with respect to near end crosstalk”, DSLcon Europe, Munich, November 2001

37

Digital Kommunikasjon 2002 73

NTNU

Department of Telecommunications

References III

[10]

• A. J. Gibbs, R. Addie, "The covariance of near end crosstalk and

its application to PCM system engineering in multipair cable," IEEE Trans. on Commun., Vol. COM-27, No. 2, Feb. 1979, pp.469-477 [11]

• W. Klein, "Die Theorie des Nebensprechens auf Leitungen,"

Springer-Verlag, Berlin, 1955 [12]

• H. Kaden, “Wirbelströme und Schirmüng in der Nachrichten-

technik”, Springer-Verlag, Berlin 1959 [13]

• S. Nordblad, "Multi-paired Cable of nonlayer design for low

capacitance unbalance telecommunication networks," Int. Wire and cable symp., 1971, pp. 156-163
