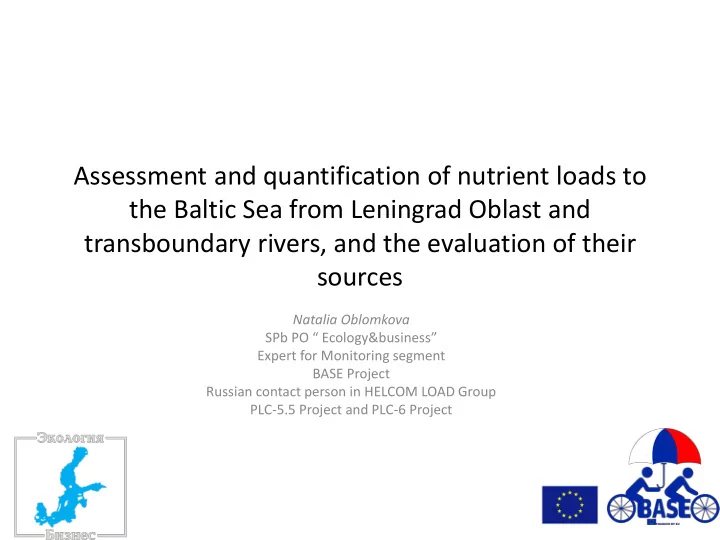

Assessment and quantification of nutrient loads to the Baltic Sea from Leningrad Oblast and transboundary rivers, and the evaluation of their sources Natalia Oblomkova SPb PO Ecology&business Expert for Monitoring segment BASE

slide-1
SLIDE 1

Assessment and quantification of nutrient loads to the Baltic Sea from Leningrad Oblast and transboundary rivers, and the evaluation of their sources

Natalia Oblomkova SPb PO “ Ecology&business” Expert for Monitoring segment BASE Project Russian contact person in HELCOM LOAD Group PLC-5.5 Project and PLC-6 Project

slide-2
SLIDE 2

Aim

slide-3
SLIDE 3

Object and Scope of the work

  • Object :

Neva river (from Lake Ladoga till mouth)

  • Scope of the work:
  • 4 rounds of the sampling works

in Neva river catchment (Flow, Ptot and Ntot content)

  • desk studies on quantification of Russian

transboundary loads (Narva, Neman)

Neva river

slide-4
SLIDE 4

Executors

Sampling + Flow measurement

FSI “North-West Department of Hydrometeorology and Environmental Monitoring” Chemical analysis Laboratory of FSI “North-West Department of Hydrometeorology and Environmental Monitoring” Participated in the PLC-6 intercalibration Russian Consultant Participated in the 1st sampling round POYRY Finland Oy

AND

Supplementary EU Consultant

slide-5
SLIDE 5

1st sampling round - Programme

slide-6
SLIDE 6

1st sampling round - Programme

slide-7
SLIDE 7

Results-Neva river- Ptot load (t/day)

slide-8
SLIDE 8

Results-Neva river- Ntot load (t/day)

slide-9
SLIDE 9

Load generating

slide-10
SLIDE 10

Tributaries influence

slide-11
SLIDE 11

Comparison of the chemical analysis results (POYRY&Hydromet)

slide-12
SLIDE 12

Main results of the 1st sampling round

  • Nutrient load to the Neva river from

tributaries: Dubrovka, Chernaya rechka (LO), watercourse from Sinyavino, Grunevka, Chernaya (Krasnaya Zarya settlement), Utka, Murzinka is insignificant

  • All along the Neva river there are significant

undefined load (direct point and diffuse sources of nutrient load)

slide-13
SLIDE 13

From 1st to 2nd sampling round

slide-14
SLIDE 14

2nd sampling round

2 26 25

19 20 21 22

28 29 30 31

slide-15
SLIDE 15

34.1% 40.0%

31% 32% 33% 34% 35% 36% 37% 38% 39% 40% 41%

Section 2A Section 1A 1st round Ptot load formation

2nd round Ptot load dynamics compared to 1st round

Neva river head Neva mouth Neva river SPb/LO border

3.5% 43.5%

0% 5% 10% 15% 20% 25% 30% 35% 40% 45% 50%

Section 2 Section 1

2nd round Ptot load formation A A

slide-16
SLIDE 16

19.4%

  • 15.1%
  • 20%
  • 15%
  • 10%
  • 5%

0% 5% 10% 15% 20% 25%

Section 2 Section 1 1st round Ntot load formation

A

  • 28.7%

16.1%

  • 35%
  • 30%
  • 25%
  • 20%
  • 15%
  • 10%
  • 5%

0% 5% 10% 15% 20%

Section 2 Section 1

2nd round Ntot load formation

A

2nd round Ntot load dynamics compared to 1st round

Neva mouth Neva river SPb/LO border Neva river head

A A

slide-17
SLIDE 17

Results – 1st and 2nd rounds

1st round 2nd round Average Ntot load t/day Ptot load t/day Ntot load t/day Ptot load t/day Ntot load t/day Ptot load t/day Neva river head 198,6 2,9 137,9 3,45 0,5 km downstream Slavyanka mouth 254 9,1 172,4 6,9 Mouth 255 6,9 156,9 7,7 Diffence (Mouth

  • Head)

55,4 6,2 2,7 3,45 Tributaries 21,08 2,7 7,9 0,62 Undefined load 33,6 3,5 26,6 2,8 30,1 3,15

10 20 30 40 50 60 Diffence (Mouth - Head) Tributaries Undefined load t/day

Ntot load, t/day

1st round Ntot load 2nd round Ntot load 1 2 3 4 5 6 7 Diffence (Mouth

  • Head)

Tributaries Undefined load t/day

Ptot load, t/day

1st round Ptot load 2nd round Ptot load

slide-18
SLIDE 18

More detailed assessment- more points in Neva river

1

3,45

19,20, 21,22

6,32

2 0,05 10 0,22 13 0,04 14 0,02 15 0,01 8 0,22 9

  • 0,003

16 0,07 17 0,03 24 0,08 25 0,08 26 0,001 27

6,1

28

5

29

7,16

30

6

31

6,9 Sub-section 6 Sub-sec. 1 Sub-sec.2 Sub-sec. 3

Sub-sec.4

Sub-section 5

slide-19
SLIDE 19

(1.50) (1.00) (0.50)

  • 0.50

1.00 1.50 2.00 2.50

№ 6. № 5. № 4. № 3. № 2. № 1.

Ptot load formation dynamics along Neva river estrarium Load formation on the sub-section Tributaries input

Pathways of load formation on the sub-sections

(50) (40) (30) (20) (10)

  • 10

20 30 40

№ 6. № 5. № 4. № 3. № 2. № 1.

Ntot load formation dynamics along Neva river estratium

Load formation on the sub-section Tributaries input Neva river head Neva river SPb/LO border Neva mouth

slide-20
SLIDE 20

Main conclusions – 2nd round, Neva river

  • There are significant decrease in load on

Section 6 (Neva river within SPb borders)

  • Tributaries input are less then 30%, there are

significant undefined direct load to Neva river.

slide-21
SLIDE 21

Decrease in the Section before mouth

Reason – decrease in river flow in around 500 m3/sec, because:

  • the Srednya Nevka river has not been included in program (Flow about 250

m3/sec),

  • the flow measurements has been carried out in different dates,
  • partly flow has been decreasing due to water intake.

After corrections in flow values (using statically approved coefficients to calculate flow in branches and loses in small rivers in canals of St.Petersburg) the load decrease on the section are: 0,4 t/day for Ptot and 20, 53 t/day for Ntot.

?

slide-22
SLIDE 22

Chemical analysis uncertainty for Ptot, t/day

  • 1.5
  • 1.0
  • 0.5
  • 0.5

1.0 1.5 2.0 2.5 № 6. № 5. № 4. № 3. № 2. № 1. t/day № of the Section Tributaries Ptot load

  • n the Section

Load formated on the Section

slide-23
SLIDE 23

Chemical analysis uncertainty for Ntot, t/day

(30) (20) (10)

  • 10

20 30 № 6. № 5. № 4. № 3. № 2. № 1. t/day № of the Section Tributaries Ntot load on the Section Total load formated on the Section

Water uptake for water supply – around 2 t/day

slide-24
SLIDE 24

Conclusions 2nd sampling round:

  • Ptot input is present on sections 1 and 2;
  • Ntot input is present on Section 4.
slide-25
SLIDE 25

3rd sampling round programme

slide-26
SLIDE 26
slide-27
SLIDE 27
slide-28
SLIDE 28
  • 10
  • 5

5 10 15 20 № 6 № 5 № 4 № 3 № 2 № 1

t/day

Ptot load formation along Neva river

slide-29
SLIDE 29
  • 50
  • 40
  • 30
  • 20
  • 10

10 20 30 40 50

№ 6 № 5 № 4 № 3 № 2 № 1

t/day

Ntot load formation along Neva river

slide-30
SLIDE 30

0.05 0.1 0.15 0.2 0.25 0.3 0.1 0.5 0.9 0.1 0.5 0.9 0.1 0.5 0.9 0.1 0.5 0.9 0.1 0.5 0.9 0.1 0.5 0.9 1 -Neva river head 28-Neva river 1,2 km downstream the Chernaya river mouth 29-Neva river 1,7 km downstream Dubrovka river 30-Neva river 8,4 km downstream Mga river 27-Neva river at the border of SPb/LO 31-Neva river 0,5 km downstream Slavyanka river mg/l

Ptot concentration in Neva river by verticals

0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 2 0.1 0.5 0.9 0.1 0.5 0.9 0.1 0.5 0.9 0.1 0.5 0.9 0.1 0.5 0.9 0.1 0.5 0.9 1 -Neva river head 28-Neva river 1,2 km downstream the Chernaya river mouth 29-Neva river 1,7 km downstream Dubrovka river 30-Neva river 8,4 km downstream Mga river 27-Neva river at the border of SPb/LO 31-Neva river 0,5 km downstream Slavyanka river mg/l

Ntot concentartions in Neva river by verticals

slide-31
SLIDE 31

1 2 3 4 5 6

slide-32
SLIDE 32

Future works:

  • 4th sampling round – April 2014;
  • Final report
slide-33
SLIDE 33

Kaliningrad Oblast Case prepared by Mr. D. Domnin (BIEH)

slide-34
SLIDE 34
slide-35
SLIDE 35
slide-36
SLIDE 36
slide-37
SLIDE 37
slide-38
SLIDE 38
slide-39
SLIDE 39
slide-40
SLIDE 40
slide-41
SLIDE 41
slide-42
SLIDE 42
slide-43
SLIDE 43
slide-44
SLIDE 44
slide-45
SLIDE 45
slide-46
SLIDE 46

3rd sampling round

slide-47
SLIDE 47

Thank you for attention!
