05/06/2019 Tracking the spread of insecticide resistance in Anopheles gambiae populations - 6 June 2019 - Alistair Miles localhost:4000/slides/20190606-who-geneva.html?print-pdf#/ 1/42

Tracking the spread of Tracking the spread of insecticide resistance in insecticide resistance in Anopheles gambiae Anopheles gambiae populations populations

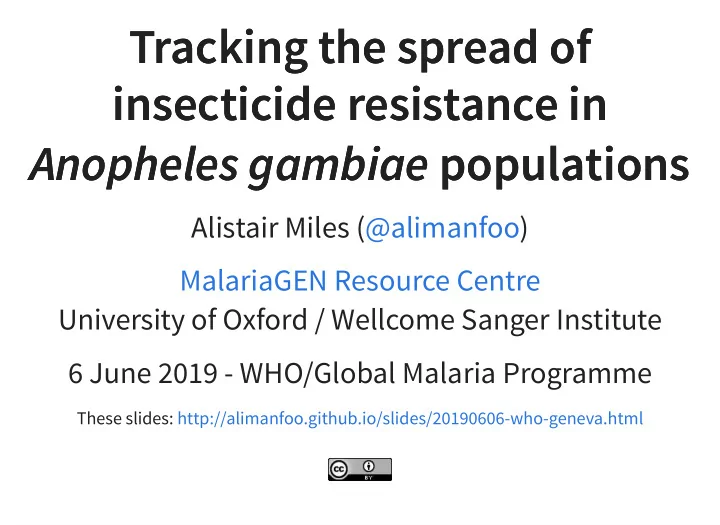

Alistair Miles ( ) University of Oxford / Wellcome Sanger Institute 6 June 2019 - WHO/Global Malaria Programme

These slides:

@alimanfoo MalariaGEN Resource Centre

http://alimanfoo.github.io/slides/20190606-who-geneva.html

05/06/2019 Tracking the spread of insecticide resistance in Anopheles gambiae populations - 6 June 2019 - Alistair Miles localhost:4000/slides/20190606-who-geneva.html?print-pdf#/ 2/42

Use cases for genomic Use cases for genomic surveillance of malaria vector surveillance of malaria vector populations populations

Pyrethroid resistance is widespread in primary African vector species. How can surveillance improve insecticide resistance management (IRM)?

05/06/2019 Tracking the spread of insecticide resistance in Anopheles gambiae populations - 6 June 2019 - Alistair Miles localhost:4000/slides/20190606-who-geneva.html?print-pdf#/ 3/42

Use case (1): Procurement and Use case (1): Procurement and deployment of next-generation deployment of next-generation LLINs LLINs

"Next-generation" LLINs available, e.g.: Olyset Plus: permethrin + PBO (P450 synergist) Olyset Duo: permethrin + pyriproxyfen (second insecticide) More expensive than standard LLINs How many to buy? Where to deploy them?

05/06/2019 Tracking the spread of insecticide resistance in Anopheles gambiae populations - 6 June 2019 - Alistair Miles localhost:4000/slides/20190606-who-geneva.html?print-pdf#/ 4/42

Use case (2): IRS deployment Use case (2): IRS deployment strategy strategy

"Next-generation" IRS formulations available, e.g.: Actellic 300CS: pyrimiphos methyl (organophosphate) SumiShield 50WG: clothianidin (neonicotinoid) Fludora Fusion: deltamethrin + clothianidin Preemptive rotation? Geographical mosaic? Is it working?

05/06/2019 Tracking the spread of insecticide resistance in Anopheles gambiae populations - 6 June 2019 - Alistair Miles localhost:4000/slides/20190606-who-geneva.html?print-pdf#/ 5/42

Use case (3): Cross-border Use case (3): Cross-border coordination coordination

Can countries take decisions in isolation about how to manage insecticide resistance? When and where do decisions need to be coordinated across borders?
