TRACER TUTORIAL: TEXT REUSE DETECTION INTRODUCTION TO THE COMMAND - - PowerPoint PPT Presentation

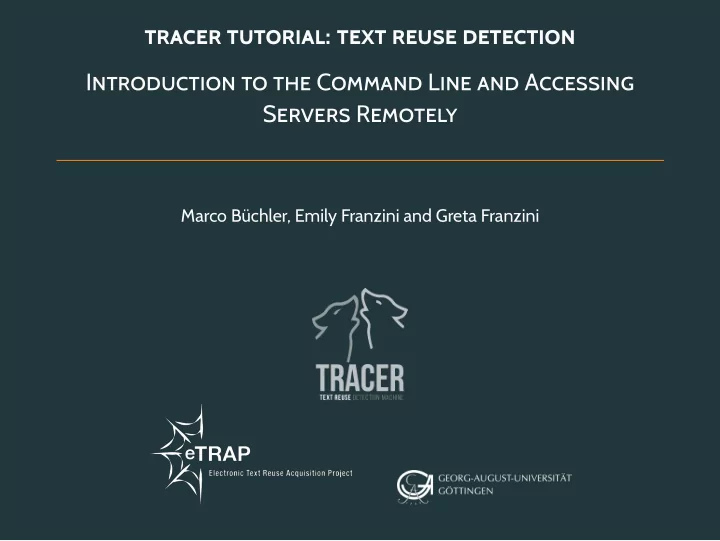

TRACER TUTORIAL: TEXT REUSE DETECTION INTRODUCTION TO THE COMMAND LINE AND ACCESSING SERVERS REMOTELY

Marco B¨ uchler, Emily Franzini and Greta Franzini

TABLE OF CONTENTS

• 1. Connecting to the server
• 2. Command line introduction

2/100

CONNECTING TO THE SERVER

CONNECTING TO THE SERVER

• 1. Mac + Linux: Open a terminal
• 2. Connect to server via ssh -l <login> 192.168.11.4
• 3. Enter password
• 4. Windows: Start Putty

4/100

COMMAND LINE INTRODUCTION

WHICH FOLDER AM I IN ON THE SERVER?

To identify your current directory location:

• Command: pwd (parent working directory)
• Usage: pwd <ENTER>
• Example:

pwd <ENTER> /Users/mbuechler

6/100

WHICH FILES DOES MY PWD CONTAIN?

To list directory contents:

• Command: ls (list)
• Usage:
• ls -l <FOLDER> <ENTER> // list all files and directories, one per line;
• ls -la <FOLDER> <ENTER> // show also hidden files;
• ls -lh <FOLDER> <ENTER> // show e.g. file sizes in a

human-readable format.

• Example:
• ls -l <ENTER>
• ls -lh /home/mbuechler <ENTER>

7/100

HOW TO CHANGE TO A DIFFERENT DIRECTORY?

To change to a different directory:

• Command: cd (change directory)
• Usage: cd <FOLDER> <ENTER> change to <folder>
• Example:
• cd

<ENTER> // change to ”home folder”

• cd /storage <ENTER>
• cd ..

<ENTER>

8/100

HOW TO CREATE A FOLDER?

To create a folder:

• Command: mkdir (make directory)
• Usage: mkdir <FOLDER> <ENTER> // change to folder
• Example:
• mkdir /storage/mbuechler <ENTER> // creates a directory in

/storage called ”mbuechler”

• mkdir /storage/mbuechler/test <ENTER> // creates a directory in

/storage/mbuechler called ”test”

9/100

HOW TO COPY A FILE?

To copy a file:

• Command: cp (copy file)
• Usage: cp <PATH TO FILE> <TARGET FOLDER> <ENTER>
• Example:
• cp /storage/HelloWorld.jar /storage/mbuechler <ENTER> //

copies HelloWorld.jar to /storage/mbuechler

10/100

HOW TO REMOVE A DIRECTORY?

To remove a directory:

• Command: rm (removes a directory or a file)
• Usage: rm -r <PATH TO FILE OR FOLDER> <ENTER>
• Example: rm /storage/mbuechler/test <ENTER>

11/100

HOW TO RUN A JAVA PROGRAMME?

To run a Java programme:

• Command: java (run a java programme)
• Usage: java -Xmx1g -Dproperty=value -jar <programme>

<ENTER>

• Example: java -jar HelloWorld.jar

12/100

HOW TO EDIT A FILE?

To edit a file:

• Command: vim (vi improved)
• Usage: vim <file name> <ENTER>
• Example: vim .bash profile (use cd

first)

13/100

HOW TO EDIT A FILE?

vim commands:

• 1. Change to editor modus: type i (insert)
• 2. Leave editor modus: press ESC
• 3. Leave vim without writing changes to the disc: type :q!
• 4. Leave vim and write changes to the disc: type :wq

14/100

EDIT THE BASH PROFILE

vim commands:

• 1. Change to home folder: cd /home/mbuechler
• 2. Edit bash profile: vim .bash profile
• 3. Add two lines to select the correct Java version:

15/100

ENCODING GUIDE

• 1. Most UTF-8 editors display the file encoding.
• 2. If you’re unsure about the encoding of your data or cannot display it

correctly in a text editor, if the file is not too big try opening it in your standard text processing program (e.g. Microsoft Word or Open Office) to find information regarding the encoding.

• 3. Windows machines: install Cygwin from

https://cygwin.com/install.html

• COPY your .txt files to your Cygwin user directory and then:

$ file *.txt

• Depending on the output, list all possible encodings:

$ iconv -l

• And re-encode (e.g. Windows Hebrew to UTF-8):

$ iconv -f CP1255 -t UTF-8 in.txt > out.txt

16/100
