Towards Research 4.0 ENRIS2019, University of Twente Christian - - PowerPoint PPT Presentation

www.polyteknik.com

WHEN THIN FILM MATTERS 1

WWW.POLYTEKNIK.COM

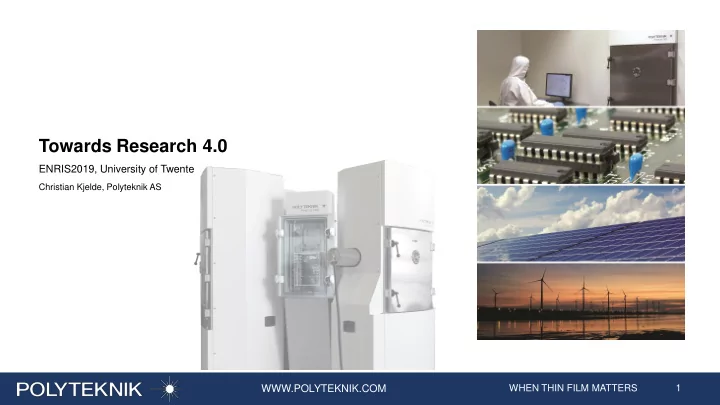

Towards Research 4.0

ENRIS2019, University of Twente

Christian Kjelde, Polyteknik AS

www.polyteknik.com

WHEN THIN FILM MATTERS 2

WWW.POLYTEKNIK.COM

• Polyteknik AS
• Flextura PVD Platform
• Towards research 4.0 (Material science and research)
• Research 4.0 as a term
• Case: Flextura Cluster system for University of Oslo

Outline

www.polyteknik.com

WHEN THIN FILM MATTERS 3

WWW.POLYTEKNIK.COM

We are a local company working globally

• Established in 1995 by Mr. Jens William Larsen
• State-of-the-art 2000m2 facility located close to

Aalborg, in the northern part of Denmark

• Class 1000 clean room
• Material characterisation lab for thin film analysis
• Highly qualified teams of scientists, process and

mechanical engineers (25-30 employee)

Denmark

Polyteknik AS

www.polyteknik.com

WHEN THIN FILM MATTERS 4

WWW.POLYTEKNIK.COM

Polyteknik AS Ferries to Norway Ferries to Sweden Aalborg - AAL airport to rest of world Copenhagen CPH Airport

We are a local company working globally

• Established in 1995 by Mr. Jens William Larsen
• State-of-the-art 2000m2 facility located close to

Aalborg, in the northern part of Denmark

• Class 1000 clean room
• Material characterisation lab for thin film analysis
• Highly qualified teams of scientists, process and

mechanical engineers (25-30 employee)

More than 20 years of excellence

www.polyteknik.com

WHEN THIN FILM MATTERS 5

WWW.POLYTEKNIK.COM

Business Areas

Design, Manufacture, Software Process, Service & Maintenaince Consumables & spare parts Coating service for general industry Coating development & Proof-of-concept Supply chain sourcing Accellerators & Syncrotrons Fusion Energy

www.polyteknik.com

WHEN THIN FILM MATTERS 6

WWW.POLYTEKNIK.COM

Tornado Discovery Flextura Cluster

Our standard PVD system platforms

Flextura Module

www.polyteknik.com

WHEN THIN FILM MATTERS 7

WWW.POLYTEKNIK.COM

FLEXTURA PVD – THE MOST FLEXIBLE 200mm PLATFORM

www.polyteknik.com

WHEN THIN FILM MATTERS 8

WWW.POLYTEKNIK.COM

PROCESS COMBINATIONS OF THE FLEXTURA PVD PLATFORM

Sputtering processes

• DC, pulsed DC, Bipolar, RF, HIPIMS
• Metals, alloys, oxides, nitrides.
• Epitaxial growth of thin films by sputtering

E-beam processes

• Generic E-beam configuration
• GLAD Glancing Angle Deposition – OAD Oblique Angle

Deposition

• High Rate Si deposition with 1000 °C substrate temperature
• Epitaxial growth of Si by E-beam deposition

Thermal processes

• Heating of substrates up to 1000 °C under deposition or as thermal

pre- or post processing

• Robotic handling of substrates with temperatures up to 500 °C

Organic deposition

• Low temp Knudsen cell type

Analysis/characterization

• RHEED
• UPS/ARUPS
• LEED

www.polyteknik.com

WHEN THIN FILM MATTERS 9

WWW.POLYTEKNIK.COM Full-automatic single wafer processing via load lock Manual Loading Full-automatic processing cassette to casette

MODULARITY

www.polyteknik.com

WHEN THIN FILM MATTERS 10

WWW.POLYTEKNIK.COM

Our unique and user-friendly Cryosoft3 control software increases the quality, throughput and value

• f your research or production by full data logging and

recipe based deposition developments. The system is based on a strong Beckhoff PLC.  System can run in fully automatic or manual mode.  Software can contain up to 100 recipes.  Multi-layer programming integrated in the software.  Push-button in software for manual start of deposition, after automatic pump down cycles.  High up-time and user-friendly also with multiple users.  Remote access for system observation and control (vacuum pressure, valves, mass flow control, pumps, gas control, shutters, RF and DC generators, etc.

Polyteknik software - Cryosoft3

www.polyteknik.com

WHEN THIN FILM MATTERS 11

WWW.POLYTEKNIK.COM

A RGA provides an essential and valuable picture of the global gas composition within the process chamber. Software integrated feedback loop in Cryosoft3 utilise these data for:

• Base pressure quality control - Footprint
• In-situ dynamic regulation of process for stable and

repeatable depositions in reactive processes.

• Wide pressure working range up to 10-2 mbar range.

Used for process and quality control, fault detection.

RGA for process control

www.polyteknik.com

WHEN THIN FILM MATTERS 12

WWW.POLYTEKNIK.COM

Dynamic Plasma Emission Control

Dynamic reactive magnetron sputtering by integration

• f feedback for control of gas flow and power into our

Cryosoft3 control software to give:

• Stabile plasma composition
• Stabile deposition rate
• Stabile stoichiometry

EMICON MC system incl.

• spectrometer channels (1 per target)
• Spectral analysis software

Used for process and quality control, fault detection, plasma process diagnostics.

Precise controlled reactive sputtering with PEM

www.polyteknik.com

WHEN THIN FILM MATTERS 13

WWW.POLYTEKNIK.COM

System status, material consumption etc.

www.polyteknik.com

WHEN THIN FILM MATTERS 14

WWW.POLYTEKNIK.COM

Towards Research 4.0

Research 4.0

Open Science 4.0

Science 4.0

Research & Development 4.0

SMART RESEARCH!

Google: About 14.000.000 results Google: less than 200.000 results

www.polyteknik.com

WHEN THIN FILM MATTERS 15

WWW.POLYTEKNIK.COM

Towards Research 4.0

Ref: Prof. Dr. Dr. h.c. mult. August-Wilhelm Scheer, Scheer GmbH; AWS Institut für digitale Produkte und Prozesse, Saarbrücken

www.polyteknik.com

WHEN THIN FILM MATTERS 16

WWW.POLYTEKNIK.COM

Towards Research 4.0 (Material Science)

Source: Research and Development 4.0, PWC Strategy& analysis

www.polyteknik.com

WHEN THIN FILM MATTERS 17

WWW.POLYTEKNIK.COM

FLEXTURA PVD CLUSTER a research 4.0 enabler

University of Oslo – www.norfab.no Purpose: Epitaxial growth and analysis of semiconducting oxides First discussions started in 2016 Installed Q1 2019 Delivery time slightly above 1 year Specialities:

• +1000 °C substrate temperatures
• Thermal treatment with N2, O2, H2 and

”Metal” atmosphere

• Remote Plasma Sputtering
• DC,RF, HiPIMS (also with remote plasma)
• In-system analysis

www.polyteknik.com

WHEN THIN FILM MATTERS 18

WWW.POLYTEKNIK.COM

Remote plasma sputtering DC, RF, HiPIMS Substrate: 1000 °C <E-8 mbar Sputtering with PEM DC, RF, HiPIMS Substrate: 1000 °C <E-8 mbar Load lock, custom cassette 10 pcs and GB (detachable) Thermal pre/post treatment Substrate: 1000 °C <E-8 mbar Analysis/characterisation LEED & UPS/ARUPS Upgradeable with XPS <E-9 mbar Central Transfer Chamber Brooks MAG7S robot E-8 mbar

www.polyteknik.com

WHEN THIN FILM MATTERS 19

WWW.POLYTEKNIK.COM

Process and transfer modules

www.polyteknik.com

WHEN THIN FILM MATTERS 20

WWW.POLYTEKNIK.COM

Analysis Module

10 pcs carriers or wafers with a size of 100mm Fully automated substrate handling – x, rot, tilt Two analysis positions - LEED & UPS Base pressure < E-9mbar

www.polyteknik.com

WHEN THIN FILM MATTERS 21

WWW.POLYTEKNIK.COM WHEN THIN FILM MATTERS 21 As an example:

• Load cassette of 10 or 25 samples in the load lock
• Apply individual process recipes for each sample
• The system is processing
• The system is data-logging the process
• The system is characterising
• Pick samples including extensive process datalogs

and characterisation data. Outcome:

• Increased R&D throughput, reliability, quality
• Smarter and faster research & development
• Fast process parameter scanning and tuning
• More reliable and repeatable experiments
• More time to plan, discuss, collaborate and interact

with colleagues and other research groups

• Bridging process development to volume production

Why research 4.0? Why automating research?

www.polyteknik.com

WHEN THIN FILM MATTERS 22

WWW.POLYTEKNIK.COM

THANK YOU! QUESTIONS?
