3D Filament Recycler (Project TEO) TEAM D2 - Fila(men) Abdulaziz Abdulghafour Marc Hsu Micki Yasuda Nicole Tabac 1 2 Project Description Financial Sponsor: W.L.Gore Design a 3D Filament Recycler for FDM Printers 3 Main

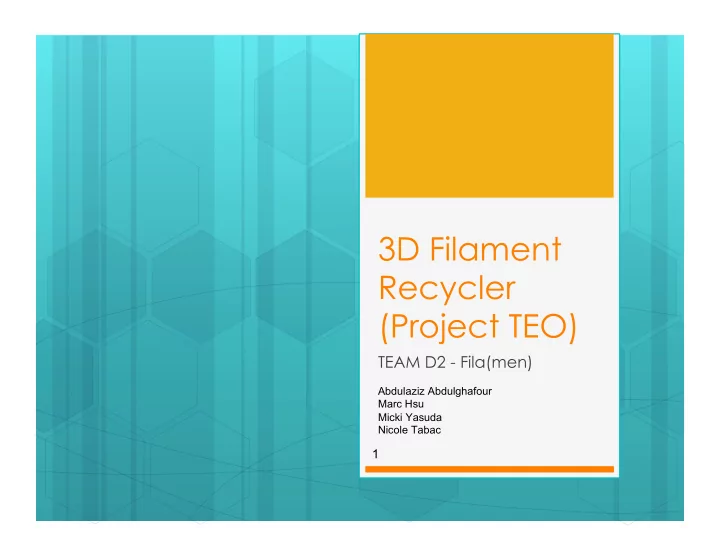

SLIDE 1

3D Filament Recycler (Project TEO)

TEAM D2 - Fila(men)

Abdulaziz Abdulghafour Marc Hsu Micki Yasuda Nicole Tabac

SLIDE 2

Project Description

Micki 10/3/17 3D Filament Recycler

○ Financial Sponsor: W.L.Gore ○ Design a 3D Filament Recycler for FDM

Printers

○ 3 Main Functions

○ Shredder, Extruder, and Spooler

○ Recycling PLA and ABS ○ Producing 1.75 mm diameter filament

SLIDE 3

Background & Benchmarking

○ Competitors in 3D filament recycling:

○ Filabot

○ Industry-level competitor in 3D recycling ○ Separate machines

Micki 10/3/17 3D Filament Recycler 3

[1]

SLIDE 4

Background & Benchmarking

○ Competitors in 3D filament recycling:

○ ProtoCycler

○ Start up company (IndieGoGo) ○ All-in-one: 15” x 14” x 9”

Nicole 10/3/17 3D Filament Recycler 4

[2]

SLIDE 5

Background & Benchmarking

○ Competitors in 3D filament recycling:

○ Homemade recycler by Russ

○ Hobbyist ○ All-in-one

Nicole 10/3/17 3D Filament Recycler 5

[3]

SLIDE 6

Background & Benchmarking

Filabot ProtoCycler Homemade recycler Price ~$10,000 ~$1,300 ~$250 Safety Certified Yes Yes No Includes 3 main functions No Yes Yes Plastic Used PLA, ABS, PC, HIPS,

PP, PS, ULTMEM

PLA, ABS PLA

Micki 10/3/17 3D Filament Recycler 6

SLIDE 7

Customer & Engineering Requirements

○ Our customers are FDM 3D Printer users.

○ Safety ○ Aesthetics ○ Material able to extrude ○ Size

○ Engineering

○ Voltage and Amperage ○ Temperature Control ○ Budget ○ Speed Control

Marc 10/3/17 3D Filament Recycler 7

SLIDE 8

Designs Considered

○ Consists of 3 subsystems ○ Created designs for each subsystem ○ Subsystems interchangeable ○ Design Chosen 2EII (Project TEO)

8 Marc 10/3/17 3D Filament Recycler

SLIDE 9

Schedule & Budget

○ Financial Sponsor: W.L.Gore ○ Budget = $2,000

○ $1,500 for parts ○ $500 for testing

9 Aziz 10/3/17 3D Filament Recycler

SLIDE 10

Schedule & Budget

○ Currently on schedule

10 Aziz 10/3/17 3D Filament Recycler

SLIDE 11

Questions?

11 10/3/17 3D Filament Recycler

SLIDE 12

References

[1] https://www.filabot.com/collections [2] http://www.redetec.com/wp-content/uploads/2014/12/Product-shot.jpg [3] http://rwgresearch.com/wp-content/uploads/2013/10/Russs-filament-extruder.jpg
