ME 779 Control Systems Topic #27 Checking Nyquist Stability Reference textbook : Control Systems, Dhanesh N. Manik, Cengage Publishing, 2012 1 Control Systems: Checking Nyquist Stability Procedure (1) Locate open-loop poles on the s-plane


slide-1
SLIDE 1

1

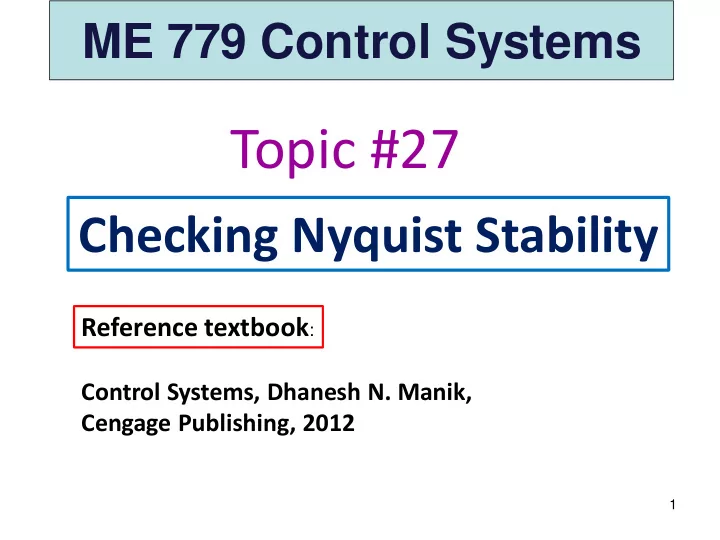

ME 779 Control Systems

Checking Nyquist Stability

Topic #27

Reference textbook:

Control Systems, Dhanesh N. Manik, Cengage Publishing, 2012

slide-2
SLIDE 2

2

Procedure

(1) Locate open-loop poles on the s-plane (2) Draw the closed contour and avoid open-loop poles on the imaginary axis (3) Count the number of open-loop poles enclosed in the above contour of step 2, say P (4) Plot G(j)H(j) and its reflection on the GH plane and map part of the small semi-circle detour

  • n the s-plane around poles (if any) on the

imaginary axis.

Control Systems: Checking Nyquist Stability

slide-3
SLIDE 3

3

Control Systems: Checking Nyquist Stability

Procedure

(5) Once the entire s-plane contour is mapped on to the GH plane, count the number of encirclements

  • f the point (-1,0) and its direction. Clockwise

encirclement is considered positive, say N. (6) The number of closed-loop poles in the right- half s-plane is given by Z=N+P. if Z >0, the system is unstable. (7) Determine gain margin, phase margin, and critical value of open-loop gain.

slide-4
SLIDE 4

4

Example 1

Using Nyquist criterion, determine the stability of a feedback system for K=1, whose open-loop transfer function is given by

( ) ( ) ( 1) K G s H s s s  

.

Step 1 Locate open-loop poles on the s-plane Open loop poles are at s=0 and –1. Step 2 Draw the closed contour on the s-plane to check the existence

  • f closed-loop poles in the right-half s-plane.

Control Systems: Checking Nyquist Stability

slide-5
SLIDE 5

5

Open-loop poles and s-plane contour

Control Systems: Checking Nyquist Stability

Example 1

slide-6
SLIDE 6

6 2

1 ( ) ( ) 1 G j H      

1

( ) ( ) tan 2 G j H j    

   

Control Systems: Checking Nyquist Stability

Example 1

slide-7
SLIDE 7

7

  • No. Frequency,

rad/s Magnitude Phase, degrees 1 0.2 4.9029 259 2 0.4 2.3212 248 3 0.8 0.9761 231 4 1 0.7071 225 5 4 0.0606 194 6 10 0.01 186 7 50 0.0004 181 8 100 0.0001 181 9 200 180

Control Systems: Checking Nyquist Stability

slide-8
SLIDE 8

8

No. Frequency, rad/s Magnitude Phase, degrees 10

  • 200

180 11

  • 100

0.0001 179 12

  • 50

0.0004 179 13

  • 10

0.01 174 14

  • 4

0.0606 166 15

  • 1

0.7071 135 16

  • 0.8

0.9761 129 17

  • 0.4

2.3212 112 18

  • 0.2

4.9029 101

Control Systems: Checking Nyquist Stability

slide-9
SLIDE 9

9

, s-plane, deg , GH plane, deg 270 101 280 91 290 80 300 69 310 58 320 46 330 35 340 23 350 12

Control Systems: Checking Nyquist Stability

, s-plane, deg , GH plane, deg 10 348 20 337 30 325 40 314 50 302 60 291 70 280 80 269 90 259

slide-10
SLIDE 10

10

The system is stable

Control Systems: Checking Nyquist Stability

Example 1

slide-11
SLIDE 11

11

Determine the stability of the feedback system whose

  • pen-loop transfer function given by

55 ( ) ( ) ( 2)( 4) G s H s s s s   

.

Locate open-loop poles on the s-plane Draw the closed loop contour on the s-plane

Control Systems: Checking Nyquist Stability

Example 2

slide-12
SLIDE 12

12

Control Systems: Checking Nyquist Stability

Example 2

55 ( ) ( ) ( 2)( 4) G s H s s s s   

slide-13
SLIDE 13

13

The number of open-loop pole enclosed, P is zero 2 2

( ) ( ) 4 16 K G j H j        

1 1

( ) ( ) tan tan 2 2 4 G j H j     

 

    

Control Systems: Checking Nyquist Stability

Example 2

slide-14
SLIDE 14

14

No. Frequency Magnitude Phase, degrees 1 1.5 Positive frequencies 3.4332 213 2 2 2.1741 198 3 2.5 1.4568 187 4 2.83 1.1446 180 5 3 1.017 177 6 3.5 0.7334 169 7 4.5 0.4122 156 8 5 0.319 150 9 5.5 0.2513 146 10 6 0.201 142 11 7 0.1339 136 12 8 0.0932 131 13 9 0.0673 126

Control Systems: Checking Nyquist Stability

slide-15
SLIDE 15

15

14

  • 9

Negative frequencies 0.0673 234 15

  • 8

0.0932 229 16

  • 7

0.1339 224 17

  • 6

0.201 218 18

  • 5.5

0.2513 214 19

  • 5

0.319 210 20

  • 4.5

0.4122 204 21

  • 3.5

0.7334 191 22

  • 3

1.017 183 23

  • 2.83

1.1446 180 24

  • 2.5

1.4568 173 25

  • 2

2.1741 162 26

  • 1.5

3.4332 147

Control Systems: Checking Nyquist Stability

slide-16
SLIDE 16

16

, s- plane, deg , GH plane, deg 270 147 280 132 290 117 300 101 310 84 320 68 330 51 340 34 350 17 , s-plane, deg , GH plane, deg 10 343 20 326 30 309 40 292 50 276 60 259 70 243 80 228 90 213

Control Systems: Checking Nyquist Stability

Example 2

slide-17
SLIDE 17

17

Z=N+P=2 The system is unstable

Control Systems: Checking Nyquist Stability

Example 2

slide-18
SLIDE 18

18

Determine the stability of the feedback system whose

  • pen-loop transfer function given by

2

( ) ( ) ( 1) K G s H s s s  

.

Control Systems: Checking Nyquist Stability

Example 3

slide-19
SLIDE 19

19

Locate open-loop poles

  • n the s-plane

Draw the closed loop contour

  • n the s-plane

Control Systems: Checking Nyquist Stability

Example 3

slide-20
SLIDE 20

20

Count the number of open-loop poles enclosed in the closed contour of the s-plane The number of open-loop poles enclosed, P is zero.

2 2

( ) ( ) 1 K G j H j      

1

( ) ( ) tan G j H j    

    Control Systems: Checking Nyquist Stability

Example 3

slide-21
SLIDE 21

21

No. Frequency Magnitude Phase, degree s 1 0.49 Positive frequencies 3.74 154 2 0.50 3.58 153 3 0.60 2.38 149 4 0.80 1.22 141 5 1.00 0.71 135 6 2.00 0.11 117 7 3.00 0.04 108 8 4.00 0.02 104 9 5.00 0.01 101 10 6.00 0.00 99 11 7.00 0.00 98 12 8.00 0.00 97 13 9.00 0.00 96 14 10.00 0.00 96

Control Systems: Checking Nyquist Stability

slide-22
SLIDE 22

22

15

  • 10.00

Negative frequenci es 0.00 264 16

  • 9.00

0.00 264 17

  • 8.00

0.00 263 18

  • 7.00

0.00 262 19

  • 6.00

0.00 261 20

  • 5.00

0.01 259 21

  • 4.00

0.02 256 22

  • 3.00

0.04 252 23

  • 2.00

0.11 243 24

  • 1.00

0.71 225 25

  • 0.80

1.22 219 26

  • 0.60

2.38 211 27

  • 0.50

3.58 207 28

  • 0.49

3.74 206

Control Systems: Checking Nyquist Stability

slide-23
SLIDE 23

23

, s-plane, deg , GH plane, deg 270 206 280 184 290 162 300 139 310 116 320 93 330 70 340 47 350 23 10 337 20 313 30 290 40 267 50 244 60 221 70 198 80 176 90 154

Control Systems: Checking Nyquist Stability

Example 3 Phase changes around the detour

slide-24
SLIDE 24

24

N=2 and Z=N+P=2 and hence the system is unstable

Control Systems: Checking Nyquist Stability

Example 3 GH Plane mapping

slide-25
SLIDE 25

Control Systems: Checking Nyquist Stability

Conclusion

25
