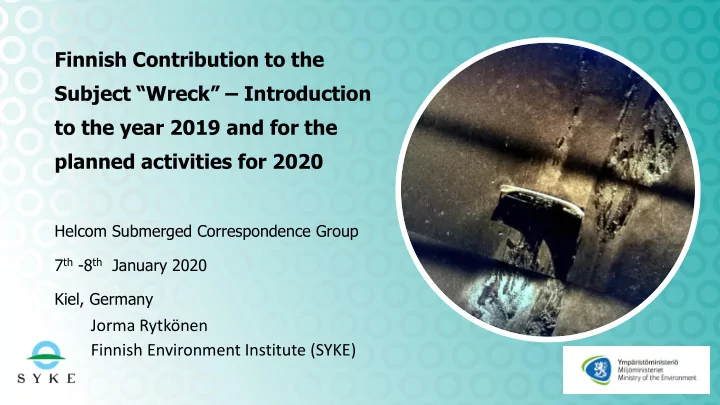

Finnish Contribution to the Subject “Wreck” – Introduction to the year 2019 and for the planned activities for 2020

Helcom Submerged Correspondence Group 7th -8th January 2020 Kiel, Germany

Jorma Rytkönen Finnish Environment Institute (SYKE)

Contents

• Executive Summary – status quo
• National wreck project
• Year 2019 main phases
• Integration to the Submerged time

line

• Year 2020 planned activities
• Chapter ”Wreck” plan
• More information

2

Dredger VELI

Project’s Status Quo

3

• The governmental project to protect water environment

has been started officially 3/2019.

• Sub project ”WRECKS” has a duration of 3…5 years, and

continues in 2020 - 2021.

• Main results for this national wreck project in 2019

were:

• - two separate wreck surveying missions by Turva – 9

wrecks studied;

• - two missions onboard SYKE’s ARANDA – two new

wrecks were studied and 3d models performed;

• - new R&D devices for ARANDA, bottom profilers, side

can sonar and multibeam sonar

• - plans for 2020 done and in execution phase

ROV’s sonar over the Wieschaffen wreck

• utside of RAUMA photo: J. Rytkönen

WRECKS project – Oil Removal Operations – integration of governmental bodies and private sector

4

• Project is an elementary part of the

governmental water protection programme for 2019 – 2023, and is linked to the Baltic Sea Action Plan.

• Sub-project WRECKS is planned for

the years 2019 – 2021, if the Parliament will admitt the annual budget for the project execution.

• Total budget is 4 M€ for the WRECKS

• National wreck project is run by SYKE, ander the coordination of the

Finnish Ministry of the Environment

• Year 2019 main goal was to be prepared to the oil removal operations

and to define the status quo of the governmental and private sector ability for wreck salvage operations;

• Nine wrecks were studied by The Finnish frontier Guard and SYKE –

two of those objects were deeper than 70 m.

• Glider was used for underwater hydrocarbon level measurements;
• ARANDA got new devices for wreck studies
• Bucket Dredger VELI outside Hanko was emptied by a joint operation

by the Finnish Navy and SYKE

• Two smaller coastal wreighters sunk in the Archipelago Sea were

studied and 3D modelled – preparations are under way for the oil removal operations in 2020.

5

Execution in 2019

• Responsible organisation,

SYKE – under the coordination of the Ministry

• f the Environment
• Finnish Navy,
• Finnish Frontier Guard
• Traficom (Finnish Transport

Safety Agency)

• Maritime Museum
• Private Sector, such as diving

companies, sub sea professionals etc…

6

National Wreck Project - Resources

Divers in the Archipelago Sea , November

• 2019. Photo: H. Kankaanpää

• Governmental resources and facilities

have been identified, equipments tested and trainings performed

• SYKE’s R&D vessel ARANDA is linked to

the subsea operations due to the new devices and the modern laboratory

• nboard.
• Various sub tasks have been

performed with the aid of the private sector.

7

Some phases in 2019

• Oil removal objects for 2020 have been selected
• Additional operations will be performed (removal of two

paravans – for example)

• 1-2- oil removal operations will be performed by divers
• One object in deeper water will be given for private sector
• Risk assessment under preparation
• Tender processes will be started
• Oil removal operation for 2021
• Recommendations, sampling plans under writing process
• Wreck seminar planned for August – September.

8

Status quo in the beginning of the 2020

• Participants: Torsten Frey, Uwe Wichert, Michał Czub, Jacek

Bełdowski, Claus Böttcher, Jann Wendt, Jens Sternheim, Benedykt Hac, Ewa Makowska, Jorma Rytkonen

9

Time line made in the Submerged meeting in Poland, 5.-6.6.2019

Veli Dredger – 3D model

11

12

War ship Ilmarinen – studied in November – 80 – 100 tons of oil

• nboard

13

Anttila, M et al. Panssarilaiva Ilmarisen hylyn dokumentointi. Raportti Merivoimille. 2015

Artist drawing on the Ilmarinen – all fuel tanks both sides of the centre keel –douple bottom.

15

Fortuna is one of the wrecks selected for the oil removal operation in 2020

16

M/s Hanna-Marjut – both she and Fortuna has around 10 m3 fuel oil in their fuel tanks

17

Chapter Wreck

18

• Draft report ready for review of the

Submerged experts in coming weeks

• Some new Russian Statistics will be

received after their New Year Holiday Season, and added to the text

• No Statistics from Lihuania, Latvia.

German data need to be added; Mr Rytkönen has got unofficial data from Latvia and Lithuania and will visit both countries to check their validity for the report. Sediment samples taken in the Archipelago Sea - wreck Fortuna
