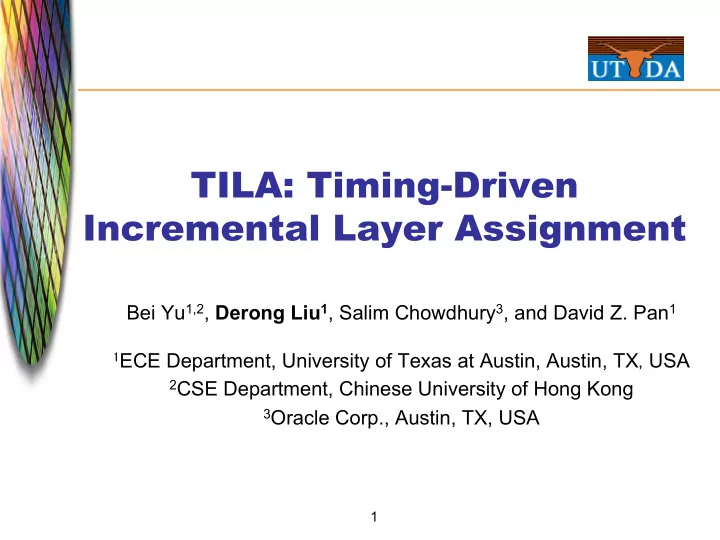

TILA: Timing-Driven Incremental Layer Assignment

Bei Yu1,2, Derong Liu1, Salim Chowdhury3, and David Z. Pan1

1ECE Department, University of Texas at Austin, Austin, TX, USA 2CSE Department, Chinese University of Hong Kong 3Oracle Corp., Austin, TX, USA

Overview

t Introduction t Problem Formulation t Algorithms t Experimental Results t Conclusion

2

Introduction

t VLSI technology scales to deep submicron

› Interconnect delay

t Interconnect synthesis

› Timing-driven routing › Global routing -- part of a timing convergence flow

3

Global Routing Flow

3D Global Routing 2D Global Routing Layer Assignment

Introduction

t Layer assignment:

› Assign segments to metal layers › Impossible to assign all segments on higher layers

4 Wire Via Metal 1 Lower Metal Layers Intermediate Metal Layers Top Metal Layers

Previous Works on GR and LA

t Many papers on global routing and layer

assignment, e.g.

› Routability-driven GR [Cho+, TCAD’07] › Timing-driven GR [Liu et al. TCAD’13] › Via count and overflow minimization during layer assignment - NVM [Liu+, ASPDAC’11] › Delay-driven layer assignment [Ao+, ISPD’13]

t Limitations of previous layer assignment:

› Most focus on via minimization › Via delays are often ignored › Net-by-net method may lead to local

• ptimality

5

Layer Assignment Timing Optimization (Buffering) Detailed Routing Post-Routing Optimization Global Routing

Contributions of this Work

t The first timing-driven incremental layer assignment

(TILA) that integrates via delay

t Solve multiple nets simultaneously t Incremental approach to provide fast turn-around-time t Lagrangian relaxation based optimization to improve

total wire and via delay via min-cost flow iteratively

t Multi-processing of K*K partitions for speed-up t Effectiveness demonstrated by ISPD’08 and industry

benchmarks

6

Model Description

t Timing model:

› Elmore Delay (Cdown, R) › Consider both segment delay and via delay

7

Via Delay Driver Sink

Problem Formulation

t Timing-driven Incremental Layer Assignment (TILA)

› Given initial layer assignment solution and critical ratio α ¡ › Minimize: sum of segment and via delays of selected nets › Subject to: via capacity and edge capacity constraints

8

n1 n2 n3 n1 n2 n3 Non-Critical Nets: n1 n2 ; Critical Net: n3

One Example

TILA Algorithm

t Mathematical Formulation t Constraints:

› Each segment should be assigned on one and only one layer › Edge capacity constraint: › Via capacity constraint:

9

Segment Delay Via Delay

TILA Algorithm

t Lagrangian Relaxation Subproblem (LRS)

› Solve the LRS iteratively

10

Integrate via capacity constraint with Lagrangian Multipliers (LMs)

t Linearize the quadratic term approximately:

› Based on the values in previous iteration

t Solve the LRS through a min-cost network flow model

t Satisfy the edge capacity constraint t Guarantee one segment on one layer

TILA Algorithms

t Min-cost Flow Model

› Inherent uni-modular property to ensure integer solutions › Directed Graph G (V,E)

11

Pseudo Start Vertex Pseudo End Vertex Segment Vertices Layer Vertices Capacity: 1 Cost: 0 Capacity: edge capacity Cost: 0 Capacity: 1 Cost: assigning penalty

TILA Algorithm

t Algorithm Flow

12

Critical Ratio α Initial Layer Assignment Solution

Initialize Cdown and LMs Select nets with α Solve LRS Update Cdown and LMs converge? N

Y End

Min-cost flow model Improvement < Specified Ratio Or Iteration number > MaxIter

Incremental Approach

t Critical & Non-critical Net Selection

› Most Critical nets: improve the timing › Most non-critical nets: release more high layers resources

13

Most critical nets selection Most non-critical nets selection

Select α%#nets with worst delay Select#nets based on delay and sharing edges Re-assign selected nets Nets Selection Flow Calculate Net Delay

Speed-up Techniques

t Parallel Scheme

› Divide grid model into K x K partitions › Recent results by peer threads can be considered

14

4*4 partitions

Experimental Results

t Implemented the framework in C++ t Tested on Linux machine with eight 3.3GHz CPUs t Min-cost flow solver

› LEMON open source graph library

t Parallel computation with OpenMP

› Default thread number as 6 and K set as 6

t Evaluation on both academia and industrial benchmarks t Performance Metrics

› Average Delay › Maximum Delay › Via capacity violation# › Via#

15

Evaluation on ISPD’08 Benchmarks

t Initial global routing input:

› Generated by NCTU-GR 2.0 [Liu et al. TCAD’13]

t Initial layer assignment:

› From NVM [Liu et al. ASPDAC’11] › Targeting via number and overflow minimization

t Wire resistance and capacitance values obtained from

[Hsu et al. ICCAD’14]

t Via resistance and capacitance normalized from industry t Release 1% and 5% critical and non-critical nets

16

Delay Comparison Results

t ISPD’08 Global Routing Benchmarks t TILA-1%:

› 53% improvement by Dmax and 10% improvement by Davg

t TILA-5%:

› 53% improvement by Dmax and 18% improvement by Davg

17

Via Comparison Results

t ISPD’08 Global Routing benchmarks t TILA-1%

› OV# decreases by 7% and Via# increases by 3%

t TILA-5%

› OV# decreases by 11% and Via# increases by 12%

18

Experimental Results

t Impact of different critical/non-critical ratio

› Releasing 1% is enough for maximum delay › Trade-off between average delay and speed

19

Dmax: max delay; Davg: average delay; run time

Industrial Benchmarks Results

t Industry tool to generate initial routing solution t Use industry resistance and capacitance

20

OV#: overflow number; Davg: average delay; Dmax: max delay; via#: total via number

Conclusion

t We proposed a new Timing-driven Incremental Layer

Assignment (TILA) algorithm

› Select a subset of critical and non-critical nets › Lagrangian relaxation based global optimization › Min-cost network flow to solve iteratively › Multi-threading

t TILA can work smoothly with any global router and adapt

easily to future heterogeneous layer structures

t New research needed to shed light on “classical” EDA

problems

21
