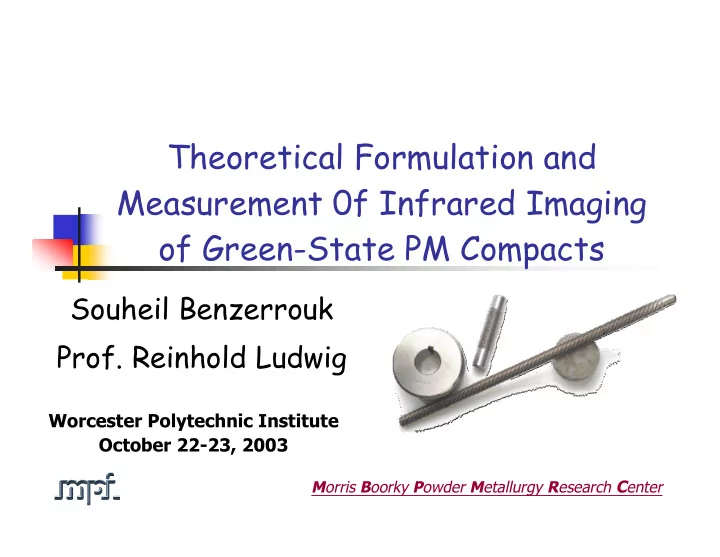

Theoretical Formulation and Measurement 0f Infrared Imaging of Green-State PM Compacts Souheil Benzerrouk Prof. Reinhold Ludwig Worcester Polytechnic Institute October 22-23, 2003 M orris B oorky P owder M etallurgy R esearch C enter Research


slide-1
SLIDE 1

Theoretical Formulation and Measurement 0f Infrared Imaging

  • f Green-State PM Compacts

Souheil Benzerrouk

  • Prof. Reinhold Ludwig

Worcester Polytechnic Institute October 22-23, 2003

Morris Boorky Powder Metallurgy Research Center

slide-2
SLIDE 2

Research Objectives

n Evaluate the applicability of IR imaging techniques

in the detection of surface and subsurface defects in P/M parts.

n Build on the previous research “ Electrostatic

density measurements in green state P/M parts” by Georg Leuenberger and Prof. Reinhold Ludwig

n Establish a full thermo-electric IR solution that

allows the testing of both green state and sintered parts.

slide-3
SLIDE 3

Research Approach

n Establish a theoretical background in the fields of

electrostatics, heat transfer and IR imaging

n Estimate the sensitivity of the approach by

modeling a number of different conditions

n Study experimentally simple parts with two

techniques (static and pulsed thermography)

n Test complex parts (green state and sintered)

slide-4
SLIDE 4

Presentation Outline

n Comparative study of NDT methods n Introduction to IR imaging n Governing equations

n Electrostatics n Heat transfer n IR imaging

n Modeling a simple part (cylinder) n Parametric Study and sensitivity estimation n Experimental results (static)

n Good, simple green state part n Flawed, simple green state part n Complex green state and sintered parts

slide-5
SLIDE 5

Competitive Technologies

n Requires very high

sensitivity in sintered parts

n Demonstrated performance with

green state parts Resistivity

n Not suitable for high

volume applications (slow)

n High ownership cost nNot effective in

detecting near corner defects

n Can detect defects in both green

state and sintered

n High resolution, deep penetration. n Established technology for high

quality samples (aerospace, military) X-Ray

n Inefficient in green

state due to their porous nature

n Requires a matching

layer usually a gel

n Can detect deeply embedded defects n Cost effective

Ultrasonic

n Depth of penetration

limits the usability in green state

n Ideal for surface and near surface

defects in sintered parts Eddy Current

Limitations Capabilities Technique

slide-6
SLIDE 6

IR Imaging

n Technology requires heat source n Special camera to record thermal signature n Elaborate signal acquisition and processing steps to

form image

n Additional image analysis post-processing

SUT

Heat source

slide-7
SLIDE 7

IR Imaging- Pros and Cons

n Pros:

n Remote sensing capability n Non contacting n Fast response n High spatial resolution n High temperature range n Cameras have built-in image processing capability

n Cons:

n Need for straight viewing corridor with the target n Background calibration n Cost is primarily determined by camera

slide-8
SLIDE 8

Generic testing approach

Current Input Electrostatic measurement and Power prediction IR detection Signal and image processing

slide-9
SLIDE 9

Governing Equations

) .( = — — V s

Electrostatic

J n n ⋅

  • =

— ⋅ ) ( V s

2

V Q — = s

V,E Heating Power

J Density Current

( )

[ ]

1 exp 2 ) , (

5 2

  • =

KT hc hc T W l l l

Emitted energy

IR imaging

Q T k t T c = — —

∂ ) .( r

) ( ) ( T T h q T k

ext -

+ = — ⋅ n

Heat transfer

) , ( z r T

Heat equation

( )

T r, s

slide-10
SLIDE 10

Heat Transfer

The analytical approach is to study a homogenous solid cylinder of radius R: 0 £ r £ R and length 2L: -L £ z£ L. In the static case the heat equation is a second PDE which can be solved by using the separation of variables technique to give:

Â

  • =

+ +

  • =

˜ ˜ ¯ ˆ Á Á Ë Ê ˙ ˙ ˙ ˚ ˘ Í Í Í Î È ˜ ˜ ¯ ˆ Á Á Ë Ê

˜ ˜ ˜ ¯ ˆ Á Á Á Ë Ê ˙ ˙ ˚ ˘ Í Í Î È

1 ) ( 4 2 1 cosh ) ( ) tan( ) cosh( ) ( 1 3 2 ) , ( n R r n J n J n n hR R L n n hR R L n R z n n hR k QhR z r T g g g g g g g g g

slide-11
SLIDE 11

Simulation (FEM)

n Static modeling in 3D

n Use simple geometry (cylinder) n Electrostatic - to show the voltage distribution n Heat transfer – local heating and major heat transfer

mechanisms

n Static modeling in 2D - Sensitivity study

n Surface and Subsurface defects n Combination of flaws (various sizes and orientations)

n Dynamic modeling in 2D - sensitivity study

n Extend the 2D model to include the dynamic effects

slide-12
SLIDE 12

Static Modeling

n Surface current source n Uniform conductivity n Neglected temperature

dependency of conductivity

slide-13
SLIDE 13

Static Modeling

n Coupled the results of the

electrostatic model.

n Included thermal effects

n Conduction n Convection

n Approximated material

properties

slide-14
SLIDE 14

Static Modeling

n As expected, smooth and

symmetric temperature distribution with the hottest spot located in the center of the compact

slide-15
SLIDE 15

Sensitivity Study (Static)

1mm x 1mm Defect 20mm x 100mm Defects

slide-16
SLIDE 16

Sensitivity Study (Static)

n An obvious signature for surface defects

can be obtained. This signature varies in shape and amplitude with the input current (temperature) and the size of the flaw

n Subsurface flaws of smaller geometries

are not seen statically, requiring the use of dynamic (pulsed) thermography

slide-17
SLIDE 17

Sensitivity Study (Dynamic)

slide-18
SLIDE 18

Sensitivity Study (Dynamic)

slide-19
SLIDE 19

Sensitivity Study (Dynamic)

305 304 303 302 301 300 0.01 0.02 0.03 0.04 0.05 0.06 T (Kelvin) L (m)

slide-20
SLIDE 20

Sensitivity Study (Dynamic)

n Surface and subsurface defects are easily

detected

n Fast response, very efficient in a go/no go test n Highly sensitive, reduced post-processing

complexity

slide-21
SLIDE 21

Test Arrangement

Image Processing laptop IR Camera Power Supply Sample under test

slide-22
SLIDE 22

Experimental Results

n Green state parts n Static imaging n Surface flows, with various

shapes, sizes and orientations

n Apply simple thresholding

algorithm

n Create temperature profiles

Parts courtesy of GKN Worcester

slide-23
SLIDE 23

Experimental Results

slide-24
SLIDE 24

Results Analysis

Profile Line

slide-25
SLIDE 25

Thresholding

slide-26
SLIDE 26

Analysis after thresholding

Profile Line

slide-27
SLIDE 27

Discussion

n Heating with direct current is easy to apply and

highly repeatable

n Static imaging can be successfully used in

detecting surface defects

n Dynamic imaging is highly promising for surface

and subsurface detection

n Today’s cameras can very easily accomplish the

task at hand (speed and resolution)

slide-28
SLIDE 28

Accomplishments

n

Developed the theoretical foundation of heating with direct current (electrostatics and heat transfer)

n

Built a suitable model for predicting the thermal profile on the surface of a part ( close to what the IR camera will capture)

n

Conducted a simple test bed for static testing

Proof-of-concept appears successful!

slide-29
SLIDE 29

Future Milestones

n

Complete the theoretical modeling effort to include effects

  • f external radiation behavior

n

Conduct experimentation to determine the thermo-physical properties of green-state and sintered parts for further simulations and measurements

n

Test controlled samples

n Simple geometries of different powders/densities

compositions

n Green state and sintered state n

Explore dynamic evaluation with improved image processing

slide-30
SLIDE 30

Interesting observation

n Subtle density variations

produce measurable temperature differences
