The TRISTAN project Thibaut Houdy - on behalf of the KATRIN collaboration and the TRISTAN team TAUP - Toyama, Japan 12/09/19 Outlines TRISTAN aims to extend the KATRIN setup with a new multj-pixel silicon drifu detector system to search for

slide-1
SLIDE 1

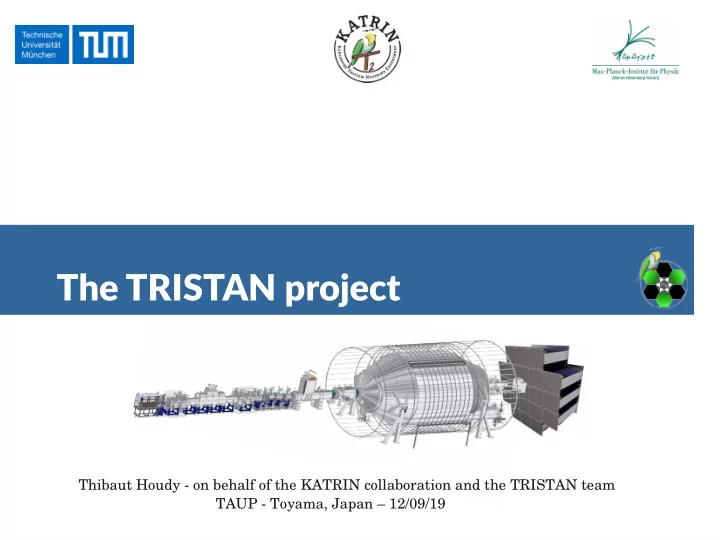

The TRISTAN project

Thibaut Houdy - on behalf of the KATRIN collaboration and the TRISTAN team TAUP - Toyama, Japan – 12/09/19

slide-2
SLIDE 2

2

TAUP 2019 The TRISTAN project - T. Houdy

  • Theoretjcal motjvatjons for a keV-sterile neutrino &

the KATRIN experiment

  • The TRISTAN project
  • First prototypes and characterizatjons
  • First TRISTAN module and toward the fjnal detector

Outlines

TRISTAN aims to extend the KATRIN setup with a new multj-pixel silicon drifu detector system to search for a keV-scale sterile neutrino signal.

slide-3
SLIDE 3

3

TAUP 2019 The TRISTAN project - T. Houdy

Outlines

TRISTAN aims to extend the KATRIN setup with a new multj-pixel silicon drifu detector system to search for a keV-scale sterile neutrino signal.

  • Theoretjcal motjvatjons for a keV-sterile neutrino &

the KATRIN experiment

  • The TRISTAN project
  • First prototypes and characterizatjons
  • First TRISTAN module and toward the fjnal detector
slide-4
SLIDE 4

4

TAUP 2019 The TRISTAN project - T. Houdy

Theoretjcal motjvatjons

Natural extension of SM :

  • minimal extension
  • right-handed neutrino : neutrino mass
  • sterile neutrino mass: eV (short-baseline anomalies),

keV (dark matter), GeV (see-saw mechanism)

  • phase space : keV-scale is favored

Standard Model

slide-5
SLIDE 5

5

TAUP 2019 The TRISTAN project - T. Houdy

Theoretjcal motjvatjons

Natural extension of SM :

  • minimal extension
  • right-handed neutrino : neutrino mass
  • sterile neutrino mass: eV (short-baseline anomalies),

keV (dark matter), GeV (see-saw mechanism)

  • phase space : keV-scale is favored

Dark matter candidate:

  • need of a massive, neutral and stable particle,
  • active v (neutral and stable) too light,
  • SM does not contain a viable DM candidate

Constraints :

  • x-rays (DM annihilation)
  • cosmology (growing structure)

Boyarsky et al. JPPNP, 104, 1-45, (2019)

nuMSM

  • L. Canetti,et al. PRL 110 061801 (2013)
slide-6
SLIDE 6

6

TAUP 2019 The TRISTAN project - T. Houdy

KATRIN experiment

  • Kinematic determination of the neutrino mass using tritium -decay

β

  • Neutrino mass reduces the endpoint and distorts the spectrum

Size : 23x10 m², 10-11 mbar Energy scale : 18.6 keV Resolution < 1 eV (Main spect.) Count rate ~ 1-103 Hz

High voltage filtering electrons

slide-7
SLIDE 7

7

TAUP 2019 The TRISTAN project - T. Houdy

KATRIN experiment

Entire spectrum Region close to the endpoint

mν = 0 eV mν = 1 eV

  • Kinematic determination of the neutrino mass using tritium -decay

β

  • Neutrino mass reduces the endpoint and distorts the spectrum

See plenary talk tomorrow by G. Drexlin

slide-8
SLIDE 8

8

TAUP 2019 The TRISTAN project - T. Houdy

TRISTAN goal

Signature of sterile neutrino Signature of neutrino mass x108

18597 18598 18599 18600

0 2 4 6 8 10 12 14 16 18 20

keV-ν

s with KATRIN means lowering the HV to scan lower energy.

→ Dramatic increase of the count rate (up to 3x108 Hz) → Integral and differential phases ( detector with good resolution) → → Highly pixelised → new detector is needed : the TRISTAN project

Energy (eV)

Energy (keV)

slide-9
SLIDE 9

9

TAUP 2019 The TRISTAN project - T. Houdy

SDD technology

Capability of handling high rates (> 3 x 108 cps) + Excellent energy resolutjon (300 eV @ 20 keV)

  • Silicon Drifu Detector Technology
  • Novelty: large number of pixels (about 3500)
  • Novelty: applicatjon to high-precision β-spectroscopy
slide-10
SLIDE 10

10

TAUP 2019 The TRISTAN project - T. Houdy

2 c m 4 c m 3 m m

TRISTAN project

Capability of handling high rates (> 3 x 108 cps) + Excellent energy resolutjon (300 eV @ 20 keV)

  • Silicon Drifu Detector Technology
  • Novelty: large number of pixels (about 3500)
  • Novelty: applicatjon to high-precision β-spectroscopy
slide-11
SLIDE 11

11

TAUP 2019 The TRISTAN project - T. Houdy

Capability of handling high rates (> 3 x 108 cps) + Excellent energy resolutjon (300 eV @ 20 keV)

  • Silicon Drifu Detector Technology

2 c m 4 c m 3 m m

TRISTAN project

J.Phys. G46 (2019) no.6, 065203

Current KATRIN KATRIN with TRISTAN

slide-12
SLIDE 12

12

TAUP 2019 The TRISTAN project - T. Houdy

Outlines

TRISTAN aims to extend the KATRIN setup with a new multj-pixel silicon drifu detector system to search for a keV-scale sterile neutrino signal.

  • Theoretjcal motjvatjons for a keV-sterile neutrino &

the KATRIN experiment

  • The TRISTAN project
  • First prototypes and characterizatjons
  • First TRISTAN module and toward the fjnal detector
slide-13
SLIDE 13

13

TAUP 2019 The TRISTAN project - T. Houdy

TRISTAN prototypes

CUBE

Productjon at Max Planck semiconductor laboratory (HLL)

1st generation :

  • Delivered in 2016
  • Using CUBE preamplifier
  • Characterized using x-ray
slide-14
SLIDE 14

14

TAUP 2019 The TRISTAN project - T. Houdy

TRISTAN prototypes

Characterisatjon with X-rays

Excellent energy resolution Low noise at high rates FWHM @ 500 ns: 150 eV 20°C

  • 30°C

1 mm 2 mm

→ Good energy resolution (< 300 eV @ 30 keV) Good performances for short peaking time → Linear response with photons → → Good energy resolution (< 300 eV @ 30 keV) Good performances for short peaking time → Linear response with photons →

J.Phys. G46 (2019) no.6, 065203

55Fe line

139 eV (FWHM) @ 5.9 keV

slide-15
SLIDE 15

15

TAUP 2019 The TRISTAN project - T. Houdy

TRISTAN prototypes

Characterisatjon with electrons

CUBE 1st generation :

  • Delivered in 2016
  • Using CUBE preamplifier
  • Characterized using x-ray
  • Charaterized using electrons
slide-16
SLIDE 16

16

TAUP 2019 The TRISTAN project - T. Houdy

TRISTAN prototypes

Characterisatjon with electrons : dead-layer ?

  • Worsen electrons resolution
  • Distort shape

Must be measured/minimized

  • Worsen electrons resolution
  • Distort shape

Must be measured/minimized

Electron peak

Photon peak

18 keV

slide-17
SLIDE 17

17

TAUP 2019 The TRISTAN project - T. Houdy

TRISTAN prototypes

Characterisatjon with electrons : dead-layer ?

  • Worsen electrons resolution
  • Distort shape

Must be measured/minimized

  • Worsen electrons resolution
  • Distort shape

Must be measured/minimized

Electron peak

Photon peak

18 keV

60 eV

slide-18
SLIDE 18

18

TAUP 2019 The TRISTAN project - T. Houdy

TRISTAN prototypes

Measurement of the dead-layer

Result cross-checked using independent method via absolute calibration (Bremsstrahlung)

Electron microscope

Courtesy of D. Siegmann

Relative measurement performed at 14 keV : (52 ± 7) nm Relative measurement performed at 14 keV : (52 ± 7) nm Different doping techniques are investigated to further reduce it. Preliminary results are promising. Different doping techniques are investigated to further reduce it. Preliminary results are promising.

slide-19
SLIDE 19

19

TAUP 2019 The TRISTAN project - T. Houdy

TRISTAN prototypes

Successfully implemented

CUBE 1st generation :

  • Delivered in 2016
  • Using CUBE preamplifier
  • Characterized using x-ray
  • Charaterized using electrons
  • Successfully implemented in the Troitsk
  • mass experiment and in KATRIN

ν

slide-20
SLIDE 20

20

TAUP 2019 The TRISTAN project - T. Houdy

TRISTAN prototypes

Successfully implemented

2017-2019 : In Troitsk nu mass spectrometer for 3H differential and integral measurements 2017-2019 : In Troitsk nu mass spectrometer for 3H differential and integral measurements 2019 : In KATRIN as Forward Beam Monitor. Commissioned, actually taking data. Will be used for next mass measurement phase 2019 : In KATRIN as Forward Beam Monitor. Commissioned, actually taking data. Will be used for next mass measurement phase

see Brunst’s & arXiv:1909.02898

slide-21
SLIDE 21

21

TAUP 2019 The TRISTAN project - T. Houdy

Outlines

TRISTAN aims to extend the KATRIN setup with a new multj-pixel silicon drifu detector system to search for a keV-scale sterile neutrino signal.

  • Theoretjcal motjvatjons for a keV-sterile neutrino &

the KATRIN experiment

  • The TRISTAN project
  • First prototypes and characterizatjons
  • First TRISTAN module and toward the fjnal detector
slide-22
SLIDE 22

22

TAUP 2019 The TRISTAN project - T. Houdy

TRISTAN Module

New generatjon of detector coming

CUBE 2nd generation (now):

  • Integrated nJFET
  • Max size : 166 pixels
  • Construction of the first TRISTAN

module

slide-23
SLIDE 23

23

TAUP 2019 The TRISTAN project - T. Houdy

TRISTAN Module

Ettore ASIC

166 pixel detector with integrated JFET

ASIC board, 83 channels

CeSiC material ~14 cm

slide-24
SLIDE 24

24

TAUP 2019 The TRISTAN project - T. Houdy

  • Former Mainz spectrometer is now used as

a monitor device for KATRIN.

  • Same principle than KATRIN and Troitsk

spectrometers : Magnetic Adiabatic Collima- tion combined with an Electrostatic Filter.

  • Former Mainz spectrometer is now used as

a monitor device for KATRIN.

  • Same principle than KATRIN and Troitsk

spectrometers : Magnetic Adiabatic Collima- tion combined with an Electrostatic Filter.

KATRIN Monitor Spectrometer

  • MoniSpec HV is coupled to the Main Spectro-

meter, scanning 83mKr to ensure HV stability.

  • Testing the TRISTAN prototype in real

conditions while improving the performance

  • f the Monitor Spectrometer
  • MoniSpec HV is coupled to the Main Spectro-

meter, scanning 83mKr to ensure HV stability.

  • Testing the TRISTAN prototype in real

conditions while improving the performance

  • f the Monitor Spectrometer
slide-25
SLIDE 25

25

TAUP 2019 The TRISTAN project - T. Houdy

TRISTAN Module

The structure must cooled the SDD down to -50°C while respecting low outgazing constraints (10-10 mbar vacuum)

slide-26
SLIDE 26

26

TAUP 2019 The TRISTAN project - T. Houdy

TRISTAN module

  • 166-pixel detector with integrated JFET
  • Commissioning beginning-2020

TRISTAN module

  • 166-pixel detector with integrated JFET
  • Commissioning beginning-2020

Towards fjnal TRISTAN

Not only scaling up the detector :

  • ADC non linearitjes*
  • Outgasing
  • High density of electronics…

*see «Impact of ADC non-linearitjes on the sensitjvity to sterile keV neutrinos with a KATRIN-like experiment», K. Dolde et al., NIMA 848, 2017

Full TRISTAN detector

  • 21 x (166-pixel module) = 3500 pixels
  • Integratjon afuer completjon of ν-mass measurement

Full TRISTAN detector

  • 21 x (166-pixel module) = 3500 pixels
  • Integratjon afuer completjon of ν-mass measurement
slide-27
SLIDE 27

27

TAUP 2019 The TRISTAN project - T. Houdy

  • TRISTAN as X-ray detector in the solar axion experiment IAXO
  • TRISTAN in a CubeSat space mission as Compton telescope COMPOL

2016 Air Sur l’Adour

IAXO Cube Satellite

First background measurement in shallow underground lab at TUM

Other applicatjons of TRISTAN detector

slide-28
SLIDE 28

28

TAUP 2019 The TRISTAN project - T. Houdy

Conclusion

  • Excellent performances demonstrated with x-rays
  • Good understanding of detector response to electrons
  • Implementation of 7-pixels prototype in realistic

conditions (FBM, Troitsk)

  • Now production of first module with 166 pixels,

ready for calibration end of 2019

  • Implementation of first module as KATRIN Monitor

Spectrometer for a real in-situ tests

  • TRISTAN SDD are promising in many other

applications

slide-29
SLIDE 29

TAUP 2019 The TRISTAN project - T . Houdy 29

Back-up slides

slide-30
SLIDE 30

30

TAUP 2019 The TRISTAN project - T. Houdy

KATRIN experiment

  • Size : 23x10 m², 10-11 mbar
  • Energy scale : 18.6 keV
  • Resolution < 1 eV (Main spect.)
  • Count rate ~ 1-103 Hz
slide-31
SLIDE 31

31

TAUP 2019 The TRISTAN project - T. Houdy

KATRIN Monitor Spectrometer

Principle : MAC-E fjlter

MoniSpec high voltage is coupled to the MainSpec. BUT scanning 83mKr instead of Tritium. Goal : ensure HV stability by measuring position of the K-32 line.

slide-32
SLIDE 32

32

TAUP 2019 The TRISTAN project - T. Houdy

KATRIN Monitor Spectrometer

Principle : MAC-E fjlter

Former Mainz spectrometer is now used as a monitor device for KATRIN. Same principle than KATRIN and Troitsk spectrometers : Magnetic Adiabatic Collimation combined with an Electrostatic Filter.

slide-33
SLIDE 33

33

TAUP 2019 The TRISTAN project - T. Houdy

KATRIN Monitor Spectrometer

Principle : MAC-E fjlter

MoniSpec high voltage is coupled to the MainSpec. BUT scanning 83mKr instead of Tritium. Goal : ensure HV stability by measuring position of the K-32 line.

slide-34
SLIDE 34

34

TAUP 2019 The TRISTAN project - T. Houdy

ADC non linearitjes

slide-35
SLIDE 35

35

TAUP 2019 The TRISTAN project - T. Houdy

TRISTAN prototypes

Measurement of the dead-layer : absolute calibratjon

Electron microscope

slide-36
SLIDE 36

36

TAUP 2019 The TRISTAN project - T. Houdy

TRISTAN prototypes

Measurement of the dead-layer : relatjve calibratjon

Dead- Layer Tilt Detector D e a d

  • L

a y e r

Electron microscope
