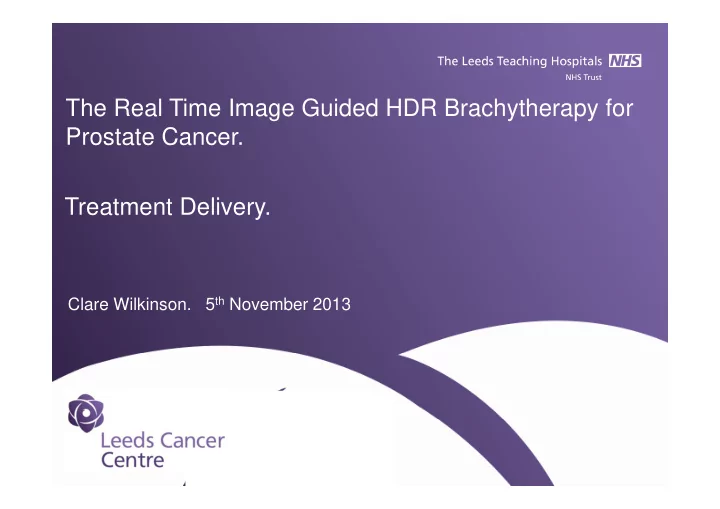

The Real Time Image Guided HDR Brachytherapy for Prostate Cancer. Treatment Delivery.

Clare Wilkinson. 5th November 2013

Clare.Wilkinson@leedsth.nhs.uk

Radiographers Responsibilities.

Ensure safety of:

• 1. Patient - Positive identification by Operator 1
• Aware of whole procedure and consented.
• 2. Radiographers - Local rules
• Daily QA
• Competent (operating unit/specific procedure)
• Contingency plan for procedure
• Attended source exchange/annual walk-through
• Team brief and time out.

Clare.Wilkinson@leedsth.nhs.uk

Radiographers Responsibilities.

• 3. Visitors - Local Rules for area
• Operating Department Practitioners (ODP), Agency Staff,

Anaesthetist aware of roles.

• 4. HDR Unit - Daily QA
• Faults/discrepancies reported

Clare.Wilkinson@leedsth.nhs.uk

HDR Treatment Room Set Up

• Shaded area where both HDR

unit, transfer tubes/applicators and patient must be positioned within this area.

• X- HDR Unit
• X- Emergency stops
• Access and maze kept clear
• Monitored via intercoms/CCTV

and slave anaesthetic monitor

x x x x

Clare.Wilkinson@leedsth.nhs.uk

Operator roles and Contingency Plans

The emergency procedure is a hierarchic sequence of actions in case the source fails to return to the safe position. Each Radiographer must be clear of their roles and responsibilities. Operator 1 role - identified the patient

• initiate the exposure
• responsible in emergency to activate interrupt/emergency

stops and enter the treatment room. Operator 2 role - assist as required by protocol

Clare.Wilkinson@leedsth.nhs.uk

Clare.Wilkinson@leedsth.nhs.uk

Operator 1 Operator 2

1.Warning system alert

• Source fails to return to safe
• 2. Operate interrupt on treatment console.
• Source fails to return to safe

3.Operate emergency stop button.

• Source fails to return to safe
• 4. Open treatment door, breaking interlock.
• Source fails to return to safe
• 5. Enter treatment room, operate emergency stop
• n treatment wall adjacent to machine unit.
• Source fails to return to safe
• 6. Retract source using gold mechanical crank.

Turn in direction of arrows until crank blocks.

• Source fails to return to safe
• 7. Remove applicators from patient as per

specific technique protocol.

• 8. If feasible use the long handled forceps and

wire cutters if necessary, place applicators in emergency lead container and close lid.

• 9. Move patient to maze and monitor using

Geiger Counter.

• (If radiation is detected the patient must be isolated

in treatment room, gain advice from physics/medics , locate sources and remove source/applicator into lead pot)

• 10. If no radiation detected on patient then move

patient out of room.

• 11. Close all doors and attach no-entry signs
• Reassure patient.
