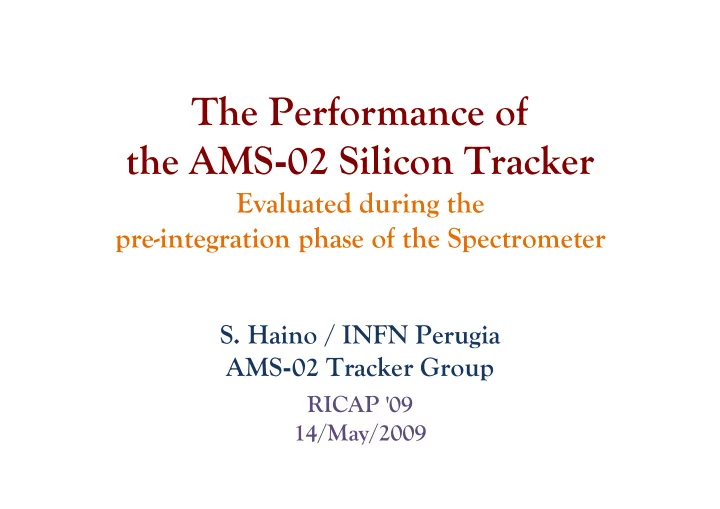

SLIDE 1 The Performance of the AMS-02 Silicon Tracker
Evaluated during the pre-integration phase of the Spectrometer
AMS-02 Tracker Group
RICAP '09 14/May/2009
SLIDE 2 Astrophysics with AMS-02
Sec.-to-pri. ratios (e.g. B/C) : Propagation models Confinement time (e.g. 10Be/9Be) : Galactic halo models Long period observation : Solar modulation
- Indirect Dark Matter signature
Antiparticle spectrum (pbar, e+, Dbar) Gamma-ray flux
- Search for antinuclei
- ... and something unexpected
SLIDE 3
Total electron flux – latest results
SLIDE 4 An example of DM interpretation
DM model :
Bergström et al. [arXiv:0905.0333] Nomura et al. [arXiv:0810.5397]
SLIDE 5 AMS-02
AMS-02 potential for e+ fraction
High energy limit mainly determined by
- 1. Spillover (e- contamination) Tracker is essential
- 2. Proton rejection
- 3. Statistics
SLIDE 6 AMS-02 Silicon Tracker
- Tracker : 192 ladders in 8 layers
- Ladder : 7~5 silicon sensors
- Sensor : Double-sided, 640(p)+384(n) ch
Ladder Ladder
1 M 2 M 3 M 4 M 5 M 6 M 7 M 9 M 10 M 11 M 12 M 13 M 2 P 1 P 3 P 4 P 5 P 9 P 7 P 6 P 10 P 11 P 12 P 13 P
P - Side
Y X
Layer 2
M - Side
640 canali Bending side (lato p)
Non bending side (lato n) 384 canali
1.2
m
N.
Tomasse* ) 110 ( m P
Y
µ =
) 208 ( m P
X
µ =
Top
view
SLIDE 7 AMS-02 Tracker : requirements
- Position resolution for MIP vertical incidence
~10 μm in p-side (Bending direction) MDR > 2 TV (MDR > 4 TV for He)
A few μm accuracy Mechanical stability
- Charge identification up to Fe (Z=26)
SLIDE 8 Alignment issues
- Mis-aligned tracker could give
"excess" of antiparticles
- Momentum reference needed
ECAL(ΔE/E = 2~3% at 100 GeV) RICH(Δβ/β = 0.1% for Z = 1) No-B run (straight track : R = ∞)
SLIDE 9 AMS-02 Tracker Alignment plan
- Alignment on the ground (straight track)
- Launch (~150 dB vibration and ~3G acceleration)
- Alignment on the ISS (straight track)
[Time limitation : a few days]
- Magnet excitation
- Alignment monitoring during the mission
Consistency check with RICH, ECAL, TRD TAS (Tracker Alignment System)
SLIDE 10 Pre-integration at CERN
September/2007 ~ June/2008
- Cosmic-ray muon data taken for 6 months
for the performance check and debug
- "Nominal" runs with the stable DAQ and
tracker thermal control for the last 2 months
field
SLIDE 11 Silicon
Tracker
Integra6on
at
CERN
11
SLIDE 12 Cosmic-ray data analysis
- Signal and noise check
- Alignment study
- Estimation of the position resolution
SLIDE 13 TIM, 21-25/ 07/2008 Alberto Oliva INFN / University of Perugia
Calibration Stability
- average dead channels fraction (DSP) = 0.04 (0.26) % for Y (X) side
- average noisy channels fraction (DSP) = 2.11 (3.36) % for Y (X) side
- average channel noise (<σ>) = 2.71 (3.31) for Y (X) side
318 calibrations (from 23 April to 10 Jun)
SLIDE 14 TIM, 21-25/ 07/2008 Alberto Oliva INFN / University of Perugia
Geometric Inefficiencies
1 mm 1 mm
- Out of ladders hits
- Out of sensor hits
- Sensitive area is reduced to a fiducial
area due to “edges” effect (1 mm)
edges effect Layer 2
SLIDE 15 TIM, 21-25/ 07/2008 Alberto Oliva INFN / University of Perugia
Signal Analysis (V): Ladders Gains
- Inclination scaling, IA-IP and VA corrections
- Refitting of the ladders Landau distributions
- a Ladder gain global spread of 7 (4) % is been achieved
Ladders have a uniform behaviour (without corrections) at the 7%
SLIDE 16 TIM, 21-25/ 07/2008 Alberto Oliva INFN / University of Perugia
Signal Analysis (VI): Hit Correlation
- Applying all the correction a unique gain is been achieved
SLIDE 17 Cosmic-ray data analysis
- Signal and noise check
- Alignment study
- Estimation of the position resolution
SLIDE 18 Alignment parameters
- 5 of 6 parameters have been checked
from the mean of linear fitting residual and corrected for each ladder (5×192 = 960 in total) - Translation (dx, dy, dz) - Rotation (dx/dy, dz/dx, dz/dy)
30~60cm 3.5cm
SLIDE 19
Alignment iteration
Before After
SLIDE 20
Alignment accuracy estimation
Data divided into 5 samples (106 tracks each)
SLIDE 21
Alignment accuracy estimation
Data divided into 5 samples (106 tracks each)
Ladder alignment (Y) σ ~2.2 μm Ladder alignment (X) σ ~2.0 μm Statistical dependence: σ = p0+p1√N
SLIDE 22 Cosmic-ray data analysis
- Signal and noise check
- Alignment study
- Estimation of the position resolution
SLIDE 23 Multiple scattering and χ2 cut
MC simulation
SLIDE 24 X Y: Bending direction
Residual distributions (two-gaussian fit)
σ1:narrow gaussian, σ12:weighted mean
Test beam Results
SLIDE 25
Resolution estimation
with a simulation including multiple scattering
SLIDE 26
X Y: Bending direction
Resolution VS angle (Ladder average)
SLIDE 27 Statistical dependece of resolution
Statistical dependence: σ = p0+p1√N
X
Y
SLIDE 28 Resolution VS SN ratio
Vertical incidence
X optimal Y effective X effective Y optimal
SLIDE 29 MDR estimated with MC
porportinal to cos3θ
cos2θ
for 1/L2
cosθ for σ
Tracker Track Effective resolution Intrinsic resolution L 2.8 1.3
CR data MC
SLIDE 30 AMS-02
AMS-02 potential for e+ fraction
High energy limit mainly determined by
- 1. Spillover (e- contamination) Tracker is essential
- 2. Proton rejection
- 3. Statistics
SLIDE 31
AMS-02 spillover estimation
(1 TV)-1
SLIDE 32
p contamination (105 rejection)
SLIDE 33 Number of events
A M S - 0 2 1 0 0 0 d a y s
( e x p e c t e d )
Fermi ~180 days (published) PAMELA ~ 500 days (published)
SLIDE 34
e+ fraction – AMS-02 expected
SLIDE 35 DM parameters (2σ)
Bergström et al. [arXiv:0905.0333] Nomura et al. [arXiv:0810.5397]
DM model :
SLIDE 36 DM fit (2σ) – AMS-02 expected
Parameters assumed
Bergström et al. [arXiv:0905.0333] Nomura et al. [arXiv:0810.5397]
DM model :
SLIDE 37
AMS-02 expected
(ATIC - KKDM model)
SLIDE 38 Conclusions
- Tracker performance estimated by CR muons
- Stable and uniform signal and noise level
- Alignment accuracy estimated as 2μm
- Position resolution achieved as designed
(σy = 10 μm at θ ~ 0) agreed with Test Beam
- Spillover limit estimated from measured
resolution ~1 TeV for e+/e- separation
