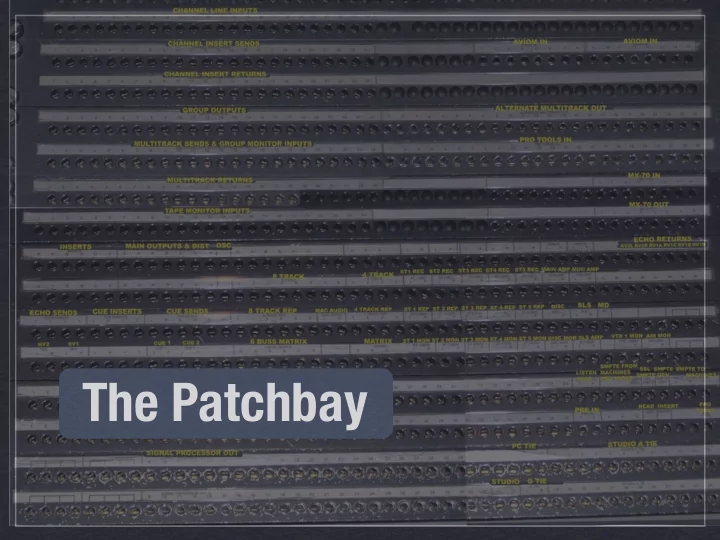

The Patchbay

slide-2
SLIDE 2

Patchbay

Allows easy routing into and between... Studio and Control room Console Inputs Console and Multitrack Recorder Console and outboard gear Different studios in one facility

slide-3
SLIDE 3
slide-4
SLIDE 4
slide-5
SLIDE 5
slide-6
SLIDE 6

Balanced XLR - large - Mic panels 1/4” TRS - common, off the shelf TT -mini (Bantam/TT) - most common

Can fit a lot of patch points in a small space

Unbalanced 1/4” TR RCA

Patchbay Plug Types

slide-7
SLIDE 7
slide-8
SLIDE 8
slide-9
SLIDE 9
slide-10
SLIDE 10
slide-11
SLIDE 11
slide-12
SLIDE 12

Rear Attachment Type

D-Sub - DB25 Multi-pin connector Punch Block Hardwired - Soldered Elco/EDAC - 8-32 channels Mirrored

slide-13
SLIDE 13
slide-14
SLIDE 14
slide-15
SLIDE 15
slide-16
SLIDE 16
slide-17
SLIDE 17
slide-18
SLIDE 18
slide-19
SLIDE 19
slide-20
SLIDE 20

Patch Jack Configurations

4 TYPES Parallel Half-Normalled Normalled also called Full Normal Open

slide-21
SLIDE 21

Parallel

I/O always connected Allows you to take the signal at input or output

slide-22
SLIDE 22

Half-Normalled

Patch out both = I/O Broken

1 2 3 4

No plugs = I/O connected Patch out top = I/O connected

Split the signal

Patch out bottom = I/O Broken

slide-23
SLIDE 23

Half-Normalled

slide-24
SLIDE 24

Normalled

Patch Out both = Broken I/O

1 2 3 4

No Plugs = I/O Connected Patch out Top = Broken I/O Patch In bottom = Broken I/O

slide-25
SLIDE 25

Normalled

slide-26
SLIDE 26

Open

I/O NEVER connected

slide-27
SLIDE 27
slide-28
SLIDE 28
slide-29
SLIDE 29

Other considerations

Mults One Input --> Multiple Outputs Nor/Half Switching Oxidation and Dust Digital Patchbays

slide-30
SLIDE 30

Metering Introduction

Two major types of Analog meters VU Meter Peak Program Meter (PPM)

slide-31
SLIDE 31

The VU Meter

  • “Volume Unit”
  • Volt Meter
  • Simulates the way we hear
  • Reads the RMS values of the signal
  • Ballistics
  • 300ms response and fallback time
  • Ignores instantaneous peaks or high transient

signals

  • Good for seeing average signal level
slide-32
SLIDE 32

The VU Meter

Calibrated to a standard dB like scale. 0 VU = +4 dBu for a steady state sine wave (1.23V rms) +8 dBu in broadcast and telephone

  • equipment. (0 VU = 1.95 V)

Digital System we choose Cal. point 0 VU = -20, -18, -16, -14, -12 dB FS

slide-33
SLIDE 33

VU Meter

Show RMS values Crest Factor - difference b/n RMS and peak level Sine wave has 3dB peak above RMS (Crest Factor) Voice and Music has typical Crest Factor 10-12 dB Easy for VU meter to miss transients

slide-34
SLIDE 34

Peak Meters

Peak Program Meter Shows the instantaneous level of input signal Doesn’t correlate with perceived loudness 10ms rise time - 3sec fallback time ~ 4db space between markings

BBC STYLE PPM

slide-35
SLIDE 35

Dorrough Loudness Meter

Shows Peak and RMS level values “Spectral Density” Average indicator Headroom

slide-36
SLIDE 36
slide-37
SLIDE 37

Digital Level Meters

Based on Digital Full Scale Bit depth determines resolution and dynamic range Relative Scales - depends on reference Peak Holds Multi Scale

slide-38
SLIDE 38

Oscilloscope Patterns

Stereo Metering Visual Imaging of Stereo Image Stereo Width Phase Problems Lissajous Patterns

slide-39
SLIDE 39

Spectrograph

Spectral Graph Frequency vs. Amplitude Varied Resolution

slide-40
SLIDE 40

Spectrogram

Time vs. Frequency vs. Amplitude Spectral Density Harmonic Structure Audio prints
