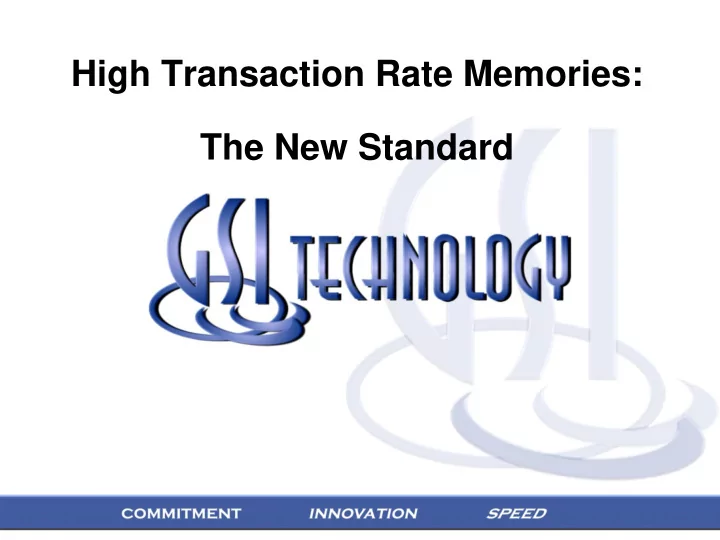

High Transaction Rate Memories: The New Standard / SigmaDDR-IIIe SigmaQuad-IIIe Quad Data Rate, B2 at 675 MHz GS8673 1.35 GHz Transaction Rate 72Mbit ECCRAM 1.35 Gb/s per pin data 97 Gb/s per part bandwidth Quad
2
SigmaQuad-IIIe
™ / SigmaDDR-IIIe ™
- Quad Data Rate, B2 at 675 MHz
- 1.35 GHz Transaction Rate
- 1.35 Gb/s per pin data
- 97 Gb/s per part bandwidth
- Quad Data Rate, B4 at 675 MHz
- 1.35 Gb/s per pin data
- 97 Gb/s per part bandwidth
- Double Data Rate, B2 at 675 MHz
- 1.35 Gb/s per pin data
- 48 Gb/s per part bandwidth
- On-Chip ECC: virtually zero SER
260 ball, 1 mm pitch BGA
GS8673 72Mbit ECCRAM
3
Development Strategy Part 1: Keep What Works
- BGA Package with 1 mm Pad Pitch
- No special assembly requirements
- Conventional Control Truth Table
- Familiar Read and Write protocols
- Echo Clocks and Output Valid Signals
- DLL-controlled Output Data timing
- Programmable Output Driver Impedance
- ZQ control of Output impedance
4
Development Strategy Part 2: Fix What Doesn’t
- Better Signal Integrity
- Larger Output Data Valid Window
- New High Performance Pinout
- User-programmable ODT (On-Die Input Termination)
- Programmable value
- Selectable input pin coverage
- KD & KD# Data Input Clocks
- Lower Signaling and Core Power Consumption
- 1.3 V VDD
- 1.2 V JEDEC BIC thru 1.5 V JEDEC HSTL I/O
5
Higher Performance Pinouts
SigmaQuad/DDR: I, II, II+ SigmaQuad/DDR: IIIe
165 BGA : 11 x 15 Array, 15 x 17 mm, 1 mm pitch 260 BGA: 13 x 20 Array, 14 x 22 mm, 1 mm pitch
6
Improved Data Valid Windows
165 BGA @ 333 MHz
40ohm driver; 60ohm thevenin termination 666 MHz data rate; 1.5 V output voltage Result: ~780ps eye @ 1500ps Tcycle 52% data valid window
Modern 260 BGA @ 500 MHz
40ohm driver; 60ohm thevenin termination 1.0 GHz data rate; 1.2 V output voltage Result: ~760ps eye @ 1000ps Tcycle 76% data valid window
~780ps ~760ps
7
Type-IIIe SRAMs - Ordering Options
Product Option: Read Latency (cycles) Speed Bins (MHz) Quad Data Rate Burst of 2 2, 3 500 550 625 675 Quad Data Rate Burst of 4 2, 3 500 550 625 675 Double Data Rate Burst of 2 2, 3 500 550 625 675
8
Type-IIIe SRAMs are Qualified and Shipping in Volume
